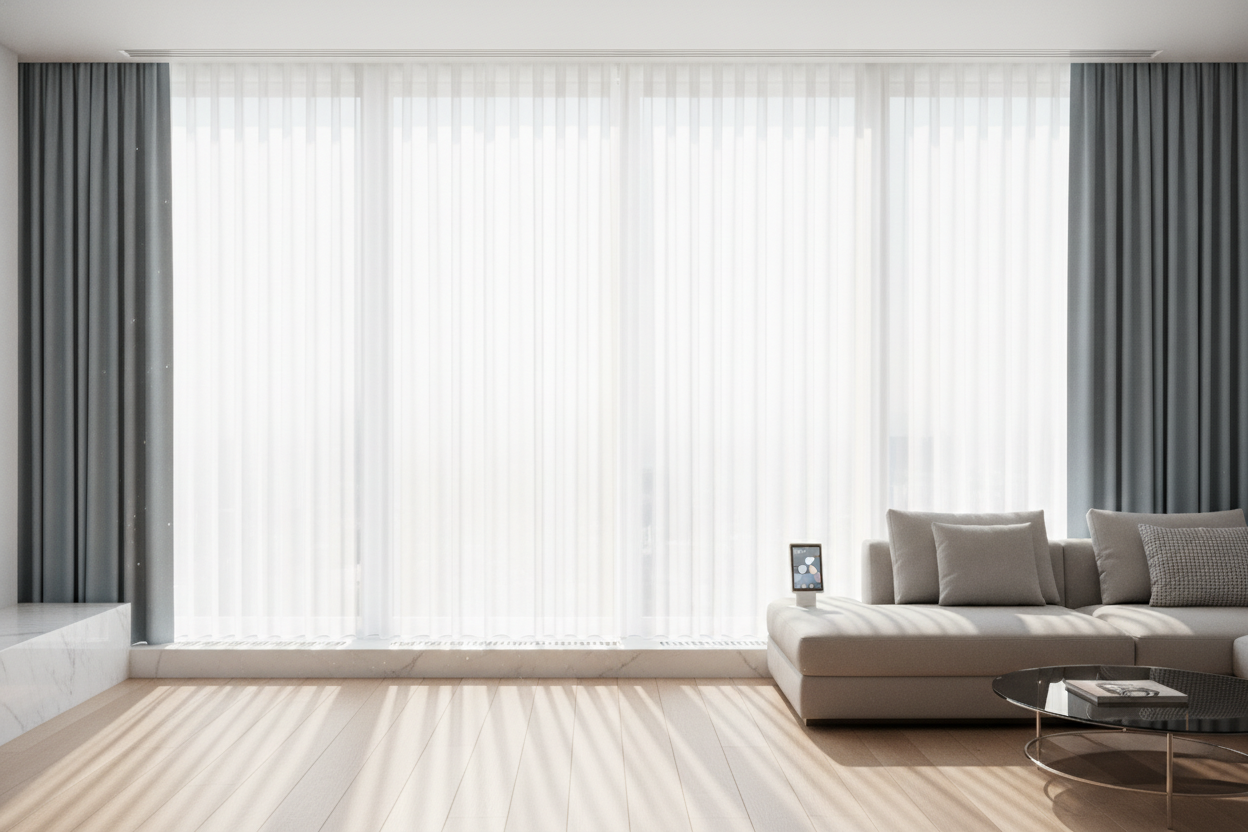

3 Rules for Automating Mixed Curtain Panels (Without Tangling)

I spent three hours on a ladder last Saturday trying to recreate the vibe of a high-end London hotel suite. I bought two different sets of mixed curtain panels, thinking I could just clip them onto the same motorized rod and call it a day. I was wrong. Within ten minutes, the motor sounded like a dying blender and my expensive sheers were being chewed up by the heavy blackout fabric.

• Never put two different fabric weights on one motor track.
• Dual-track systems are the mandatory standard for layered looks.
• Leave at least 2.5 inches of clearance between your mounting brackets.
• Set independent routines for your sheer and blackout layers.

The 'Hotel Look' Disaster

The goal was simple: a thick, velvet-like layer for sleeping and a light, airy sheer for daytime privacy. I tried to cheat the system by alternating the carriers on a single Zigbee-powered track. I figured if I put one hook from the sheer and then one from the drape, they would move together like a synchronized dance team. They didn't.

The moment I triggered the 'Morning' routine, the heavy fabric created a massive amount of friction. Because the sheer fabric has almost zero weight, it wanted to fly across the track, while the heavy panel lagged behind. The result was a chaotic mess of bunched fabric that looked like a laundry pile hanging from my ceiling. Worse, the motor hit its torque limit and stalled halfway, leaving me with a window that was half-covered and a motor that smelled suspiciously like hot electronics.

Why Mixing Curtains on a Single Track Is a Terrible Idea

When you start mixing curtain panels on a single carrier, you are fighting basic physics. A heavy drapery panel has significant inertia. It takes more force to start it moving and more force to stop it. When you pair that on the same belt or chain as a lightweight sheer, the tension is never even.

The carrier wheels are designed to stay vertical. When a heavy drape drags, it pulls the top of the carrier backward, causing it to tilt. In a single-track setup, this tilt causes the wheels to bind against the aluminum rail. I have seen high-end motors with 1.2Nm of torque—plenty for a single heavy drape—completely seize up because the sheer fabric got sucked into the drive gear. It is a recipe for a hardware failure that your warranty probably won't cover.

The Dual-Track Fix for Mixed Curtain Panels

The only real way to handle mixing curtains is to commit to a dual-track system. This means two separate rails, two separate motors, and two separate power drops. It sounds like overkill until you see it in action. By separating the layers, you allow each fabric to move at its own natural pace without interfering with the other.

For my setup, I eventually installed Thalos blackout drapes on the front track. These are heavy, substantial drapes that need a motor with a soft-start feature to prevent jerky movements. Behind them, on the track closer to the glass, I ran insulated sheer curtain panels. This dual-motor approach means I can keep the sheers closed all day to keep the room cool while the heavy drapes are tucked neatly at the sides.

Spacing Your Tracks So Fabrics Don't Bind

The biggest mistake people make with dual tracks is mounting them too close together. If your tracks are only an inch apart, the 'S-fold' or pleats of the front drape will rub against the back layer every time they move. This friction is the silent killer of battery life. I recommend a minimum of 2.5 inches between the center of the first track and the center of the second. If you have deep pleats, go for 3 inches. It might look like a wide gap from the side, but it ensures the motors never have to fight fabric-on-fabric resistance.

Matching Fabric Styles for Smooth Automations

Aesthetics matter just as much as the mechanics. If you want a look that isn't too 'heavy,' Selene drapes are a fantastic mid-weight option for the front layer. They offer enough structure to look premium but won't strain a battery-powered motor as much as a full velvet drape would. For south-facing windows, I have even seen people swap the traditional sheer for solar curtain panels. These provide a technical, modern look while doing the heavy lifting of UV protection, and they slide much smoother than traditional lace sheers.

How I Group Them in My Smart Home App

Once the hardware is solid, the magic happens in the app. I don't group the two motors as one device. Instead, I create 'Scenes.' My 'Cinema' scene closes the back sheers first, then waits five seconds before closing the heavy blackout drapes. This prevents the two layers from potentially snagging on each other if there is any breeze from an open window. My 'Morning Wakeup' only opens the blackout layer at 7:00 AM, keeping the sheers closed so I can walk around in my pajamas without giving the neighbors a show. That kind of granular control is exactly why we automate in the first place.

FAQ

Can I use one solar panel to charge two motors?

Usually, no. Most solar chargers are rated for the draw of a single motor. Splitting the power often results in neither motor getting a full charge, leading to 'ghost' stops where the curtains quit halfway through a routine.

Do I need a double curtain rod or two separate tracks?

For automation, you want two separate tracks. Most 'double' motorized rods are actually just two tracks sold in one box. Ensure they can be mounted independently so you can adjust the spacing for your specific fabric thickness.

Will my curtains fall off if the motor moves too fast?

Not if you use the correct carriers. Most smart tracks use 'enclosed' carriers where the hook goes through a hole, rather than just resting on top. As long as your hooks are secure, the speed of the motor won't be an issue.
