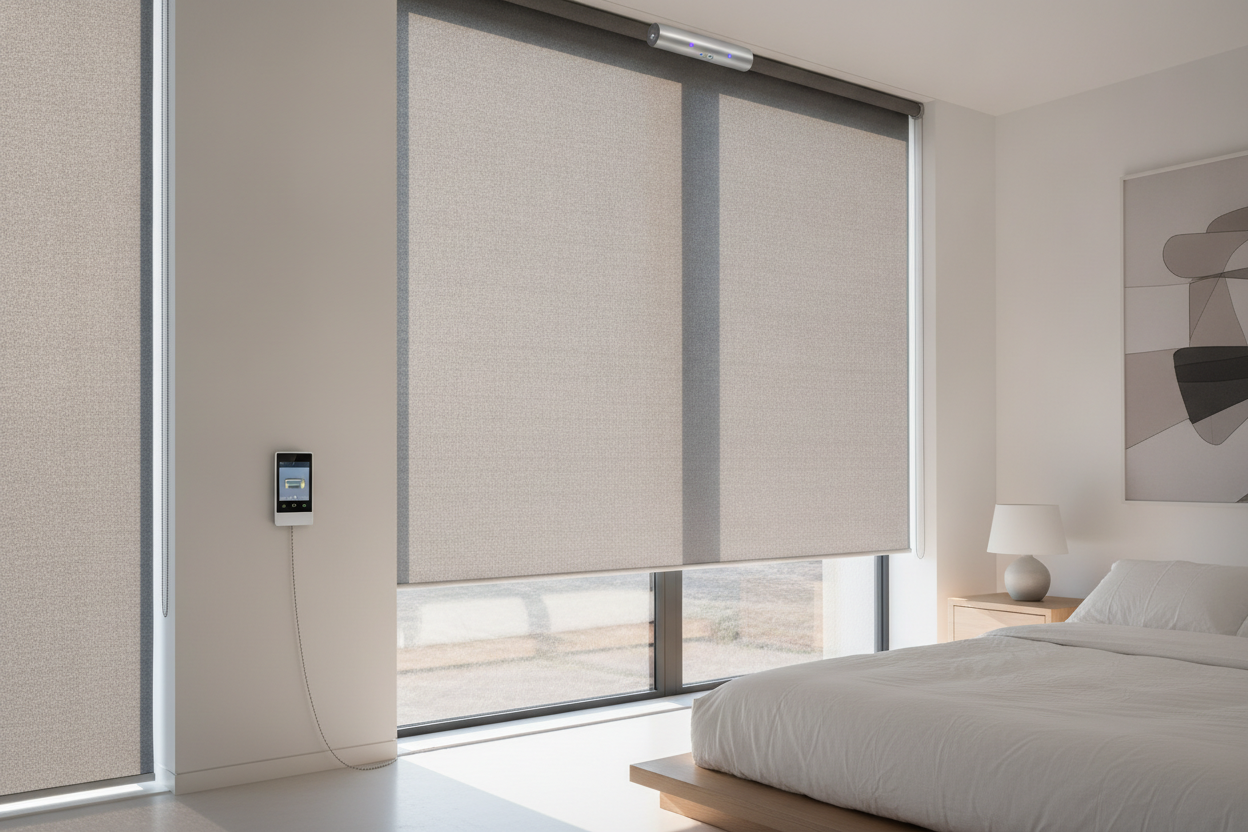

Are Fabric Pull Down Window Shades Too Heavy for Smart Motors?

I spent three hours hanging a custom-woven shade only to watch my motor struggle like a toddler trying to pull a wagon full of bricks. If you hate the look of hospital-grade vinyl, you've probably looked into fabric pull down window shades to add some warmth to your living room. The problem is, most smart motors are built for the weight of a paper towel, not high-end upholstery fabric.

• Torque is king: Look for at least 1.1Nm for heavy cloth.
• Tube diameter: 38mm is the minimum to prevent motor strain.
• Battery drain: Heavy shades can cut battery life from 6 months to 6 weeks.
• Fabric choice: Always test a swatch before buying 10 yards.

The Problem with Thick Cloth and Tiny Motors

Most consumer-grade smart motors are rated for thin, lightweight materials. When you try to use cloth pull down shades made of heavy linen, denim, or double-layered blackout fabric, you're asking for trouble. The motor has to work twice as hard to overcome the initial inertia. I’ve seen motors that usually whisper suddenly start whining like a jet engine because the torque limit is being pushed to the absolute edge.

Standard motors are often rated at 0.5Nm or 0.8Nm. That is fine for a 3-foot window with a thin screen, but it’s a death sentence for heavy fabric. When the motor is under-specced, you get agonizingly slow rolls. It’s not just annoying; it’s a hardware killer. The heat builds up in the motor housing, the plastic gears start to shave down, and eventually, the internal brakes fail. You’ll know it’s happening when the shade starts to 'creep' down an inch or two every day because it can't hold its own weight.

Then there is the battery issue. A motor struggling with heavy fabric pull down window shades will eat through a Lithium-ion charge in a month. You’ll spend more time on a ladder with a charging cable than you will actually enjoying your automation. If you want a setup that doesn't require a maintenance schedule, you have to respect the weight limits of the engine.

Calculating the True Weight of Fabric Pull Down Window Shades

Before you buy your fabric, you need to do some basic math. Most DIYers just think about the width of the window, but the weight per square meter is what actually matters. If you are looking at heavy canvas or velvet, you are likely looking at 400g to 600g per square meter. Compare that to standard smart Roller Shades, which often weigh half that. A 5-foot by 5-foot window with heavy fabric can easily hit 5 or 6 pounds before you even add the bottom bar.

Don't forget the bottom hem bar. To keep cloth pull down shades from curling at the edges, you usually need a heavy aluminum or steel bottom rail. This adds another pound of 'dead weight' that the motor has to lift from a dead stop. This is the moment of maximum torque. If the motor can't handle the 'breakaway' weight, it won't move at all, or it will trigger an obstacle detection error and just stop.

Check your motor’s Nm (Newton Meter) rating. For a standard window with heavy fabric, you want a minimum of 1.1Nm. If you are doing a large picture window or a sliding glass door, don't even look at anything under 2.0Nm. I’ve learned the hard way that 'saving' $30 on a lower-torque motor results in spending $150 later to replace the one that burned out. It’s better to over-spec the motor and let it run at 50% capacity than to run a weak motor at 95% capacity every morning.

Why Tube Diameter Is Your Secret Weapon

Physics is either your best friend or your worst enemy here. Most cheap roller kits use a 25mm or 28mm tube. That’s tiny. When you roll up thick fabric on a tiny tube, the roll grows in diameter very quickly. This creates a massive amount of leverage against the motor. It’s like trying to lift a bucket of water with your arm fully extended versus holding it close to your body. Upgrading to a 38mm or 45mm aluminum tube is the single best thing you can do for your motor’s longevity.

A larger tube means the motor doesn't have to spin as many times to lift the shade. It also provides a more stable platform for the fabric. Thick fabric pull down window shades have a tendency to 'telescope' or roll crooked if the tube is too thin and starts to bow in the middle. A 38mm tube is much stiffer and keeps the fabric tracking straight. If you're wondering how to fit a motor into these larger tubes, check out my automating fabric pull down window shades the smart guide for a breakdown of adapter crowns and drive wheels.

Another benefit of the larger tube is the gap between the tube and the window frame. Thick fabric takes up space. If your tube is too close to the bracket, a heavy roll of fabric will eventually rub against the top of the window frame or the mounting brackets. This friction adds even more load to the motor. A larger tube and proper heavy-duty brackets ensure that even a thick roll of velvet has plenty of clearance to spin freely.

Testing Lighter Alternatives Before Committing

Sometimes the best way to motorize a heavy look is to not use heavy fabric at all. You can get the warmth and texture of woven cloth without the weight penalty if you choose the right material. I always suggest ordering swatches before you commit to a full roll of fabric. Using something like Weffort Fabric Sample Sheer Shades allows you to see how the light interacts with the weave while keeping the weight manageable for standard 12V or battery motors.

Look for 'high-performance' fabrics that mimic the look of natural linen but are made of lighter synthetic blends. These fabrics are often more dimensionally stable, meaning they won't stretch or sag over time like 100% natural cotton or heavy canvas might. If you love the look of cloth pull down shades but have a massive window, a lighter woven material is your best bet to avoid needing an industrial-grade AC motor.

If you absolutely must have that heavy blackout velvet feel, consider a 'duo' setup. Use a lightweight sheer fabric on a motorized roller and keep the heavy velvet as a stationary side curtain. It gives you the aesthetic of a fully dressed window without the mechanical headache of trying to lift ten pounds of fabric with a battery-powered engine. It’s all about working smarter, not harder.

My Go-To Motor Specs for Heavy Fabric Setups

When I’m building a setup for heavy fabric pull down window shades, I have a specific checklist. First, if I can get a wire to the window, I go with a 110V AC motor. Hardwired motors have significantly more torque than battery versions and you never have to worry about the 'low battery' beep at 3 AM. If wiring isn't an option, I only use high-capacity Zigbee motors. Zigbee is much more reliable for heavy loads because the two-way communication tells me exactly where the shade is, even if it’s moving slowly due to weight.

My final checklist for success: use a 38mm aluminum tube, a motor with at least 1.1Nm of torque, and heavy-duty metal brackets. Avoid plastic brackets at all costs—they will flex under the weight of heavy cloth and cause the motor to bind. If you follow these specs, your shades will roll up smoothly every time you say 'Alexa, movie time,' and you won't have to worry about the smell of burning electronics ruining your popcorn.

How do I know if my fabric is too heavy?

Weigh a one-yard sample of the fabric. If the total weight of the fabric plus the bottom bar exceeds 80% of your motor’s rated lift capacity, you need a stronger motor or a lighter fabric. Never run a motor at its absolute maximum rating.

Can I use a 25mm motor in a 38mm tube?

Yes, but you need a specific adapter kit (crown and drive) made for that motor brand to fit the larger tube. This is a common upgrade for people moving from thin vinyl to cloth pull down shades.

Why does my motor stop halfway up?

This is usually the 'stall protection' kicking in. The motor senses too much resistance (weight or friction) and shuts down to prevent overheating. Check for fabric rubbing against the brackets or upgrade to a higher torque motor.
