Auto Blackout Shades Architecture: Motorization Mechanics, Light-Gap Physics, and Smart Automation

The Anatomy of Auto Blackout Shades: Mechanical and Electrical Fundamentals

Achieving total light exclusion requires an integrated architectural system rather than simply hanging opaque cloth over an opening. At the core of auto blackout shades sits a motorized barrel assembly engineered to handle textile weight, roller tension, and repetitive cycling without sagging or drifting off-center. When looking across the broader blackout roller shades collection, the essential mechanical hardware typically pairs a rigid extruded aluminum tube with a compact cylindrical motor seated directly inside the barrel.

The fabrics chosen for an automatic blackout shade differ significantly from standard translucent shades. Blackout textiles utilize composite constructions, combining dense woven yarn layers with polymer or acrylic backing films to halt daylight transmission across the entire surface of the fabric. Because these layered materials possess notable thickness and weight, the tubular motor must deliver steady torque to rotate the barrel evenly across long drops. Improper tube diameters or insufficient motor torque can lead to uneven deflection, causing the fabric to track diagonally across the barrel during movement.

Power Distribution Architecture: Rechargeable Battery vs. Hardwired Line Voltage

Selecting the power delivery model shapes both the upfront installation workflow and ongoing routine operation. Residential installations for electric blackout shades generally follow two distinct engineering approaches: internal rechargeable power cells or hardwired continuous current.

• Rechargeable Battery Motors: Designed primarily for retrofits and spaces where routing wire inside finished drywall is impractical. The battery pack resides directly inside the motor housing within the roller tube. Charging is conducted via accessible external ports or magnetic charging cables dropped temporarily from the bracket.
• Hardwired Low-Voltage and Line-Voltage Systems: Best suited for major renovations or new construction. Direct wiring eliminates periodic manual charging, providing continuous reliability across clusters of motorized blackout roller shades. Dedicated power distribution enclosures centralize transformers, reducing clutter at the window casing.

When selecting a self-contained unit like a dedicated motorized blackout roller product, evaluating the physical depth of the head jamb ensures there is adequate clearance for charging access and bracket placement without binding the shade fabric.

Resolving the Light Gap: Mounting Geometry, Fascias, and Side Tracks

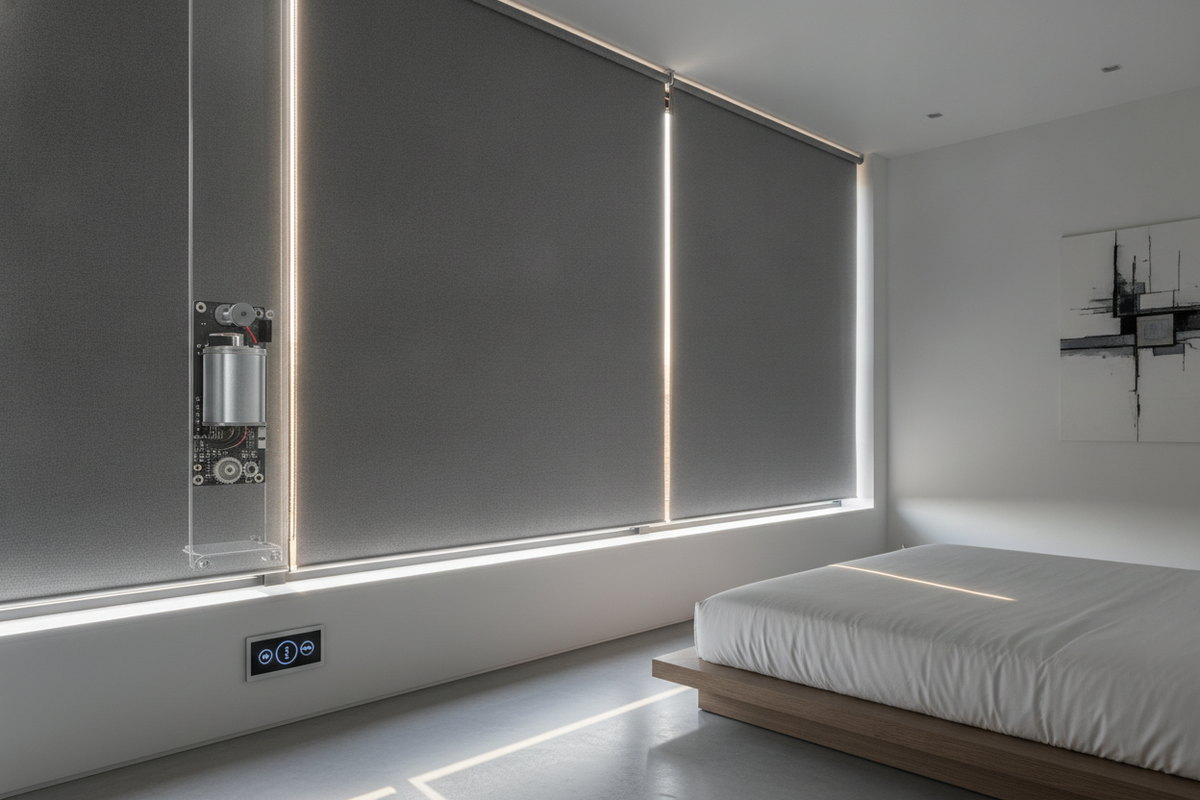

The greatest challenge in blackout shade installations is peripheral light leakage. Even with an entirely opaque fabric, basic roller shade designs require mechanical clearances on both sides for mounting brackets, the drive motor head, and the idler pin. Consequently, an inside-mounted shade panel leaves noticeable margins along both vertical jambs where direct sunlight penetrates into the room.

To overcome this issue, motorized blackout shades with side tracks use vertical channels fastened along the window frame. These U-shaped aluminum or polymer channels house internal brush seals or flexible liners that capture the outer edges of the fabric as the shade lowers, physically sealing off peripheral edge glow. For a comprehensive overview of managing light bleed across the top header roll, our motorized blackout blinds guide outlines how cassettes, valances, and cornice boxes seal the light gap above the roller tube.

Outside-mount configurations provide an alternative approach when side tracks are undesirable. By mounting the shade hardware onto the wall face or casing trim and sizing the textile to overlap the window frame openings substantially on all sides, the perimeter light halo is effectively blocked by structural trim.

Control Interfaces and Automation Workflows

Controlling smart blackout shades extends far beyond basic wall switches. Modern automated environments rely on layered control protocols designed to accommodate different daily habits and lighting conditions:

• Handheld Multi-Channel Transmitters: Standalone radio-frequency remotes deliver direct, low-latency control over single windows or synchronized groups without requiring active network infrastructure. Choosing dedicated remote control blackout shades ensures reliable local operation during network maintenance.
• Timer and Sun-Tracking Automations: Implementing a motorized blackout shades with timer routine allows homeowners to synchronize shade positions with sunrise, sunset, or sleeping schedules. To explore how scheduled shading enhances sleep quality and daily rhythms, consult our dedicated motorized blackout shades guide.
• Smart Hub Integration: Connecting shades to local automation bridges translates proprietary radio frequencies into unified smart home standards such as Zigbee, Z-Wave, or Matter over Thread. This enables automated scenes where pressing a single button closes blackout shades, dims architectural lighting, and activates home entertainment equipment simultaneously.

Specifying Auto Blackout Shades Across Key Residential Zones

Every living space presents unique functional demands that determine shade layout, mounting style, and motor capabilities:

• Bedrooms and Nurseries: These environments demand complete light occlusion and whisper-quiet motor operation. Utilizing inside mounts paired with brush-lined side channels and cassettes ensures midday naps and early bedtimes remain unaffected by street lamps or bright morning sunlight.
• Home Theaters and Media Rooms: Projector setups require high-performance light management to preserve screen contrast. Pairing wide-span automated shades with smart lighting scenes creates seamless cinematic transitions at the touch of a button. For premium living spaces requiring clean design lines alongside heavy blackout fabrics, choosing a tailored motorized blackout roller product ensures dependable daily performance.
• Deep Bay Windows and Corner Glass: Multi-panel configurations require careful measurement of bracket intersection points. Staggering motor head orientations and verifying corner clearances ensures neighboring panels operate smoothly without fabric abrasion or binding.

Installation Planning and Calibration Checklist

Proper installation and alignment are crucial for long-term motorized shade performance. Follow these technical guidelines when setting up automatic window treatments:

• Verify Window Squareness: Use a precision level to confirm that the head jamb, side jambs, and sill are level and plumb. Even minor out-of-square conditions can cause blackout fabric to telescope toward one side of the roller barrel, eventually fraying the fabric edges against the mounting bracket.
• Electronic Limit Calibration: Set the upper and lower travel limits carefully during initial commissioning. The lower limit should allow the hem bar to sit flush against the sill without buckling the fabric, while the upper limit should keep the hem bar resting cleanly just below the roller cassette.
• Maintain Mechanical Pathways: Periodically check side tracks to confirm they are clear of dust and debris, and ensure that battery access points remain reachable without dismounting the entire mechanical assembly.
