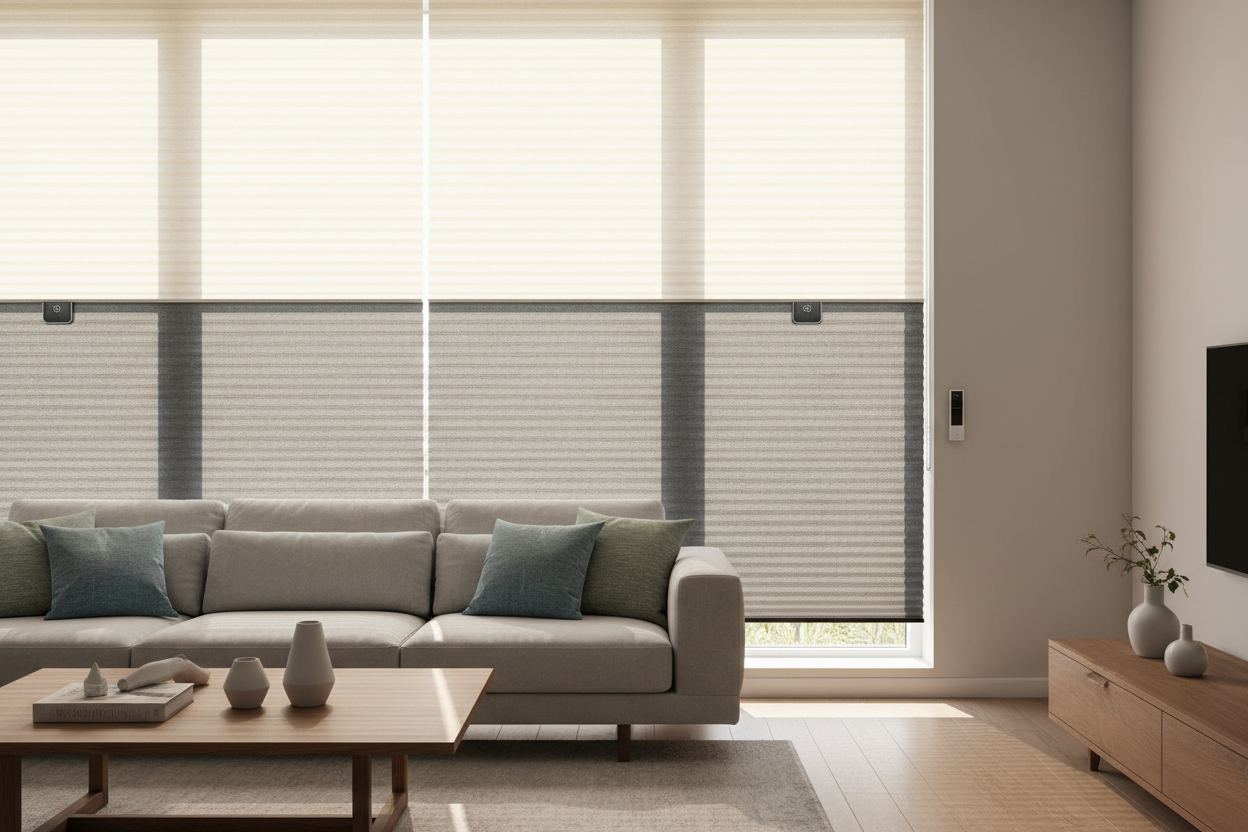

Automate Day and Night Honeycomb Shades for Perfect Lighting

Imagine this scenario: It’s Saturday morning. You want natural light to flood the room, but you aren't ready to sacrifice privacy to the neighbors walking by. Instead of manually adjusting cords on five different windows, you simply say, "Alexa, start morning mode." Your blackout layer retracts, and the sheer cellular fabric slides into place, diffusing the sunlight perfectly.

This isn't sci-fi; it's the standard for modern smart homes. Day and night honeycomb shades—often called dual shades—offer the best of both worlds: superior insulation from the cellular structure and variable light control. But when you add automation to the mix, you transform them from a static window treatment into an active part of your home's climate and lighting ecosystem.

Quick Compatibility Check: Smart Specs

Before drilling holes or ordering custom widths, you need to know if the motor tech fits your current ecosystem. Here is the technical breakdown for most modern smart shade retrofit kits and custom units.

Motorization Dynamics: Handling Dual Fabrics

Unlike standard roller blinds, day night honeycomb shades carry twice the fabric weight. You have a sheer pleated layer and a blackout cellular layer sharing a single headrail. This impacts your motor choice significantly.

Torque and Weight Capacity

If you are looking at a retrofit solution (like adding a motor to an existing chain), a standard 0.5Nm motor won't cut it. You need a motor capable of lifting the combined stack weight. Look for high-torque motors (minimum 1.1Nm) to prevent the motor from stalling or burning out halfway up the window.

Noise Levels (dB)

In a bedroom setting, the acoustic footprint of the motor matters. Hardwired motors tend to be quieter because they don't rely on a gearbox designed to maximize battery efficiency. A premium smart motor should operate under 40dB. If the spec sheet says "<55dB," expect it to sound like a small vacuum cleaner—likely too loud for a wake-up routine.

Power Options and Installation

When installing day and night honeycomb shades, you generally have two paths regarding power, each with specific trade-offs.

Battery Powered (Retrofit Friendly)

Most DIY-friendly options use internal lithium-ion batteries. The advantage is zero wiring; you just mount the brackets and clip the headrail in. Modern motors use USB-C for charging. However, because these shades are heavier, expect to charge them every 3-4 months rather than the standard 6-month cycle of single-layer shades.

Hardwired (DC Power)

If you are renovating, run low-voltage wire (12V or 24V) to the window headers. This eliminates charging entirely and acts as a Zigbee repeater for your mesh network. This is the "set and forget" method preferred by integrators.

Living with Day and Night Honeycomb Shades: Day-to-Day Reality

I’ve had a motorized dual-shade setup in my master bedroom for about eight months now, utilizing a Zigbee-based motor connected to a Hubitat elevation hub. Here is the unpolished truth about living with them.

First, the "hum" is distinct. In the dead silence of 6:00 AM, even a 35dB motor sounds noticeable. It’s not annoying, but it’s definitely a mechanical whir that signals the house is waking up before I am. I actually had to adjust my automation to trigger 5 minutes after my alarm, because the sound of the shade motor became my accidental alarm clock.

Another nuance is the "stacking" visual. When fully retracted, day and night honeycomb shades have a thicker stack at the top than standard blinds because both fabrics have to compress. If you have shallow window frames, the headrail might protrude into the room slightly more than you expect. Also, regarding the "smart" aspect: there is often a 1-2 second latency between the voice command and the movement if you are using a cloud-based integration (like Alexa) versus a local hub. It’s a minor detail, but when you say "Close the shades" to stop glare on the TV, that two-second pause feels surprisingly long.

Conclusion

Upgrading to automated day and night honeycomb shades is one of the most functional changes you can make to a smart home. It moves beyond the novelty of smart lights and offers genuine thermal regulation and privacy control. Whether you choose a retrofit motor for your existing blinds or a custom hardwired solution, the convenience of voice-controlled natural light is unmatched.

Frequently Asked Questions

Can I operate them manually if the power goes out?

Generally, no. Most motorized cellular shades lock the gear mechanism when not powered. However, some hybrid models offer a "manual override" pull cord, though these are rare in the smart home market.

Do I need a specific hub?

It depends on the connectivity. Wi-Fi motors connect directly to your router (no hub needed). Zigbee or Z-Wave motors require a gateway (like a Bond Bridge, SmartThings, or Hubitat) to bridge the connection to Alexa or Google Home.

How is the insulation compared to regular curtains?

Superior. The honeycomb structure traps air, creating a thermal barrier. By automating them to close during the hottest part of the day, you can passively lower your HVAC usage.
