Automate Drawstring Blinds in 10 Minutes
Imagine settling onto the couch for a movie marathon, popcorn in hand, only to realize the glare on the TV is unbearable. Instead of pausing the film and physically wrestling with cords, you simply tap your phone or mutter a command to Alexa. This isn't just for luxury homes anymore; retrofitting your standard drawstring blinds is one of the most accessible DIY smart home upgrades available today.
Whether you are dealing with heavy wooden slats or lightweight cellular shades, adding automation to your existing window treatments improves energy efficiency and home security. Below, we break down how to turn those manual pull cords into intelligent, voice-controlled assets without buying entirely new window coverings.
Quick Compatibility Check
Before buying a retrofit driver, verify your current setup against these standard specs. Not all motors handle every cord thickness.
| Feature | Specification Standard |
|---|---|
| Mechanism Type | Beaded Chain (Plastic/Metal) or Smooth Cord (1.5mm - 5mm) |
| Connectivity | Bluetooth (Direct), Zigbee (Hub Required), or WiFi (2.4GHz) |
| Power Source | Rechargeable Li-ion Battery or Solar Panel add-on |
| Max Lift Capacity | Typically 8lbs - 12lbs (Check torque rating) |
Installation: The Retrofit Approach

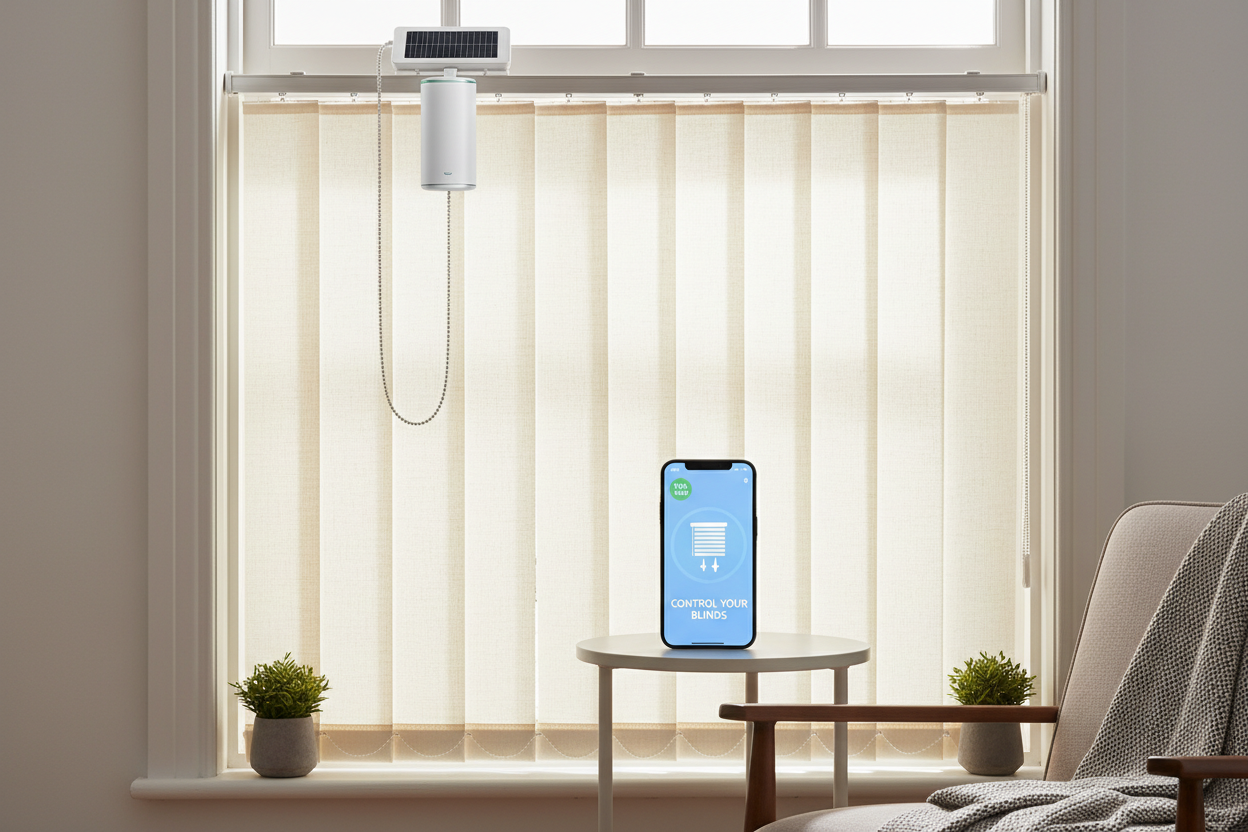

Unlike installing integrated smart shades, automating drawstring window blinds doesn't require removing the headrail. The hardware is a "blind driver"—a small motor box that mounts to your window frame or wall. The internal gear grips the existing cord or bead chain to pull it for you.
Mounting and Tension
Most kits come with 3M VHB tape and screws. While the tape is convenient, I strongly recommend using the screws. The torque required to lift window blinds with strings creates significant tension. Over time, adhesive tends to fail, causing the motor to slip and lose its calibration limits.
Gear Selection
Your kit will likely include multiple gear wheels. You must match the gear specifically to your rope blinds. If you use a gear designed for a beaded chain on a smooth nylon cord, the motor will spin without gripping, or worse, fray the rope.
Power Options and Battery Reality
Most retrofit drivers for window blinds with pull cords utilize internal lithium-ion batteries. Manufacturers often claim 3 to 6 months of battery life, but this varies heavily based on usage and the weight of your blinds.
- Solar Panels: Many units include a small solar strip to stick on the glass. If your window faces North or is shaded by an overhang, this panel won't generate enough trickle charge to offset daily usage.
- Plug-in Adapters: If you have an outlet nearby, keeping the unit plugged in eliminates battery anxiety entirely, though it introduces a visible wire.
Smart Integrations & Performance
The real magic happens in the software. Once calibrated (setting the top and bottom open positions), you can link the device to your ecosystem.
Noise Levels
Retrofit motors are generally louder than native smart blinds. Expect noise levels between 40dB and 55dB. It sounds like a small RC car engine. It’s noticeable, but usually brief.
App Features
Look for apps that support "Light Sensing" if the device has a built-in lux sensor. This allows blinds with pull cord mechanisms to close automatically when the afternoon sun hits a certain intensity, protecting your furniture and lowering cooling costs.
Living with Drawstring Blinds: Day-to-Day Reality
I’ve been running a Zigbee-based retrofit driver on the window blinds with strings in my home office for about eight months now. Here is the unvarnished truth about living with them.
The first thing you notice is the sound frequency. It's not just the volume; it's the high-pitched whine of the tiny gearbox struggling against gravity. In a busy living room, you won't hear it. In a silent bedroom at 6:00 AM, however, it acts as a secondary alarm clock. I actually had to adjust my automation to open the blinds after my alarm goes off, rather than using the sunlight to wake me up, simply because the motor noise was too jarring in a dead-silent room.
Another nuance is the "slack" delay. When I ask Google Assistant to "open the office," the motor starts spinning instantly, but the blinds don't move for about 1.5 seconds. The motor has to take up the microscopic slack in the cord before the bottom rail lifts. It’s a small detail, but it makes the system feel slightly less premium than a hardwired roller shade. However, considering I spent $60 instead of $400, it’s a trade-off I’m happy to make.
Conclusion
Automating your drawstring blinds is the most cost-effective entry point into smart shading. It removes the danger of dangling loops for pets and children and adds significant convenience. While they may be noisier than high-end integrated systems, the ability to retrofit your existing decor makes this a winning upgrade for most smart home enthusiasts.
Frequently Asked Questions
What happens if the battery dies? Can I use the cord manually?
Generally, no. The motor gears lock the cord in place. To operate window blinds with pull cords manually, you usually have to pop the cover off the device and disengage the chain from the gear, which is inconvenient. Keeping them charged is essential.
Do I need a hub for these motors?
It depends on the protocol. Bluetooth versions work directly with your phone but have limited range. WiFi versions connect directly to your router but drain batteries faster. Zigbee versions offer the best balance but require a compatible hub (like a SmartThings, Hubitat, or Echo with Zigbee).
Will this work on continuous loop cords?
Yes, continuous loops are actually the ideal use case for these drivers. If you have standard split strings (where pulling one side locks the blind), you will need to modify the setup to ensure the locking mechanism stays disengaged.
