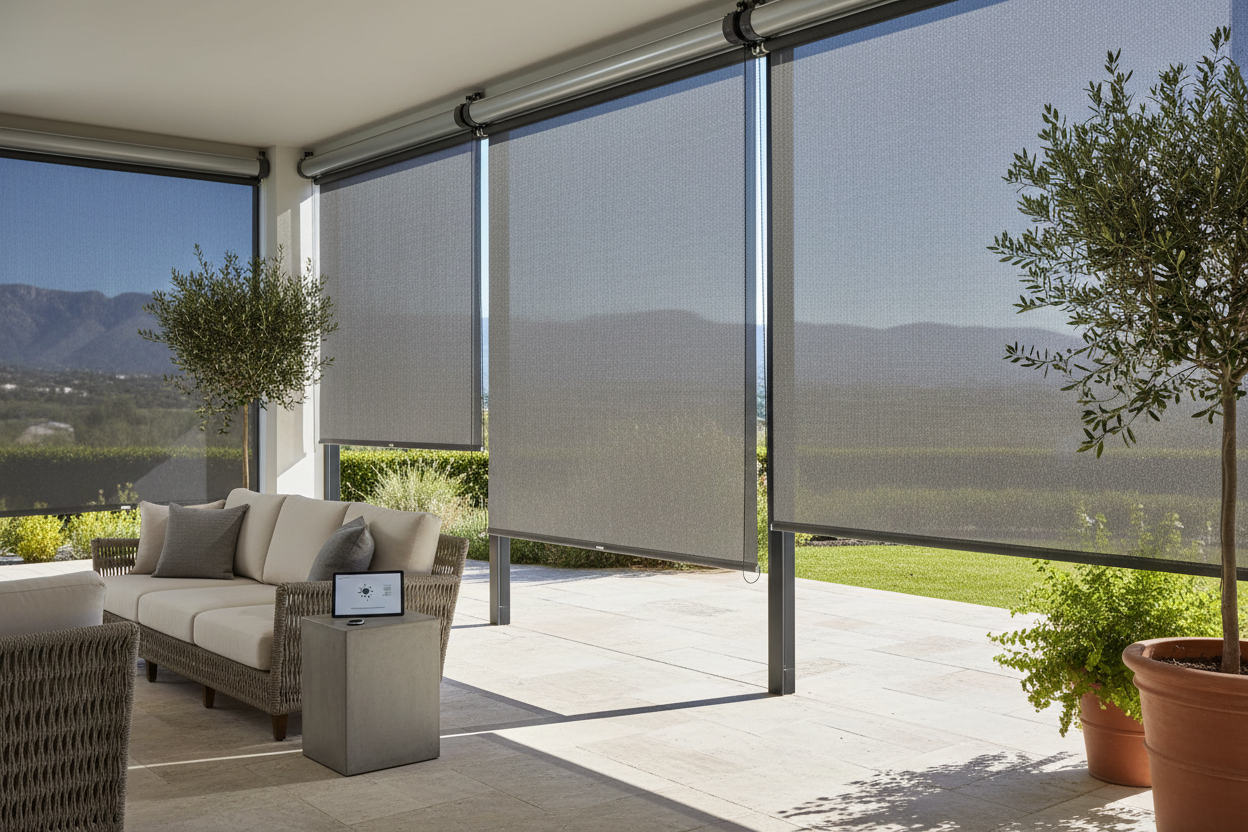

Automate Your Patio: The Ultimate Heavy Duty Outdoor Roller Shade Guide

Picture this: It’s late July, 4:00 PM. You’ve got the game on the outdoor TV, but the glare is rendering the screen unwatchable. Instead of getting up to manually crank a handle for five minutes in the heat, you simply say, “Alexa, lower the patio shades.” The glare disappears, and the temperature drops ten degrees instantly. This is the practical reality of integrating a heavy duty outdoor roller shade into your smart home ecosystem. It isn't just about shade; it's about extending your living space with intelligent automation.

Quick Compatibility Check: Smart Motor Specs

Before buying fabric, you need to understand the motor. Outdoor shades require higher torque than indoor blinds due to wind resistance and heavier materials. Here is the breakdown of what to look for when shopping for smart-ready outdoor shading.

Feature	Recommendation	Notes
Motor Torque	10Nm - 50Nm	Required for heavy duty outdoor sun shades over 8ft wide.
Connectivity	Zigbee / RTS (433MHz)	RTS often requires a bridge (like Bond or Somfy TaHoma) for WiFi/App control.
Power Source	Hardwired (120V)	Battery motors often struggle with the weight of outdoor PVC fabrics.
Wind Rating	Class 3 (up to 30mph)	Look for zipper-track systems for stability.

Installation Types: Cable Guides vs. Zip Tracks

When automating, the physical guide system matters as much as the motor. If the shade binds, the smart motor’s obstacle detection will trip, leaving your shade stuck halfway.

Cable Guide Systems

These use tensioned steel cables on either side of the heavy duty outdoor solar shades to keep the bottom bar from swinging. While easier to install, they allow the fabric to billow in high winds. If you live in a breezy area, your motor may overwork trying to retract a billowing sail.

Zip Track / Side Channel

For a true "smart home" reliability, this is the gold standard. The fabric edges are locked into side channels (like a zipper). This creates a bug-proof seal and allows the motor to operate smoothly without wind interference. However, installation requires precise leveling; if the tracks aren't perfectly parallel, the motor will stall.

Power Options & Noise Levels

Unlike indoor shades where a 25mm battery motor is silent, outdoor motors are beasts. A typical hardwired 120V outdoor motor runs at about 45dB—similar to a quiet refrigerator. It’s audible, but not intrusive outdoors.

Hardwired (Recommended): If you are building a pergola or retrofitting a patio, run 120V power to the header. Hardwired motors offer the highest torque (lifting capacity) and instant response times to voice commands.

Solar/Battery: Viable only for smaller setups. If you choose a heavy duty semi-sheer outdoor roller shade, the lighter weight might allow for a rechargeable lithium-ion motor. Just be aware that cold weather drains outdoor batteries faster than indoor ones.

Smart Integrations and Sensors

Most heavy-duty motors (like Somfy or Rollease) use Radio Frequency (RF). To get them into HomeKit, Alexa, or Google Home, you need a bridge. The Bond Bridge Pro is a favorite in the installer community because it translates that RF signal into WiFi locally, reducing latency.

The Critical Add-On: Wind Sensors. If you automate nothing else, add a wind sensor. This small device mounts to the frame and detects vibration. If the wind exceeds a threshold, it overrides your automation and retracts the shade to prevent damage. Do not rely on internet weather data for this; you need local, physical detection.

Living with heavy duty outdoor roller shade: Day-to-Day Reality

I’ve lived with a motorized outdoor setup for two years now, and there are nuances the spec sheets don't tell you. The biggest one is the "Wind Sensor Dance." On gusty afternoons, I’ll be sitting outside, and the shade will suddenly retract on its own because the sensor felt a vibration. It’s a bit startling at first—the sudden mechanical hum interrupting a conversation—but it saves the hardware.

Another detail is the visual texture. I use a heavy duty semi-sheer outdoor roller shade with a 5% openness factor. During the day, it looks solid from the outside (privacy), but from the inside, I can still see the yard. However, at night, the effect reverses. If the patio lights are on, the neighbors can see in. It’s a physics limitation of the fabric, not the tech, but it changes how I set my evening automation schedules.

Lastly, there is a slight lag—about 1.5 seconds—between asking Google to "Open the Patio" and the motor actually engaging. It’s the time it takes for the command to go from the cloud to the bridge and then via RF to the motor. It’s not instant, so don’t panic and repeat the command.

Conclusion

Investing in a smart heavy duty outdoor roller shade transforms a patio from a "sometimes" space into an everyday room. While the upfront cost of hardwired motors and bridges is higher than a manual crank, the ability to schedule sun protection and automate wind safety makes it a robust upgrade for any smart home enthusiast.

Frequently Asked Questions

Can I operate the shades manually if the power goes out?

Generally, no. Most tubular motors disconnect the manual gearing. However, you can buy specific "manual override" (CMO) motors that include a loop for a hand crank. These are highly recommended for storm-prone areas.

How long do batteries last on heavy duty outdoor solar shades?

If you opt for a solar/battery setup, expect to charge it every 6 to 9 months depending on usage and the size of the shade. Heavier PVC fabrics drain batteries significantly faster than lighter knits.

Do I need a hub for smart control?

Yes. Most outdoor motors use 433MHz or RTS radio frequencies to punch through exterior walls. You will need a gateway like the Bond Bridge, Somfy TaHoma, or a Broadlink RM4 Pro to connect them to your WiFi network.
