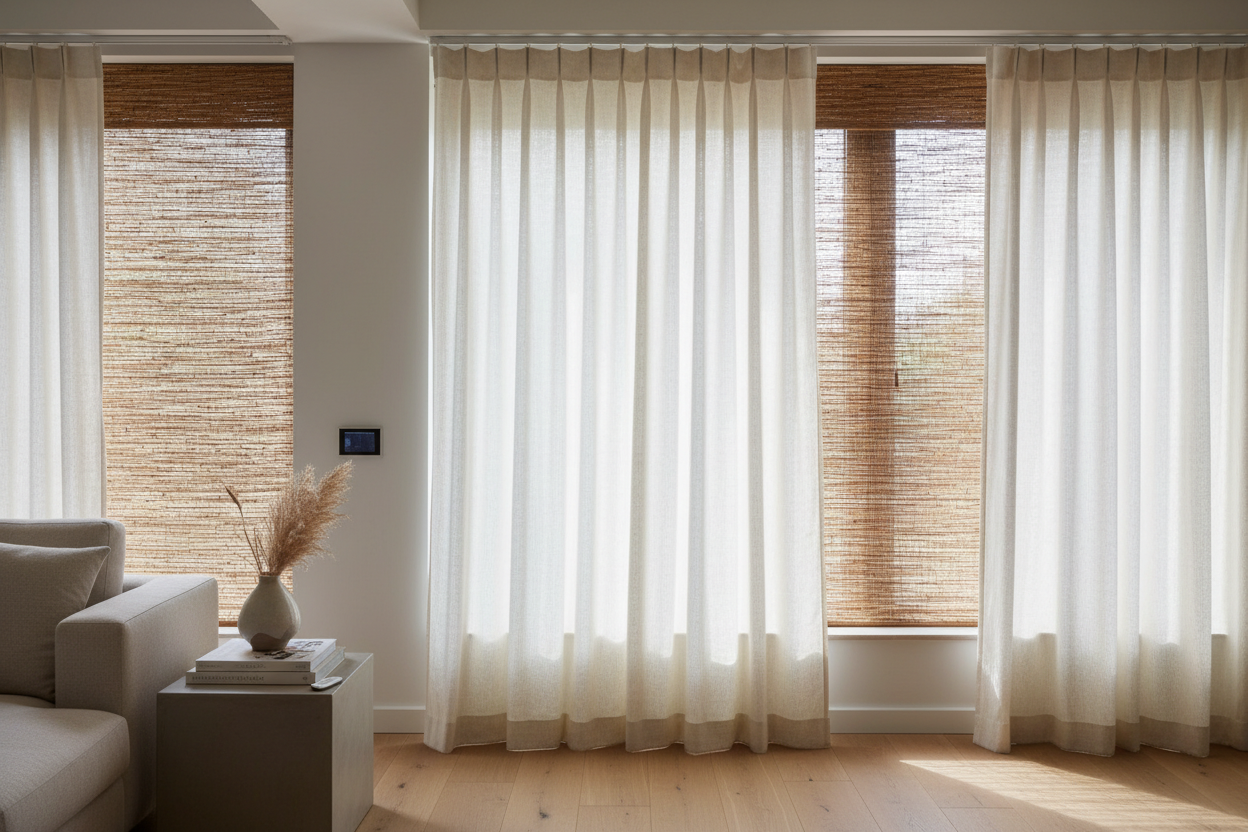

Automating Woven Shades with Curtains: The Ultimate Setup

Imagine this: You’re settling in for a movie. You don't want to get up to fiddle with cords or tug on heavy fabric. You simply say, "Cinema Mode." Instantly, the texture-rich woven shades with curtains layered over them glide shut in perfect synchronization. The room goes pitch black, and the acoustics dampen immediately.

Layering window treatments is a staple of interior design, but automating them changes the game. It’s not just about luxury; it’s about heat control, privacy management, and security while you're away. Whether you are retrofitting a historic home or wiring a new build, combining motorized woven wood shades with curtains on a smart track is the gold standard for modern window automation.

Key Specs: Smart Layering at a Glance

Before drilling holes, you need to match your motors to your ecosystem. Here is the breakdown for a dual-motor setup.

Designing the Dual-Motor Setup

Installation: Spacing is Everything

When layering, spacing is your biggest technical hurdle. Woven wood shades often operate as Roman shades, meaning they fold up. This creates bulk at the top. If you install your smart curtain track too close to the window frame, the curtains will drag over the folded shade.

Pro Tip: You need at least 3 to 4 inches of clearance between the face of the mounted shade and the back of the curtain track. For heavy woven wood shades with curtains, I recommend a ceiling-mounted curtain track spaced 5 inches from the wall to accommodate the "stack" of the shade.

Power Options: Battery vs. Hardwired

For the woven shades, tubular motors are usually inserted into the headrail. If you have a pre-construction opportunity, run low-voltage wire to the window header. Hardwired motors respond faster and eliminate the need for charging ladders.

However, for retrofits, rechargeable battery motors have improved drastically. Modern Li-ion motors for shades can last 6-12 months on a single charge. Just ensure the charging port is accessible without removing the fascia.

Smart Integrations and App Features

The hardware is only half the battle. The software determines the user experience.

• Noise Levels (dB): Look for motors rated below 40dB. Woven wood is heavy; a cheap motor will whine under the strain. Brands like Somfy or specialized Lutron drives are nearly silent, while budget retrofit kits often hum noticeably.
• Grouping and Scenes: In your app (whether it's SmartThings, Apple Home, or a proprietary one), group the "Shade" and "Curtain" as a single entity for general commands, but keep individual controls for light filtering.
• Light Sensing: Use a lux sensor. Program the woven shades to lower when the sun hits the glass (protecting furniture) but keep the curtains open to allow ambient light.

Living with woven shades with curtains: Day-to-Day Reality

I’ve lived with this exact dual-setup in my master bedroom for two years now, and there are nuances specs won't tell you. The first thing I noticed was the "drift." Over about six months, battery-operated motors can lose their precise stop limits by a fraction of an inch. I found myself having to recalibrate the "fully open" position of the woven shade because it started stopping just low enough to be visible under the curtain valance.

Another detail is the sound profile difference. My curtain track (a slide mechanism) makes a soft whirring sound, while the woven shade motor (a rotational torque mechanism) has a deeper hum. When they run simultaneously via an Alexa routine, the audio feedback confirms the command worked, but if one runs silently (like a high-end Lutron), I sometimes find myself checking the app to make sure it actually triggered. Also, be warned: if you use a natural woven material like bamboo or grass, the motor's vibration can occasionally shake loose small dust or fibers onto the window sill—something manual operation rarely caused because I moved them slower.

Conclusion

Combining woven shades with curtains gives you the best of both worlds: the organic texture of wood and the soft elegance of drapery. By adding automation, you turn a static design element into a functional tool for climate control and privacy. While the initial setup requires careful measurement and hub configuration, the convenience of voice-controlled privacy is an upgrade you won't regret.

Frequently Asked Questions

How long do the batteries last on motorized woven shades?

On average, with one open/close cycle per day, a modern Li-ion battery motor lasts between 6 to 9 months. Heavier woven wood shades with curtains may drain batteries faster due to the higher torque required to lift the wood material.

Can I operate them manually during a power outage?

Most smart curtain tracks have a "tug-to-move" feature that allows manual operation. However, motorized woven shades usually lock the gear mechanism. Unless you install a specific hybrid clutch system, the shades will remain stuck in position until power is restored.

Do I need a separate hub for this?

It depends on the protocol. If you choose Wi-Fi motors, no hub is needed, but they can congest your network. For a robust smart home, I recommend Zigbee or Thread motors, which require a compatible gateway (like an Echo Show, SmartThings Hub, or HomePod) to process commands locally.
