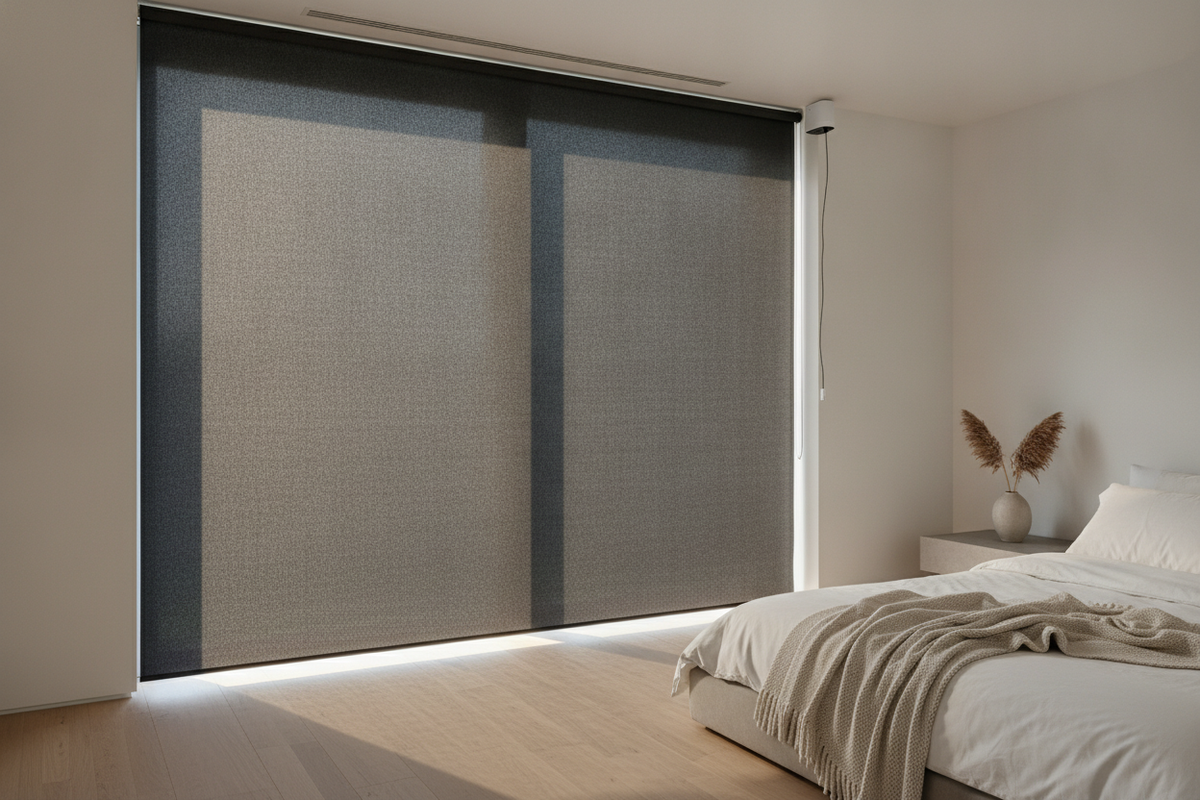

Blackout Fabric Roller Shade Architecture: Textile Layers, Tube Dynamics, and Smart Motor Automation

Introduction: The Evolution of Blackout Fabric Roller Shades

Historically, residential window shades forced a choice between the rich, tactile look of decorative drapery and the rigid, utilitarian performance of vinyl light blockers. Standard vinyl room-darkening shades reliably sealed out daylight, yet their synthetic finish often compromised the warmth of curated living spaces. Conversely, traditional untreated draperies offered bespoke texture but struggled to prevent early morning light intrusion without bulky secondary liners.

The modern blackout fabric roller shade bridges this divide. By combining woven decorative cloth facings with engineered opaque backing layers, these window coverings deliver high aesthetic appeal alongside room-darkening functionality. Paired with compact tubular motors and automated home control protocols, fabric blackout blinds have evolved into architectural elements that balance tailored interior design with automated daylight management.

Textile Anatomy: Woven Cloth Facings vs. Multi-Pass Opaque Backings

Achieving total opacity while preserving a flexible drape requires a specialized multi-layer construction. High-performance blackout roller shade fabric relies on several distinct functional layers:

• Decorative Face Fabric: The forward-facing layer features decorative weaves such as linen textures, heathered twills, or soft jacquards. This face layer establishes the visual harmony of the interior space.
• Bonding Substrate: A thin adhesive or thermal laminating film bonds the exterior cloth to the opaque core without creating stiff points that cause uneven rolling.
• Multi-Pass Opaque Backing: White or neutral acrylic foam or polymer coatings are applied to the reverse side. These dense layers block light transmission across the textile surface while reflecting exterior solar radiation back toward the glazing.

A primary mechanical consideration in selecting blackout fabric shades is roll flexibility. If an opaque backing is overly rigid, the textile resists winding smoothly around the drive tube, leading to puckering or edge fraying over extended use. Selecting balanced textiles ensures the composite assembly hangs plumb without curling along the margins. For detailed guidance on sourcing and inspecting roll materials, consult our blinds roller shade guide.

Mechanical Roller Physics: Roll Diameter, Tube Deflection, and Hem Bar Balance

Operating a heavy cloth blackout shades assembly requires attention to mechanical mechanics. Because composite textiles are inherently thicker and heavier than basic solar screens, they place distinct structural demands on the roller assembly.

As fabric winds upward, the composite thickness increases the overall roll diameter. If the mounting pocket or fascia cassette is undersized, the outer revolutions will contact mounting brackets or cassette housings, creating friction and motor strain. Furthermore, wider window spans require larger aluminum roller tubes to prevent center deflection. When a roller tube sags under the weight of heavy cloth, the textile develops diagonal wrinkles—often called smile lines—that prevent clean operation.

Equally critical is bottom rail ballast. An integrated, weighted hem bar maintains vertical tension across the shade drop, preventing draft-induced fluttering and ensuring that the fabric descends flat and true along the window plane.

Mounting Geometries: Managing Perimeter Light Leakage and Edge Gaps

Even completely opaque textiles cannot prevent ambient light from entering if the installation allows edge gaps. The space between the edge of the shade fabric and the window jamb—known as the light gap—is an inherent feature of roller shade hardware, created by bracket depth, motor heads, and idler end pins.

Homeowners and installers generally select between two primary geometries to resolve edge light:

• Inside Mount with Side Channels: Mounting within the window casing preserves a streamlined architectural look. To eliminate the perimeter halo effect, vertical side channels and bottom sills line the window frame, encasing the fabric edges within opaque aluminum or composite tracks.
• Outside Mount with Extended Overlap: Mounting the shade bracket assembly on the wall or trim outside the window opening allows the fabric to extend beyond the window frame on both sides, dramatically reducing perceived light leakage without requiring side channels.

For precise window measuring procedures that account for drive clearances, refer to our comprehensive roller shades resource.

Motorization and Power Topologies: Battery vs. Hardwired Low-Voltage

Motorization transforms a functional textile shade into an automated comfort system. Selecting the proper power topology depends on the stage of home construction and architectural access.

Rechargeable internal battery motors represent an accessible solution for existing spaces. These quiet tubular motors fit entirely within the roller barrel, eliminating the need to fish wires through finished drywall. Modern battery options feature magnetic charging ports or discreet trickle-charge solar panels mounted against the glass.

For new builds or extensive renovations, low-voltage hardwired power runs remain the standard for long-term reliability. Dedicated power lines feed central distribution panels, removing battery maintenance entirely while ensuring constant electrical availability for heavy textiles. To explore how manual textiles transition to motorized assemblies, review our cloth blinds fabric guide.

Smart Control Integration: Protocols, Voice Platforms, and Sensor Automation

Modern motorized blackout fabric roller shade systems integrate directly with contemporary smart home platforms via wireless communication protocols such as Zigbee, Thread, Matter, and bidirectional radio frequency (RF) hubs. These interfaces allow window coverings to act dynamically alongside other home systems.

Effective automation strategies include:

• Circadian Lighting Routines: Scheduling shades to lower fully at dusk to preserve privacy and retain room warmth, followed by a gradual morning ascent that introduces natural morning light.
• Scene Coordination: Pairing media room shades with smart lighting and audio-video systems so that starting a projector automatically lowers blackout shades to cut glare.
• Environmental Sensor Triggers: Coordinating motorized fabric shades with indoor temperature and solar radiation sensors to deploy barriers during peak heat, reducing solar thermal gain.

Room-by-Room Decision Matrix: Balancing Aesthetics and Darkness

Different living areas require tailored approaches when deploying blackout fabric shades:

• Primary Bedrooms: Restful environments benefit from complete darkness. Inside mounts paired with side channels or deep outside overlaps prevent early morning waking from perimeter light streaks. For additional room planning ideas, see our roller blinds blackout guide.
• Home Theaters and Media Rooms: High-contrast video displays require zero stray reflections. A complete perimeter channel system with dark interior fabric liners ensures optimal ambient light control.
• Nurseries and Guest Rooms: Flexible scheduled automation helps maintain regular sleep routines for children and visiting guests, while soft woven textures complement warm nursery decor.
• Multi-Use Living Areas: Where occasional daytime glare control is needed without pitch darkness, standalone cloth blackout shades without side channels offer clean aesthetic lines and rapid glare elimination.
