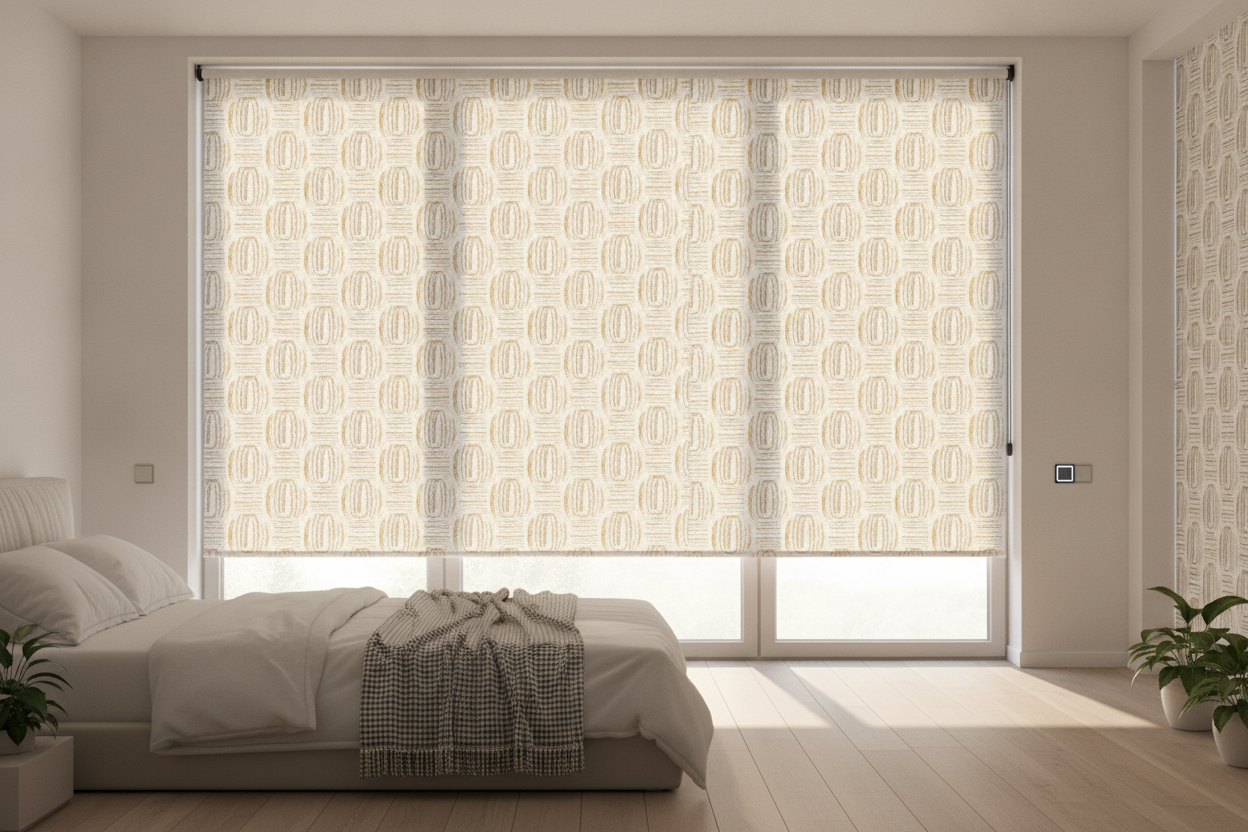

Can You Put a Custom Window Shade Pattern on a Smart Motor?

I remember standing in a craft store aisle, staring at a bolt of mid-century modern teal print, thinking I had cracked the code. I had just bought three Zigbee motors and figured I would save $400 by making my own shades. I wanted a window shade pattern that actually said something about my personality, rather than the standard 'office gray' or 'landlord white' that dominates the market.

Quick Takeaways

• Most craft store fabrics are too heavy or stretchy for consumer-grade smart motors.
• Telescoping (when the shade rolls sideways) is usually caused by uneven fabric thickness.
• Iron-on blackout backing is the only way to make standard textiles stiff enough to roll straight.
• If your motor whines or stops halfway, your fabric is likely creating too much torque.

The Pinterest Illusion of Custom Smart Fabrics

The dream is simple: find a beautiful textile, cut it to size, and stick it to a motorized tube. We spend a lot of time choosing curtains and window blinds for a stylish home based on how they look in a static photo. But the second that motor starts spinning at 25 RPM, reality hits. Standard textiles like cotton or linen are woven to drape, not to be rolled under tension.

When you attach a raw fabric to a 25mm or 38mm aluminum tube, it stretches. Because the weave isn't perfectly square, one side will always pull tighter than the other. Within three or four 'Open/Close' cycles, your beautiful custom print is bunching at the edges and fraying against the brackets.

Why Your Window Shade Pattern Looks Wavy in Motion

Smart motors are high-torque divas. They expect a consistent load. If your window shade pattern is embroidered or has a raised texture, that extra thickness multiplies every time the shade wraps around itself. A 1mm difference in thickness at the bottom becomes a 10mm bulge after ten rotations.

This causes 'telescoping.' The shade starts moving toward one side of the window frame until it jams the motor housing. I have seen $150 motors burn out their internal gears because the owner tried to automate a heavy velvet. Most DIY motors are rated for specific weights—usually around 2kg to 4kg. Exceed that, and you are just waiting for a hardware failure.

The Great DIY Blind Curtain Experiment

My first attempt at a diy blind curtain was a comedy of errors involving a hot glue gun and a prayer. I thought I could just glue the fabric to the metal tube. Pro tip: don't. The glue creates a permanent lump that makes the shade roll up like a cone. I spent four hours following a smart blind and curtain installation a diy retrofit guide for the motor itself, only to have the fabric fall off the tube because the motor's torque ripped the glue right off the metal.

I also tried using a heavy wooden dowel as a bottom weight. Bad move. The weight was so uneven that the motor couldn't lift it past 50% without the 'overload' protection kicking in. If you want your DIY setup to work, you need precision, not just a heavy-duty motor.

How to Actually Prep DIY Blinds and Curtains for Automation

If you are dead set on diy blinds and curtains with a custom print, you have to engineer the fabric. You cannot use raw cotton. You need a liquid fabric stiffener or, better yet, a professional-grade iron-on blackout backing. This turns a floppy textile into a rigid sheet that behaves like the polyester shades you buy from the pros.

Lay your fabric on a flat floor—not a table, a floor. Use a long metal T-square to ensure your lines are 90 degrees to the weave. If you are off by even two millimeters, the shade will never roll straight. I use a rotary cutter instead of scissors; it prevents the jagged edges that lead to fraying and motor jams.

Getting the Hem Perfectly Straight (Or Else)

The bottom hem is where the magic (or the disaster) happens. You need a flat aluminum hem bar, not a round wooden one. Slide the bar into a sewn pocket and ensure it is perfectly centered. If one side of the bar is heavier or sticks out further, it creates an uneven pull. I once spent a whole Saturday shimming a hem bar with duct tape just to get it to stop hitting the left side of my window casing.

When to Give Up and Buy Pre-Made

After three ruined bolts of fabric and one motor that smelled like burning electronics, I realized that some windows just aren't meant for the DIY struggle. If you have a large window or want a specific cellular look that DIY fabric can't replicate, it is often cheaper in the long run to buy suspended cellular shades. These are engineered to roll straight every single time without the 'cone effect.'

The DIY route is great for small kitchen windows or a guest room where you want a pop of color. But for the main living area? The precision required to make a custom window shade pattern work with a smart motor is a high-stakes game. Sometimes, the best smart home 'hack' is knowing when to let the factory do the heavy lifting.

FAQ

Can I use heavy upholstery fabric for smart shades?

No. It is too thick. By the time it rolls up, the diameter will be too large for the brackets, and the weight will likely strip the motor's plastic gears.

What is the best way to stop a shade from telescoping?

Small pieces of masking tape on the tube. If the shade is veering left, put a piece of tape on the right side of the tube to increase the diameter and pull the fabric back toward the center.

Do I need a special motor for DIY fabrics?

Look for motors with adjustable speed and high torque ratings (at least 1.1Nm). Avoid the cheapest USB-rechargeable ones if you are using anything heavier than thin polyester.
