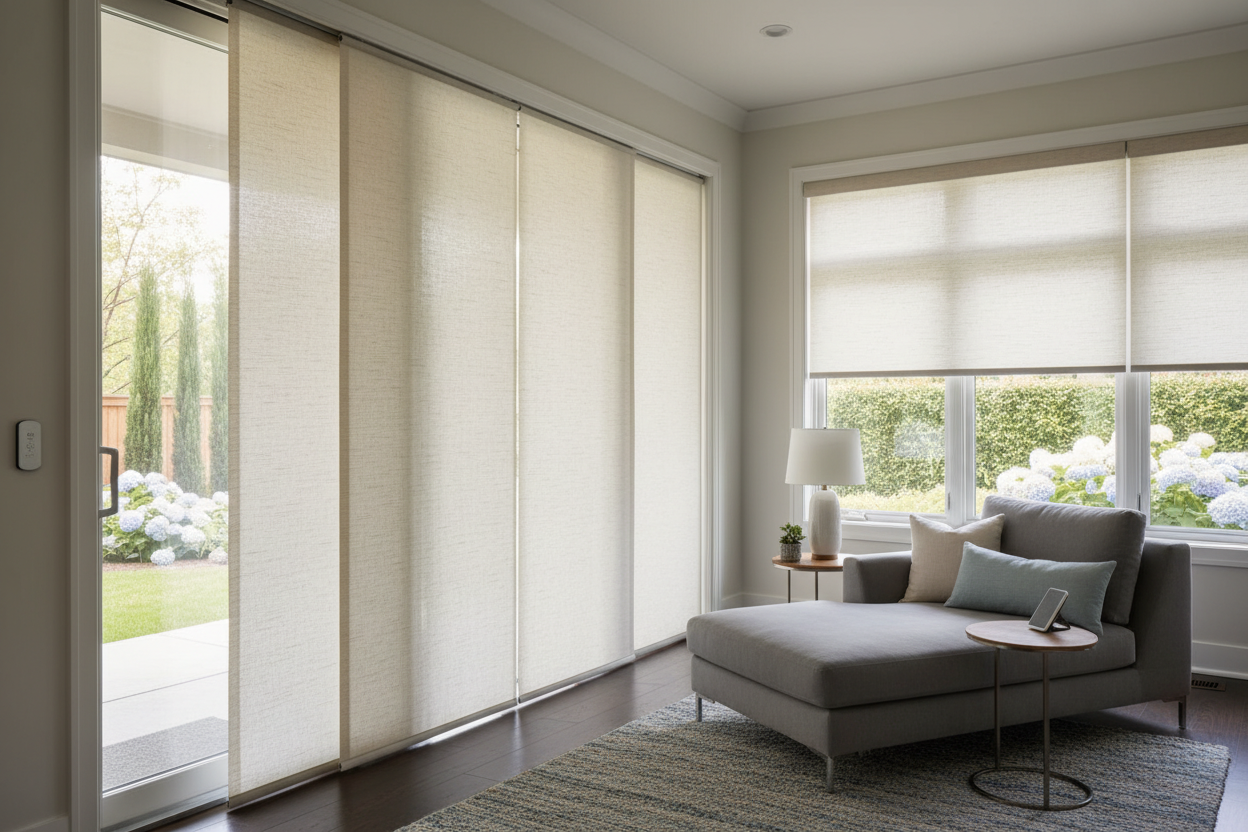

Control Sunlight: Smart Sliding Window Panels for Patio Doors

Imagine walking into your living room with a tray of drinks in both hands. The afternoon sun is glaring directly onto the TV screen. Instead of putting everything down to wrestle with a heavy cord or wand, you simply say, "Alexa, close the patio shades." This isn't science fiction; it is the practical reality of installing smart sliding window panels for patio doors.

For years, vertical blinds were the standard for large glass expanses, but they often look dated and break easily. Sliding panels offer a cleaner aesthetic, and when you add smart connectivity, they become a functional asset for security and energy efficiency.

Key Specs at a Glance

Before buying, you need to know if your network can handle the load. Here is the breakdown of what to expect from modern smart panel tracks:

• Power Source: Rechargeable Li-ion Battery (lasts 3-6 months) or DC Hardwired.
• Connectivity: RF (Radio Frequency), Zigbee 3.0, or WiFi (2.4GHz).
• Control Options: Voice (Alexa/Google), App, Remote, or "Tug" activation.
• Load Capacity: Typically supports up to 11-15 lbs of fabric weight.

Installation Realities

Retrofitting smart tech onto large glass doors requires precision. Unlike standard roller shades, sliding window panels for sliding glass doors require a multi-channel track system—usually 3 to 5 channels depending on the width of your opening.

Most smart kits come as a pre-assembled track. You will need to decide between a ceiling mount (inside the recess) or a wall mount (above the frame). From my testing, wall mounts are more forgiving if your door frame isn't perfectly square. Be aware of the "stacking width"—when the panels open, they stack on top of each other. Ensure you have enough wall space on the side so the stacked panels don't block your actual walk-through area.

Power & Battery Options

If you don't have an outlet near the top of your patio door, battery power is your only route. Modern motors use high-torque, low-voltage batteries hidden behind the headrail.

The Solar Solution

For south-facing doors, I highly recommend attaching a small solar panel to the rear of the track, facing the glass. It keeps the battery topped off indefinitely, eliminating the need to drag a ladder out every six months to recharge the unit.

Ecosystem Integration

Getting these panels to talk to your smart home usually requires a bridge. While some motors have built-in WiFi, many use RF signals for better range and battery life. To control these with voice or phone, you will likely need a gateway like a Bond Bridge or a proprietary hub provided by the manufacturer.

Once connected, you can group the panels with your smart lights. I have mine set to close automatically when the thermostat detects the room temperature rising above 76 degrees, passively cooling the house without turning on the AC.

Living with sliding window panels for patio doors: Day-to-Day Reality

After living with a motorized panel system for six months, here is the unvarnished truth about the experience. The first thing you notice is the sound. It is not silent. There is a distinct, low-pitch mechanical hum—about 45dB—that lasts for roughly 15 seconds while the panels traverse the track. It’s not annoying, but it is noticeable in a quiet room.

Another nuance I discovered involves the "overlap." When the panels close, the motor sometimes stops a fraction of an inch too early or too late, leaving a tiny sliver of light between the panels. I had to go into the app settings and recalibrate the "end limits" three times during the first week to get the blackout effect perfect. Also, if you lose WiFi, the RF remote becomes your best friend, so don't throw it in a junk drawer.

Conclusion

Upgrading to smart panel tracks is a significant investment compared to manual blinds, but the convenience for large sliding doors is undeniable. Being able to manage privacy and light without physically crossing the room changes how you use your living space.

Frequently Asked Questions

How long does the battery last on a single charge?

With average use (opening and closing once a day), most lithium-ion motors last between 4 to 6 months. Adding a solar panel can extend this indefinitely.

Can I move the panels manually if the power goes out?

It depends on the motor. Some "dual-mode" tracks allow manual pulling without damaging the gears, but many lock in place. Always check the manufacturer's manual for "manual override" features.

Do I need a Hub for Alexa control?

In most cases, yes. If the motor uses RF or Zigbee, you need a Hub (gateway) to bridge the signal to your WiFi network so Alexa can see the device.
