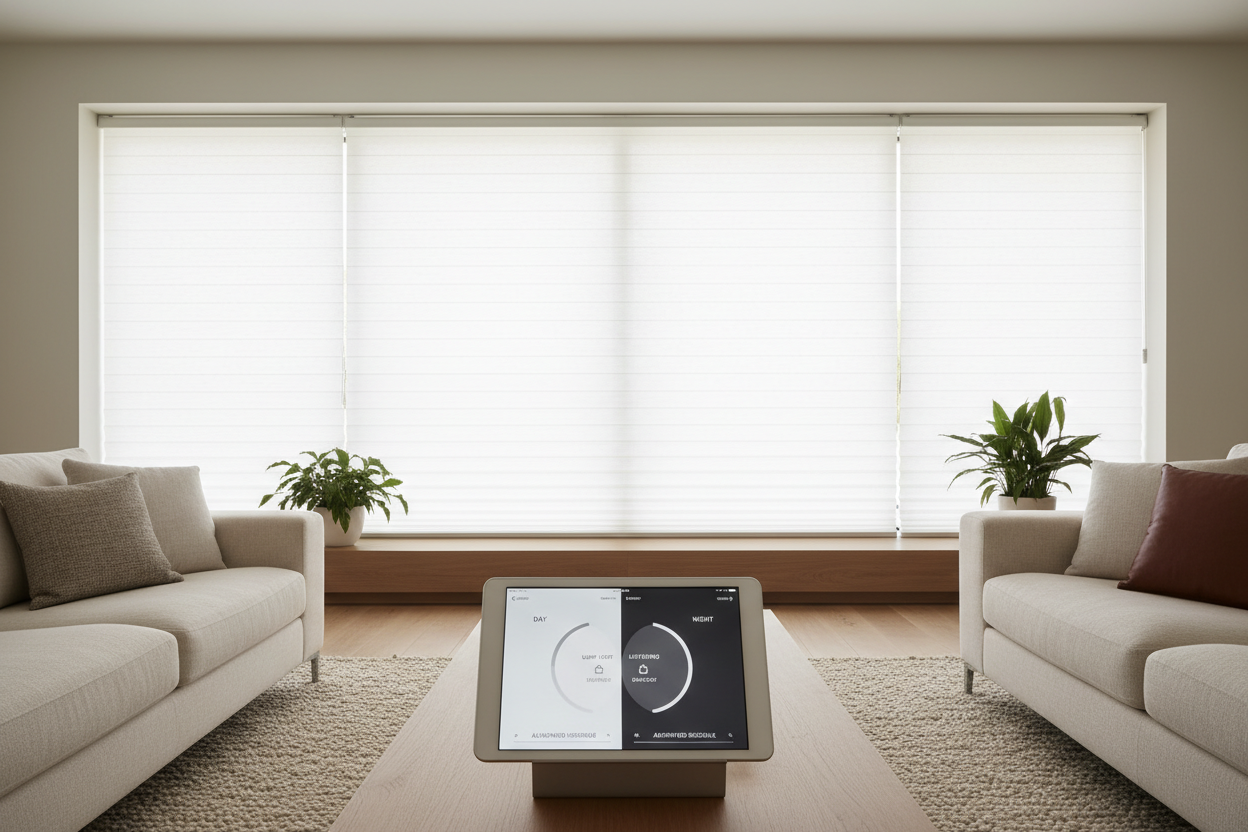

Day to Night: Automating Dual Blackout and Light Filtering Shades

Imagine this: It’s Saturday morning. You want natural light to flood the room without sacrificing privacy from the neighbors, but later tonight, you need pitch-black darkness for a movie marathon. Usually, this requires two separate window treatments or manual adjustments. But with smart blackout and light filtering shades, a single voice command or a sun-tracking automation handles the transition for you.

Combining dual opacities into a single automated headrail is the ultimate upgrade for smart home enthusiasts. It solves the glare problem without turning your living room into a cave during the day. Below, we break down the tech specs, installation realities, and the specific motor nuances you need to know before buying.

Quick Tech Specs: Dual Shade Motors

Before drilling into your window jambs, understand the hardware requirements. Dual shades often require two motors or a specialized dual-shaft motor, which impacts power draw and connectivity.

Installation Types: Mounting Depth is Critical

When you look for light filtering and blackout shades in one unit, you are essentially stacking two rolls of fabric. This creates a significant footprint. Standard single roller shades might fit in a 2-inch window depth, but dual systems often require 3.5 to 4 inches for a flush inside mount.

If you lack deep window jambs, you will be forced into an "outside mount," which attaches to the wall above the trim. While easier to install, be aware that outside mounts can reduce the blackout effectiveness due to light leakage from the sides (halo effect) unless you install side channels.

Power Options: The Battery Drain Reality

Most retrofit blinds blackout and light filtering setups offer battery wands. However, physics is a factor here. You are moving double the fabric weight. If you automate your shades to open at sunrise, switch to filtering at noon, and close at sunset, you are cycling the motors four times a day.

For cellular shades blackout and light filtering combos, the honeycomb structure is lighter, offering better battery life. However, for heavy dual vinyl rollers, I highly recommend running low-voltage wiring (Cat5/6 or 18/2 wire) if you are in a renovation phase. It eliminates the "low battery" anxiety entirely.

Smart Integrations and App Features

Don't just look for "Alexa compatible." Look for specific app features that handle dual layers effectively:

• Sun-Tracking/Astronomical Clock: The system should know when to drop the light filtering blackout shades layer based on the sun's position to protect furniture from UV rays.
• Scene Staging: Good ecosystems (like Control4, Home Assistant, or Lutron) allow "Movie Mode" which drops the blackout layer, while "Reading Mode" engages only the sheer layer.
• Grouping Latency: If you have three windows in a row, check the gateway specs. Wi-Fi motors often have a "popcorn effect" (moving at slightly different times), whereas Zigbee or Lutron Clear Connect will move in perfect unison.

Living with Blackout and Light Filtering Shades: Day-to-Day Reality

I’ve lived with a dual-roller setup in my master bedroom for two years now, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound profile. When I trigger my "Goodnight" routine, there is a distinct, mechanical whir that lasts about 15 seconds. It’s not loud, but in a dead-silent house at 11 PM, it’s noticeable. I actually had to program my hub to lower them at 9:30 PM, before I went to bed, so the noise wouldn't disturb my partner who sleeps earlier.

Another nuance is the "light gap" between the two rollers. Even with a high-end fascia (the metal cover at the top), there is often a tiny sliver of light that passes between the blackout roll and the filtering roll if the sun hits at a specific angle. It’s a minor physics issue with having two round tubes close together. I solved this by adding a small fuzzy weather strip inside the valance—a $5 DIY fix that made the blackout capability 100% effective.

Conclusion

Investing in dual-function automation is expensive, but it solves the binary problem of "dark cave" vs. "fishbowl." Whether you choose cellular shades for insulation or sleek rollers for a modern look, the ability to automate privacy while maintaining daylight is the pinnacle of smart interior design. Just ensure you measure your window depth twice before ordering.

Frequently Asked Questions

Can I operate smart shades manually during a power outage?

This depends on the motor clutch. Most battery-powered units cannot be pulled down manually without messing up the tension calibration. However, some high-end systems offer a "manual override" feature. If you live in an area with frequent outages, check for this specifically.

Do I need a hub for these shades?

If you choose Wi-Fi motors, no. But for Zigbee, Z-Wave, or Lutron (which are more reliable and battery-efficient), you will need a proprietary bridge or a universal hub like a SmartThings station or Bond Bridge to connect them to your network.

How long do batteries last in dual shades?

Expect 6 to 9 months with moderate usage (2 cycles per day). Because you are powering two separate layers, the drain is higher than standard single shades. Solar panel chargers are a great add-on to mitigate this.
