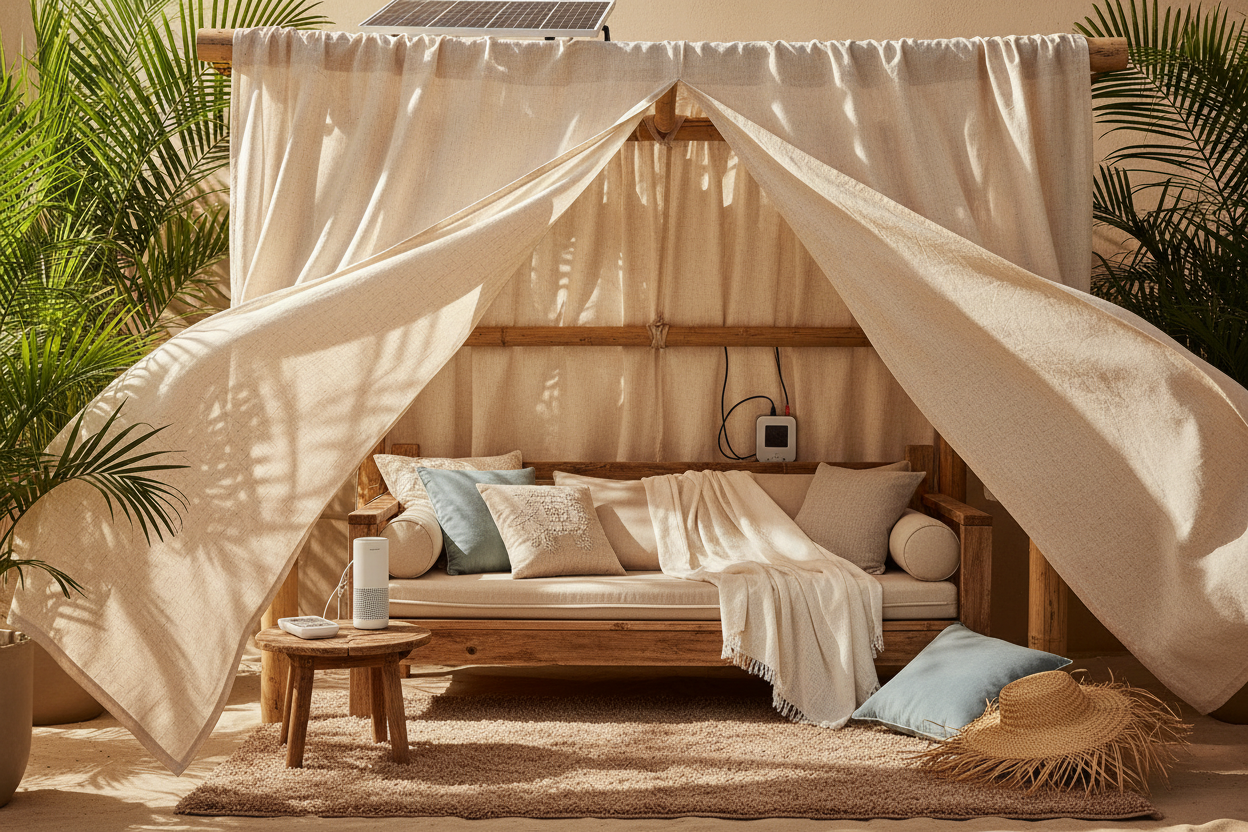

DIY Beach Cabana: Adding Voice Control to Outdoor Shade

Imagine lying on your patio lounger or sitting by the pool, a cold drink in hand. The sun shifts, and suddenly that perfect spot is blindingly bright. Instead of getting up to manually crank a handle or drag a heavy umbrella, you simply say, "Hey Google, lower the cabana." By integrating smart blind motors into a custom frame, this **diy beach cabana** project bridges the gap between rustic outdoor aesthetics and modern smart home convenience. Whether you are building a semi-permanent structure for your backyard or a high-tech rig for long-term camping, smart shading is the upgrade you didn't know you needed.

Key Specs at a Glance

Before gathering your PVC or wood for the frame, here are the technical specifications for the motorized core of this build. I opted for a retrofit tubular motor designed for outdoor durability.

• Connectivity: Zigbee 3.0 (Requires Hub) or Wi-Fi (2.4GHz)
• Power Source: Rechargeable Li-ion Battery with 5V Solar Panel trickle charge
• Torque & Speed: 1.1Nm / 28rpm (Can lift approx. 8-10lbs of fabric)
• IP Rating: IP55 (Water/Dust Resistant - essential for any diy sun shelter)
• Smart Platform: Alexa, Google Home, Home Assistant (via ZHA/Zigbee2MQTT)

Installation Realities: Framing and Motor Mounts

Most diy sun shade for beach tutorials focus on lightweight PVC pipes and zip ties. However, when adding smart tech, structural integrity is paramount. The torque from a smart motor creates vibration. For this build, I recommend using 4x4 pressure-treated posts or heavy-gauge aluminum for the main frame to prevent the "wobble" often seen in a standard diy portable shade.

Mounting the Motor

The core of this setup involves sliding a tubular motor into the roller tube that holds your canvas. If you are retrofitting an existing manual crank shade, you will need to remove the clutch mechanism. Ensure your tube diameter matches the motor crown (usually 38mm or 40mm). Since this is an outdoor setup, I used heat-shrink tubing over all electrical connections to prevent corrosion from salt air or humidity.

Power & Battery Options for Off-Grid Use

Unlike indoor smart blinds, you likely won't have a hardwired outlet near your cabana. This is where solar integration becomes critical. I utilized a small 5W solar panel mounted on the top of the frame, facing South.

In my testing, a standard diy camping shade setup using a 3000mAh battery motor lasted about 4 months on a single charge without solar. With the panel connected, it has remained at 100% indefinitely. If you plan to travel with this rig, ensure the battery is removable for easier charging indoors if the weather stays overcast for days.

Ecosystem Integration and Range

Getting a signal to a backyard or beach setup can be tricky. Wi-Fi motors often drop connection outdoors due to wall interference. I strongly suggest using Zigbee motors for this application. By placing a smart plug (which acts as a repeater) on the exterior wall nearest the cabana, you create a robust mesh network.

For Home Assistant users, you can create a "Sun Protection" scene. I programmed my setup to deploy the shade automatically when the local UV index rises above 6, effectively turning a basic diy sun shelter into a proactive health device.

Living with diy beach cabana: Day-to-Day Reality

After three months of using this smart cabana setup, the biggest nuance I've noticed is the wind factor. I initially set a schedule to lower the shades every afternoon. However, on a particularly breezy Tuesday, the wind caught the fabric like a sail, and the motor struggled to hold the position, emitting a straining high-pitched whine that concerned me.

I ended up installing a vibration sensor (glued to the bottom weighted bar) paired with my hub. Now, if the wind gusts, the sensor detects the motion and triggers the motor to retract immediately. It's a small logic tweak, but it saves the hardware from burning out. Also, the delay on the solar-powered Zigbee motor is about 1.5 seconds longer than my hardwired indoor blinds—a minor lag, but noticeable when you issue a voice command.

Conclusion

Building a **diy beach cabana** with integrated smart controls transforms a static outdoor structure into a responsive part of your home ecosystem. While the initial setup requires more effort than throwing a tarp over a rope, the ability to control your shade via voice or sun position offers a level of luxury that standard setups cannot match.

Frequently Asked Questions

Can I operate the shade manually if the battery dies?

Most tubular smart motors disengage the manual clutch, meaning you cannot pull them down by hand without damaging the internal gears. It is vital to keep the solar panel clean or have a portable power bank ready for emergency charging.

How loud is the motor outdoors?

Outdoor acoustics work in your favor here. While the motor generates about 40-45dB, ambient noise like wind, birds, or waves usually masks the sound completely, making it feel silent compared to indoor operation.

Do I need a specific hub?

If you choose a Wi-Fi motor, no hub is needed. However, for the Zigbee setup recommended for range and battery efficiency, you will need a compatible gateway like the Echo Show (with Zigbee), Samsung SmartThings, or a dedicated dongle for Home Assistant.
