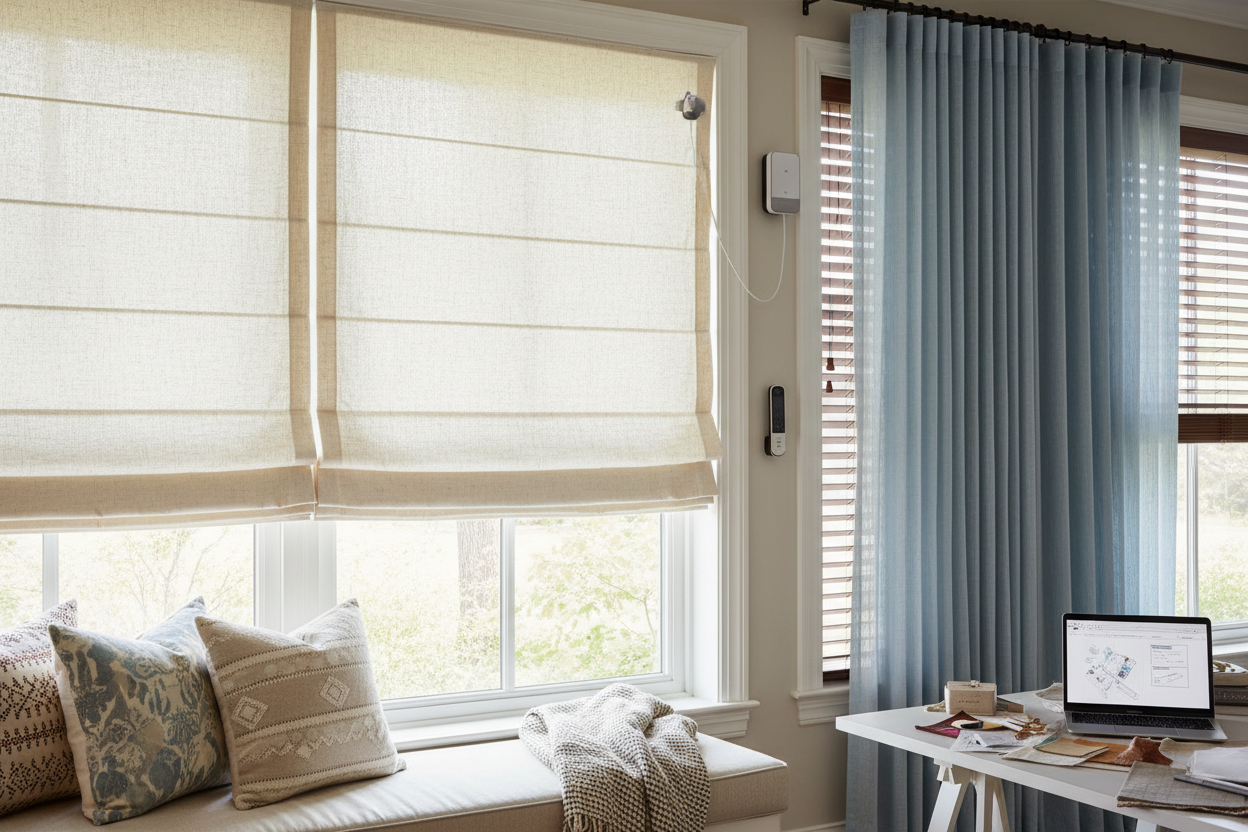

DIY Outside Mount Roman Shades: My Smart Motor Retrofit

Imagine your bedroom shades slowly rising to let in the morning sun exactly ten minutes before your alarm goes off. It is a fantastic way to wake up, but buying custom smart shades for large or odd-sized windows can easily drain your wallet. That is why I decided to tackle diy outside mount roman shades equipped with a retrofit smart motor. By combining basic crafting techniques with a Zigbee tubular motor, you get a high-end, voice-controlled custom look for a fraction of the retail cost.

Whether you are a seasoned crafter or just looking to upgrade your home automation setup, retrofitting your own window treatments gives you total control over the fabric, opacity, and smart ecosystem.

Quick Project Specs at a Glance

• Motor Type: 25mm or 38mm battery-powered tubular motor (Zigbee or Matter-over-Thread preferred).
• Skill Level: Intermediate (basic measuring, cutting, and smart hub pairing required).
• Cost Breakdown: Roughly $120 to $180 per window, including the motor, fabric, and mounting hardware.
• Best Use Case: Blocking light gaps on shallow window frames where inside mounts will not fit.

Smart Roman Shade Construction Basics

When planning your smart shade, the underlying roman shade construction dictates how well the motor will lift the fabric. Heavy, lined drapes require a motor with higher torque (usually rated in Nm), while lighter fabrics can get away with budget-friendly, lower-torque motors.

The No-Sew Approach

If you lack a sewing machine, creating diy roman shades with dowels no sew is entirely possible using high-heat fabric glue or heavy-duty hem tape. You simply create horizontal pockets for wooden or fiberglass dowels, which give the shade its rigid, structured folds. Once built, you attach the top edge of the fabric directly to the motorized aluminum roller tube using double-sided industrial mounting tape.

Flat vs. Hobbled Styles

For motorization, diy flat roman shades are generally much easier to manage than hobbled (waterfall) styles. Flat shades roll up cleanly and tightly around the tube. Hobbled shades have excess fabric that can bunch up unevenly, potentially jamming the motor or triggering its internal overload protection sensor.

Selecting the Right Smart Motor

Battery vs. Hardwired

Retrofitting an outside mount shade means you have extra room above the window trim to hide hardware. A battery-powered tubular motor (like those from Zemismart or Rollease Acmeda) slides directly into the aluminum tube. You will need to charge it via a USB-C cable every 4 to 6 months depending on usage. Hardwired motors are zero-maintenance but require routing low-voltage wire through your drywall, which complicates the DIY aspect.

Ecosystem Compatibility

Look for a Zigbee 3.0 or Matter-compatible motor. These protocols connect locally to hubs like SmartThings, Hubitat, or Apple HomeKit. Local control ensures your shades still operate on their sunrise schedule even if your home internet goes down, and they respond to voice commands almost instantly compared to Wi-Fi direct motors.

Living with diy outside mount roman shades: Day-to-Day Reality

I have had my custom motorized shades in the primary bedroom for eight months now. The biggest win? The outside mount completely eliminates the light bleed you normally get with inside-mounted blackout rollers because the fabric overlaps the window trim beautifully.

However, the setup is not without its quirks. I used a very heavy blackout lining, and my 1.2Nm motor struggles slightly on the final 10 inches of the lift. You can actually hear the motor pitch whine as the rolled fabric gets thicker and heavier around the tube. Also, because I went the no-sew route, one of my glued dowel pockets started separating after a particularly humid summer week; I had to go back and reinforce the edges with a few hand stitches. Finally, the faint mechanical hum during the morning routine is noticeable in a quiet room, though it acts as a gentle pre-alarm for me now.

Frequently Asked Questions

Can I still open motorized roman shades manually?

Most tubular motors used for DIY retrofits do not support manual pulling. Tugging on the fabric can strip the internal gearing or mess up the electronic limit settings. You must use a paired RF remote, a smart button, or voice commands to adjust them.

How much fabric weight can a smart motor lift?

A standard 25mm battery motor with 1.2Nm of torque can safely lift about 6 to 8 pounds. Always weigh your fabric, dowels, and bottom weight bar before purchasing your motor to ensure you do not burn out the engine.

Why choose an outside mount for smart shades?

Outside mounts sit above and outside the window frame. This provides extra clearance for the motorized roller tube, mounting brackets, and battery charging ports, which often do not fit inside shallow or older window frames.
