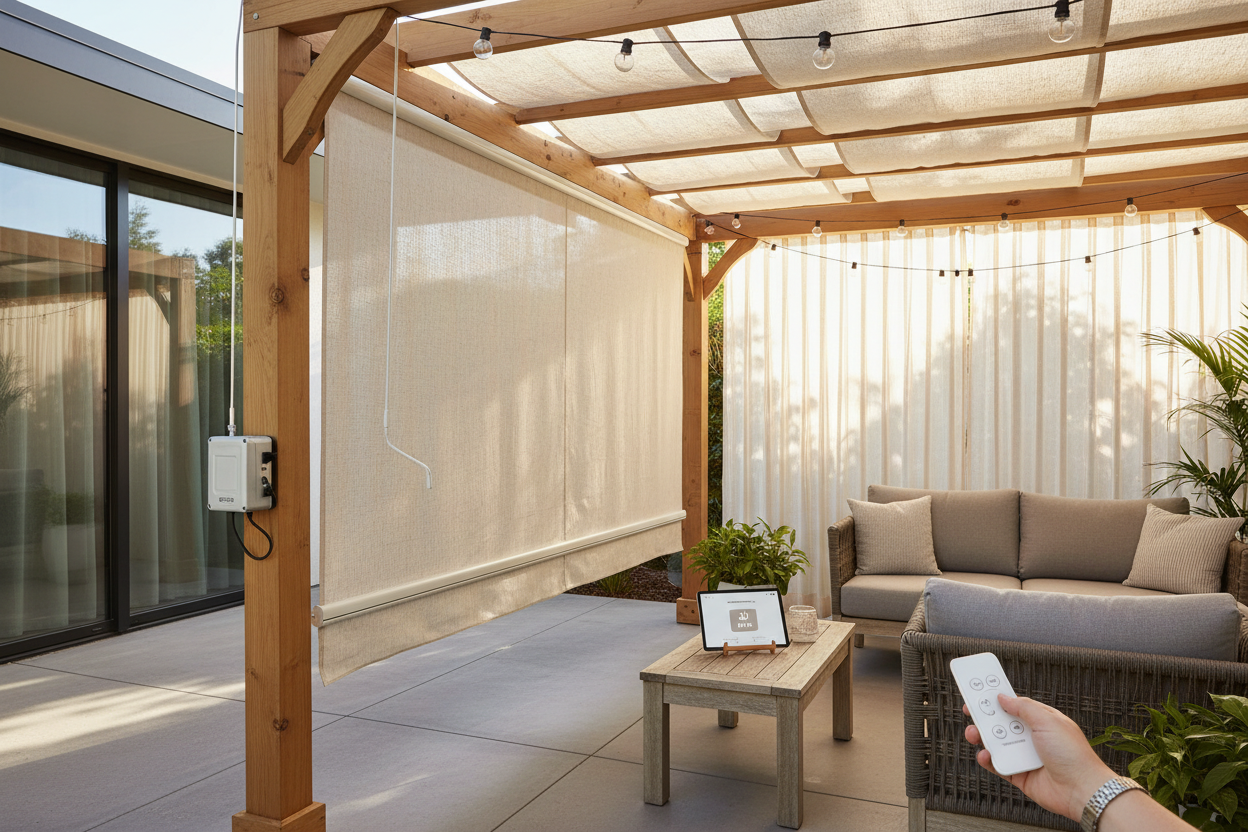

DIY Retractable Awning: Building a Motorized Shade on a Budget

Summer afternoons in my backyard used to be unbearable. The sun would bake the concrete patio, turning the space into an oven by 3 PM. I wanted shade, but quotes for custom motorized awnings were hovering around $4,000. That sticker shock sent me down a rabbit hole to build my own diy retractable awning and tie it into my existing smart home ecosystem.

By combining heavy-duty outdoor fabric, a tubular blind motor, and a Zigbee relay, I managed to create a voice-controlled shade system for a fraction of the cost. If you are looking to reclaim your outdoor space without draining your wallet, here is exactly how to approach a motorized, do it yourself retractable awning project.

Project Blueprint: What You Need to Know First

• Estimated Cost: $300 - $600 (depending on fabric quality and motor type). This makes it a highly effective cheap diy retractable awning compared to retail models.
• Time Investment: A full weekend. Getting the track tension right takes patience and a lot of ladder work.
• Smart Protocol: Zigbee or RF (Radio Frequency) with a smart bridge like the BroadLink RM4 Pro is best for outdoor range.
• Best Application: Ideal for existing structures. A diy retractable canopy for pergola setups is much easier than building a cantilevered arm system from scratch.

Designing the Mechanics

Slide Wire vs. Roller Tube Systems

When figuring out how to build retractable awning frames, you generally have two choices: a slide wire canopy diy approach or a motorized roller tube. I highly recommend the slide wire method if you already have a pergola. You simply run steel aircraft cables parallel across the top of your structure and suspend the fabric using carabiners and pulleys.

A roller tube system is closer to a traditional diy roll up awning. It requires a heavy-duty aluminum tube, mounting brackets, and a tubular motor inserted directly into the pipe. While this looks sleeker and more professional, it requires precise leveling and high-torque motors to handle the fabric weight.

Sourcing the Fabric

Do not skimp on the material. When researching diy pergola shade ideas, you will see people using basic canvas or indoor drop cloths. These will rot in a single season. You need UV-resistant, marine-grade outdoor fabric or a high-density polyethylene (HDPE) diy retractable shade sail material that allows wind to pass through while blocking UV rays.

Adding Smart Motorization

Choosing the Right Motor

To make a homemade diy retractable awning smart, you need the right drive system. For a slide wire setup, a smart curtain motor can sometimes be adapted to pull the lead carabiner along the wire. However, for a roller setup, you need a hardwired 110V AC tubular motor. Battery-powered motors generally lack the torque required to pull heavy outdoor fabric against the wind.

Weatherproofing and Power

Outdoor smart tech requires strict weatherproofing. If you use a standard indoor motor for a diy retractable pergola roof, it needs to be housed in a custom waterproof enclosure (an IP65-rated junction box works well). I hardwired my motor to an outdoor GFCI outlet, hiding the cables along the pergola beams inside PVC conduit.

Living with a DIY Awning: Day-to-Day Reality

I have been running my motorized diy retractable shade for pergola for over a year now. The convenience is fantastic. I have a routine set in Home Assistant that automatically extends the shade when my outdoor temperature sensor hits 80 degrees, keeping the patio cool before I even step outside.

But it is not perfect. The motor on my unit makes a distinct, mechanical whining noise—it is loud enough that it interrupts conversation for the 15 seconds it takes to deploy. Furthermore, I learned the hard way about wind shear. During a sudden summer storm, the wind caught the diy pergola cover like a sail. Because I used a cheap Wi-Fi relay initially, it dropped off my network and would not retract. I had to manually disconnect the carabiners in the pouring rain. I have since upgraded to an RF motor paired with an indoor smart bridge, which has proven much more reliable.

Frequently Asked Questions

Can I still open my diy retractable awning manually during a power outage?

It depends on the motor. Most hardwired tubular motors lock in place when unpowered. If you are using a slide wire canopy diy system with an adapted curtain motor, you can usually pull the fabric manually, but it will require some force to overcome the motor resistance.

Are diy retractable awning kits worth it?

A diy retractable pergola canopy kit can save you the headache of sourcing individual pulleys, cables, and turnbuckles. However, most kits are manual. You will still need to retrofit a smart motor and controller if you want voice or app control.

Do I need a hub for a smart diy pergola canopy?

Yes, usually. Because outdoor Wi-Fi signals are notoriously weak, using a Zigbee or Z-Wave relay connected to an indoor hub is the most reliable way to control your homemade retractable awning. Alternatively, an RF motor paired with a smart RF blaster placed near a window works incredibly well.
