Do Energy-Efficient Cellular Shades Really Work? I Tracked My AC Bill

My home office is a south-facing glass box. By 3:00 PM, my mechanical keyboard feels like it has been sitting on a grill. I used to just crank the window AC unit until my ears rang, but that is a losing game for my wallet and the power grid.

I finally got fed up with the glare and the heat, so I decided to test if energy-efficient cellular shades were actually a solution or just marketing fluff. I did not just want a cooler room; I wanted proof in the form of hard data and kilowatt-hours.

Quick Takeaways

• Honeycomb air pockets act as a legitimate thermal barrier between your glass and your room.
• Automation prevents the heat soak that happens when you forget to close the blinds.
• My window AC unit ran 18% less over a seven-day period with motorized shades.
• Zigbee sensors and smart plugs are the best way to verify your own ROI.

The Setup: Why I Put Smart Plugs on My Window AC Units

The problem was simple: my office has two massive windows with southern exposure. My old vinyl roller shades were basically heat conductors. They got hot to the touch and radiated that energy right into my workspace. I spent weeks looking for energy efficient shades that could actually block the thermal transfer instead of just dimming the light.

To get a baseline, I plugged my 8,000 BTU window AC into a Kasa smart plug with energy monitoring. I also stuck a Govee thermometer right on the inner windowsill. For one week, I kept the old blinds. The AC was a beast, chugging along at 850W from noon until sunset just to keep the room at 72 degrees. It was loud, expensive, and barely kept up.

The Methodology: How I Measured the Heat Bleed

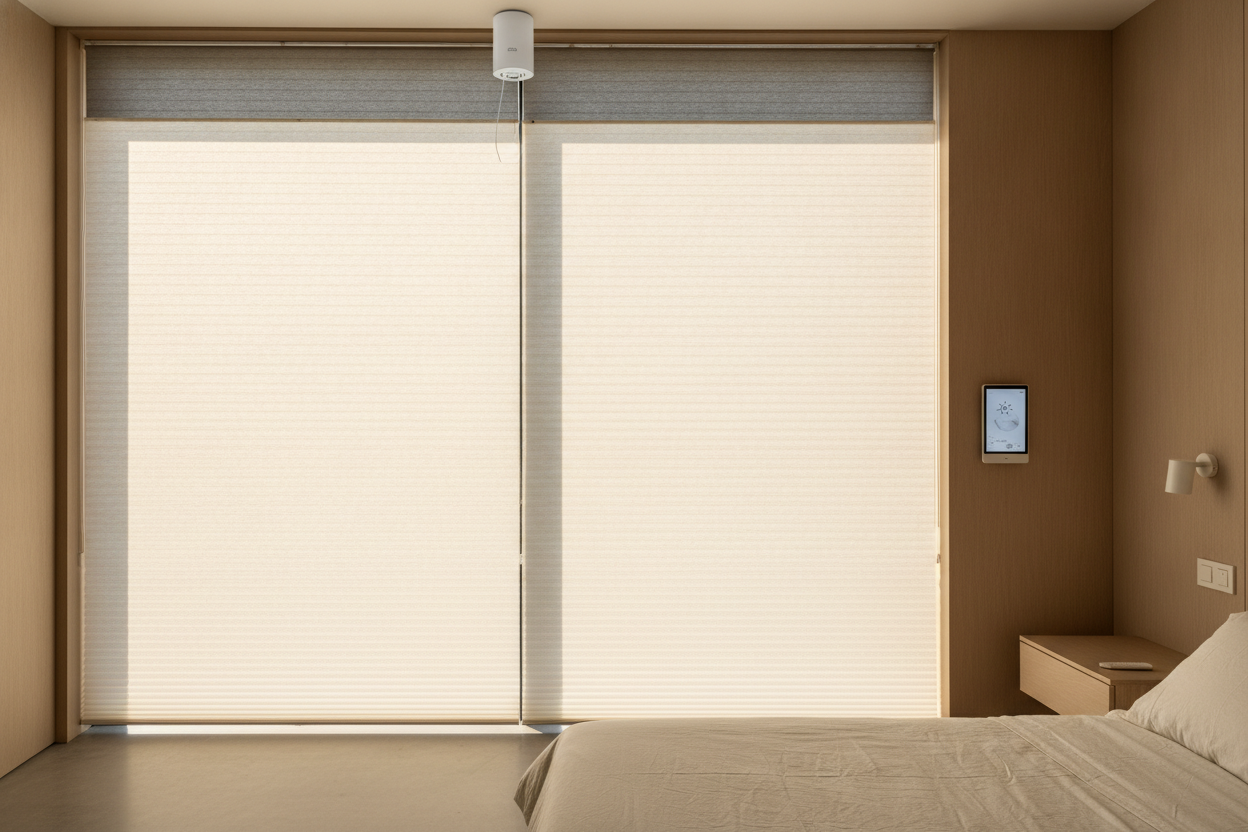

I needed a clean comparison. For the second week, I swapped the plastic rollers for motorized light filtering cellular shades. These are not just flat fabric; they have a distinct hexagonal profile that traps air inside. I kept the AC thermostat at the same 72-degree setting and waited for a week with similar outdoor highs in the mid-80s.

I used a Zigbee hub to log the temperature spikes. The goal was to see how much energy the AC consumed to maintain that target when the sun was at its peak. Testing energy efficient honeycomb shades isn't just about how it feels to your skin; it is about how many times that compressor has to kick on to fight the greenhouse effect on your glass.

The Raw Data: Are Cellular Shades Energy Efficient?

So, are cellular shades energy efficient? The data says yes. My smart plug logs showed a 1.4 kWh per day drop in consumption once the honeycomb shades were installed. That might sound small, but over a month, that is 42 kWh saved in a single room. In a house with four or five sunny windows, you are looking at a serious dent in the utility bill.

The physics here is what provides the cellular shades energy savings. The hexagonal cells create a pocket of dead air that acts as an insulator. Heat from the window has to pass through multiple layers of fabric and trapped air before it hits your room. It is the same principle as a double-pane window. Honeycomb blinds energy efficiency is real because air is a terrible conductor of heat.

Why Automation is the Secret to Actual ROI

The best fabric in the world won't save you a dime if you leave the shades open while you are at work. Humans are forgetful. I have realized that you experience comfort and energy savings only when the house thinks for itself. If you have to manually pull a cord every time the sun hits a certain angle, you are going to fail.

By using motorized versions, I ensured the shades were down during the most brutal UV hours. This prevents the room from heat soaking—where your walls and furniture absorb heat and radiate it back all night. When the shades close automatically at 11:00 AM, the AC does not have to work nearly as hard to maintain the status quo. It is proactive cooling versus reactive cooling.

Syncing to the Sun: My Favorite Weather Automation

I use Home Assistant to manage my shades, but you can do this with Alexa or SmartThings. I set up an automation that checks the local weather. If the outdoor temperature is forecasted to be above 75 degrees, the shades drop to 80% closed at 10:30 AM. This maximizes how honeycomb shades energy efficient properties perform without me lifting a finger.

If it is a cloudy day, the shades stay open, letting me enjoy the natural light without the thermal penalty. This logic is what actually pays back the cost of the shades. You are essentially building a dynamic thermal envelope for your home that responds to the environment in real-time.

The Verdict: The Math Behind the Upgrade

Based on my one-week test, I am saving roughly $0.22 per day on cooling this one room. Over a five-month cooling season, that is $33 for a single window. While the upfront cost of motorized shades is higher than a cheap plastic blind, the comfort and the reduced wear on my AC unit make it a clear win. For a deeper dive, check out this guide to cellular shades style and savings.

One honest downside: the Zigbee motor in my office occasionally falls off the network if my mesh router gets rebooted. It is a 30-second fix to re-pair, but it is a reminder that smart tech still needs a little babysitting. Even with the occasional glitch, I am never going back to basic rollers.

FAQ

Do cellular shades really save money?

Yes, by reducing the heat gain in summer and heat loss in winter. They act as an extra layer of insulation for your windows, which are usually the weakest point in your home insulation.

Which is better: single or double cell?

Double cell shades offer more insulation because they have more air pockets, but they are also heavier. For most moderate climates, a high-quality single cell is plenty for significant energy savings.

Can I automate existing cellular shades?

You can sometimes add a retro-fit motor to the wand, but for the best experience, buying shades with built-in motors is much more reliable and looks significantly cleaner.
