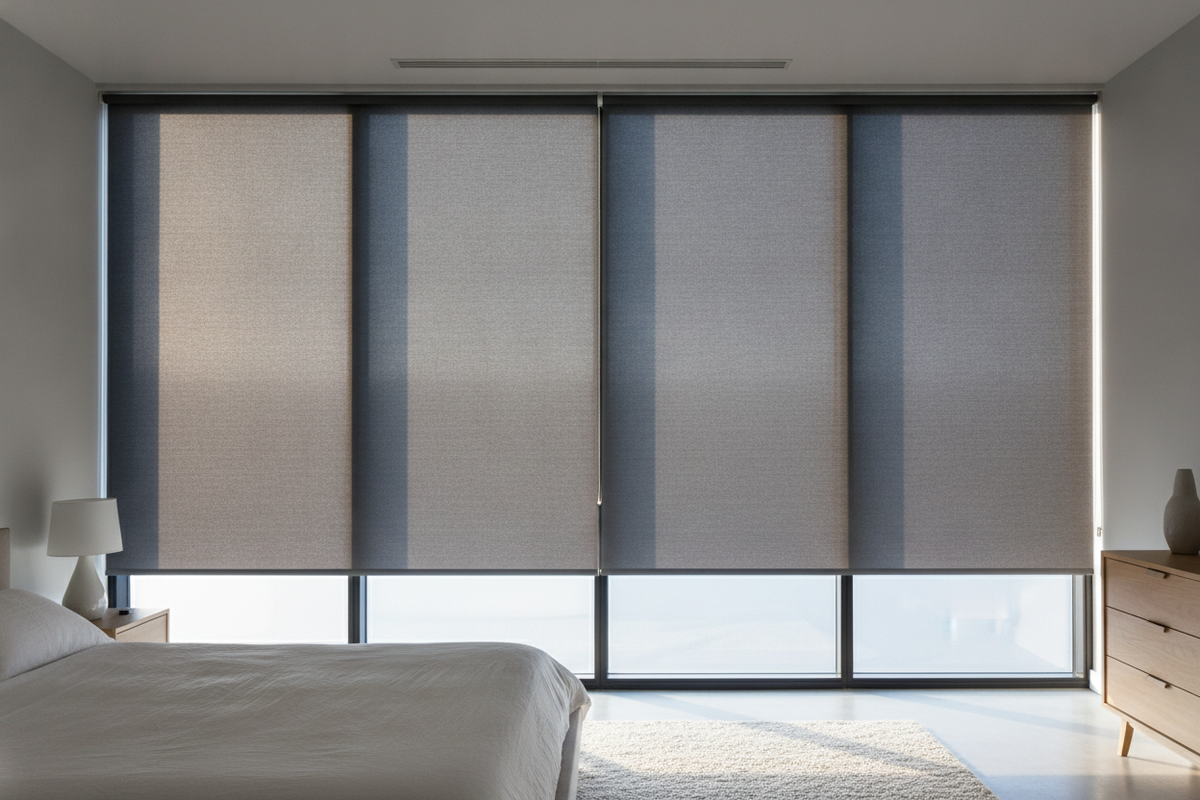

Extra Wide Blackout Shades: Guide to Large Windows

The Mechanical Challenge of Spanning Expansive Windows

Designing window treatments for broad glass expanses introduces structural dynamics rarely encountered with standard openings. When outfitting broad glazing, extra wide blackout shades must support considerable textile mass while maintaining balanced tension across the entire width. Without proper structural planning, the sheer physical span causes visible distortions and uneven roll patterns that degrade both aesthetic appeal and light management.

Deflection Mechanics and the Roller Sag Phenomenon

The primary mechanical obstacle in wide window spans is roller deflection. Every horizontal tube flexes downward under its own weight and the added mass of the suspended fabric. In smaller windows, this downward bend is negligible, but across broad openings, tube deflection produces a distinct bowing curve often referred to as roller sag. When the center of the tube droops relative to its supported ends, the fabric no longer feeds onto the cylinder at a true right angle. This geometry pulls the fabric inward toward the center, creating persistent diagonal stress marks known as smiling or v-shaped ripples.

Preventing this distortion requires selecting aluminum roller tubes engineered with increased wall thickness and wider overall diameters. Elevating the structural rigidity of the core tube reduces mid-span flex. For those planning a massive opening, consulting an extra wide blackout guide can help clarify how structural tube sizing interacts with ceiling pocket depths and window framing.

Textile Tensioning and Horizontal Creasing Trade-Offs

Blackout textiles are composite materials containing internal opaque films, dense weaves, or multi-layer acrylic coatings. Because these materials possess limited elasticity compared to sheer screens, tension imbalances manifest quickly as horizontal puckering or edge curl. Bottom hem bars must provide sufficient ballast to hold the drop taut without adding excessive dead weight that would worsen tube deflection. Balancing hem weight against tube stiffness ensures clean, flat travel across the entire expanse.

Light Containment Architecture Across Wide Openings

A continuous blackout textile only solves part of the room-darkening challenge. In broad architectural openings, perimeter light bleed often diminishes the darkening effect if edge containment is overlooked.

Perimeter Light Bleed and Side Channel Retention

Standard roller shade brackets leave clearance gaps along the sides to allow the tube, motor head, and idler end to rotate freely. On expansive windows, these perimeter gaps allow halo reflections to wash across adjacent walls. Managing this requires deep edge channels mounted directly to window jambs or mullions.

For wide spans, standard u-channels may prove insufficient if air currents or ambient room pressure pull the fabric free from the guide tracks. Integrating side channels equipped with internal brush seals or zipper-style retention tracks keeps the edge of the fabric secured inside the channel. Homeowners comparing configurations can inspect a specialized blackout shades product designed to integrate with perimeter channels for optimal room darkening.

Fascia Boxes and Top Enclosure Geometries

Light also escapes over the top of the roll if the roller mechanism sits open beneath a finished ceiling. Enclosing the roller assembly within an architectural cassette or pocket box eliminates top light halo. These headbox enclosures prevent light skimming across the ceiling plane while concealing mounting brackets, motor wiring, and leveling shims.

Drive Topologies and Power Delivery for Heavy Blackout Textiles

Manual chain drives quickly become unwieldy when operating large blackout shades due to the mechanical advantage required to raise heavy spans. Motorization provides controlled, smooth torque that protects the fabric from sudden tugs and operational misalignments.

Tubular Motor Torque Requirements for Substantial Spans

Tubular motors installed inside the roller core must overcome the resting inertia of the textile, heavy bottom rail, and large-diameter aluminum barrel. Motors with inadequate torque can hesitate, generate excess heat, or run unevenly under load. Selecting a motor specifically rated for high-load roller assemblies ensures smooth acceleration and reliable movement through the entire lift cycle.

Hardwired Power Infrastructure vs. High-Capacity Battery Packs

Power delivery planning depends heavily on the project stage:

• Line-Voltage or Low-Voltage Hardwiring: The ideal standard for new builds or extensive renovations. Dedicated wiring provides constant power, eliminating battery maintenance while enabling rapid motor response.
• Internal Rechargeable Drives: Well-suited for retrofit environments where fishing wire behind finished drywall is impractical. Modern battery-powered motors can handle wide spans, though heavier textiles will necessitate more frequent recharging cycles.
• Alternative Cell Formats: In some architectural settings, evaluating cellular constructions from a blackout shades collection provides another way to control light while benefiting from lighter static textile profiles.

Smart Automation Integration and Group Synchronization

Motorized wide blackout shades provide the greatest utility when connected to a central smart home network, allowing coordinated schedules and scene automation.

Wireless Protocol Integration: Zigbee, Matter, and RF Systems

Integrating motorized treatments into automated systems typically relies on dedicated RF controls, Zigbee mesh networks, or emerging Matter-over-Thread ecosystems. RF motors often utilize bridging gateways to translate smart platform commands, whereas native Zigbee or Thread devices pair directly into local controllers. In large rooms with multiple glass exposures, local wireless protocols avoid cloud latency and ensure reliable scheduling even if the external internet connection drops.

Precision Leveling and Synchronized Lowering Sequences

When multiple shades sit adjacent to each other, minor travel speed variations become immediately obvious. Advanced digital tubular motors feature electronically calibrated limit stops and adjustable travel speeds. Configuring synchronized start and stop routines ensures that bottom bars track together horizontally, preserving clean architectural sightlines across expansive glass walls. For reliable everyday control, pairing a proven blackout shades product with synchronized motor groups maintains uniform positioning during daily transitions.

Architectural Layout Decision: Continuous Single Span vs. Coupled Multi-Roller Bands

A crucial design decision is whether to cover a wide opening with one uninterrupted shade or divide the span into multiple coordinated panels.

Aligning Shade Splits with Window Mullions

While a single monolithic shade provides a clean, uninterrupted appearance, practical limits exist regarding textile manufacturing widths and room access during delivery. Splitting the span into two or three coordinated rollers aligned directly with existing structural window mullions hides the vertical light gap behind framing members. This approach simplifies installation while keeping individual roller tubes lighter and less prone to deflection.

Operational Flexibility and Maintenance Considerations

Coupled rollers allow a single motor to drive several adjacent tubes using intermediate connecting brackets, reducing the total motor count. However, independent motors for each section provide superior daylight control, allowing one section to be raised while others remain closed. Evaluating structural framing, delivery pathways, and day-to-day light preferences ensures that wide blackout shade installations deliver reliable performance for years to come.
