Hard to Reach? Smart Blinds for Garden Window Solved

We have all done the "kitchen stretch"—leaning precariously over the sink, knocking over a sponge or soap bottle, just to manually adjust the blinds for garden window setups. Garden windows are architectural gems that bring light and herbs into your kitchen, but they are notoriously difficult to manage regarding light control and privacy. Because these windows protrude outward and are often situated behind deep counters, they are the prime candidate for smart technology.

By upgrading to motorized garden window shades, you eliminate the physical reach. More importantly, you gain the ability to manage heat buildup—a common issue in these mini-greenhouses—using simple voice commands or temperature-based triggers.

Quick Compatibility Check

• Power Source: Rechargeable Li-ion Battery or Solar Panel Strip (Recommended for high-sun areas).
• Connectivity: Zigbee 3.0, Z-Wave, or WiFi (2.4GHz). Matter-over-Thread options are emerging.
• Mounting Depth: Requires minimum 1.5 inches for internal roller/cellular mechanisms.
• Platform Support: Alexa, Google Home, Apple HomeKit (via Bridge).

Installation Realities: The "Glass Box" Challenge

Installing smart garden window treatments is distinct from standard windows because you are essentially working inside a glass box. Standard tension rods won't cut it for motorized units due to the weight of the motor and battery.

Mounting Points

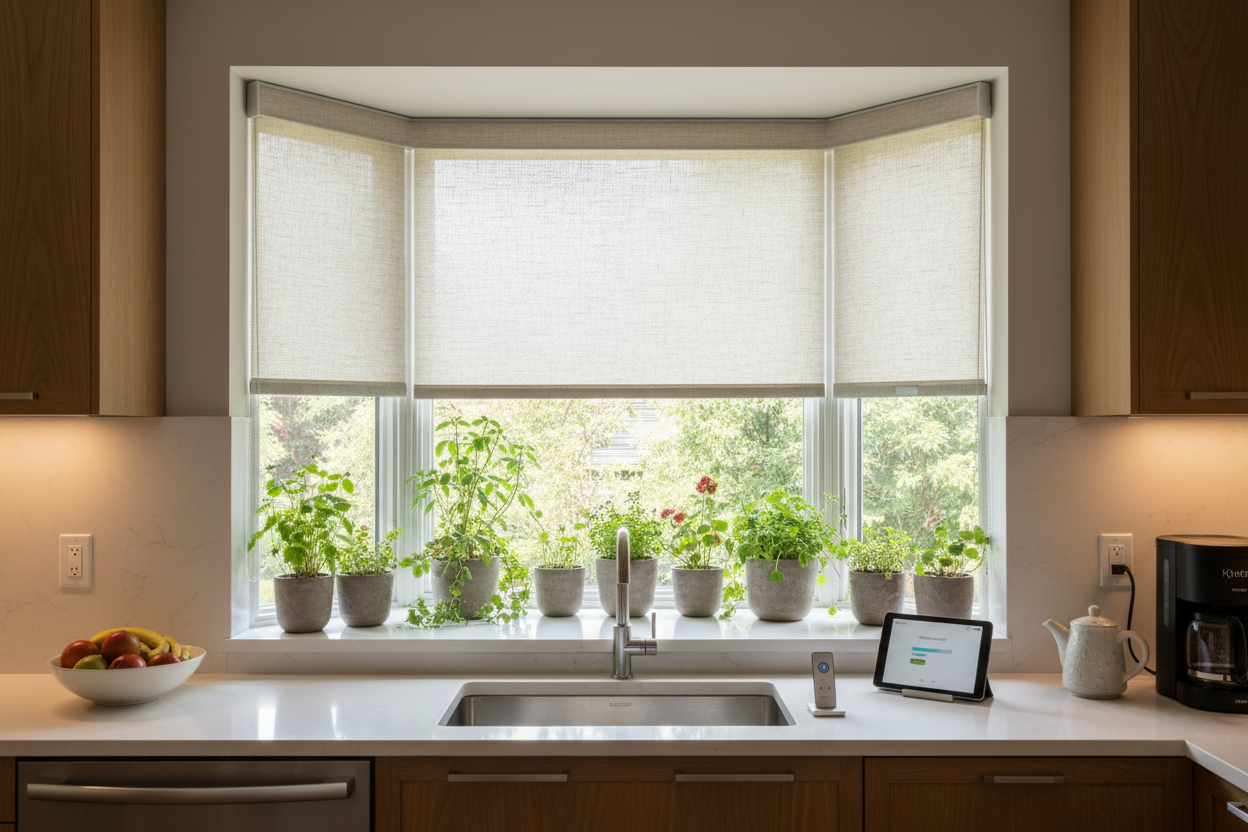

For a typical garden window, you have two main strategies. The most common is a single, wide shade covering the front glass. However, for complete window treatments for garden windows, many users opt for three separate units: one for the front and two for the angled sides. If you go this route, ensure your motor brackets are "low profile" to prevent gaps where the shades meet.

Weight and Load Capacity

Motor torque matters here. If you are choosing insulated cellular shades (honeycomb) to combat heat, they are generally lightweight. However, if you prefer heavier woven wood kitchen garden window shades, ensure the motor is rated for at least 1.1Nm of torque. Under-powered motors will struggle to lift the shade fully, draining the battery twice as fast.

Power & Battery Options

Since hardwiring 12V power to a window protruding outside the house frame is difficult without major renovation, battery power is the standard. However, the garden window offers a unique advantage: sunlight.

This is the ideal use case for small solar panel strips. By attaching a slim solar charger to the top pane of glass (facing upward), you can keep your shade for garden window permanently charged. In my testing, even indirect light in a kitchen is often enough to maintain a motorized roller shade's battery level indefinitely.

Ecosystem Integration

Once installed, the goal is hands-free control. Whether you are using a Zigbee hub (like the Echo Show or SmartThings) or a WiFi bridge, grouping is essential. If you install three separate garden window coverings (sides and front), you do not want to say three separate commands.

In your Alexa or Google Home app, create a room group called "Kitchen Garden." This allows a single command—"Close the Kitchen Garden"—to lower all three shades simultaneously. For advanced users, use the "Sun Position" feature in platforms like Home Assistant to lower the shades only when the sun is directly hitting the glass, protecting your herbs from scorching.

Living with blinds for garden window: Day-to-Day Reality

After living with a retrofitted smart roller shade in my kitchen for six months, here is the unpolished truth: the acoustics are surprising. A garden window is literally a glass echo chamber. While the motor I used is rated at a quiet 40dB, the sound amplifies significantly inside that small, enclosed space. It isn't loud, but it produces a distinct hum that you don't hear on flat wall windows.

Another nuance is the "solar creep." I used suction cups for the solar panel initially, but the heat fluctuation in the garden window caused them to pop off after two weeks. I eventually had to use high-heat automotive double-sided tape to secure the charging strip to the upper glass. Also, if you use kitchen garden window curtains or valances to hide the roller mechanism, make sure they don't block the signal receiver if you are using an older IR or RF remote system as a backup.

Conclusion

Upgrading your garden window curtain ideas to smart shades is one of the most practical tech investments for a kitchen. It solves the physical accessibility problem and helps regulate the intense temperature fluctuations common in these windows. While the installation requires precise measuring, the daily convenience of voice control while your hands are covered in dough or dish soap is undeniable.

Frequently Asked Questions

How do I charge the blinds if I don't use solar panels?

Most modern smart blinds feature a magnetic charging port. You simply snap a magnetic USB cable onto the motor head without needing to remove the blind or climb onto the counter.

Can I use smart blinds if my garden window is humid?

Yes, but check the IP rating. Kitchens generate steam. Look for moisture-resistant fabrics like vinyl or faux wood rather than standard fabrics, and ensure the motor housing is sealed against humidity.

Do I need a separate hub?

It depends on the connectivity. WiFi motors connect directly to your router but consume more battery. Zigbee or Thread motors require a compatible hub (like an Amazon Echo or Apple HomePod) but offer better battery life and local control.
