How a Hidden Motor Fixed My Clunky Home Window Curtain Design

I spent three months obsessing over the exact shade of 'Greige' for my living room walls. I agonized over the brass hardware on the cabinets and the hand-scraped texture of the oak floors. But when it came to my home window curtain design, I figured I’d just 'figure it out' once the furniture arrived. That was a massive, expensive mistake.

By the time I realized I wanted motorized drapes, the drywall was finished, the paint was dry, and the electrician was long gone. My only option was a surface-mounted smart track. It looked like a piece of industrial hospital equipment had been bolted to my ceiling. The motor hung off the side like a bulky white plastic tumor, and the power cord dangled down the wall, mocking my 'minimalist' aesthetic. It was a mess of exposed brackets and visible rollers that ruined the clean lines I’d worked so hard to create.

Quick Takeaways

• Always frame a recessed ceiling pocket before the drywall goes up to hide the hardware.
• Hardwire your tracks to avoid the 'ladder and charging cable' nightmare every six months.
• Ensure your pocket is at least 5 inches deep to accommodate both the track and the motor head.
• Coordinate your fabric weight with your motor’s torque rating (Nm) to prevent premature motor failure.

The 'Afterthought' Mistake I Made During Renovation

The problem with most smart home tech is that it’s designed to be an add-on. But smart curtains are different; they are architectural. When I finally got my motor installed, the 'tech' part worked great. I could say 'Alexa, movie time,' and the room would go dark. But the window curtain design for home aesthetics were a disaster. Because I hadn't planned for the track, the drapes sat two inches away from the wall, letting light leak in from the top and sides.

I also hadn't accounted for the 'stack back'—the amount of space the fabric takes up when it's fully open. My beautiful floor-to-ceiling windows were partially blocked by a thick wad of fabric because I didn't have enough wall space on the sides for the track to extend. It felt cramped. If you want that high-end, hotel-suite look, you have to treat the track as part of the building's skeleton, not just a rod you buy at a big-box store.

Rethinking Window Curtain Design for Home Automation

You need to change your mindset: you aren't just buying curtains; you are installing a motorized appliance. That means you need power and space. Most people wait until the end of a project to look at automated drapery collections, but you should be doing that while your studs are still exposed. You need to know the exact dimensions of the track system you want so your contractor can frame the window header correctly.

I learned the hard way that a standard 2x4 header doesn't always leave enough room for a motorized track if you also want to install crown molding. You need to verify if your motor requires a 110V outlet or a low-voltage DC wire. If you don't run that wire before the insulation goes in, you'll be stuck with battery packs. And trust me, nobody wants to be the person climbing a ladder in their pajamas because the living room curtains lost their connection to the bridge.

The Magic of the Ceiling Pocket

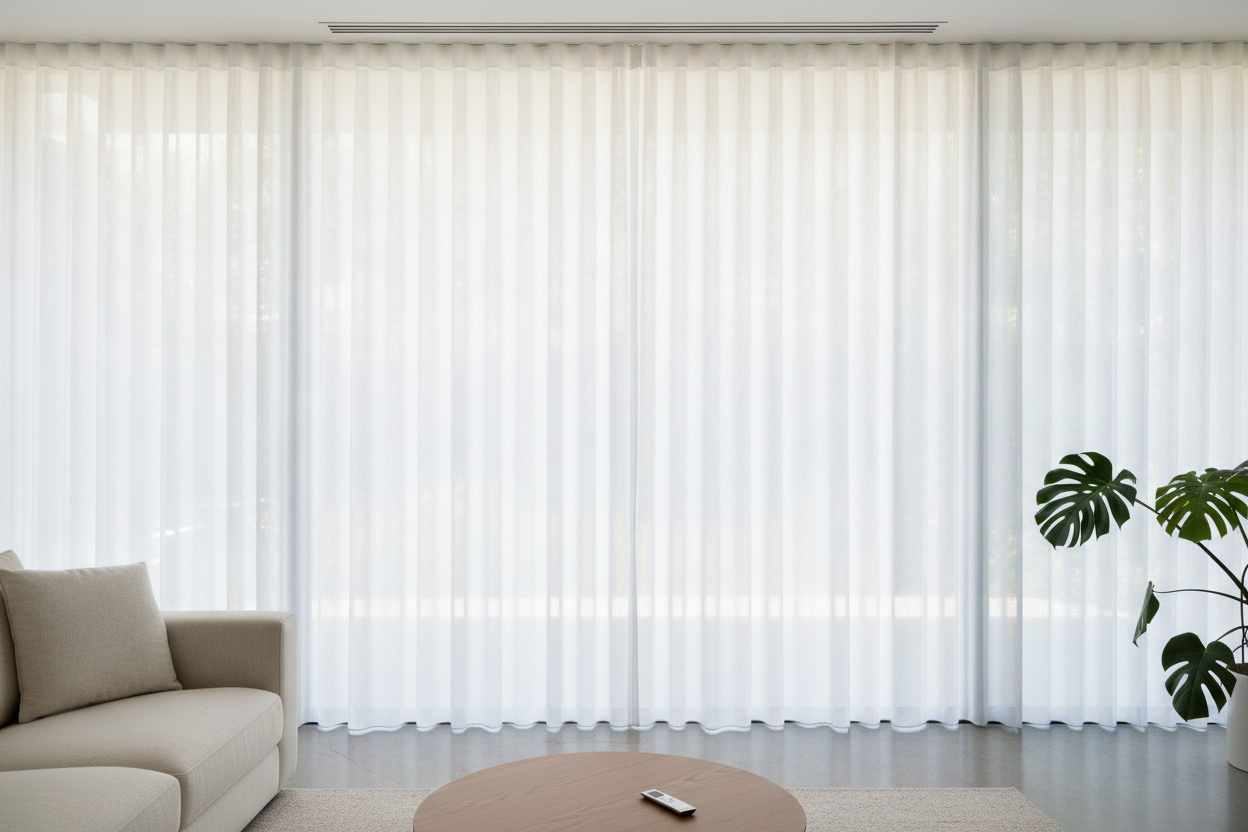

If you want the 'floating' look where the fabric seems to emerge directly from the ceiling, you need a recessed pocket. This is a simple wooden trough built into the ceiling joists. It completely hides the track, the rollers, and the motor. When the curtains are open, the hardware is invisible. When they’re closed, you just see a beautiful wall of fabric.

I recommend a pocket that is at least 5 inches wide for a single track and 8 to 10 inches wide if you plan on layering sheers and blackouts. For the deep dive on the exact framing specs, check out this guide on hiding your curtain track for a flawless window design. Getting this right during the framing stage costs almost nothing in materials but saves you thousands in 'fix-it' costs later. It’s the difference between a DIY project and a professional interior design.

Hardwiring vs. Battery Packs in Tight Spaces

Battery-powered motors are great for retrofits, but they are a pain in recessed pockets. Pockets are tight, dusty, and hard to reach. I once installed a battery motor in a 6-inch deep pocket and realized I couldn't actually reach the charging port without removing the entire track. It was a nightmare. If you are renovating, just run the wire. A hardwired 24V or 110V motor provides more torque, faster movement, and zero maintenance. Plus, you’ll never have to worry about a dead battery during a firmware update that leaves your curtains stuck halfway open.

Fabric Weight vs. Motor Strength: Getting the Math Right

Not all motors are created equal. Most consumer-grade smart motors have a torque rating around 1.2Nm. That’s plenty for a standard linen drape, but if you’re going for heavy, floor-to-ceiling velvet, you might be pushing it. If the motor is underpowered, it will whine. It sounds like a tiny jet engine taking off every time you want some privacy. It’s not exactly the 'luxury' experience you were hoping for.

I’ve found that the Weffort Motorized Drapery 90 Blackout is the 'Goldilocks' choice here. It’s heavy enough to block out 90% of light and provide that high-end drape, but the fabric is engineered to be light enough that it won't burn out a standard motor. Always check the weight-per-foot of your fabric against the motor’s maximum load capacity. And remember: the longer the track, the more friction the motor has to fight.

Layering Smart Blinds and Drapes Without the Clutter

The ultimate setup is a dual-layered system: a sheer blind for daytime privacy and a heavy drape for nighttime blackout. Doing this with manual rods usually results in a messy stack of hardware that looks like a plumbing project. With automation, you can hide both tracks in a single, wider ceiling pocket. This allows you to schedule your sheers to close at noon when the sun is harshest and your drapes to close at sunset.

For inspiration on how to mix these textures without making your windows look bulky, I’ve found some great examples of blinds and drapes stylish window solutions for every home. The key is keeping the hardware hidden and the colors coordinated. When the tech is invisible, the focus stays on the fabric and the view, which is exactly how it should be.

My 3 Rules for Future-Proofing Your Smart Windows

If you are in the middle of a build or a heavy remodel, do these three things right now. First, pull a Cat6 or a 14/2 wire to the top-left or top-right corner of every major window. Even if you don't buy the motors today, you’ll thank yourself in two years. Second, make sure your window trim doesn't interfere with a straight track run. Third, choose a protocol that plays well with others. I prefer Zigbee or Matter-enabled motors because they don't clog up my WiFi and they respond instantly to voice commands. Don't let your curtains be the one thing that ruins your design—plan for the motor, then hide it.

FAQ

Can I hide a motor if I'm not doing a full renovation?

It's tougher, but you can use a decorative 'pelmet' or a custom valance box. It won't be flush with the ceiling, but it will hide the 'ugly' parts of the smart track and the motor head from view.

Do motorized curtains work during a power outage?

Most high-quality tracks have a 'manual override' or 'touch-start' feature. If the power is out, you can usually pull the fabric gently, and the clutch will disengage, allowing you to slide them by hand.

How loud are these motors really?

A good motor should be under 35dB. In a quiet room, you'll hear a soft hum, but it shouldn't be loud enough to wake you up. If it's grinding or clicking, your fabric is too heavy or the track isn't level.
