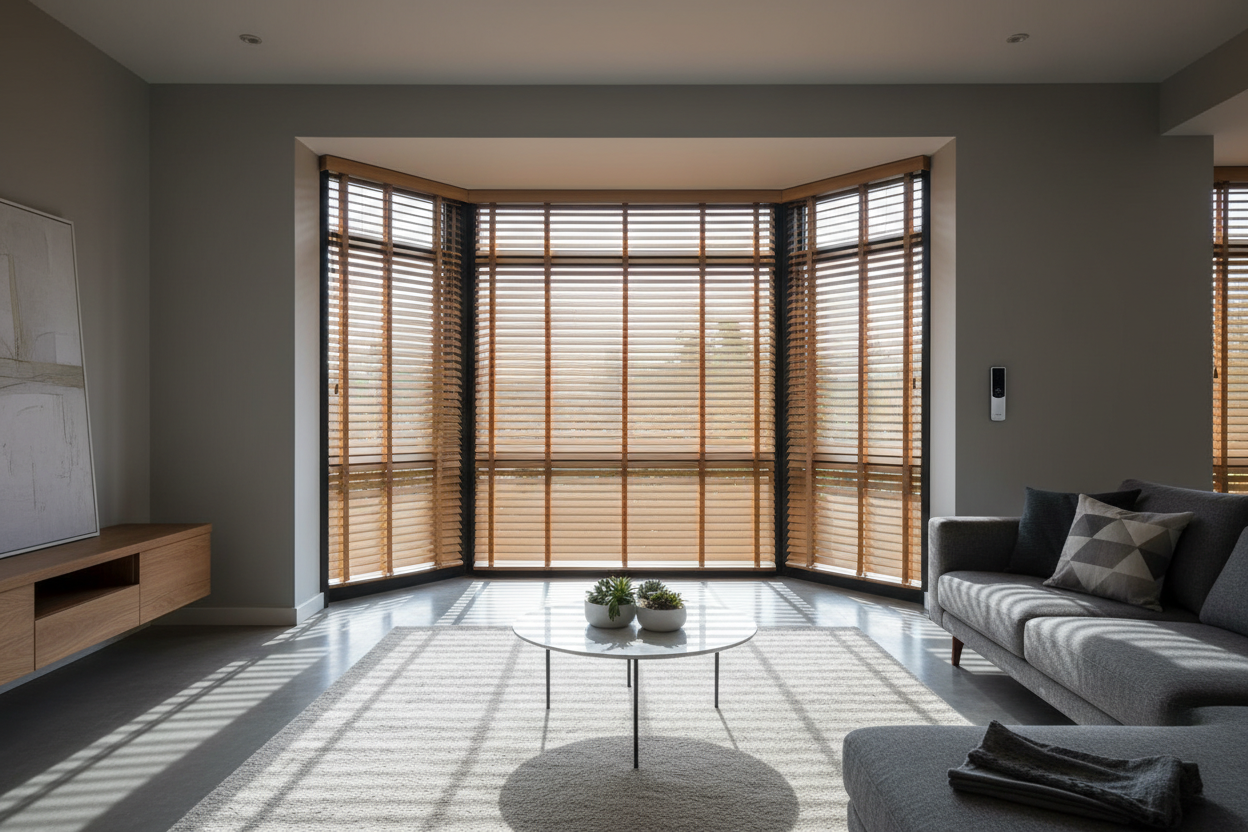

How I Finally Got Bay Window Wood Blinds to Fit Without Colliding

I spent three hours fighting with a tape measure in my Victorian living room before I realized that physics doesn't care about my interior design goals. My bay window wood blinds were a mess of overlapping metal and crooked slats. Every time I tried to lower the center blind, it would snag on the corner of the left one, sending a shudder through the whole mounting bracket that sounded like a structural failure.

It is a classic problem. You want the warmth of real wood, but those thick 2-inch slats require a depth that most bay windows simply don't have. If you've ever stared at a 135-degree angle and wondered how two pieces of metal are supposed to occupy the same physical space, this is for you. I eventually cracked the code, but it took some cardboard, a lot of patience, and the right automation hardware.

• Inside mounting is the only way to keep the architectural lines of the window visible.
• The cardboard template trick is mandatory to avoid headrail collisions.
• If your frame depth is under 2 inches, you have to pivot to a smaller slat size.
• Zigbee or Thread motors are better than Bluetooth for multi-blind synchronization.

The Nightmare of Bay Window Geometry

Bay windows are the crown jewel of a living room, but they are a functional disaster for standard window treatments. Most people assume they can just measure the width of each pane and order three blinds. That is a fast track to a return shipping label. Because the side windows meet the center window at an angle—usually 45 or 135 degrees—the headrails (the metal box at the top) will physically smash into each other if you measure the full width of the glass.

When these headrails collide, they push each other out of alignment. This creates massive light gaps in the corners that look like a mistake rather than a feature. I’ve seen DIY installs where the homeowner just mounted the side blinds lower than the middle one to avoid the hit, but it looks terrible. You lose that clean, continuous line that makes a wood blinds bay window so attractive. The goal is to find the exact 'stop point' where the headrails can live side-by-side with maybe a 1/8-inch gap—just enough to breathe, but not enough to let the neighbors see in.

Standard off-the-shelf blinds are the enemy here. They usually come with chunky, oversized valances and universal brackets that add half an inch of unnecessary bulk. To get this right, you need to account for the 'projection' of the blind—how far it sticks out from the window. If you don't do the math, you'll end up with wooden blinds in bay window setups that look like they were forced in with a hammer.

Why I Chose Inside Mounts (And You Should Too)

Outside mounts on a bay window are a crime against aesthetics. If you mount the blinds on the wall above the window, you end up with a weird 'floating' box effect that cuts off the angles of the bay. It makes the room feel smaller and ruins the trim. I insisted on a bay window with blinds inside the casing because I wanted to see the original 1890s wood molding. It’s a cleaner, more custom look that feels integrated into the house.

However, inside mounting requires depth. For a standard 2-inch wood blind, you need about 2.5 to 3 inches of flat surface inside the window frame to get a truly flush mount. If you have less than that, the slats will protrude past the trim, which looks sloppy. I spent a long time weighing the pros and cons of different control systems during this phase. I eventually realized that once these are installed in a deep bay, reaching over the sofa to pull three different cords every morning was going to be a chore I’d eventually stop doing. That was the moment I started looking at why choose smart blinds as a serious upgrade for light control across all three panes simultaneously.

The decision to go smart wasn't just about laziness. In a bay window, you have three different light sources hitting the room from different angles throughout the day. With manual wood blinds, you're constantly micro-adjusting. With an automated setup, I can set the side blinds to tilt at 30% while the center stays at 50%, perfectly managing the glare on my TV without ever touching a cord.

When You Might Have to Downsize

Sometimes, the house wins. If your window mullions (the vertical dividers) are shallow—say, less than two inches deep—you simply cannot fit a 2-inch wood blind inside the frame. It’s a hard truth. If you try to force it, the headrail will hang out like a sore thumb. In these cases, you have to pivot to 1-inch slats or even mini blinds bay windows.

It’s not a defeat; it’s a pivot. Mini blinds have a much smaller footprint, meaning the headrails are narrower and less likely to collide in the corners. If you're on a budget and realize your frames are too shallow for the heavy wood stuff, I’ve actually automated cheap Hampton Bay window blinds in the past for guest rooms. They are light, easy to mount in tight spots, and the motors don't have to work nearly as hard to tilt the lighter slats.

The Measurement Math That Saved My Headrails

Forget your tape measure for a second. The only way to measure a bay window correctly is with two pieces of cardboard cut to the exact depth of the blinds you want to buy (usually 2.5 inches for wood blinds). These pieces of cardboard act as 'dummy' headrails. Take the two pieces and place them in the corner where the side window meets the center window. Slide them toward each other until they just barely touch.

Mark the spot on the window sill or the top casing where the front corner of the cardboard hits. This mark is your 'maximum width.' Measure from the corner mark on the left to the corner mark on the right to get your center window width. Then measure from the corner mark to the outer edge of the window for your side pieces. This 'corner cut' trick ensures that when the actual blinds arrive, they will fit into the space with surgical precision. No collisions, no cursing, and no gaps large enough to let the sun ruin your morning coffee.

I’ve seen people try to use protractors and high school trigonometry to figure this out. Don't be that person. The cardboard method accounts for wonky, non-square Victorian frames that a math equation won't see. When I did this for my wood blinds bay window, I discovered my '45-degree' angles were actually closer to 42 degrees. The cardboard didn't lie, and the resulting fit was perfectly flush.

Where to Put the Smart Motors in Tight Corners

Once you have the fit dialed in, the next challenge is the tech. Most battery-powered motors for wood blinds sit inside the headrail. This is great for aesthetics, but it adds weight. In a bay window, the corners are incredibly tight. You need to be mindful of where the charging port or the antenna is located. If the charging port is on the end of the headrail that is jammed into the corner, you’ll never be able to plug it in without taking the whole thing down.

I chose motors with a bottom-facing charging port for this reason. I also had to consider the signal. If you have three metal headrails clustered together in a bay, they can sometimes act as a shield, blocking Zigbee signals. I placed my smart home hub within 10 feet of the window to ensure the center blind didn't miss a 'close' command while the two sides obeyed. If you find the wood blinds are too heavy or the headrails are just too bulky for your specific angles, you might look into motorized woven wood shades as an alternative. They often have a lower-profile headrail and a softer edge that is more forgiving if the measurements are off by a hair.

For the setup, I used a simple Zigbee bridge. Each blind is recognized as an individual device, but I grouped them as 'Bay Window' in my app. This allows me to say, 'Alexa, tilt the bay window to 50%,' and all three sets of wood slats move in unison. It’s a small thing, but watching them sync up perfectly without hitting each other is immensely satisfying after the measurement stress.

The Final Look: Automating My Living Room

The result of all that measuring and cardboard-cutting is a living room that finally feels finished. The wood blinds bay window setup looks like it was built into the house. In the morning, my 'Sunrise' routine triggers at 7:30 AM. The slats tilt open slowly over two minutes—a feature called 'soft start' that I highly recommend. It’s much more pleasant than a sudden mechanical whir.

Living with this for six months, I’ve realized that the real value isn't just the 'cool' factor. It’s the fact that I actually use my windows now. Before, the bay window was always half-shrouded because the cords were a pain to reach behind the armchair. Now, the light in the room changes dynamically throughout the day. One minor downside: I did have one motor lose its 'limit' settings after a power surge, which meant the slats tried to tilt past their stopping point. It took five minutes to recalibrate with the remote, but it’s a reminder that smart tech still needs a human eye occasionally.

FAQ

Do wood blinds work in a bay window?

Yes, but they are heavy. Ensure your mounting brackets are screwed into solid wood or use heavy-duty anchors, as the weight of three wood blinds can pull on the casing over time.

How do I stop light gaps in the corners?

The cardboard template method is the best way to minimize gaps. If you still have a small gap, you can install decorative 'light blocks'—small strips of plastic or wood—on the edge of the frame to catch the stray beams.

Can I automate existing wood blinds?

Usually, yes. There are retrofit kits that replace the tilt rod inside the headrail with a motor. Just check that your headrail has enough internal clearance (usually 2 inches) for the motor unit to fit.
