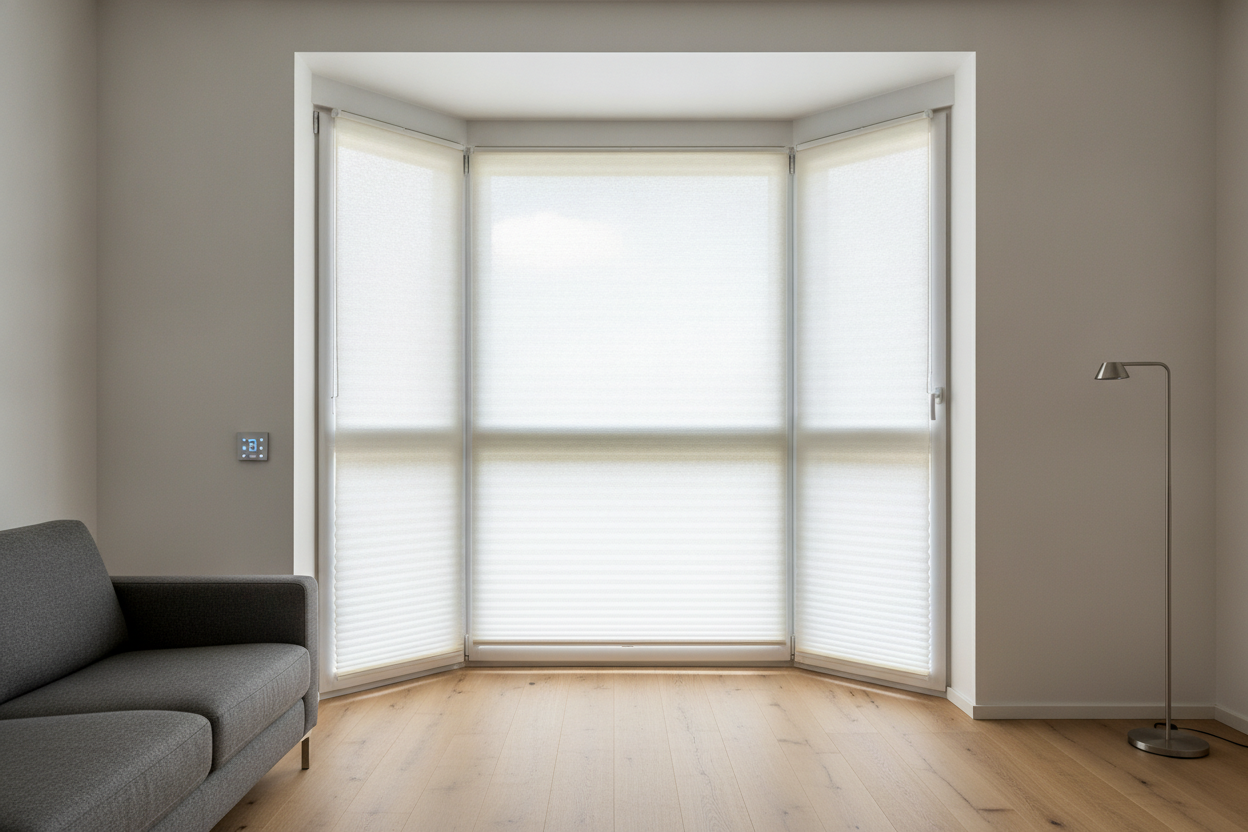

How Motorized Blinds Top Down Bottom Up Fixed My Awkward Bay Window

I used to have a staring contest with my neighbor’s Golden Retriever every morning at 7:15 AM. My front bay window is beautiful, sure, but it faces a busy sidewalk. For years, I had two choices: keep the shades down and live like a mole, or pull them up and let the world watch me eat cereal in my pajamas.

Standard smart rollers didn't solve this. They are all-or-nothing. If I wanted light, I had to give up privacy. That changed when I finally ripped out the old rods and installed motorized blinds top down bottom up. Now, I can drop the top of the shade to let the sun hit the ceiling while the bottom half stays firmly shut against the street-level gaze.

Quick Takeaways

• Privacy and light coexist: You keep the bottom closed and the top open to let the sky in.
• Dual motors: These shades use two separate motors to control the middle and bottom rails independently.
• Battery life: Expect to charge them more often than standard rollers since two motors are pulling the weight.
• Smart scenes: Scheduling a 'floating' position is the best way to handle afternoon glare.

The Front Window Dilemma: Living in a Cave or a Fishbowl

There is a specific kind of anxiety that comes with owning a home with a large, street-facing bay window. You want that architectural feature to shine, but you also don't want to be the local entertainment for everyone walking their dogs. My living room was a constant battleground between natural light and personal privacy. I tried sheer curtains, but they just made the room look dated and didn't really block the view at night when the lights were on inside.

I eventually upgraded to standard smart roller shades. I thought that being able to schedule them to open at sunrise would be the fix. It wasn't. I’d wake up, the shades would roll up, and within five minutes, I’d be scurrying to the remote to shut them because a group of joggers was staring right into my soul. I ended up leaving them closed 90% of the time. My expensive, beautiful bay window was effectively a wall. I was living in a cave, paying for electricity to keep the lights on at 2 PM while the sun was blazing right outside the glass.

The problem with traditional motorized shades is the direction of travel. They only come from the top. To get even a sliver of sky, you have to expose the entire bottom half of the window—the part people actually look through. It’s a design flaw for anyone living in a suburb or a city. I needed a way to flip the script. I needed the light to come from the top while the bottom stayed anchored. That’s where the TDBU (Top-Down Bottom-Up) system comes in. It’s not just a fancy trick; for certain floor plans, it’s the only way to actually use your windows.

How the Dual-Motor Magic Actually Works

When you buy a standard motorized shade, there’s one motor in the tube. It spins, the fabric goes up or down. Simple. With motorized top-down shades, the engineering gets significantly more crowded. You’re essentially dealing with two separate motorized systems living in the same headrail. One motor controls the middle rail (the one that moves down from the top), and the other controls the bottom rail. This allows you to create a 'stack' of fabric anywhere on the window pane.

Installation is a bit more involved. Instead of just mounting two brackets and snapping the rail in, you have to be precise about leveling. If the headrail is even slightly tilted, the middle rail will hang crooked, and you’ll spend your afternoon cursing at a piece of fabric. Most of these systems run on Zigbee or Bluetooth. I prefer Zigbee because it doesn't clog my WiFi, but you’ll need a hub to get the best experience. Once they’re up, you’ll find the programming is where the real work happens. You aren't just setting an 'open' and 'closed' limit; you’re setting limits for two different moving parts that can technically collide if the software isn't smart enough.

Power is the other big factor. Since you have two motors working, the battery drain is real. In my testing, a standard roller might last 8 months on a charge. These TDBU units usually need a top-off every 3 to 4 months. If you have the option to hardwire them, do it. If not, make sure you have a long enough charging cable so you aren't climbing a ladder every quarter. For those looking for the nitty-gritty on wiring and syncing these dual-motor beasts, I highly recommend checking out this smart motorized top down bottom up blinds guide. It covers the pairing sequences that the manual usually glosses over.

Programming the 'Floating' Sweet Spot for Afternoon Sun

The real power of top down motorized blinds isn't just the remote; it’s the automation. My favorite setup is what I call the 'Privacy Gap.' At 10 AM, when the sun is high enough to be annoying but not yet blinding, my shades trigger a scene. The top rail drops 25% of the way down, and the bottom rail stays at the sill. This lets the light bounce off the white ceiling, diffusing it throughout the room without hitting my TV screen.

By 3 PM, the sun hits that brutal Western angle. On a normal shade, I’d have to close it entirely. But with TDBU, I move the entire 'stack' of fabric to the middle of the window. The top is open, the bottom is open, but the middle 40% is blocked. It looks like the shade is floating in mid-air. It’s a weird look at first, but it’s incredibly functional. I can see the trees and the sky, I can see the flower beds at the bottom, but the direct glare is stopped dead. If you’re just looking for light diffusion without the complex mechanical movement, you might consider motorized sheer shades, but they won't give you that surgical precision for blocking specific glare zones.

I use Home Assistant to manage mine, but even the native apps for most brands allow for 'scenes.' You want to create a 'Morning,' 'Afternoon,' and 'Evening' profile. In the evening, both rails meet at the top and bottom respectively to fully seal the window. One thing I learned the hard way: don't set your 'open' routine to 100% for both motors simultaneously if you're on battery power. It creates a massive spike in current that can occasionally trip the motor’s internal safety. Stagger them by two seconds. It sounds cooler anyway.

Cellular vs. Aluminum: Choosing the Right Material

Material choice isn't just about aesthetics; it’s about physics. Most TDBU shades are cellular (honeycomb) fabric. There’s a reason for that. Cellular fabric is incredibly light. Motors love light. The lighter the material, the faster it moves and the longer your battery lasts. Plus, the honeycomb structure provides an extra layer of insulation, which is helpful for big bay windows that tend to be drafty. If you want a softer look, motorized light filtering sheer shades are great, but they often lack the TDBU functionality because the fabric doesn't stack as neatly.

Then there’s aluminum. If you’re going for an industrial look, you might look at metal slats. But be warned: motorized aluminum setups are heavy. The motors have to work twice as hard to lift a stack of metal compared to a stack of polyester. You’ll notice a distinct difference in the 'whir' of the motor—it sounds more like a struggle. If you go this route, you have to be meticulous about the calibration. A heavy metal rail hitting the bottom sill too hard can eventually knock the motor out of alignment. If you're dead set on that rigid look, read up on the aluminum mini blinds motorized setup to make sure you’re choosing a motor with enough torque.

Personally, I stick with cellular for TDBU. The way the fabric compresses into a tiny stack at the bottom or top is much cleaner. It maximizes your view when you actually want the window fully open. Aluminum slats, even when pulled up, still take up a few inches of visual space. In a bay window where every inch of glass counts, that's a dealbreaker for me.

Are They Worth the Extra Setup Hassle?

Look, these aren't the cheapest shades on the market. You're paying for two motors, complex internal cabling, and the software to keep it all synced. But if you have a window that faces a sidewalk, a neighbor's driveway, or a streetlamp that glows like a dying star at night, they are worth every penny. The ability to keep the bottom 4 feet of my window obscured while the top 2 feet let in the blue sky has fundamentally changed how I use my living room. I’m no longer living in a dark box just because I value my privacy.

The setup hurdle is real—you will spend an hour or two just getting the limits perfect so the two rails don't leave a light gap when they meet. And yes, you’ll have to remember to charge them. But once it’s automated, you forget they are even there. They just move silently in the background, keeping the sun out of your eyes and the neighbors out of your business. For a primary living space, I wouldn't go back to standard rollers if you paid me.

FAQs

Can I retro-fit my existing manual TDBU shades?

Usually, no. The headrail for a motorized version is deeper to accommodate the batteries and the two motors. You're better off buying a purpose-built unit than trying to cram a motor into a manual rail.

What happens if the batteries die while the shade is in the middle?

It stays right there. You can’t manually pull these—doing so will likely strip the gears in the motor. Always keep an eye on the low battery alerts in your app.

Are they loud?

Most modern motors are under 40dB. It’s a low hum. If you’re moving three of them at once in a bay window, you’ll definitely hear it, but it’s not going to wake anyone up in the next room.
