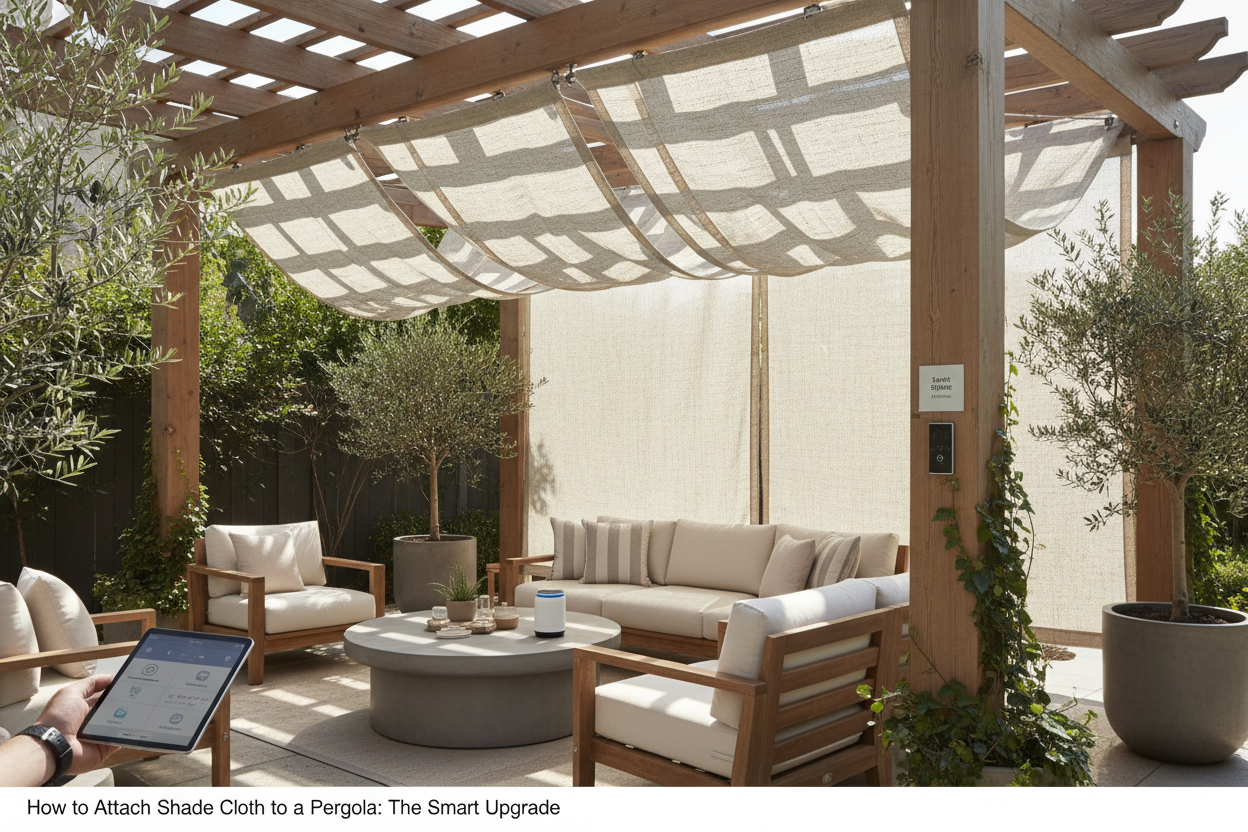

How to Attach Shade Cloth to a Pergola: The Smart Upgrade

Summer afternoons on the patio are incredible right up until the sun dips past the roofline and turns your relaxing seating area into a blinding greenhouse. Instead of retreating indoors, imagine your overhead canopy smoothly extending the moment your outdoor temperature sensor hits 85 degrees. If you are figuring out how to attach shade cloth to a pergola, you essentially have two paths: the traditional manual tie-down approach, or a connected, motorized track system that does the heavy lifting for you.

While standard grommets and bungee cords get the job done for static setups, retrofitting a retractable, smart-enabled canopy over your existing wood or metal pergola brings a massive quality-of-life improvement to your backyard. By the end of this guide, you will know exactly which mounting method fits your structure, how to power an outdoor motor, and what to expect when integrating it into your smart home ecosystem.

What You Need to Know First

• Static vs. Retractable: Static cloths use simple hardware (grommets, turnbuckles). Retractable systems require wire cables or aluminum tracks.
• Motorization Requirements: Smart outdoor shade motors require an IP65 or higher weather-resistance rating.
• Power Source: You will need either a nearby GFCI outdoor outlet for hardwired motors or good sun exposure for a solar-charged battery pack.
• Wind Sensors: A non-negotiable add-on for motorized pergola shades to prevent expensive fabric tearing during sudden gusts.

Installation & Retrofit Strategies

The Manual Wire Cable Method

If you are researching how to install shade cloth on pergola structures without spending a fortune, the manual slide-wire method is the most reliable. You mount stainless steel cables parallel across the top of the pergola joists. The shade cloth is fitted with carabiners or snap hooks that glide along these cables. It is a solid weekend DIY project, but it requires you to manually pull the canopy open and closed using a rope and pulley system.

Upgrading to a Motorized Track

For a connected setup, you replace the manual pulley with a motorized outdoor track (like those from Somfy or specialized patio tech brands). The track mounts directly to the underside of the pergola beams. Renters or those with lightweight aluminum pergolas need to be careful here; the torque from a 12V or 24V outdoor motor pulling heavy, water-logged canvas can warp flimsy frames. Always ensure your pergola is structurally sound enough to handle the tension of a motorized pull.

Power & Motor Options for the Outdoors

Hardwired vs. Solar-Charged Batteries

Running high-voltage wire to a freestanding pergola is often the biggest hurdle. If you have an existing weatherproof outlet on a pergola post, a plug-in 24V DC motor is your best bet for consistent power. If you lack outdoor power, solar-charged battery motors are the standard. Real-world battery life on a single charge without solar is about 3 to 4 months, assuming you open and close the canopy twice a day. With a well-placed 3W solar panel, you rarely have to manually charge it, though consecutive cloudy winter weeks might force you to plug in a USB-C power bank temporarily.

Noise and Speed

Outdoor motors are generally louder than indoor smart blinds. Expect around 50 to 55 decibels. It sounds like a low-pitched power drill. Since you are outdoors, the noise dissipates quickly, but it is definitely noticeable when you trigger the shade while hosting a quiet dinner party. Speed-wise, a standard 12-foot pergola canopy takes about 20 to 30 seconds to fully extend.

Smart Ecosystem Integration

Hubs, Wi-Fi, and Voice Control

Most premium outdoor shade motors use RF (Radio Frequency) to communicate with a dedicated remote, but to get them onto your Wi-Fi network, you usually need a bridging hub. Once bridged via Zigbee, Z-Wave, or a proprietary gateway, you can link the shades to Alexa, Google Home, or Apple HomeKit. This allows for voice commands like, 'Alexa, close the patio roof.'

Weather Automations

The true value of a smart pergola cover lies in environmental triggers. By linking the shade hub to a local weather station or a dedicated smart wind sensor (anemometer), you can create safety routines. If wind speeds exceed 20 mph, the canopy automatically retracts to prevent the shade cloth from acting like a sail and ripping the track off the wood. You can also use temperature sensors to automatically deploy the shade when the patio hits a certain heat threshold.

Living with how to attach shade cloth to a pergola: Day-to-Day Reality

I originally started with a basic UV-blocking sail shade tied to my backyard pergola with tension cords. It looked great, but I hated having to manually unhook it every time a severe thunderstorm rolled in. Upgrading to a Z-Wave motorized track system completely changed how often we use the patio. The afternoon sun routine is brilliant—at 3:00 PM, the canopy slides out just as the sun drops below the roofline, keeping the outdoor dining table completely shaded.

However, it is not a flawless system. I did not account for the sheer weight of the 220 GSM waterproof fabric I chose. The first motor I installed struggled and whined under the tension, forcing me to upgrade to a higher-torque model. Furthermore, the wind sensor automation has a slight delay. During a sudden, violent microburst last summer, the canopy took 25 seconds to retract. It survived, but the tracks visibly bowed under the wind pressure before the fabric finally tucked away safely. If I were doing it again, I would opt for a slightly lighter, breathable mesh fabric rather than a heavy waterproof canvas to reduce strain on the motor.

Frequently Asked Questions

Can I still open the shade cloth manually during a power outage?

Most motorized outdoor track systems do not have a manual override clutch. If the battery dies or the power goes out, the canopy is locked in its current position. This is why solar chargers or keeping the battery topped up is critical for outdoor setups.

Do I need a hub to control my pergola shade with my phone?

Usually, yes. Because outdoor motors rely on low-power RF or Zigbee to conserve battery and extend range through exterior walls, you will need a small indoor gateway hub plugged into your router to translate those signals to Wi-Fi for your smartphone app.

Can a motorized track handle heavy rain?

The motor itself is weatherproof (IP65), but the shade cloth is the real issue. If you use waterproof fabric, it must be installed with a significant pitch (angle) so water runs off. If it is installed flat, water will pool, and the massive weight will snap the cables or burn out the motor when it tries to retract.
