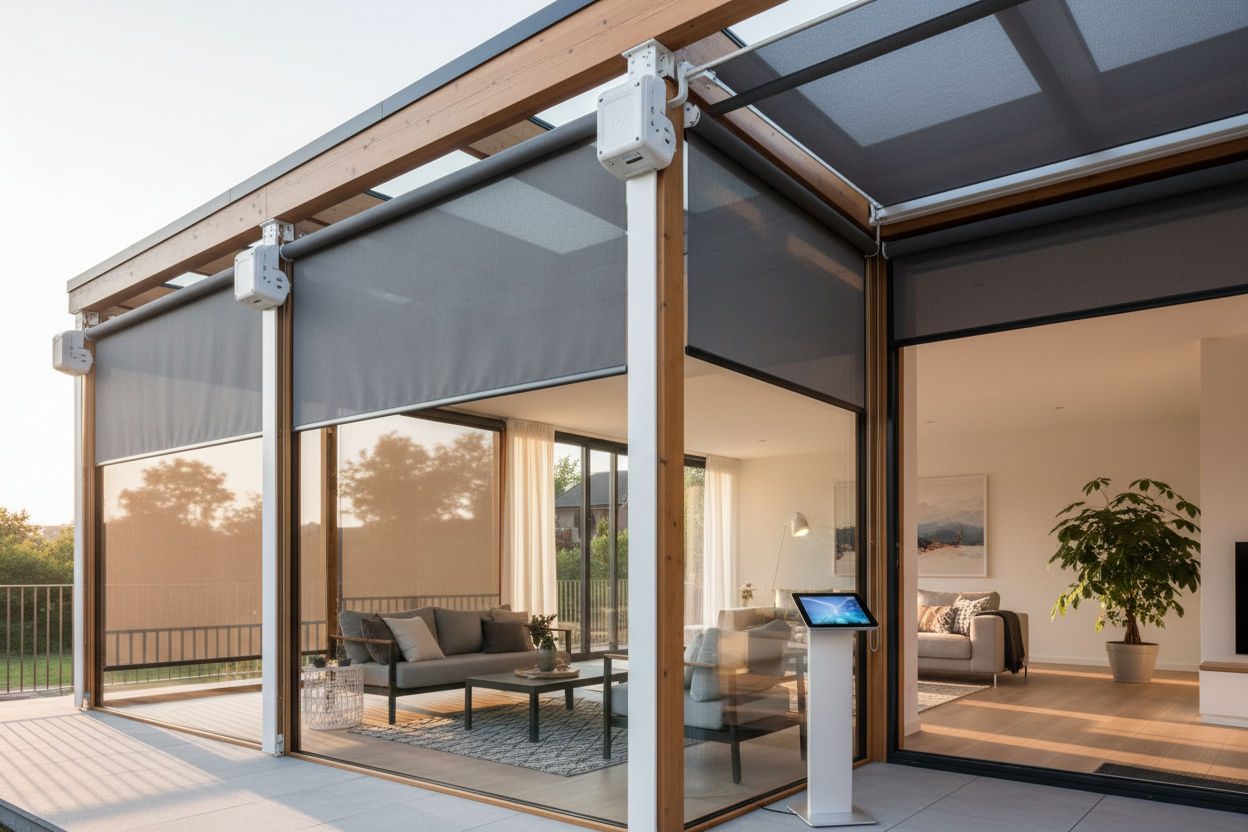

I Fought Gravity for Months to Install Outdoor Angled Roller Shades

I spent three grand on a custom cedar pergola with a modern, dramatic pitch. It looked incredible in the architectural renders. Then July hit. By 4:00 PM every day, that dramatic pitch became a funnel for the blinding West Texas sun. I tried umbrellas, but they looked like trash. I tried standard curtains, but they flapped around like a dying bird. I finally realized I needed outdoor angled roller shades, and that's when the real headache began.

Quick Takeaways

• Gravity always wins unless you use a side-channel or zipper system.
• Never mount a standard roller tube on a slope without a specialized tensioning motor.
• If your patio faces West, go for a 3% or 1% openness factor—anything higher is just a screen, not a shade.
• Motorization isn't a luxury here; it's the only way to keep the fabric from bunching at an angle.

The Slanted Patio Dilemma (Why Standard Blinds Fail Here)

Most people think they can just buy a generic shade and tilt the mounting brackets. Please, don't do that. Physics is a jerk, and gravity will ensure your fabric telescopes to one side within three cycles. When you're looking for a sun shade for angled roof structures, the main issue is the tracking. In a vertical world, the weight of the bottom bar keeps the fabric straight. On a slope, that weight pulls the fabric away from the roller or toward the lower end of the pitch.

This leads to jams, frayed edges, and a motor that sounds like it's grinding coffee beans. I spent weeks researching outdoor blinds for angled roof designs only to find that most solutions were actually indoor skylight shades rebranded for exterior use. They aren't the same. Exterior shades have to deal with wind loads, and a slanted shade acts like a sail. If it isn't locked into a track, it will rip your brackets right out of the wood.

Finding the Right Outdoor Blinds for Angled Roof Designs

I eventually stopped looking at the big box sites and started hunting for tensioned systems. You need hardware that uses either a heavy-duty spring-loaded bottom rail or a zipper track system that physically locks the fabric into the side channels. This is where sloped patio smart solutions for outdoor angled roller shades come into play.

Standard shades rely on gravity to drop. Angled shades need a motor that can pull against a spring. It’s a constant tug-of-war that keeps the fabric taut. If you don't see a 'tensioning' spec in the manual, keep walking. You're looking for a system that can handle at least a 15-degree pitch without sagging in the middle. I found that specialized zipper tracks are the gold standard because they prevent the fabric from blowing out of the frame during a summer storm.

How to Hang a Blind on a Sloping Patio Cover (Without Losing Your Mind)

The secret to how to hang a blind on a sloping patio cover isn't actually about the slope—it's about the motor tube being perfectly level relative to the side tracks. If your roller tube is even 1/8th of an inch off-level, the fabric will 'smile' (sag in the center) and eventually jump the track. I used a laser level—the kind that projects a 360-degree line—to mark my bracket points. Because my pergola was cedar, I also had to account for the wood warping over time.

I used oversized stainless steel lag bolts because the sheer force of a tensioned motor pulling against a 10-foot span is surprisingly high. Don't trust the tiny screws that come in the box. Once the brackets were in, I had to shim the side tracks to ensure they were perfectly parallel. If the tracks taper even slightly, the zipper will bind and the motor will trip its safety shut-off. It’s a game of millimeters, not inches.

Why Motorization is Mandatory (Don't Even Try Manual Cranks)

I’m a DIYer to my core, but I will tell you right now: do not buy a manual crank for an angled shade. Trying to turn a wand at a 30-degree angle while the internal spring is fighting you is a recipe for a repetitive stress injury and a broken gearbox. I went with a high-torque motor similar to what you'd find in Classic Series Motorized Light Filtering Roller Shades. You need a motor that supports obstacle detection.

Since these shades are under tension, if a bug or a stray leaf gets caught in the zipper track, a dumb motor will just keep pulling until it rips the fabric. A smart motor detects the resistance and stops immediately. Also, consider the power source. Hardwiring is best for these high-torque applications, but if you can't run Romex, look for a motor with an external solar panel. Just make sure the battery is rated for the heat your patio actually hits in August.

The Glare Factor: Picking a Fabric That Actually Blocks the Sun

Fabric choice is where most people mess up. They want the view, so they pick a 10% openness factor. On a west facing patio how a 9 foot outdoor roller shade solves glare, 10% is basically useless. It’s like wearing a mesh shirt to a blizzard. I opted for a 3% openness charcoal fabric. It blocks 97% of the UV rays but still lets me see the pool.

If you want a softer look, you can look into Light Filtering Roller Shades, but for angled exterior use, stick to PVC-coated polyester or fiberglass. It doesn't stretch. Natural fibers will sag under the tension required for a sloped install, and you'll be back on a ladder adjusting it every two weeks. Also, darker colors actually provide better glare reduction and visibility than lighter colors, which tend to 'fog' in direct sunlight.

Is the Angled Setup Actually Worth the Headache?

After three weekends of swearing, two trips to the hardware store for better anchors, and one minor electrical shock (always turn off the breaker, folks), the shades are up. They move with a quiet, confident hum—usually under 40dB, which is quieter than the wind in the trees. Is it worth it? Absolutely. I can finally sit on my patio at 5 PM without squinting or sweating through my shirt.

The automation is the best part. I have a Zigbee sun sensor that triggers the shades to drop when the light hits a certain intensity. It's the ultimate flex. My patio went from a roasting, unusable wasteland to a shaded oasis that feels ten degrees cooler the second the shades hit the deck floor.

My Honest Experience

The low point of this project was the first time I tried to pair the remote. I held the program button too long, wiped the factory limits, and watched in horror as the motor tried to pull the bottom bar right into the roller tube. It made a sound like a car crash. I had to spend two hours on a Saturday morning recalibrating the upper and lower limits. Moral of the story: read the manual twice, press the buttons once.

FAQ

Can I use any outdoor shade on a slope?

No. Standard shades rely on gravity to unroll. On a slope, the fabric will just bunch up. You must use a tensioned system specifically rated for inclined use.

How much wind can these shades handle?

If they are zipper-track shades, they can usually handle 30-40 mph gusts. However, I always recommend a wind sensor that automatically retracts them if things get hairy.

Do I need an electrician for the motor?

Many modern systems are DC-powered and use a plug-in transformer or a solar panel. If you go with a heavy-duty AC motor, you'll want a pro to run the conduit so it looks clean.
