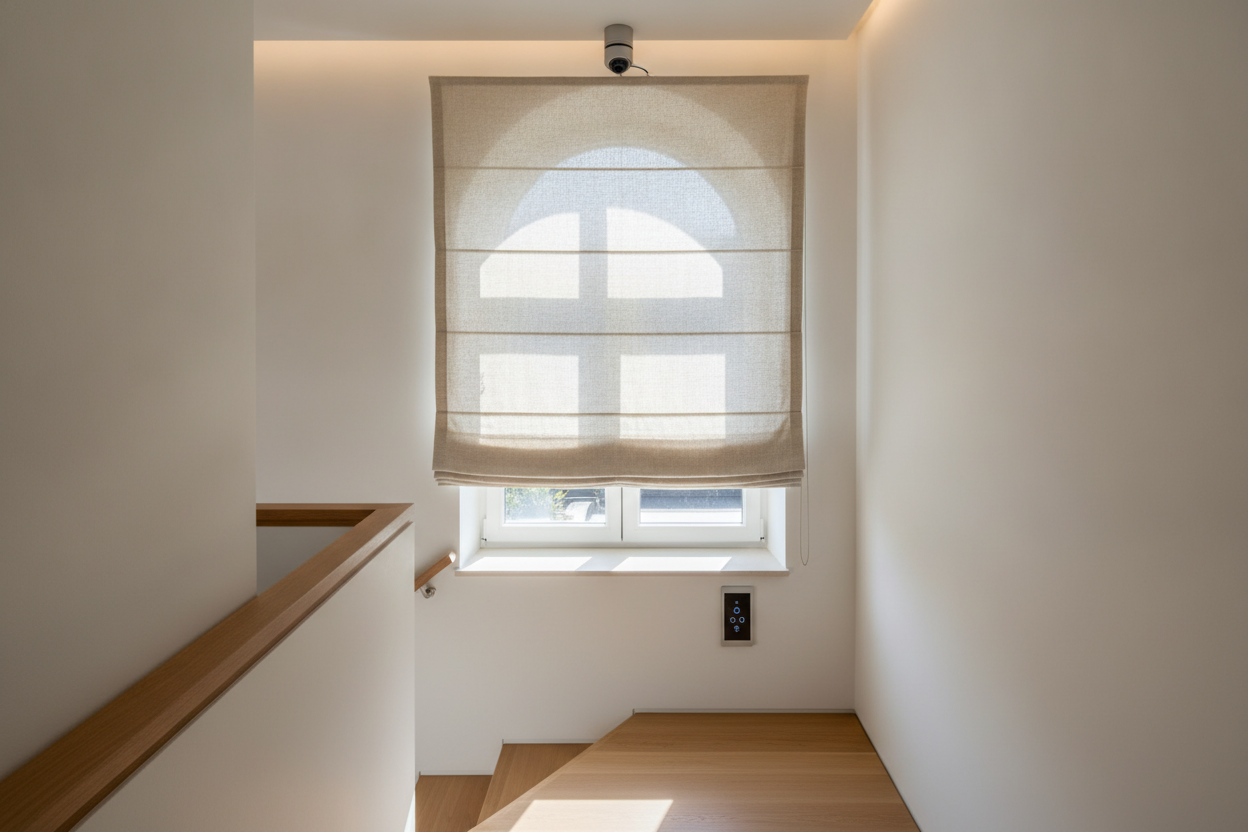

I Put a Motorized 26 Inch Roman Shade on My Unreachable Stairwell Window

Every afternoon at 3 PM, my stairwell landing turns into a giant magnifying glass. The sun hits the white drywall and reflects directly into my home office, blinding me for exactly ninety minutes. I couldn't reach the window without a 12-foot ladder, so a manual 26 inch roman shade was never going to work. I needed something that could think for itself.

Quick Takeaways

• Most smart motors require a minimum width of 24-28 inches, making a 26-inch frame a very tight squeeze for internal batteries.
• Hardwiring is the 'set it and forget it' gold standard, but magnetic charging wands are the best retrofit for high windows.
• Heavy blackout fabrics on narrow shades can cause 'telescoping' where the fabric rolls unevenly and jams the headrail.
• Zigbee or Thread protocols are superior to basic RF if you want precise percentage control via Alexa or HomeKit.

The Unreachable Stairwell Window Dilemma

The window in question is a classic architectural headache. It’s a narrow vertical pane perched halfway between the first and second floors. It looks great from the curb, but it’s a functional nightmare. For years, I just left it bare because the thought of dragging a heavy extension ladder onto a carpeted landing just to pull a cord felt like a recipe for a trip to the ER. I tried a long-reach pole once, but I ended up scratching the paint on the frame and nearly knocking a hole in the drywall.

The light was the main issue, but privacy was a close second. At night, the stairwell was a glowing beacon to the street. I remember thinking about this months ago when My Neighbors Porch Light Made Me Automate A 26 Inch Roman Shade in a different part of the house. That project taught me that if you can't reach the window, the motor isn't a luxury—it's the only way the window treatment will ever actually get used. I needed that same logic here, but the 26-inch width was a much bigger hurdle than I anticipated.

I spent weeks looking at standard motorized options, but most 'off-the-shelf' smart blinds at big-box stores start at a 28-inch minimum. Anything smaller and the motor simply won't fit inside the tube. I realized quickly that for a 26 roman shade, I was going to have to go custom or get very creative with my mounting hardware.

Why a 26" Roman Shade is an Awkward Size for Smart Motors

Here is the mechanical reality: a decent tubular motor is about 18 to 22 inches long. That motor has to house the brushless DC engine, the radio receiver for your remote, and—most importantly—the lithium-ion battery. When you add the drive plug, the crown, and the mounting brackets on either end, you are suddenly pushing right up against that 26-inch limit. It’s a game of millimeters. Most direct-to-consumer companies hide this in their fine print, stating that 'narrow widths may require external battery packs.'

When I was researching Smart 26 Inch Roman Shade Fixing The Narrow Window Problem, I found that many people try to force a standard motor into a narrow frame, only to have the headrail bow or the motor burn out because it's cramped. In a 26-inch space, you don't have room for error. If the motor isn't perfectly centered, the torque will be uneven, and you'll hear a rhythmic grinding sound every time the shade moves. I wanted a motor with at least 1.1Nm of torque to handle the weight, but finding one that fit the short tube was the real challenge.

I also had to consider the 'stack' height. On a narrow shade, the fabric folds can look bulky if the motor takes up too much room in the headrail. You want a slim-profile motor that sits flush so the fabric can hang naturally. If the motor is too thick, the shade will sit an inch away from the glass, creating huge light gaps on the sides—defeating the whole purpose of a blackout shade.

The Battery vs. Hardwired Debate for Narrow Headrails

If you are building a new house, hardwire your shades. Period. But for those of us retrofitting a 12-foot-high window, running 12V power through a finished wall is a nightmare. I had to choose between an internal lithium battery or an external battery wand. For roman shades 26 inches wide, the internal battery is often too small to last more than a few months because there just isn't physical space for more cells.

I looked at several Roman Shades configurations and eventually decided on a motor that could handle an external power source. Why? Because I didn't want to be climbing that ladder every three months when the battery died. An external battery wand can be tucked behind the headrail, or better yet, mounted slightly lower where it's easier to reach. However, even an external wand is a bit of an eyesore if you don't hide it well.

I opted for a motor with a 433MHz RF receiver built-in, but I paired it with a Zigbee bridge. This gives me the reliability of a dedicated remote (for when the Wi-Fi acts up) but the intelligence of a smart home system. I can tell Alexa to 'Close the stairwell' and the motor whirs to life with a noise level under 35dB—basically a soft hum that you can't even hear from the next room.

My Strategy for Hiding the Charging Cable

This was my 'aha' moment. Since I couldn't hardwire the shade, I bought a 10-foot magnetic USB charging cable. I ran the cable from the motor, tucked it behind the window trim using clear adhesive clips, and let the magnetic tip dangle just behind the bottom of the lower window casing. Now, when the battery gets low, I don't need a ladder. I just put a portable power bank on the end of a telescoping pole, 'click' the magnets together, and let it charge for a few hours. No ladder, no stress, and the cable is invisible to anyone who isn't looking for it.

Fabric Weight Physics: Don't Choke Your Motor

One thing nobody tells you about 26 roman shade automation is that the fabric weight is your biggest enemy. In a wide shade, the weight is distributed across a long tube. In a narrow 26-inch shade, the weight is concentrated. If you pick a heavy, stiff velvet or a thick blackout material, the motor has to work twice as hard to pull that initial fold. I highly recommend getting Weffort Fabric Sample Roman Shades before you buy. You need to feel the 'hand' of the fabric.

If the fabric is too stiff, it won't spool evenly. On a narrow tube, even a 1-degree misalignment will cause the fabric to 'telescope'—meaning it shifts to one side as it rolls up. Within three or four cycles, the edge of your expensive fabric will be rubbing against the metal bracket, fraying the threads and eventually jamming the motor. I went with a medium-weight linen blend with a high-density blackout liner. It’s heavy enough to hang straight but supple enough to fold without fighting the motor.

The Final Verdict After 6 Months of Daily Automation

After half a year, I can honestly say this was the best $400 I’ve spent on my home. I ended up going with the Silva Series Motorized Blackout Roman Shades because they were one of the few premium options that offered a motor specifically designed for narrow widths without requiring a massive external battery box. The motor has been flawless. I have it on a solar schedule: it closes when the sun hits that specific angle at 2:30 PM and opens back up at sunset.

The only downside? The initial pairing process was a bit finicky. I had to hold the pairing button for 5 seconds until the LED blinked blue, but the instructions were a bit vague on how fast to tap the 'up' button to set the limits. It took me about twenty minutes of 'jogging' the motor up and down to get the bottom limit perfectly flush with the sill. But once it’s set, it’s rock solid. No more blinding afternoon sun, and no more ladder-climbing heroics.

FAQ

Will a motorized shade fit in a window narrower than 26 inches?

It’s possible, but you’ll likely have to use an external motor or a very specialized (and expensive) slim-line motor. Most standard smart motors require at least 24 inches of tube space to function correctly without overheating.

How long does the battery actually last on a 26 inch roman shade?

If you’re using it twice a day (once up, once down), expect 4 to 6 months. Narrower shades have smaller battery cavities, so they won't last the full year that wider shades often claim. Using a magnetic charging cable makes this a non-issue.

Can I use my existing Roman shade and just add a motor?

Retrofit kits exist, but for a 26-inch width, it's a huge gamble. You usually have to replace the entire headrail and tube. Usually, it's more cost-effective and much more reliable to buy a custom-integrated unit where the motor and tube are factory-balanced.
