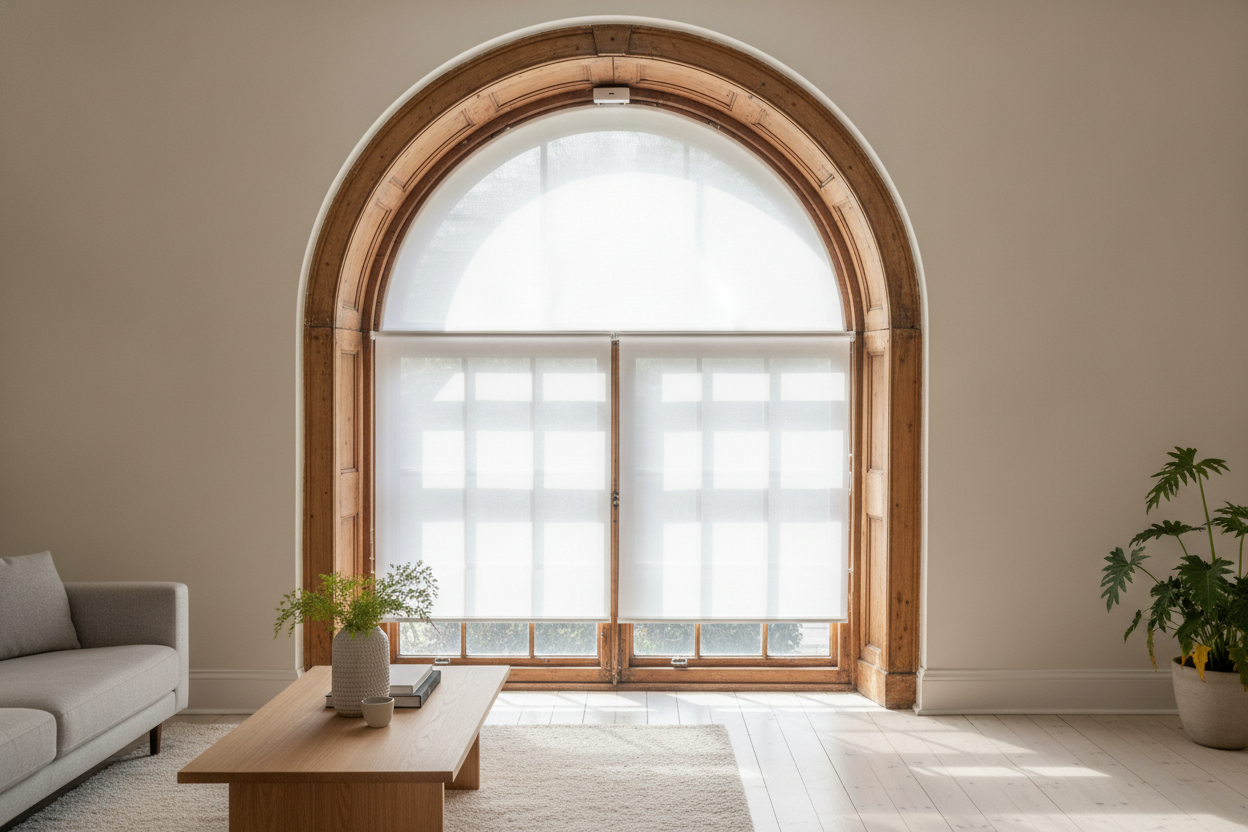

I Put Smart Shades on an Antique Arched Window (And Didn't Ruin It)

I bought a house built in the late 1800s because I’m a sucker for architectural history and apparently, I hate having a savings account. The first morning in the master bedroom, I was woken up at 5:45 AM by a beam of light so intense it felt like a laser. I looked up at the stunning antique arched window above my bed and realized the previous owners had just left it bare for a reason. Covering these things is a nightmare.

Quick Takeaways

• Never drill directly into 100-year-old wood; it will split and you will cry.
• Tension-based mounting is the only way to preserve the original patina.
• Cellular shades are the only tech that actually handles a true curve without looking like a DIY disaster.
• Zigbee motors are preferred over Wi-Fi to save battery life in hard-to-reach spots.

The 140-Year-Old Elephant in the Room

The dilemma is real. You love the character of old arched windows, but you also love sleeping past dawn and not having your rugs bleached white by UV rays. Most people assume their only options are custom shutters that cost as much as a used car or some hideous DIY cardboard insert. I wanted the best of both worlds: high-tech automation and zero damage to the historic wood.

The fear of ruining a genuine antique is what keeps most smart home enthusiasts away from historic properties. One wrong move with a power drill and you’ve permanently devalued a piece of craftsmanship that has survived since the Victorian era. I spent three nights staring at the antique arched window frames before I even touched a screwdriver.

Why Modern Hardware Destroys Vintage Arch Window Moulding

Modern motorized blind brackets are designed for new construction—think soft pine or MDF. When you try to drive a standard mounting screw into century-old mahogany or heart pine, the wood doesn't just accept the screw; it shatters. The density of vintage arch window casing is significantly higher than what you find at the local hardware store today.

Beyond the structural risk, there is the 'ugly factor.' Most smart blind setups are bulky and industrial. If you try to force a standard square motor housing into a curved space, the result looks incredibly weird. You end up with these awkward gaps that scream 'I don't belong here,' which is the last thing you want in a room with historic soul.

The Tension and Shimming Trick (How I Saved the Patina)

The secret to a drill-free install is a custom-sized headrail and high-density rubber shims. Instead of screwing into the old arched window frames, I used a pressure-mount system. This requires getting extremely precise measurements. I’m talking about measuring the width at the base, the midpoint, and the peak, then doing it again to be sure.

I used thin, non-adhesive rubber pads between the shade housing and the antique arched window frames. This created enough friction to hold the motor’s weight without leaving a single mark on the finish. When the motor engages, the torque is absorbed by the rubber rather than pulling against a screw hole. It’s rock solid, and I can remove it in five minutes if I ever move out.

Which Smart Shades Actually Fit These Historic Curves?

I initially looked at roller shades, but they are a total non-starter for a curved top. They require a flat horizontal axis that cuts right through the middle of the arch, which looks terrible from the street. I eventually opted for motorized cellulars to fit the unique geometry of the vintage arched window frame.

Cellular shades (or honeycomb shades) are perfect because the fabric can be cut into a perfect semi-circle. The motor sits in the bottom rail and pushes the 'fan' upward. It’s a 38dB hum—about as loud as a whisper—and it integrates perfectly with my Zigbee hub. I have mine set to open at 7:30 AM, and watching the fabric fan out against the vintage arched window frame is honestly the most satisfying part of my morning.

Hiding the Battery Pack So It Doesn't Look Like 2024

Nothing kills the vibe of a 19th-century room faster than a plastic battery wand and a dangling charging cable. Since I couldn't hardwire the motor into the antique arch window frame without tearing out plaster, I had to get creative. I tucked the battery pack behind the lower sill plate using 3M Command strips, which won't pull the finish off the wood.

If your window doesn't have a deep enough sill to hide the tech, you might consider a layered approach. You can hang curtains on arched window frames without ruining the trim by using a tension rod or a specialized arch-top rod. This lets the smart shade do the heavy lifting for light control while the curtains hide the hardware and add that classic texture.

Was Automating This Relic Worth the Stress?

After three months, I can say yes. The old arched window frames are still pristine, and I haven't had to climb a ladder once to adjust a cord. The battery life has been surprisingly good; even with daily use, I'm only at 82% charge. My only gripe? The pairing button is a tiny recessed pinhole that I had to hit with a paperclip while balancing on a chair. It was a one-time pain, but a pain nonetheless.

FAQ

Will the motor be too heavy for the old wood?

If you use the tension and shim method, the weight is distributed across the entire frame. Modern motors are surprisingly light—most weigh less than a standard bottle of wine.

What if my arch isn't a perfect circle?

Most old arched windows have settled over time and aren't perfectly symmetrical. You need a template kit. You trace the curve onto a piece of paper, mail it in, and they laser-cut the shade to your exact, slightly-wonky specs.

Does the motor make a lot of noise?

High-end motors stay under 40dB. In a quiet bedroom, you’ll hear a soft whirring, but it’s much less jarring than an alarm clock or the sound of a neighbor's car.
