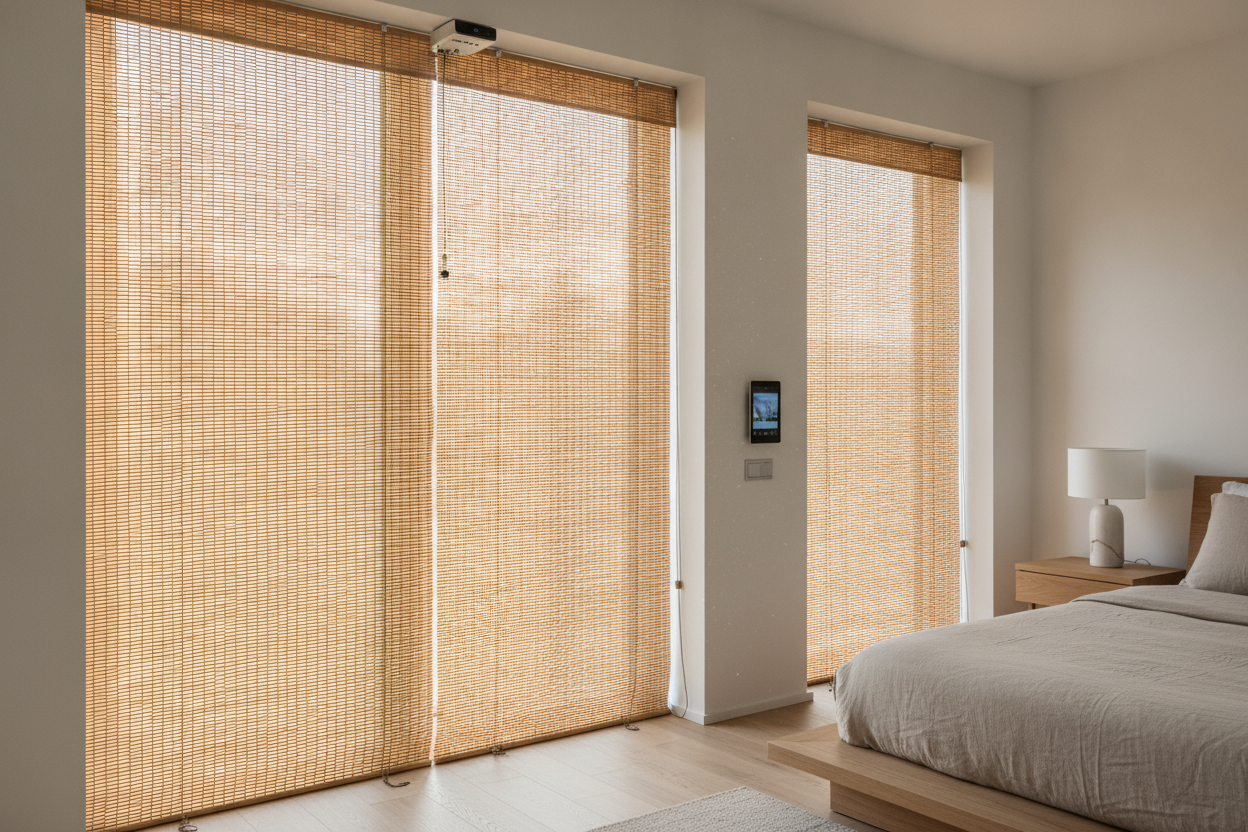

I Refused to Pay $600 for Woven Woods (So I Built Smart DIY Bamboo Shades)

I was staring at a quote for $612. For one window. One. I love home automation as much as the next person, but that is a car payment for a piece of wood that goes up and down. I wanted the organic texture of diy bamboo shades without the 'custom luxury' tax that usually comes with them.

• Total Cost: Roughly $120 per window including the motor.
• Time Investment: About 3 hours for the first one, 45 minutes for the rest.
• Tech Stack: Zigbee 3.0 tubular motors paired with Home Assistant.
• Difficulty: If you can use a drill and tie a knot, you can do this.

The $600 Per Window Quote That Started It All

The sticker shock was real. I wanted that high-end, West Elm-meets-smart-loft look for my living room, but the retail prices for motorized woven woods are predatory. When you peel back the layers, a motorized shade is just a piece of fabric, a wooden headrail, and a battery-powered motor that spins a tube.

I realized I could buy the raw materials for a fraction of the cost. Most of that $600 is markup for the brand name and the 'convenience' of them doing the assembly. I decided to take the 'how to make bamboo blind' challenge into my own hands and build something that actually worked with my Zigbee hub instead of some proprietary bridge.

Sourcing the Right Bamboo Shade Material

Don't buy the cheap, flimsy matchstick blinds from the big-box clearance aisle. They look like college dorm decor and offer zero privacy. When looking for diy bamboo blinds, you want 'woven wood' material that has some heft to it. I searched for raw bamboo shade material online, looking specifically for a tight weave that blocks about 70% of light.

Before you order a single yard, you need to measure roman shades properly within your window frame. If you are off by even a quarter inch, the bamboo will scrape the sides of the casing every time the motor turns. I opted for a dark walnut stain that felt more expensive than the raw, yellow-toned bamboo you see in craft stores.

The Anatomy of a DIY Bamboo Roman Shade

Building a diy bamboo roman shade is all about the lift rings. You start with a 1x2 piece of pine as your headrail. You staple the bamboo material to the top of that board, then flip it over to the back. This is where the magic happens. You need to sew or zip-tie small plastic rings in vertical rows every 8 to 10 inches.

If your rings are uneven, your shade will go up crooked, and it will drive you crazy every time you look at it. If you find the bamboo too difficult to work with for your first project, you might want to learn how to make roman shades from curtain panels first to get the geometry down. The goal is to create neat, cascading folds that stack perfectly at the top of the window.

Sneaking a Tubular Smart Motor Into the Headrail

This is where we go from 'craft project' to 'smart home.' I used a 25mm Zigbee tubular motor. Instead of mounting it inside a metal roller tube like a standard roller shade, I mounted it behind the wooden headrail using custom L-brackets. I then attached a small aluminum rod to the motor's drive wheel to act as a spool for the lift cords.

When the motor spins, it winds the cords around the rod, pulling the diy woven wood shades up. It is significantly quieter than I expected—under 35dB, which is basically a whisper. If you are nervous about the wiring, check out my guide on how to make a roman shade curtain smart for the specific wiring diagrams. I set mine to 100% at sunrise and 0% at sunset, and the Zigbee connection hasn't dropped once in six months.

Hiding the Cords (And Other Mistakes I Made)

My first attempt was a disaster. I used cheap nylon string that frayed against the bamboo material within a week. Switch to 1.4mm polyester cord; it’s much more durable. I also hated seeing the motor assembly from the side, so I built a simple 3-inch valance out of leftover bamboo material to hide the tech. It turned a messy how to make bamboo curtain project into something that looks professional.

I was trying to mimic the look of high-end motorized blackout roman shades I saw online. The valance is the secret. It hides the battery pack and the motor casing, giving you that clean, cordless look that is safe for kids and pets. My only regret was not using a larger spool for the cord; it takes about 20 seconds to fully raise the shade, which feels like an eternity when you're impatient.

Is Making Your Own Smart Shades Actually Worth It?

If you have five windows to do, the DIY route saves you over $2,000. That is a lot of money for a few weekends of work. However, if you only have one small window and you've never used a drill, just buy the pre-made ones. Learning how to make bamboo window blinds is rewarding, but it requires precision. For me, the ability to voice-control my natural wood shades without the 'smart home' tax was a massive win.

FAQ

Can I use battery-powered motors?

Yes, I highly recommend internal lithium-ion battery motors. They last about 4-6 months on a single charge, so you don't have to run ugly wires down your walls or hire an electrician.

How do I clean DIY bamboo shades?

Don't use water. Use a vacuum with a brush attachment once a month. Bamboo is porous, and if it gets damp, it can warp or even grow mold in humid climates.

What is the best motor protocol?

Go with Zigbee if you have a hub like Home Assistant or Hubitat. It’s a mesh network, so the more shades you add, the stronger the signal becomes. Avoid cheap RF-only motors unless you want to deal with a clunky remote for every window.
