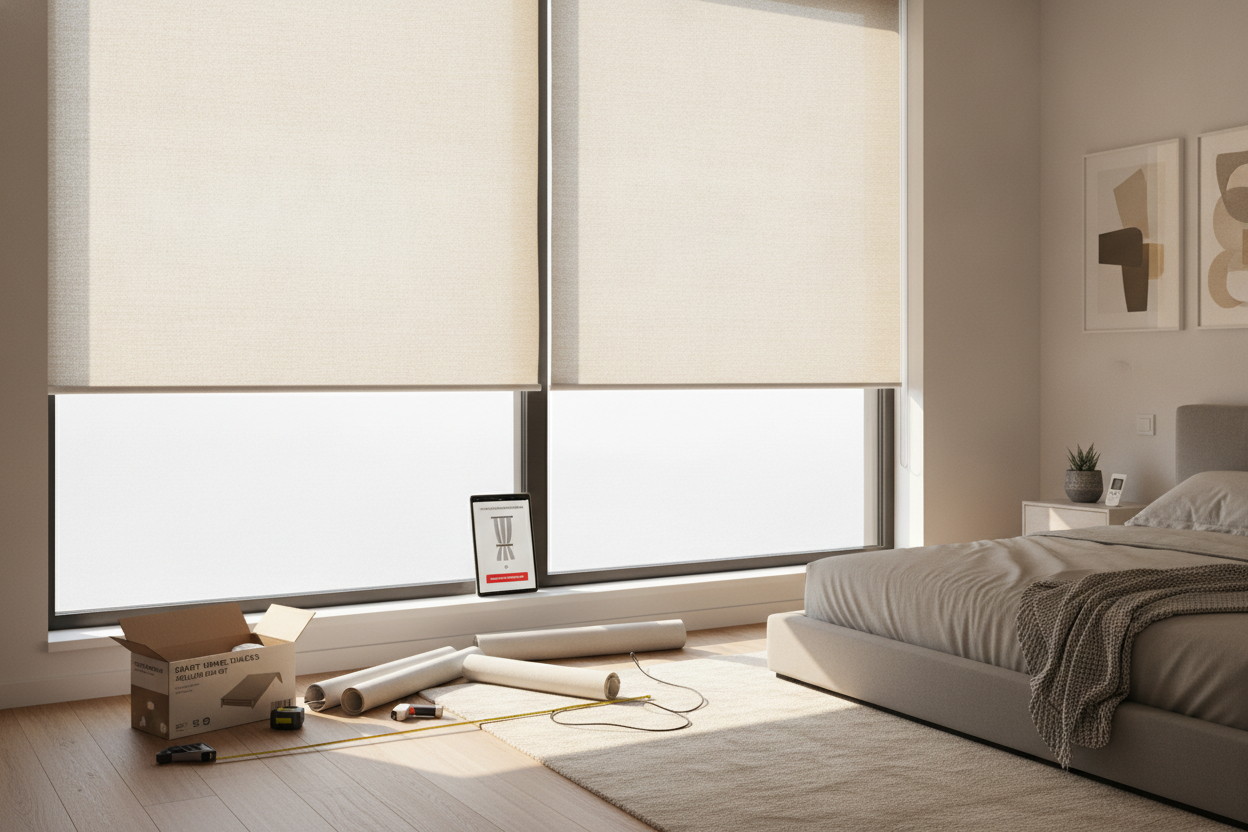

I Ruined a Smart Blind Because I Got the Roller Shade Dimensions Wrong

I had the drill charged, my Zigbee hub was humming, and I was ready to live the dream of voice-controlled mornings. The box arrived, I ripped it open like a kid on Christmas, and then I hit a wall—literally. I tried to slide the bracket into the window frame and it was exactly 1.5 inches too wide. I’d measured the frame, but I hadn’t accounted for the beefy motor head sitting on the end of the tube. That mistake cost me $400 and two weeks of waiting for a remake.

The 'Perfect Fit' Illusion That Cost Me $400

When you measure for a manual shade, you have a lot of wiggle room. If it's a hair too tight, you can sometimes shave a bracket or force it. With smart shades, the roller shade dimensions are dictated by the hardware, not just the fabric. I measured my window at exactly 35 inches. I ordered a 35-inch shade. What I didn't realize was that the custom manufacturer takes their own 'deductions'—but those deductions assume a standard manual clutch, not a high-torque motor with a bulky battery housing.

The motor side of a smart shade is significantly wider than the idler side. In my case, the motor head protruded further than the bracket itself. Because I hadn't checked the specific hardware specs for the motor's 'head' width, I ended up with a beautiful, expensive piece of aluminum and fabric that was physically impossible to mount inside my window casing. It sat in my garage for a month as a monument to my own overconfidence.

Fabric Width vs. Bracket-to-Bracket Roller Shade Dimensions

This is the concept that trips up every DIYer: the 'Tip-to-Tip' width versus the 'Fabric' width. When you order a smart shade, the width you provide is usually the bracket-to-bracket measurement. The actual fabric will always be narrower to leave room for the brackets and the motor. This is how you end up with 'light gaps'—those annoying vertical slivers of sun that peak through the sides.

If you are looking for Your Guide To Choosing The Perfect Roller Shade, you need to understand that smart motors exacerbate this gap. On a manual shade, the gap might be half an inch. On a motorized unit, the drive side can easily create a 1.25-inch gap. If you’re mounting inside the frame, you have to accept this light leak or use side channels. If you measure based on where you want the fabric to end, your hardware won't fit. You must measure for the hardware first.

How Big is the Motor Gap, Really?

I’ve tested dozens of Zigbee and RF motors from various brands. A standard 25mm motor usually requires about 0.75 inches of clearance on the drive side. However, if you’re using a heavy-duty motor for a large window, that gap can jump to 1.5 inches. The idler side (the non-motor side) is usually slimmer, around 0.5 inches. When calculating your roller shade sizes, always check the 'bracket deduction' chart provided by the manufacturer. If they don't have one, don't buy from them.

Inside Mounts: The Depth Problem Nobody Warns You About

Width isn't your only enemy; depth is a silent killer. Manual shades use thin tubes. Smart shades use thicker 1.5-inch or 2-inch aluminum tubes to house the motor and prevent the tube from bowing under the weight of the battery. When you add a thick fabric like Texture Series Motorized Blackout Roller Shades, the total roll diameter grows fast.

I once installed a blackout shade in a shallow 2-inch window casing. By the time the shade was fully retracted, the roll was 3 inches thick. It jutted out past the trim like a sore thumb. For a clean inside mount, you usually need at least 3 to 4 inches of 'clear' depth. If your window has handles, cranks, or deep trim, your smart shade will hit them on the way down. Always measure the depth at the top of the frame where the roll will actually live.

Outside Mounts: The Forgiving Fix for Weird Roller Shade Sizes

After my $400 disaster, I became a huge fan of the outside mount. If your windows aren't perfectly square—and trust me, they aren't—an outside mount hides all your sins. You mount the brackets to the wall or the trim above the window, which means you don't have to worry about micro-millimeter precision. It also eliminates the light gap because you can overlap the fabric by 2 or 3 inches on each side.

When browsing different Roller Shades, look for options that include a fascia or a valance. This covers the motor and the roll, making the whole setup look like a deliberate design choice rather than a DIY project. For an outside mount, I usually add 4 inches to the total width of the window opening to ensure total coverage and a much easier installation process.

My Foolproof Checklist for Measuring Smart Window Treatments

Don't be like me. Follow this process before you hit the 'buy' button. First, use a metal measuring tape—fabric tapes stretch and will lie to you. Measure the width in three places: the top, the middle, and the bottom. If you're doing an inside mount, use the *smallest* of those three numbers. If the top is 35 inches but the middle is 34.75, you order based on 34.75.

• Check for squareness: Measure the diagonals. If they aren't the same, your window is a trapezoid. Use an outside mount.
• Check the depth: Ensure you have at least 3 inches of flat space for the brackets.
• Account for the motor: Identify which side the motor will be on and ensure there are no obstructions like trim or window cranks.
• Verify the deduction: Read the site's 'How to Measure' guide twice. Every factory has different rules for how much they trim off your provided measurement.

FAQ

Do I need to subtract width for the brackets?

Usually, no. Most custom retailers ask for the 'opening width' and they do the math for you. If you subtract the width yourself, and then they subtract it again, your shade will be way too small.

What is the maximum width for a smart roller shade?

Most consumer-grade motors can handle up to 96 or 120 inches, but the fabric weight is the real limit. If you go too wide, the tube will 'smile' (sag in the middle), causing the fabric to ripple.

Can I trim a smart shade if it's too big?

Absolutely not. You'll hit the motor or the internal battery tube. If you mess up the dimensions, you're looking at a very expensive mistake or a very awkward outside-mount hack.
