I Stopped Sideways Rain With Waterproof Outdoor Shades for Screened Porch

I remember the exact moment I realized my dream porch was a liability. I had just finished installing a premium outdoor sound system and $15,000 worth of composite decking. Then, the first Carolina summer thunderstorm rolled in. Within three minutes, the wind-driven rain was blowing horizontally through my screens, soaking my speakers and turning my expensive floor into a puddle. I was sprinting outside with a tarp like a madman.

Standard screens are great for keeping out mosquitoes, but they are useless against a downpour. I needed a real solution that didn't involve installing permanent glass windows and losing the breeze. That is when I went down the rabbit hole of waterproof outdoor shades for screened porch setups. After a few failed attempts with cheap materials, I finally found a configuration that actually keeps the interior bone-dry.

Quick Takeaways

• Standard screen mesh actually turns rain into a fine mist that ruins electronics.
• PVC-coated polyester is the gold standard for water resistance and durability.
• Motorization is a necessity, not a luxury, for shades over 8 feet wide.
• Side tracks are the only way to prevent 'blow-out' during high winds.

The Dark Side of Open-Air Porches During a Downpour

We all love the idea of an open-air porch until the reality of maintenance sets in. Every time the sky turned gray, I found myself doing the 'porch shuffle'—unplugging the TV, moving the cushions to the center of the room, and praying the wind didn't pick up. Horizontal rain is a different beast than a vertical drizzle. It hits the screen and sprays everywhere.

My composite decking was supposed to be 'weatherproof,' but constant soaking and drying cycles started to leave stubborn water spots and pollen sludge that required a pressure washer to remove. I didn't build a porch to spend my weekends scrubbing it. I built it to drink bourbon and listen to music while the rain fell *outside* the perimeter.

Why Standard Screens Won't Protect Your Electronics

There is a weird bit of physics that happens with screen mesh. When large raindrops hit a fine screen at 20 mph, the mesh breaks the surface tension and atomizes the water into a fine, pressurized mist. It’s almost worse than regular rain because the mist floats further into the room, coating your amplifier and your upholstery in a layer of dampness.

People often ask, Do waterproof outdoor shades for screened porch setups actually work? The answer is yes, but only if the material is non-porous. If you can breathe through the fabric, water can get through it eventually. You need a barrier that forces the water to bead and roll off immediately rather than soaking into the fibers.

My Hunt for the Right Waterproof Blinds for Screened Porch

I started by looking at cheap canvas options, but they were a disaster. Canvas gets heavy when wet, it stays damp for days, and eventually, it smells like a wet dog. I also looked at bamboo, but that's strictly for sun shading, not weatherproofing. If you want real waterproof blinds for screened porch use, you have to look at high-denier, PVC-coated fabrics.

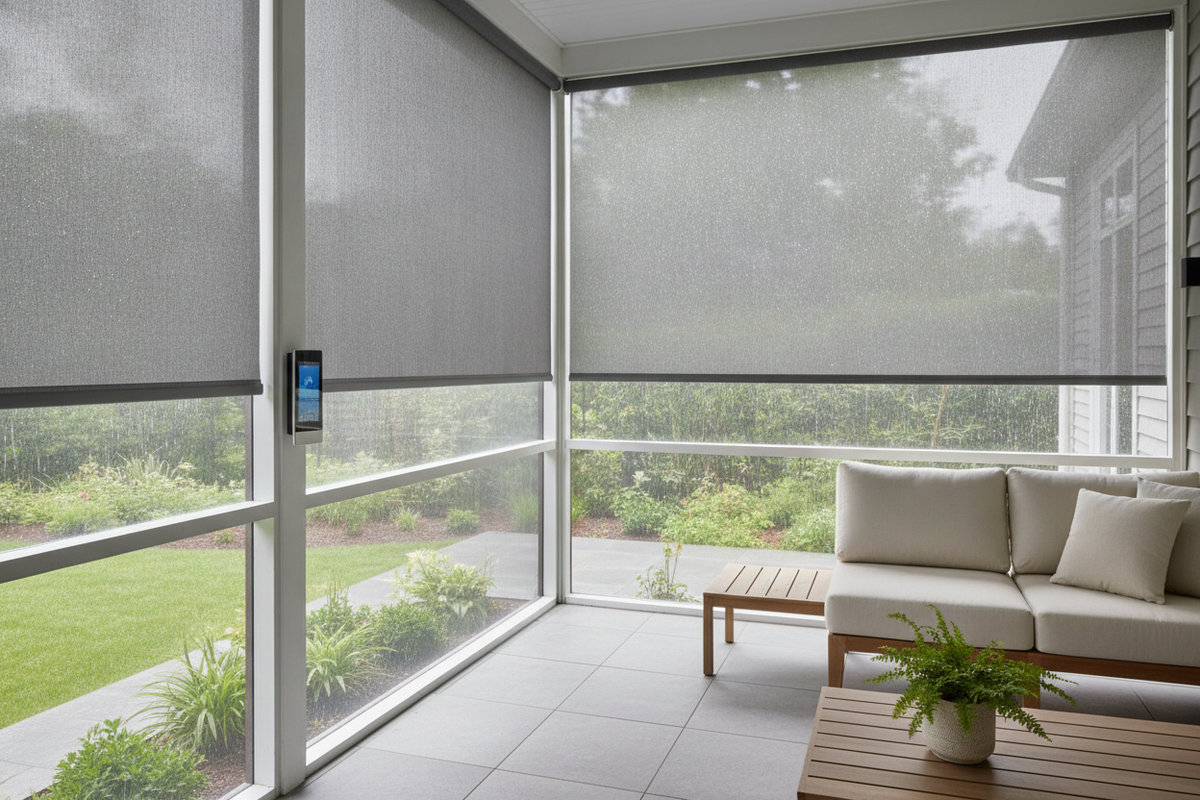

I eventually landed on heavy-duty outdoor shades made from a 1% openness solar fabric. At 1% openness, the holes are so small that water surface tension prevents it from passing through, but you can still vaguely see the backyard. It’s the sweet spot between a total blackout wall and a useless screen. I opted for a dark charcoal color to match the house trim, which also helps with glare on the outdoor TV.

Installation: Getting the Tension Right So They Don't Flap

Installing the headers was straightforward—four lag bolts into the 4x4 porch posts. But here is the reality: a 10-foot wide waterproof shade is basically a sail. If you don't have a way to lock the bottom bar down, the first 15 mph gust will send that shade flying into your ceiling fans or, worse, rip the brackets out of the wood.

I chose motorized outdoor shades because I knew I wouldn't have the patience to hand-crank three different units every time a storm popped up. The motors I used have an obstacle detection feature, which is huge. If the shade hits a chair on the way down, it stops instead of burning out the motor or tearing the fabric. One downside? The initial pairing of the remote to the three separate channels took me forty minutes and a lot of swearing because the manual was translated poorly. Tip: reset the motor completely before you start the pairing process.

Adding Side Tracks for a True Weather Seal

Even with a heavy bottom bar, water finds a way around the edges. This is where most people fail. To get a true weather seal for waterproof shades for screened in porch setups, you need side rail tracks. These tracks guide the fabric and keep it under constant tension.

I went with a 'zipper' style track. The edges of the fabric have a zipper welded to them that slides inside a PVC channel. This means the wind can't pull the fabric out of the track. It turned my porch from a screened-in room into a sealed box. During a heavy storm last August, I sat three inches away from the shade with a book and stayed completely dry. It was a massive win.

Smart Tech: Automating Waterproof Shades for Screened In Porch

The real magic happened when I integrated the shades into my smart home. I use Home Assistant with a simple automation: if the local weather station reports rain and the wind speed is under 30 mph, the shades automatically deploy to 100%. If the wind exceeds 40 mph, they retract to the top to prevent structural damage to the porch.

I also set a 'Sunset' routine. At 7 PM, the western-facing shades drop to 70% to block the blinding sun while we eat dinner. The motors are surprisingly quiet—about 40dB, which is just a low hum that the cicadas usually drown out anyway. The only annoyance is the occasional Zigbee dropout if my hub gets wonky, but a quick restart usually fixes the connection.

The Final Verdict: Dry Cushions and Zero Warped Wood

It has been a full season since I finished the install. The composite decking looks brand new because it isn't constantly being blasted by rain and sun. My speakers haven't shorted out, and I no longer have to check the weather app every time I leave the house. While the initial cost of the motorized, tracked system was significant, it was cheaper than replacing a ruined outdoor sofa or dealing with wood rot down the line.

FAQ

Can these shades handle high winds?

If you use a zipper-track system, they can handle significant gusts. However, most manufacturers recommend retracting them if winds exceed 35-40 mph. They are shades, not structural walls, and the wind load on a large piece of fabric can be immense.

Do waterproof shades make the porch too hot?

Actually, they keep it cooler. By blocking the infrared heat from the sun before it even hits your porch floor, the ambient temperature stays much lower. Just make sure to leave one side cracked if you want a breeze.

Are they hard to clean?

Not at all. Since they are PVC-coated, I just drop them down and hit them with a garden hose once a month to get the pollen and dust off. They dry in about twenty minutes in the sun.
