Mastering the Light: A Practical Guide to Mounting Top-Down Bottom-Up Shades

Top-down bottom-up shades represent one of the most versatile window treatment innovations in recent years. Unlike standard blinds that only raise from the bottom, these shades allow you to lower the top rail to let in natural light while keeping the bottom covered for privacy. While the mechanism seems complex, the process of installing top down bottom up shades is straightforward if you approach it with patience and the right tools. Correct installation is critical not just for aesthetics, but to ensure the internal tension cords function smoothly for years to come.

Understanding the Mechanism Before You Start

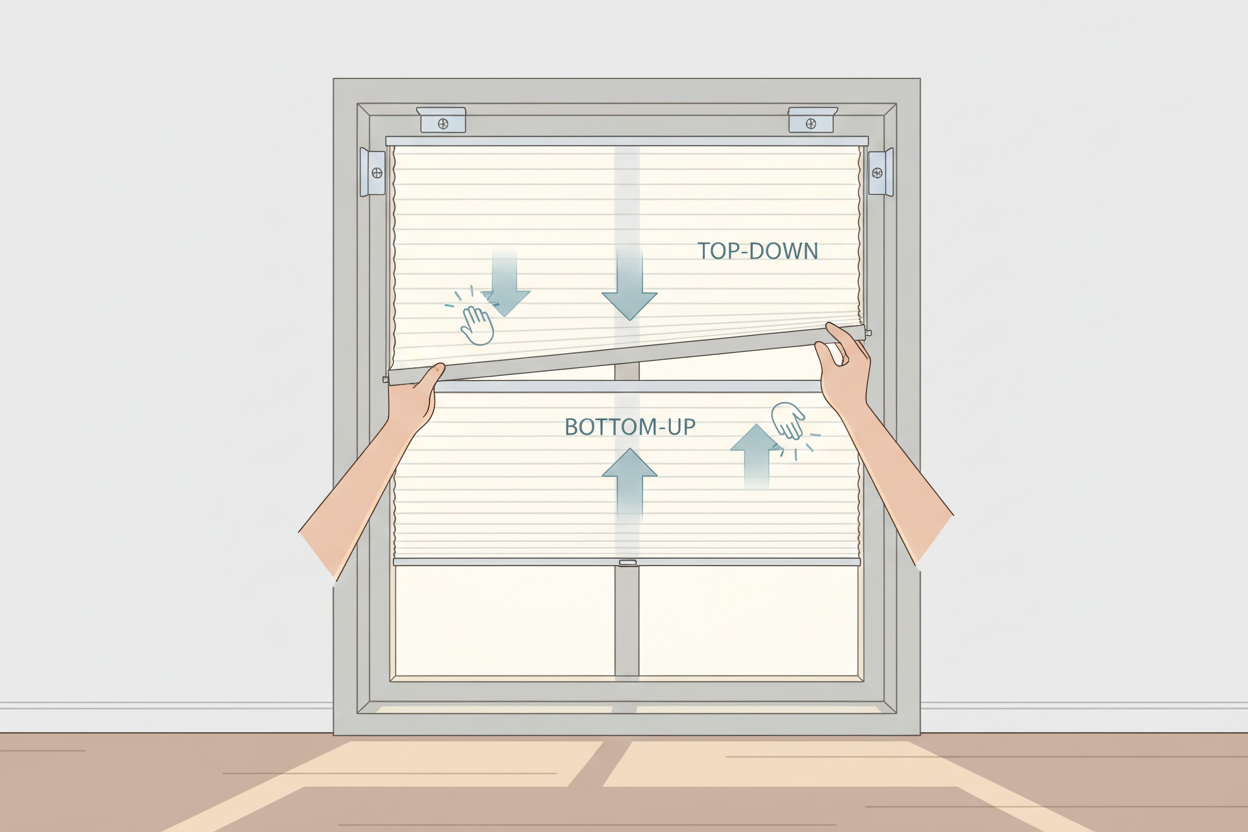

Before drilling the first hole, it is helpful to understand how these specific window coverings operate. Top-down bottom-up (TDBU) units utilize a specific system of floating rails. There is a fixed headrail at the very top, a moving middle rail, and a moving bottom rail. The tension between these components must be balanced. If the brackets are not aligned perfectly, the cords can rub against the internal mechanisms, leading to fraying or uneven lifting. Therefore, precision during the measuring and bracket placement phase is the most important part of the job.

Gathering the Necessary Tools

To successfully install top down bottom up blinds, you will need a standard set of household tools. Having these ready prevents unnecessary frustration mid-project. You should prepare:

• A steel tape measure (cloth tapes are not accurate enough)
• A power drill with a 1/16-inch drill bit (for pilot holes) and a Phillips driver bit
• A pencil
• A carpenter's level (a torpedo level works best for window frames)
• A step ladder
• Drywall anchors (if you are mounting into hollow drywall rather than wood studs)

Step 1: Determine Your Mounting Type

Most manufacturers design their brackets to accommodate both inside and outside mounts, but the positioning changes significantly. An inside mount fits within the window recess, providing a clean, built-in look. An outside mount attaches to the wall above the window or the trim, which is useful if your window frame is too shallow to house the mechanism.

For an inside mount, you must verify you have sufficient depth. TDBU shades often require slightly more depth than standard pleated shades because the headrail houses complex cord locks or spring motors. Check the manufacturer's instructions for the minimum depth requirement—usually around 2 inches for a flush mount.

Step 2: Marking the Bracket Locations

Spacing is vital when installing top down bottom up shades. You should generally position the two outer brackets roughly 2 to 3 inches in from the ends of the headrail. If the shade is wide (typically over 36 inches), a center support bracket is usually required to prevent the headrail from bowing under the weight of the mechanism.

Hold the shade up to the window to visualize the placement. With a pencil, mark the location of the brackets. If you are doing an outside mount, use your level to ensure the two marks are perfectly horizontal. If the shade is not level, the bottom rail will not hang straight, and the fabric may skew to one side.

A Note on Obstructions

When marking your holes for an inside mount, look for protruding handles, cranks, or alarm sensors on the window sash. You must position the brackets far enough forward so the shade clears these obstructions when lowered.

Step 3: Drilling and Securing Brackets

Once your marks are made, pre-drill pilot holes. This step is often skipped by novices, but it is essential. Pilot holes prevent the wood casing from splitting and ensure the screws go in straight. If you are mounting into drywall, tap your wall anchors into the holes before screwing in the brackets.

Align the brackets with your pilot holes and secure them using the provided screws. Ensure they are tight, but be careful not to overtighten, which can warp the metal bracket and make snapping the headrail in difficult.

Step 4: Mounting the Headrail

This is the moment of truth in top down bottom up blinds installation. Position the front lip of the headrail into the front clips of the brackets. Push the headrail backward and upward in a rolling motion until you hear a distinct click. This sound confirms that the rear spring of the bracket has engaged with the rail.

If the shade does not snap in, do not force it excessively. Check to see if the bracket screws are obstructing the rail or if the fabric is caught between the rail and the bracket. Often, simply loosening the bracket screws a quarter-turn can provide enough flexibility for the rail to snap into place.

A Personal Experience with Window Alignment

I recall a specific project involving a renovation of a 1920s bungalow where I needed to install cellular TDBU shades. The windows looked charming and square to the naked eye, but the structure had settled over the decades. When I initially mounted the brackets based on the window frame, the shade hung noticeably crooked, and the middle rail would drift downward on its own. I realized the window frame itself was out of level by nearly half an inch. I had to remove the brackets and use small plastic shims behind one side to artificially level the headrail. It was a tedious adjustment, but it taught me that the level is the ultimate authority, not the window frame. Once the headrail was truly level, the tension mechanism worked perfectly, and the drift stopped.

Step 5: Attaching Handles and Adjusting Tension

Modern TDBU shades are frequently cordless for child safety. These units operate using handles that clip onto the middle and bottom rails. Snap these handles into the center of the rails. If the shade is wide, you may have two handles per rail; space them evenly to ensure you lift and lower the shade without twisting the fabric.

After the shade is hung, cycle it up and down several times. You might notice the shade feels stiff or, conversely, too loose. If the bottom rail creeps up or the top rail sags, you may need to adjust the tension. This is usually done by adjusting the toggle or spring tensioner located in the headrail or the bottom rail end caps, depending on the brand.

Troubleshooting Common Issues

Even with a perfect install, issues can arise. Here is how to address them:

The Shade hangs unevenly

If one side is lower than the other, check if the headrail is level. If the headrail is level but the fabric is not, you may need to adjust the internal cords. Many shades have a skew adjuster on the bottom rail that allows you to lengthen or shorten the string on one side.

The Shade is hard to snap into brackets

This usually happens when the brackets are not aligned. Use a long straight edge to ensure all brackets are on the exact same plane. If the center bracket is slightly lower or higher than the outer ones, the rail will not engage.

Final Thoughts on Maintenance

Once you successfully finish installing top down bottom up shades, maintenance is minimal. Dust them regularly with a feather duster or the brush attachment of a vacuum cleaner. Because these shades have more moving parts than standard blinds, be gentle when operating them. Always guide the rails with your hand rather than yanking them, as this preserves the integrity of the internal lift cords. With proper installation and care, these window treatments will provide excellent light control and privacy for many years.
