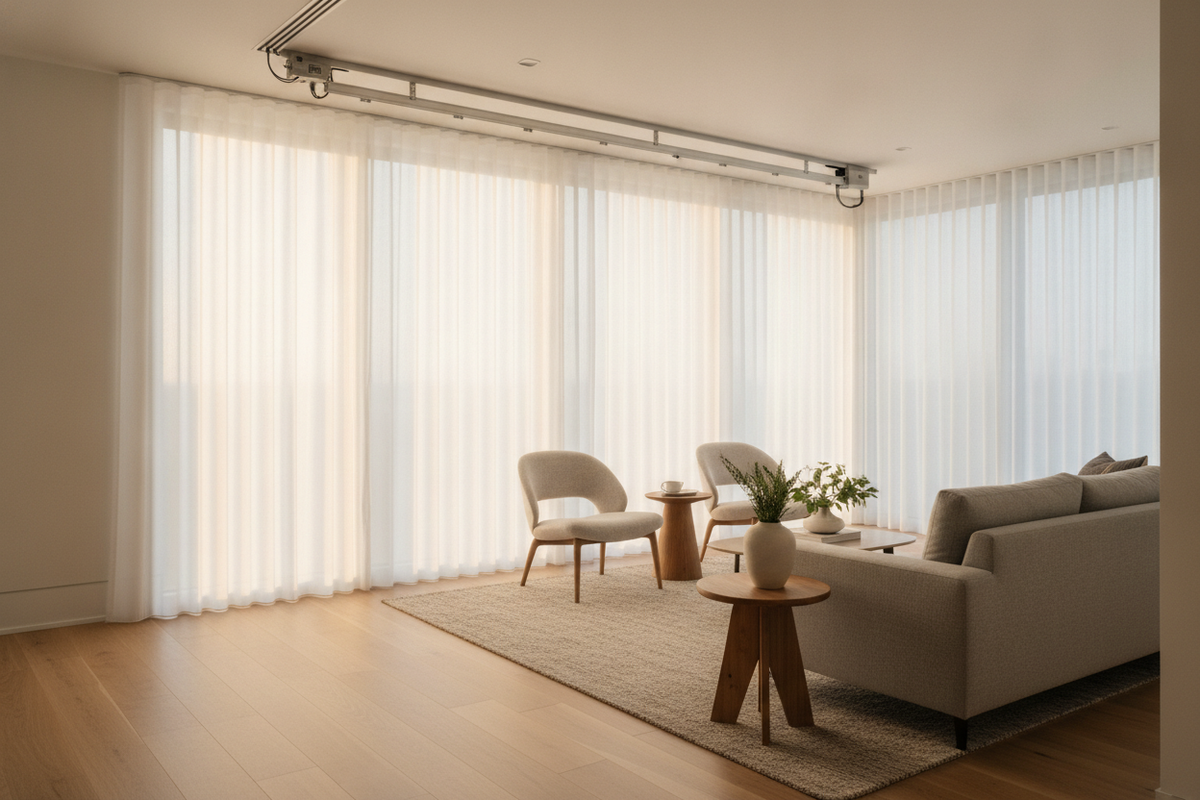

Motorized Drapery Hardware Architecture: Tracks, Splices, Motors, and Structural Mounting

Anatomy of Motorized Drapery Hardware: Core Mechanical Components

Behind every automated window treatment lies a coordinated mechanical assembly engineered to carry substantial drapery weight while gliding smoothly along an expanse of wall or ceiling. Choosing the right motorized drapery hardware requires looking beyond surface aesthetics to understand the functional core: the aluminum extrusion, the internal drive belt, the return and drive pulleys, and the wheeled carriers that support the hanging drapery fabric. A complete electric curtain rod system replaces manual pull cords with a mechanized track channel, translating the rotational force of an electric motor into quiet, linear movement that allows users to operate heavy drapes with absolute ease.

When planning a system for large windows, wide openings, or multi-layered window assemblies, understanding component interaction prevents sagging, motor strain, and premature track wear. Homeowners seeking timeless elegance often match their own fabric selections to an electric curtain rod or track to complement sophisticated interior trim. For those balancing dual window treatments, our detailed guide to motorized double curtain tracks outlines how parallel profiles coordinate to deliver independent fabric control for sheer and blackout layers alike.

Extruded Tracks, Belts, and the Automated Drapery Motor Splice

The backbone of any motorized drapery track is the structural channel profile, typically formed from extruded aluminum chosen for rigidity and resistance to bowing under load. Inside this profile runs a loop-driven belt, often reinforced with composite or metal threads to prevent stretching across extended spans. At one end of the channel sits the drive pulley housing, which directly couples to the motorized drapery head; at the opposing end, an idler pulley maintains continuous tension on the belt loop so the system can perform reliably at every moment of travel.

Because extra-wide spans and custom installations cannot easily ship in a single continuous rod or track extrusion, multi-piece systems rely on an automated drapery motor splice. This specialized joiner plate connects two abutting rail segments, locking them into true horizontal and vertical alignment along the exact width of the run. Note that an effective splice design must ensure seamless transitions: if the splice pinches the belt path or leaves an uneven ridge inside the runner channel, the carriers will catch, creating audible friction and placing unwanted resistance on the motorized drapery drive.

Master Carriers, Runners, and Drapery Fabric Tension Across Drapery Panels

Suspended from the track profile are the wheeled runners and the master carrier assembly. Standard runners glide freely inside the channel, each supporting a drapery pin or hook. The master carrier, however, is clamped directly to the internal drive belt. As the belt circulates, the master carrier draws the lead edge of the drapery fabric across the expanse, collecting or extending the trailing runners in sequence across the total track length.

For center opening configurations, dual master carriers employ overlapping arms that pass one another at the center of the window opening, eliminating light gaps where the drapery panels meet to preserve complete light control. Distributing drapery fabric tension evenly across all runners preserves the uniform pleating of heavy drapery panels, prevents pinch points during movement, and protects the motor head from uneven lateral drag, bringing both sophistication and long-term peace of mind to any living space.

Mounting Structural Loads: Ceiling Mount Smart Curtain Track vs. Wall Brackets

The durability of an automated motorized drapery setup depends directly on the integrity of its physical mount. Unlike static decorative rod hardware, an active motorized track experiences both static downward load from heavy duty drapery panels and dynamic torque whenever the motor accelerates, decelerates, or reverses direction across the span.

A ceiling mount smart curtain track transfers the entire weight of the assembly straight up into overhead joists, structural blocking, or concrete anchors. Ceiling mounting is particularly advantageous for floor-to-ceiling glass, recessed architectural pockets, and complex bay windows, as it minimizes rotational leverage against the fasteners. In contrast, wall projection brackets introduce leverage: the farther the motorized curtain rod or track projects away from the wall to clear window cranks, molding, or layered shades, the greater the rotational stress applied to the wall anchors. Accurate measuring of bracket clearance ensures smooth operation without rubbing against adjacent window casings or trim.

When coordinating drapes in combination with underlying woven materials or solar shades, consult our hardware clearance and shade layering guide to calculate the necessary bracket extension before drilling. For installations managing intense natural light, incorporating a dedicated motorized blackout drapery track kit ensures that bracket spacing, heavy duty fasteners, and runner tolerances match the dense weave of blackout drapery fabric.

Power Architectures and Smart Home Drive Units for Motorized Drapery

Selecting the drive mechanism involves balancing structural power availability with home automation infrastructure. Motorized drapery systems generally utilize one of two core power profiles to operate effectively:

• Low-Voltage Hardwired Installations: Dedicated low voltage wiring provides uninterrupted power directly through wall cavities, eliminating the need to access the motor head for recharging. Running low voltage wiring is common during new construction or comprehensive remodels, providing dependable torque for custom drapery across expansive large windows.
• Rechargeable Battery Motors: Battery-powered drive units snap directly into the drive pulley housing without pre-drilled electrical boxes. They offer a versatile, simple retrofit solution for finished rooms, pairing cleanly with motorized drapery hardware accessories like solar panels positioned to harvest natural light along the glass line.

Smart home integration connects the mechanical rod and track hardware to broader control ecosystems. Modern drapery motors interface with automation hubs via protocols such as Zigbee, Z-Wave, dry-contact relays, or direct Wi-Fi links. This connectivity allows users to position drapes precisely, synchronizing movements with wall switches, handheld remote transmitters, or voice commands through Amazon Alexa and Google Assistant to establish the desired balance of daylight and privacy throughout the interior space.

Hardware Maintenance, Splice Alignment, and Common Track Repairs to Manage Natural Light

A properly assembled motorized drapery track should operate with a quiet, smooth hum. When operational noise increases or movement becomes hesitant, the mechanical assembly usually calls for simple maintenance rather than complete component replacement. In my own home setups, I have found that taking ten minutes to inspect track alignment every change of season prevents almost all operational snags.

Common maintenance checkpoints include:

• Splice Realignment: If master carriers hesitate or emit a clicking sound as they cross a track joint, the splice plate screws may have loosened slightly. Loosening the fasteners, squaring the track edges flush against one another, and retightening the bracket restores a smooth gliding channel along the full length of the rod system.
• Belt Tensioning: Belts can develop slight slack over thousands of cycles. Adjusting the tension block inside the idler pulley housing eliminates belt flutter without overtightening, which could otherwise burden internal motor bearings.
• Runner Cleaning: Dust and fabric lint can settle inside extruded aluminum tracks over time. A dry microfiber cloth run along the interior channel clears out debris that might otherwise coat the runner wheels and resist fluid carrier travel.
• Motor Limit Recalibration: When drapes fail to close completely at the center opening position or pull too tightly against the end stops, resetting the electronic travel limits recalibrates the start and stop positions relative to your window frame.

Pairing reliable motorized curtain track parts with textiles from a dedicated blackout drapery collection creates a refined, automated environment that controls natural light, elevates interior decor, and protects furnishings across every season.
