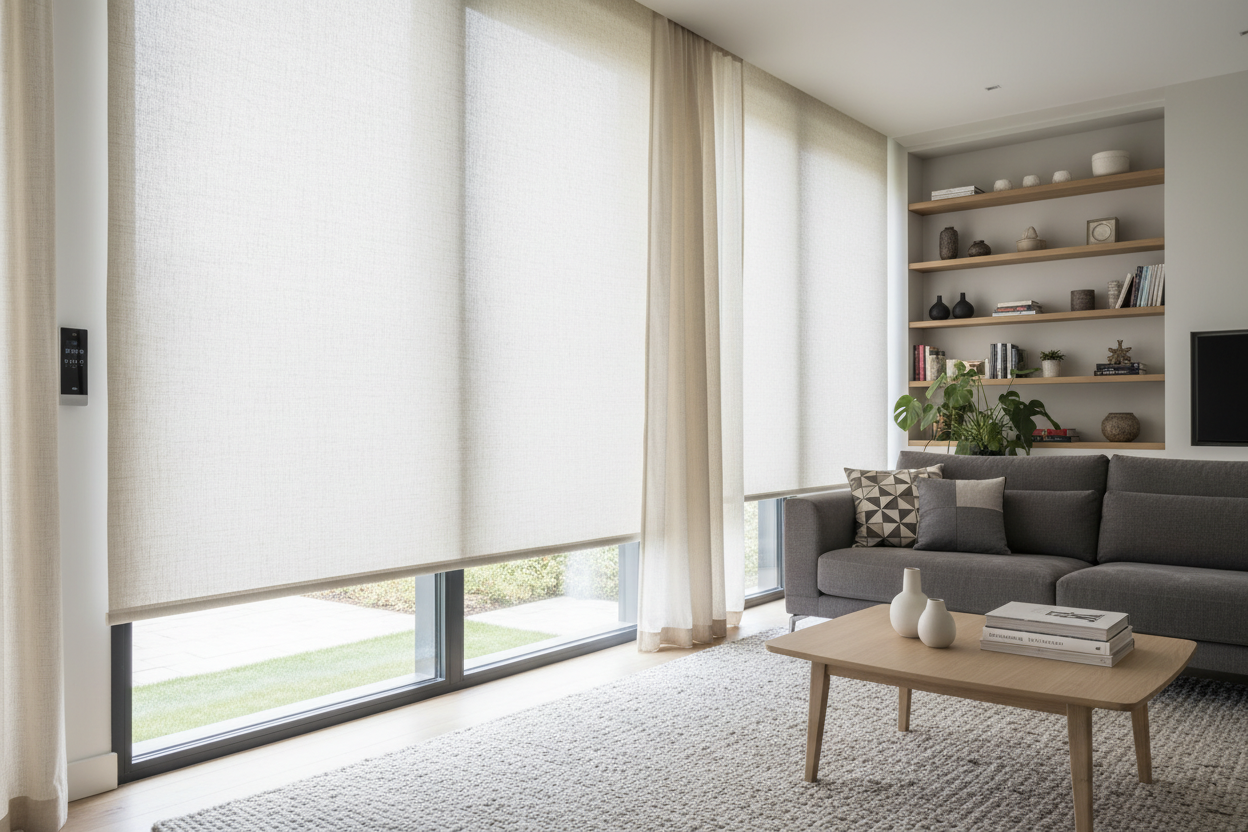

Privacy & Sunlight: The Smart Bottom Up Roller Shade Setup

Imagine this scenario: It’s Saturday morning. You live on the ground floor or have a window facing a busy street. You want that glorious morning sunlight streaming in, but you definitely don't want passersby seeing you making coffee in your pajamas. Standard blinds force you to choose: total darkness or total exposure.

This is exactly where the smart bottom up roller shade changes the game. Unlike traditional coverings, these operate on a reverse tension mechanism, allowing you to cover just the bottom half of the window while leaving the top open to the sky. By motorizing this setup, you gain granular control over privacy without sacrificing natural light, all via voice command or automation.

Quick Tech Specs at a Glance

Before drilling into the installation, let's look at the technical requirements for a typical motorized bottom up system. These specs determine compatibility with your current smart home ecosystem.

Feature	Specification Details
Mechanism Type	Spring-tensioned or Side-channel (Gravity-defying)
Connectivity	Zigbee 3.0, Z-Wave, WiFi (2.4GHz), or Thread/Matter
Power Source	Rechargeable Li-ion Battery (USB-C) or 12V/24V Hardwired
Ecosystem Support	Alexa, Google Home, Apple HomeKit, Home Assistant

Understanding the Mechanism: Tension vs. Tracks

A roller blind bottom up configuration isn't as simple as a standard drop-down shade. Because gravity isn't helping the fabric fall, these systems rely on tension. When shopping for roller blinds from bottom up, you will generally encounter two installation types:

• Wire Tension Systems: Thin, barely visible guide wires run vertically on the sides of the window frame. The motor pulls the bottom bar up along these wires. This is the most common retrofit option for smart homes.
• Side Channels (Tracks): The fabric runs inside aluminum side tracks. This offers better blackout capabilities but requires a more invasive installation and precise measurements.

Power & Connectivity Options

Battery vs. Hardwired Motors

For most DIYers, battery-powered roller shades from bottom up are the way to go. Modern tubular motors now feature high-torque capabilities that can lift heavy blackout fabrics without struggling. Look for motors with USB-C charging ports located on the cassette; older micro-USB models can be finicky.

If you are renovating, running low-voltage wire (12V) to the window sill is superior. It eliminates charging cycles and acts as a Zigbee/Z-Wave repeater for your mesh network.

Smart Integrations

Integration is where the "smart" aspect shines. Window shades that roll up from the bottom are best utilized with "Scene" controls. For example, a "Daytime Privacy" scene can set the bottom up shade to 50% height—blocking the street view but exposing the sky.

Pro-Tip on Noise: Pay attention to the decibel rating. A cheap motor hits 55dB (conversation volume), which is jarring in a quiet bedroom. Aim for motors rated below 40dB for a "whisper" operation.

Living with bottom up roller shade: Day-to-Day Reality

I’ve had a smart bottom up roller blinds setup in my home office for about six months now, and there are a few nuances the spec sheets don't tell you. The first thing I noticed was the visual "clutter" of the tension wires. While manufacturers call them "invisible," you absolutely see them when the sun hits the window at a specific angle. It’s not ugly, but it is a piece of tech infrastructure you have to get used to.

Functionally, the biggest adjustment was the latency in the tension system. When I ask Alexa to "Open the blinds," there is a distinct 2-second delay where the motor engages the tension before the fabric actually moves. It’s a different sensation than a gravity-fed blind. Also, cleaning the glass behind window shades roll up from bottom requires you to fully retract them down to the sill; if you leave them halfway up for weeks, dust tends to settle on the top rail of the moving bar, which you notice when you finally close them fully at night.

Conclusion

Switching to window shades that roll up from the bottom is one of the most functional upgrades you can make for ground-floor living. It solves the privacy paradox that standard curtains simply can't. While the installation requires more precision due to the tension wires, the ability to automate privacy levels while maintaining sunlight makes the effort worth it.

Frequently Asked Questions

How long does the battery last on these motors?

On average, with one up/down cycle per day, a rechargeable motor will last 6 to 9 months. Heavier fabrics will drain the battery faster due to increased torque requirements.

Can I operate them manually during a power outage?

Generally, no. Most motorized tension systems lock in place when unpowered to maintain fabric tautness. Unlike manual spring-loaded shades, smart motors usually require power to move.

Do I need a hub?

It depends on the connectivity. WiFi motors connect directly to your router but drain batteries faster. Zigbee and Z-Wave motors require a compatible hub (like SmartThings, Hubitat, or an Echo with a built-in hub) but offer better battery life and local control.
