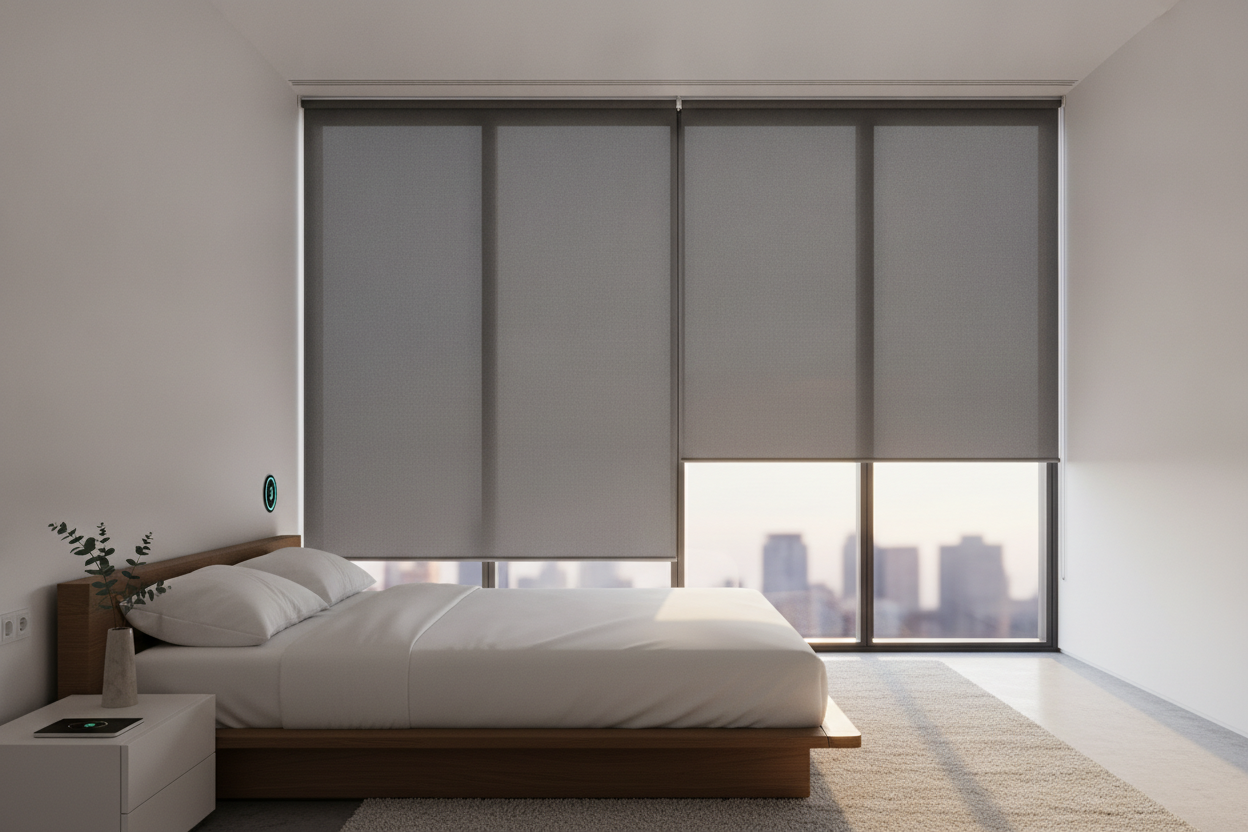

Skip the Shims: How to Install a Roller Shade Inside Mount

I used to think my house had 'character.' Then I tried to install smart blinds in a 100-year-old window frame. I quickly learned that 'character' is just a code word for frames that are shaped like trapezoids. If you want that clean, integrated look that doesn't scream 'I bought this at a big-box store,' learning how to install a roller shade inside mount is the only way to go.

Quick Takeaways

• Measure the width at the top, middle, and bottom; use the smallest number.
• Throw away the bubble level; align the brackets to the window casing instead.
• Pre-drill every single hole to avoid splitting your wood trim.
• Seat the pin end of the shade first, then click the motor end into place.

Why I Prefer Inside Mounts (Even When They Fight Back)

Inside mounts are the gold standard for a reason. They keep the focus on your window's architectural details rather than covering them up with a bulky headrail. When you're building a smart home, you want technology that disappears. A well-executed inside mount looks like it was part of the original house plan, not a weekend project you tackled after too much caffeine.

The problem is that no window frame is actually square. Houses settle, wood warps, and contractors take shortcuts. An inside mount forces you to deal with these imperfections head-on. It’s a tight fit by design, which means there is zero margin for error. If you get it right, it’s beautiful. If you get it wrong, your motor will grind against the frame until it burns out.

The Measuring Trap That Ruins Everything

Most people pull a tape measure across the top of the window and call it a day. That is how you end up with a shade that gets stuck halfway down. You must measure the width in three places: the top, the middle, and the bottom. Even a quarter-inch difference—which is common—will cause the fabric to rub or the motor to stall.

Always use the narrowest measurement when ordering. If you follow general shade installation guidelines, you'll know that custom manufacturers usually take a small deduction for you, but you need to provide the exact 'tight' measurement of the opening. If you’re working with smart shades, tolerances are even tighter because the battery tube needs room to breathe without vibrating against the wood.

Exactly How to Install Roller Shade Brackets (Leveling is a Lie)

Here is a secret: your spirit level is your enemy. If you level your shade perfectly but the window header is slanted, the gap at the top will look like a mistake. Instead, I measure a consistent distance down from the top corners of the frame. This ensures the shade looks parallel to the window, which is what the human eye actually cares about.

When you're figuring out how to install roller shade brackets, pre-drilling is non-negotiable. I’ve seen people split 80-year-old oak trim because they were too lazy to grab a 1/8-inch bit. Use a drill bit slightly smaller than your screw. I’ve covered installing window roller shades like a pro before, and the biggest takeaway is always the same: let the drill do the work, don't force the hardware.

Step-by-Step: How to Put Up Roller Shades Without Force

Once your brackets are in, the actual mounting should take ten seconds. The 'pin end' is the side without the motor or the chain. Slide that into its bracket first. It’s usually spring-loaded or has a simple pivot. Once that’s secure, align the motor or clutch end with the opposite bracket and push until you hear a satisfying click.

This is a practical walk-through of how to put up roller shades: if you have to hammer it in, something is wrong. The installation roller should spin freely with a flick of your finger. If you are installing something like motorized dual layer roller shades, be extra careful with the cassette alignment. If the brackets aren't perfectly parallel, the cassette won't snap in, and you'll be left swearing at a piece of expensive aluminum.

When to Give Up and Install Roller Shades Outside Mount Instead

Sometimes, the window wins. If your frame depth is less than two inches, a motorized shade with a battery pack simply won't fit inside. You'll end up with a shade that sticks out past the trim, which looks sloppy. Or, if your frame is so skewed that the fabric hits the glass at the top and the trim at the bottom, you’re fighting physics.

In these cases, it’s better to pivot and install roller shades outside mount. You mount the brackets to the wall or the face of the trim instead. It’s much more forgiving and covers up any unsightly gaps. It’s not a failure; it’s an engineering decision to save your sanity and your motor’s lifespan.

Personal Experience: The 3 AM Grind

I once insisted on an inside mount for a bathroom window that was visibly leaning. I spent hours shimming the brackets with bits of cardboard to get them 'level.' It worked for a week. Then, the humidity from the shower caused the wood to swell just enough that the shade got wedged. I woke up at 3 AM to the sound of the motor trying—and failing—to open the shade, sounding like a dying blender. I ripped it out the next morning and went with an outside mount. Learn from my stubbornness.

FAQ

Do I need special tools for an inside mount?

Just a quality tape measure, a drill with a set of bits, and a screwdriver. A laser measurer is great for speed, but a metal tape is more reliable for tight corners.

What if my window frame is metal?

You'll need self-tapping screws or a cobalt drill bit. Don't try to use the standard wood screws that come in the box; you'll just strip the heads and get frustrated.

Can I change an inside mount to an outside mount later?

Usually, yes, but you'll have holes to patch in your trim. Also, the shade might be too narrow to cover the window properly if it was custom-cut for a tight inside fit.
