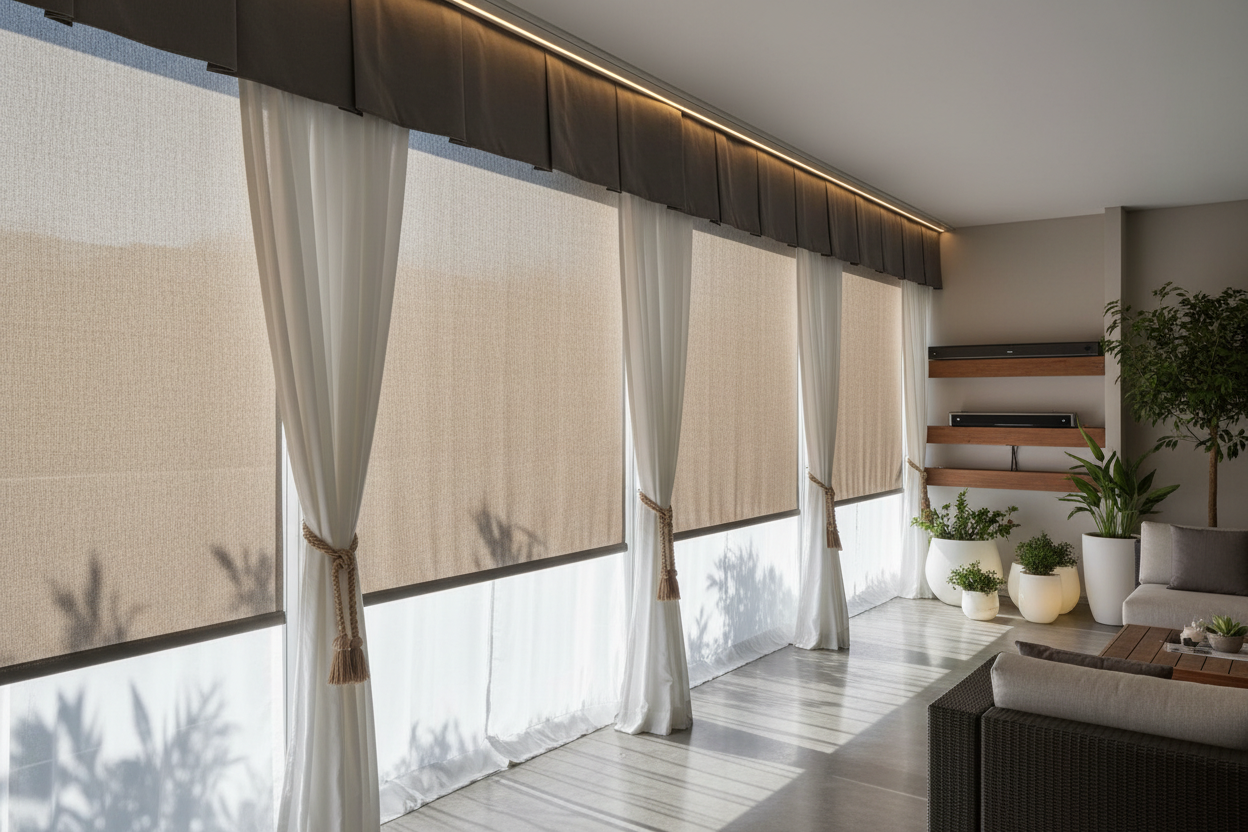

Smart Shading: Hiding Tech with an Outdoor Patio Valance

Imagine settling into your patio furniture with a cold drink, only to have the setting sun hit you directly in the eyes. You grab your phone or ask Google Assistant to lower the shades, but there is a catch: exposed outdoor smart motors can look industrial and messy. This is where the outdoor patio valance becomes a critical piece of your smart home exterior.

While often overlooked as purely decorative, a proper valance in a smart setup serves a functional purpose: protecting the motor housing from direct elements and concealing the wiring or battery packs that power your retrofit. Whether you are installing a new motorized cassette or retrofitting existing outdoor curtain valances with smart tracks, the goal is a clean, voice-controlled environment.

Quick Compatibility Check

Before drilling into your stucco or siding, here are the core specs you need to consider for a motorized valance setup:

• Power Source: Solar-trickle charge (preferred for outdoors) or Rechargeable Li-ion Battery.
• Connectivity Protocol: Zigbee 3.0 (requires Hub) or WiFi (2.4GHz only).
• Weather Rating: Look for IP55 or higher for the motor housing hidden by the valance.
• Smart Platform: Alexa, Google Home, SmartThings (often via Bond Bridge).

Installation Realities: Mounting & Clearance

Installing a smart outdoor curtain valance system is different from hanging indoor drapes. The primary challenge is spacing. Smart motor tracks are bulkier than standard rods. You need to ensure your valance brackets extend at least 4 to 6 inches from the wall to clear the motor mechanism.

If you are retrofitting, you might need extension brackets. I recommend using heavy-duty masonry anchors if mounting into brick, as the combined weight of the motorized track and the weather-resistant fabric can exceed 15 lbs. Ensure the valance fabric itself is weighted at the bottom; otherwise, a gust of wind can blow the valance into the moving track, jamming the motor.

Power & Battery Options

When dealing with an outdoor setup, hardwiring is rarely an easy option unless you planned it during construction. Most users opt for battery-powered motors tucked behind the valance.

The Solar Advantage

The best setups I have tested utilize a slim solar panel. You can mount the panel on the top edge of the valance where it catches sunlight, running the thin wire down behind the fabric to the motor. This creates a set-and-forget system. Without solar, you will be getting up on a ladder every 3 to 6 months to recharge the unit.

Ecosystem Integration

Does your outdoor curtain valance setup talk to the rest of your home? Most outdoor motors use RF (Radio Frequency) remote controls natively. To get them into your smart ecosystem, you will likely need an RF-to-WiFi bridge, such as the Bond Bridge or a specific brand gateway.

Once bridged, you can set schedules. For example, I have my West-facing valance shades lower automatically at 4:00 PM when the heat is most intense, protecting the patio furniture from UV damage without me lifting a finger.

Living with outdoor patio valance: Day-to-Day Reality

After three months of using a motorized valance system on my rear deck, the biggest nuance I’ve noticed is the sound profile. Indoors, a 45dB motor sounds like a whisper. Outdoors, ambient noise usually drowns it out, but in the dead silence of the evening, you definitely hear the mechanical whir.

One specific quirk involved the battery cable management. I initially used standard velcro ties to secure the battery pack behind the valance fabric. However, during a heatwave, the adhesive melted, and the battery pack swung loose, hitting the window. I had to switch to hard-mounted clips. Also, there is a distinct 2-second delay when using Alexa commands compared to the instant response of a wall switch, likely due to the cloud-to-hub hop. It’s a minor friction point, but one you notice when you’re trying to impress guests.

Conclusion

Adding a smart element to your shading with an outdoor patio valance elevates the space from a simple backyard to a true extension of your smart home. It solves the issue of unsightly wires and protects your investment in motorized tracks. If you are willing to tackle the mounting logistics, the convenience of voice-controlled shade is hard to beat.

Frequently Asked Questions

How long does the battery last on a smart outdoor valance motor?

Without a solar panel, a standard lithium-ion motor typically lasts 3 to 6 months on a single charge, assuming one up/down cycle per day. With a solar panel, it can run indefinitely.

Can I manually move the curtains if the power goes out?

This depends on the motor type. Some "dual-mode" motors allow for manual pulling, but most gear-driven smart motors will lock in place. Forcing them can strip the gears. Always check for a manual release clutch feature.

Do I need a hub for these devices?

Yes, most outdoor shading motors communicate via 433MHz RF or Zigbee. To control them via phone or voice assistant, you will need a compatible bridge or hub connected to your WiFi.
