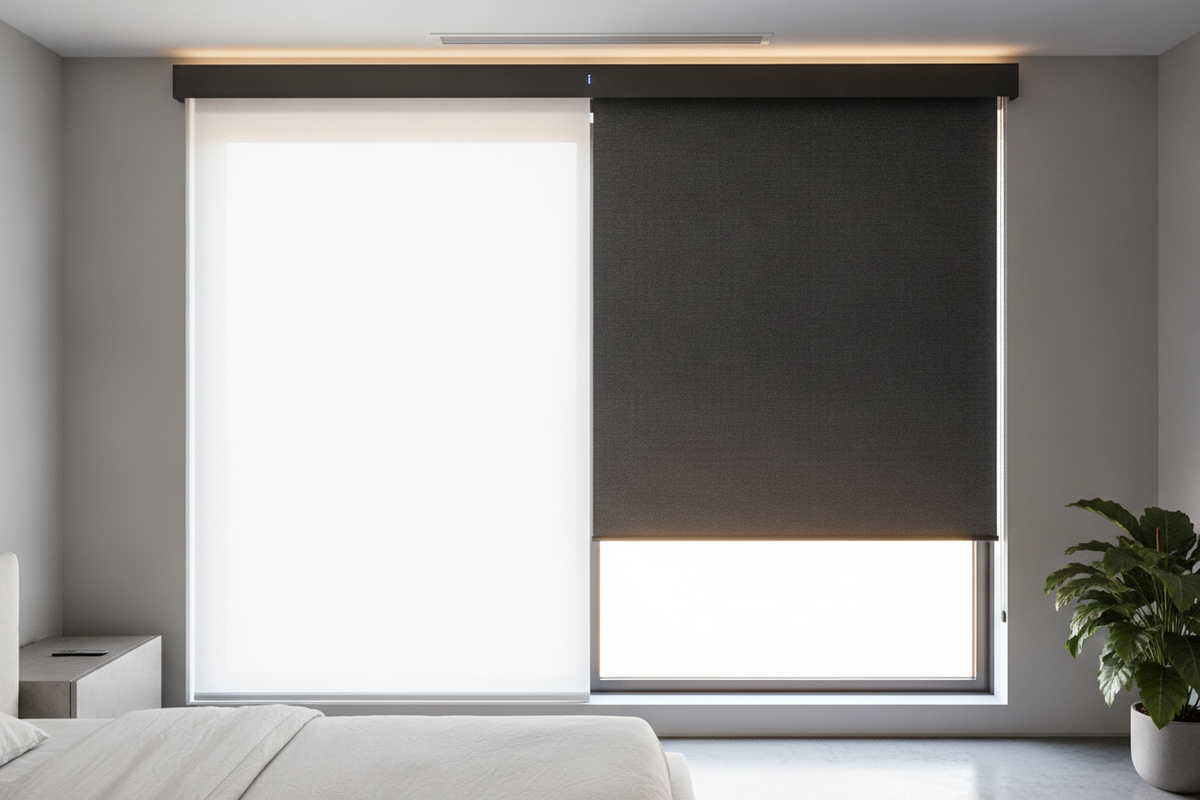

Solar Shades Blackout Architecture: Dual-Fabric Engineering, Light Containment, and Smart Motor Automation

The Optical Dilemma: Resolving Solar Screening and Blackout Performance

Designing an effective window covering strategy often introduces a fundamental physical conflict between solar filtration and room darkening. Homeowners seeking daytime glare reduction typically prefer open-weave solar screens. These micro-perforated textiles diffuse harsh direct sunlight, moderate interior solar heat accumulation, and preserve an outward visual connection to the landscape. However, because these weaves rely on structural openness to maintain transparency, they inherently transmit radiant light into the room and can reverse transparency at night when interior lights are activated.

Conversely, complete room darkening requires an entirely impermeable barrier. True room darkening relies on multi-pass coated textiles, composite membranes, or dense cellular constructions that reflect or absorb incoming photons completely. Because these membranes feature zero porosity, they obscure exterior sightlines entirely whenever they are deployed. A single sheet of fabric cannot physically deliver high open-area transparency while simultaneously halting all light transmission. For windows where wall depth is constrained or soft acoustics are needed, some turn to an insulated blackout shades collection, yet homeowners who desire modern, clean lines combined with dynamic view-through during the day must rely on multi-layer roller architectures.

Bridging this optical divide requires deploying two distinct fabric panels across a single architectural opening. When pairing solar shades with blackout capabilities, engineers mount two independent roll tubes within the window frame. This dual-fabric framework permits complete programmatic flexibility: the solar layer manages dynamic daylighting throughout the morning and afternoon, while the blackout layer deploys for media viewing or deep evening sleep.

Mechanical Configurations: Dual-Roller Brackets vs. Tandem Cassettes

Integrating two motorized roller tubes into one window opening presents mechanical packaging challenges. System specifiers primarily balance structural bracket geometry against interior visual impact. The two standard mounting configurations are open-bracket systems and fully enclosed tandem cassettes.

Open-bracket systems position two independent idler and motor assemblies in an offset pattern, typically arranged either vertically in an over-under layout or horizontally in a front-to-back layout. An over-under bracket minimizes the necessary jamb depth, making it suitable for shallower window frames, though it increases the vertical header footprint. Front-to-back brackets require greater casing depth within the window reveal but present a lower vertical drop. In these pairings, high-precision assemblies such as a motorized blackout shades product are routinely situated closest to the glazing to maximize light seal efficiency, while the decorative solar screen drops along the room-side plane.

Enclosed dual-cassette headrails integrate both roller barrels into a single extruded aluminum housing. While requiring adequate structural backing due to the collective weight of dual motors and fabrics, enclosed cassettes protect stored textiles from airborne particulate settling and produce a cohesive architectural finish across the window header. When executing an inside mount, installers must verify that the window casing offers sufficient structural jamb depth to seat the full cassette without protruding past the finished drywall line.

Light-Gap Containment and Perimeter Channel Mechanics

Achieving complete darkness with roller shades involves addressing the perimeter clearances between the moving fabric and the structural window frame. Because roller shade barrels require mechanical clearance for drive motors, idle pins, and bracket mounts, an untreated roller shade naturally produces a visible light perimeter along the jambs and sill.

To mitigate this peripheral flare, advanced installations incorporate structural side retention channels. These extruded metal tracks mount directly into the window jambs, capturing the edges of the room-darkening textile within an internal channel lined with dense brush seals or low-friction polymer guides. In a dual-layer setup, these side channels are engineered specifically to guide the rear blackout layer, which sits immediately adjacent to the window pane. The forward solar shade operates freely in front of the channels, ensuring that daytime operation remains smooth and unencumbered by track friction.

Sill light control completes the perimeter containment. When the room-darkening fabric reaches its lower limit, a weighted architectural bottom rail fitted with a flexible rubber gasket or brush sweep compresses against the window sill. This eliminates bounce-back light along the bottom edge, preventing bright light from spilling across the floor plane.

Motorization Architecture: Independent Lift Dynamics and Power Management

A dual-roller system requires two distinct drive mechanisms to operate effectively. Because the functional needs of solar glare mitigation and room darkening rarely coincide, both barrels require dedicated tubular motors capable of discrete travel speeds, electronic limit settings, and independent circuit control. Synchronized operation is generally reserved only for full-open retract states.

Power distribution for dual-roller systems typically falls into two categories: low-voltage hardwired runs or wire-free integrated battery packs. Hardwired configurations connect through pre-drilled framing directly to low-voltage power panels, offering continuous utility without battery maintenance. For retrofits where running wiring behind finished walls is impractical, integrated rechargeable lithium motors provide an accessible alternative. Homeowners exploring diverse power delivery methods often consult a blackout shades solar guide to compare passive photovoltaic top-off systems against dedicated hardwired wiring infrastructure.

Regardless of power source, motor sizing must account for barrel deflection across expansive window widths. Deflection occurs when heavy architectural textiles cause the central span of the aluminum roller tube to sag slightly under its own weight. This mechanical distortion can lead to fabric banding or wrinkles. Specifiers mitigate this risk by selecting larger-diameter aluminum tubes paired with appropriately torqued tubular motors that ensure flat, consistent fabric travel across the full drop.

Smart Automation Routines: Balancing Solar Heat Mitigation and Circadian Rest

Motorizing both fabric layers allows homeowners to orchestrate comprehensive indoor climate and illumination schedules. Through integration with home automation hubs, solar shades blackout assemblies can respond dynamically to environmental conditions rather than relying solely on manual inputs.

During early daylight hours, smart routines can lift the blackout shade entirely while positioning the solar shade at a partial drop to reduce morning glare without obscuring morning light. As the sun reaches peak elevation and heats the exterior facade, automated schedules or local brightness sensors can lower the solar shade fully. This passive approach reduces radiant heat transfer while maintaining daytime visibility to the outside world.

In the evening, automated schedules lower the blackout shade to transition the living space into a private, dark environment. This dual-layer progression supports natural circadian rhythms by aligning indoor light exposure with the daily solar cycle. Because modern motors interface with common smart home wireless protocols, homeowners can synchronize these shade sequences alongside smart thermostats, lighting scenes, and voice assistants.

Specification Framework: Choosing the Right Dual Shading Strategy by Room Type

Specifying a dual-fabric shading solution begins with evaluating the primary purpose of each room against the physical dimensions of the window architecture. In primary bedrooms, private cinema spaces, and nurseries, the blackout layer must be prioritized. These rooms benefit significantly from side containment channels and snug inside-mount positioning that halt peripheral light leaks.

In multi-purpose environments such as living rooms, dining spaces, or home offices, daytime light modulation and exterior views are often the central priority. Here, the solar fabric does the heavy lifting, diffusing midday glare across computer monitors and furnishings. The blackout layer is reserved for casual evening privacy or family movie gatherings. In these versatile spaces, straightforward baseline designs such as a classic blackout shades product paired with a coordinating solar roller provide dependable light transitions without requiring complex edge seals.

Before placing orders or framing window openings, use this practical specification sequence:

• Measure Frame Clearances: Verify overall jamb depth at three points across the opening to determine whether an inside-mount dual cassette can fit comfortably, or if a wall-mounted outside bracket is required.
• Determine Power Access: Plan your wiring pathway during preliminary framing for hardwired systems, or confirm accessible clearance for battery motor charging wands.
• Establish the Drop Hierarchy: Position the blackout shade closest to the glass inside perimeter side channels, reserving the room-side roll tube for the decorative solar screen.
• Evaluate Openness Factors: Select a solar screen weave density that balances heat diffusion against the specific clarity of the exterior view you wish to maintain.

By treating the window opening as a comprehensive light-management zone, pairing solar filtration with blackout technology provides complete control over both radiant daytime sun and restful nighttime darkness.
