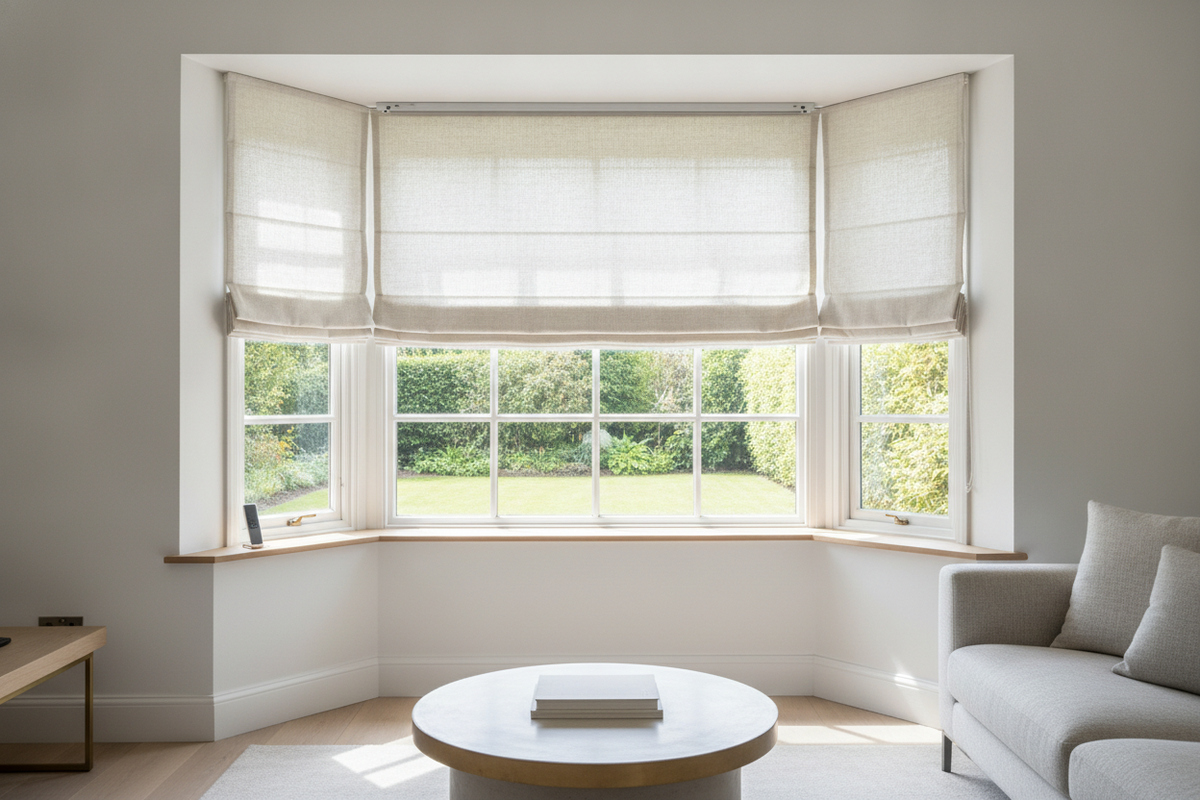

The 2-Inch Rule I Used to Automate My Bay Window Roman Shades

I spent three hours on a ladder in my living room, sweat dripping onto my 1920s oak floors, finally ready to witness the magic. I’d just finished installing three high-end motorized bay window roman shades. I tapped 'All Up' on my phone, expecting a graceful reveal of the morning sun. Instead, I heard a mechanical groan, followed by the sound of expensive linen grinding against itself. My beautiful shades had turned into a three-way car crash in the corners of the window frame.

• Measure the depth of the shade's headrail plus the 'stack' (the folded fabric) before ordering.
• Use cardboard templates to simulate the corner clearance — never trust your eyes alone.
• Zigbee or Thread motors are better than Bluetooth for syncing three shades in a single bay.
• Heavy fabrics like velvet require a much larger gap in the corners than light linens.

The Day My Smart Shades Played Bumper Cars

There is a specific kind of heartbreak that occurs when a $1,500 automation project fails in the first five seconds. I had carefully measured the width of each window pane in my bay, but I forgot one crucial thing: Roman shades aren't flat like a piece of paper. They have depth. When I triggered the motors, the center shade started rising, but the side shades immediately snagged on the center shade's headrail.

The motors did their job — they pulled hard. Too hard. The fabric bunched, the motors detected an obstruction and stopped, and I was left with a jagged, half-opened mess. It was a classic rookie mistake for a smart home DIYer. I had to spend the next hour manually untangling the cords and resetting the limits because I didn't account for the physical space fabric occupies when it's folded.

Why Roman Shades and Bay Windows Fight

The geometry of a bay window is a trap for thick window treatments. Most people choose Roman Shades because they look sophisticated and architectural. But unlike a thin roller shade that disappears into a tiny tube, a Roman shade is a series of cascading fabric folds. When you raise them, that fabric has to go somewhere. It stacks up and outwards.

In a standard 45-degree bay window, the corners are tight. If you mount the shades too close together, the 'stack' of the side shade will physically occupy the same space as the 'stack' of the center shade. This friction is a motor killer. It causes the fabric to fray and puts unnecessary strain on the battery, which I learned the hard way when my left shade died three weeks after installation while the others were still at 80% charge. Friction is the silent enemy of battery life.

Wait, Do You Have a Bow or a Bay?

Before you get out the tape measure, look at your architecture. A bay window usually has three distinct panes: a large center one and two smaller side ones at sharp angles. Roman shades for bow windows are a slightly different beast. Bow windows are curved, often with four or five smaller panels. Because the angles are gentler, you might think you have more room, but the cumulative 'arc' actually makes it harder to hide gaps between the shades. You have to be even more precise with your spacing to avoid light leaks without causing the fabric to rub as the shades move in unison.

My Foolproof Corner Clearance Formula

To fix my mess, I developed what I call the 2-inch rule. First, I cut three pieces of cardboard to the exact depth of the shade headrails I was ordering. I taped them into the corners where the windows meet. If the cardboard pieces touched or overlapped, I knew I had to reduce the width of my ordered shades. For most motorized setups, you need at least a 2-inch 'dead zone' in the corner where no fabric exists.

This gap ensures that when the shades are fully raised, the thickest part of the fabric stack has room to breathe. If you're worried about privacy in that gap, you're better off slightly narrowing the center shade rather than the side ones. This keeps the visual weight balanced. For more specific advice on high-traffic areas, check out The 3 Rules Of Buying Roman Shades For Kitchen Bay Window Corners.

The Inside vs. Outside Mount Debate

If your window casing is deep enough (usually 3+ inches), an inside mount looks incredible. It keeps the lines of the window clean. However, if you're dealing with roman shades for bay window in living room setups where you want maximum blackout for movie nights, an outside mount is often the smarter play. By mounting the shades on the wall above the window, you can overlap the frames slightly to eliminate those corner light gaps entirely.

For my living room, I eventually swapped to Silva Series Motorized Blackout Roman Shades using an outside mount. It solved the collision problem because the shades sat on different planes, and the blackout fabric meant I didn't have to deal with annoying slivers of light hitting the TV at 4 PM. It also made the windows look much larger than they actually were, which is a nice side effect of the outside mount strategy.

Why Fabric Thickness Ruined My First Attempt

I originally ordered a heavy, triple-layered velvet. It looked like a million bucks but folded like a thick winter coat. The stack was nearly 5 inches deep when raised. No bay window corner on earth could accommodate that without massive gaps. I learned that if you're going motorized, you need to know the 'stack height' and 'stack depth' of your chosen fabric before you commit to your measurements.

Don't just look at the color on your screen. Order Weffort Fabric Sample Roman Shades and actually fold the fabric in your hands. See how thick it gets when it's four layers deep. If it's too bulky, switch to a linen or a performance blend that offers the same look with half the mass. Your motors—and your sanity—will thank you when the shades glide past each other without a sound.

FAQ

Can I power all three shades from one battery?

Technically, some systems allow daisy-chaining, but I don't recommend it for bay windows. It creates ugly wiring runs across the corners. Stick to individual battery motors or hardwired power for each pane to keep the look clean.

How do I make all three shades move at the exact same time?

Group them in your app (like Alexa, HomeKit, or Bond). If you use Zigbee motors, they usually support 'multicast' which makes them move in perfect synchronization without that staggered 'popcorn' effect where one shade starts two seconds after the first.

Will the fabric fade if my bay window gets direct sun?

Yes, eventually. Look for fabrics with a high UV rating or a white liner. You can also automate your shades to close when the sun is at its peak intensity using a simple light sensor or a weather-based automation in your smart home hub.
