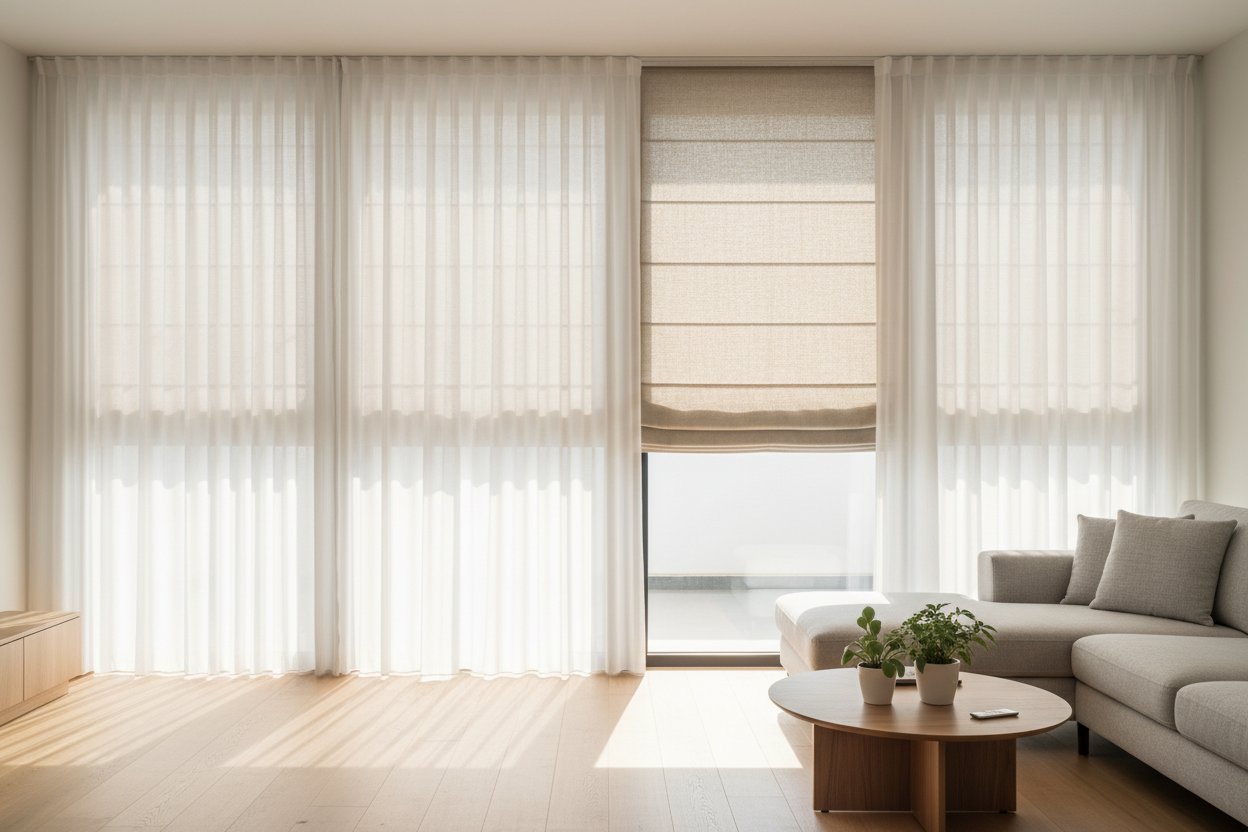

The Secret to Automating Drapes and Roman Shades Without Tangling

I woke up at 6:15 AM to a laser-thin beam of sunlight hitting my left eyeball because my single 'smart' blind had a light gap the size of a highway. That was the day I decided to stop half-assing my window treatments. I didn't just want automation; I wanted the kind of light control that makes a room feel like a sanctuary, which led me straight into the complicated, often frustrating world of drapes and roman shades.

• Distance is your best friend; keep 3 inches between layers to avoid mechanical friction.
• Offset your automation triggers by 10 seconds to prevent power surges and fabric jams.
• Choose Zigbee or Thread protocols over Bluetooth if you want both layers to actually move at the same time.
• Heavier velvet drapes require high-torque motors; don't cheap out or they'll stall halfway up.

Why One Motorized Layer Wasn't Enough for My Living Room

When I first automated my living room, I went with a sleek, minimalist motorized roller shade. It worked, technically. But at night, the room felt cold and exposed. The shade looked like a projector screen, and the harsh lines screamed 'tech enthusiast lives here' rather than 'comfortable home.' I realized that while a single layer is great for a home office, a living space needs the texture and depth that only Roman Shades can provide.

The problem is that a single roman shade, while beautiful, is a binary choice: either you have privacy and no view, or a view and no privacy. I needed a way to filter the harsh afternoon glare without sitting in a cave. That’s when I started looking into drapes with roman shades. By layering a sheer or light-filtering roman shade under heavy, motorized drapes, you get a tiered light management system that handles everything from 'afternoon nap' to 'golden hour cocktails.'

I spent weeks measuring and re-measuring because I knew the weight would be an issue. If you’ve ever felt the heft of a high-quality roman shade, you know it’s not just a piece of fabric; it’s a mechanical assembly with rods and cords. Adding a curtain track in front of that requires more than just a standard bracket. You’re essentially building a small machine on your wall, and if the aesthetics don't hide the hardware, it looks like a mess of wires and metal.

The Tangled Mess: My First Attempt at Layering

My first attempt at running a roman shade with curtains was a loud, expensive failure. I mounted a standard motorized curtain track directly in front of an existing roman shade. I thought an inch of clearance was plenty. I was wrong. The first time I triggered the 'Movie Night' scene, the curtain's leading edge caught on the shade's motor housing. The motor groaned, the fabric bunched, and the whole track nearly pulled out of the drywall.

It turns out that roman shades don't just move up and down; they 'smile' and stack. As the fabric folds up, it creates a bulge that protrudes further into the room than the headrail itself. I eventually swapped my bulky setup for the Silva Series Motorized Blackout Roman Shades. These have a much slimmer profile, which is the only reason I was able to make the dual-layer dream work in a standard-depth window casing.

Even with the slimmer hardware, the friction was a nightmare. I had to learn the hard way that fabric-on-fabric contact is the enemy of motor longevity. If your drapes are rubbing against the folds of your roman shades, the motor has to work twice as hard. This kills battery life and eventually burns out the tiny internal gears. I saw my battery life drop from a promised six months to barely six weeks before I fixed the spacing issues.

The 3-Inch Rule for Motor Clearance

After the 'Great Snag of 2023,' I consulted a professional installer who gave me the golden rule: the 3-inch gap. You need at least three inches of clearance between the back of your curtain rod and the front of your roman shade headrail. This isn't just for the fabric; it's for the 'stack.' When roman shades and drapes together are in their 'open' position, you have a massive amount of fabric gathered in one spot. Without that 3-inch buffer, the curtain's carriers will inevitably get hung up on the roman shade's folds.

If you have shallow window casings, you'll need to use 'extended wall brackets' for your curtain track. Don't try to squeeze everything inside the frame. Mount the roman shade inside the casing and the curtain track on the wall above it, extending the brackets out. It might feel like the curtains are floating too far from the wall, but once the fabric is hung, it looks intentional and high-end. Plus, your motors will actually last more than a season.

Picking the Right Tech for a Dual-Layer Setup

You cannot treat a dual-layer setup like a single window treatment. You’re managing two different motor types: track motors (for the drapes) and tubular motors (for the shades). In my experience, mixing brands is a recipe for a 'remote graveyard' on your nightstand. I always recommend staying within the same ecosystem so you can group them. If you're curious about which one to start with, check out this breakdown on Smart Curtains Or Roman Shades The Best Motorized Window Setup.

I prefer Zigbee motors for this. When you send a command to 'Close Windows,' a Zigbee hub can talk to both motors simultaneously with near-zero latency. Bluetooth is too flaky for this; you'll often see one layer move while the other just sits there, confused. Also, pay attention to the decibel ratings. If you have two motors running at once, a 'quiet' 40dB motor suddenly becomes a 45-50dB drone. Look for motors rated under 35dB if you plan on automating these in a bedroom.

Don't fall for the cheapest motors on Amazon. They usually lack 'soft start' and 'soft stop' features. Without those, your drapes will jerk into motion, causing the heavy roman shade fabric behind them to sway and potentially tangle. You want a motor that ramps up its speed gradually. It’s the difference between a luxury elevator ride and a rickety carnival tilt-a-whirl.

How I Synced the Two (Without Waking Up the Neighborhood)

The real magic happens in the software logic. In my HomeKit setup, I never trigger both layers at the exact same second. Why? Because the initial 'tug' of a motor draws the most current and creates the most noise. I wrote a routine for Smart Layering Automating Roman Shades And Curtains Together that uses a 10-second offset. At 7:00 AM, the drapes open first to let in soft, diffused light through the roman shade. At 7:00:10 AM, the roman shade begins its slow ascent.

This offset also prevents mechanical clashing. If the drapes are still slightly overlapping the shade when the shade starts to rise, the movement of the drapes usually clears any fabric folds out of the way. I also set my 'Daytime' scene to only open the roman shades to 75%. This keeps the bulky stack hidden behind the top of the drapes, maintaining that clean, 'designed' look while letting in 90% of the light.

One thing to watch out for: firmware updates. I once had a bridge update that wiped my limits. I woke up to my drapes trying to drive themselves through the end-caps of the track while the roman shades were trying to roll themselves into the ceiling. Always test your routines after a hub update. It takes two minutes and saves you a $500 repair bill.

The High-End Hotel Vibe on a DIY Budget

After all the cursing and re-drilling, the result is undeniably worth it. There is something profoundly satisfying about tapping a single button and watching two layers of fabric move in a choreographed dance. It hides the 'tech' of the window. When visitors come over, they don't see motors or wires; they see beautiful, heavy drapes and structured shades that seem to respond to the sun instinctively.

By layering soft fabrics over the structured lines of a roman shade, you get total light occlusion for sleep and beautiful diffusion for the day. It’s the ultimate flex for a smart home. You’ve moved past the 'gadget' phase and into actual interior design. Just remember: measure for depth, respect the motor torque, and for the love of your drywall, use the 3-inch rule.

FAQ

Can I use battery-powered motors for both layers?

Yes, but be prepared to charge them at different times. Drapes usually consume more power because of the lateral pull. I recommend a solar charging strip for the roman shade since it's closest to the glass, and a standard plug-in or large battery pack for the drapes.

Do I need two separate bridges?

Ideally, no. If you buy motors that support the same protocol (like Matter or Zigbee), one bridge will handle both. Mixing a proprietary RF shade with a Zigbee curtain track is a nightmare for syncing.

What fabric works best for layering?

Keep the 'inner' layer (the roman shade) relatively thin—think linen or light-filtering synthetics. Save the heavy lifting for the 'outer' drapes. This keeps the total weight on your window frame manageable and prevents the 'bulge' that causes tangles.
