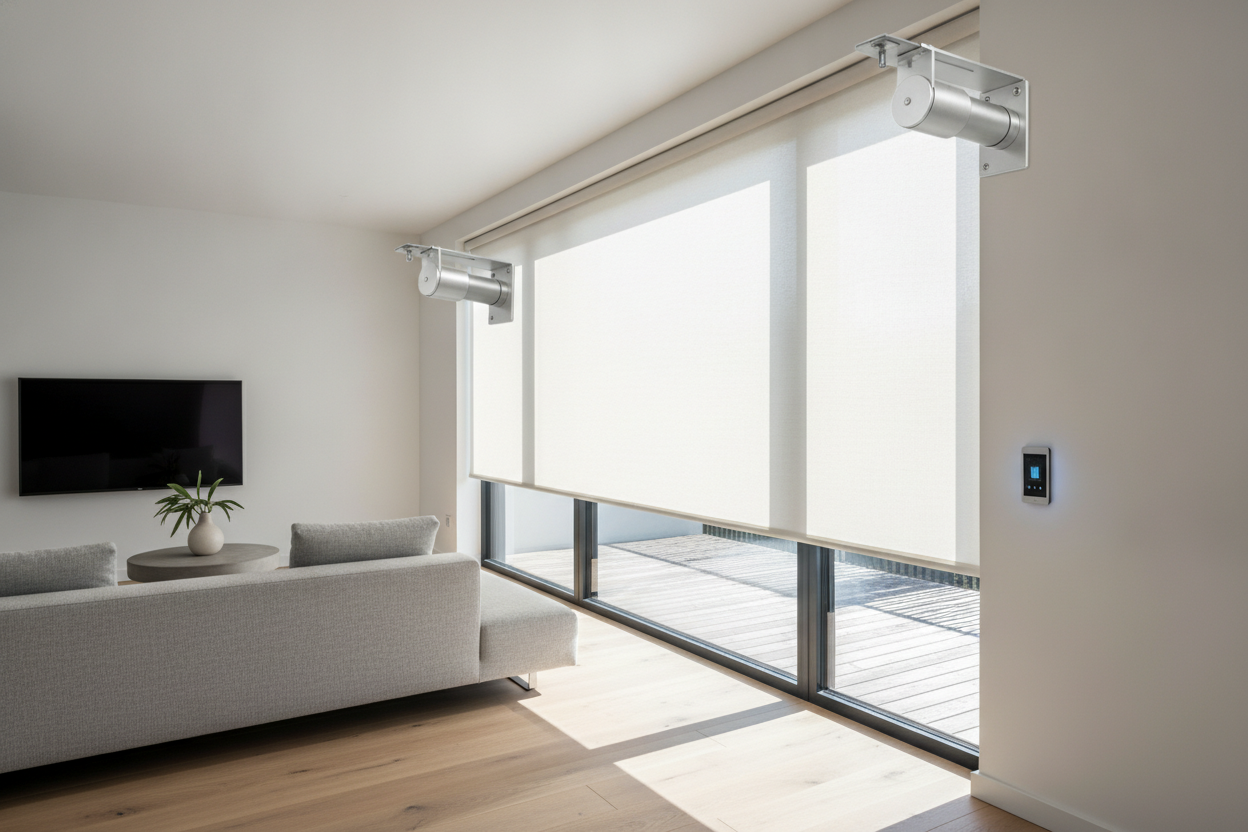

Why I Gave Up on Inside Mounts for a Roller Shade Mounting Bracket

I live in a house built in 1924. The windows are gorgeous, but the frames are barely an inch deep. Trying to jam a modern smart motor into that space is like trying to fit a V8 engine into a Vespa. I spent years obsessing over the clean look of inside mounts until I realized I was just destroying my trim for a result that looked cramped and functioned poorly. The fix was simple, though it felt like heresy at the time: I embraced the roller shade mounting bracket in an outside-mount configuration.

Quick Takeaways

• Inside mounts require at least 2.5 to 3 inches of depth for a flush fit; most older homes lack this.
• Outside mounting hides crooked window frames and makes small windows appear significantly larger.
• Modern brackets can be color-matched or hidden with a reverse-roll fabric technique.
• Always anchor into the structural header above the window to handle the torque of smart motors.

The Inside Mount Obsession (And Why I Quit)

I used to be a purist. I believed that if a shade wasn't tucked neatly inside the window casing, it was a failure of design. This belief led me to spend a miserable Saturday afternoon trying to force a high-end motorized shade into a shallow 1-inch frame. I stripped three screws, took a chunk out of my original Douglas fir trim, and the shade still stuck out two inches into the room. It looked like a mistake.

The motor head was the real culprit. Most smart shades house their batteries and Zigbee radios inside the tube, but the bracket still needs enough surface area to grip. In my case, the bracket was hanging on by a prayer and half a screw thread. Every time the motor kicked on with its 1.1Nm of torque, the whole assembly shuddered. I finally admitted defeat when the entire unit fell off the wall and nearly took my coffee with it. Sometimes, the 'clean look' isn't worth the structural headache.

The Physics of the Roller Shade Mounting Bracket

When you are deciding between an inside vs outside mount, you have to look at the bracket first, not the fabric. An inside mount bracket demands a perfectly square window. If your frame is even an eighth of an inch off-kilter, the roller will bind, the motor will strain, and you will hear a rhythmic grinding sound that signals a short lifespan for your hardware.

Shifting to an outside mount roller shade bracket changes the physics entirely. By mounting to the wall or the face of the trim, you bypass the depth requirement. This is incredibly forgiving. You no longer care if the window is a parallelogram instead of a rectangle. You just level the brackets, click the tube into place, and let the fabric cover the architectural 'character' (read: flaws) of your old home.

When Outside Mount Brackets for Roller Shades Win

There are three scenarios where outside mount brackets for roller shades are the only logical choice. First: window cranks. If you have casement windows with handles that stick out, an inside mount is impossible unless you want your fabric permanently bunched up. Outside mounting lets the shade clear the hardware entirely.

Second, it is the ultimate interior design cheat code. By mounting the brackets three inches above the window and two inches wider on each side, you fake a much larger window. It creates a sense of height that transforms a cramped bedroom. Third, it solves the motor size limitation. If you are automating narrow windows, an outside mount allows you to use a slightly wider shade. This gives you extra room to fit a standard-sized motor and battery wand that might not fit within the constraints of a narrow internal frame.

How I Hide the Hardware (No Valance Needed)

The biggest fear people have with outside mounting is seeing the 'ugly' metal. I get it. But you do not need a bulky plastic valance to fix this. My trick is the 'reverse roll.' Instead of the fabric hanging off the back of the tube (closest to the glass), have it fall off the front. This hides the roll of fabric and the metal tube behind the material itself.

I also highly recommend choosing motorized blackout roller shades with a heavy texture. Thicker fabrics have more visual weight and naturally conceal the mounting hardware better than thin, cheap vinyl. If you color-match your brackets to your wall paint—a five-minute job with a can of matte spray paint—the hardware virtually disappears into the architecture.

My Fail-Proof Rule for Drilling the Frame

Smart shades are heavier than manual ones. Between the motor, the lithium-ion battery, and the metal tube, you are looking at significant weight. If you screw an outside mount bracket into just drywall, it will eventually pull out. I don't care what the plastic anchors say on the box; the vibration of the motor will loosen them over time.

Always find the wood. If you are mounting to the trim, ensure your screws are long enough to pass through the molding and into the structural 2x4 studs behind it. If you are mounting above the window, you are looking for the header—the thick beam of wood that spans the window opening. Use this guide to installing heavy smart shades to make sure your measurements are spot on before you start drilling. Once those brackets are locked into solid wood, that shade isn't going anywhere, no matter how many 'Good Morning' routines you run.

FAQ

Do outside mount shades block more light?

Yes. Because the fabric overlaps the window frame, you eliminate the 'light gaps' on the sides that are common with inside mounts. It is the best setup for bedrooms.

Can I use the same brackets for inside and outside mounts?

Many manufacturers provide universal brackets, but always check. Outside-specific brackets often have a longer 'projection' to ensure the shade clears the window trim.

Will outside mounting damage my expensive trim?

Actually, it often saves it. By mounting to the wall above the trim or carefully into the flat face of the molding, you avoid the splintering that happens when you try to angle screws into the narrow returns of an inside frame.
