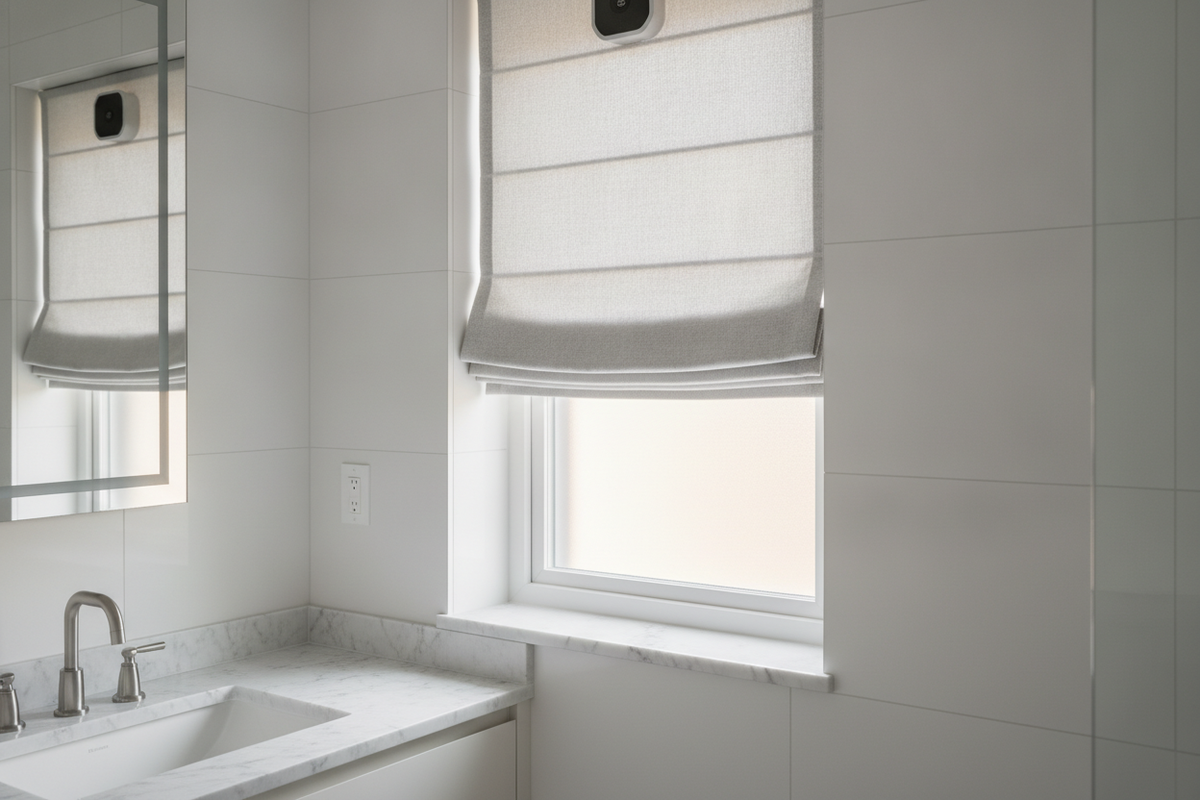

Your Smart Motor Is Too Big for an 18 Inch Wide Roman Shade

I spent three weeks picking out the perfect matte black fixtures for my guest bathroom renovation. The tile was level, the vanity was custom, and I was ready to crown the project with a high-end 18 inch wide roman shade that would glide up at sunset. I had my Zigbee hub ready and my routines pre-programmed. Then I tried to slide the motor into the headrail.

It didn't fit. Not even close. I had made the rookie mistake of assuming 'universal' meant it would work on a skinny window. It turns out, the physics of lithium-ion batteries and radio receivers don't care about your aesthetic goals. If you are working with an 18 inch roman shade, you are entering a world of custom hacks and micro-hardware.

• Standard rechargeable motors are usually 20 to 24 inches long, making them impossible for narrow windows.
• External battery wands are the common 'fix,' but they look terrible in a minimalist bathroom.
• Narrow shades have less horizontal weight, leading to significant 'telescoping' or crooked lifting.
• Hardwiring is often the only way to get a motor small enough to fit a frame this size.

The Tape Measure Doesn't Lie: Why Standard Motors Fail

Most of the big-name smart motors—the ones you see in every YouTube review—are designed for standard windows. They house a long stack of lithium cells, a motor, and a PCB inside a single metal tube. When you try to put one of these into an 18 inch wide roman shade, you realize the motor itself is longer than the entire window opening. There is literally no room for the drive end and the idle end to sit in the brackets.

I fell into one of the classic hardware traps of an 18 inch wide roman shade by ordering the motor before measuring the internal headrail clearance. You need at least 2 to 3 inches of 'dead space' for the brackets and the lift spools. If your motor takes up 20 inches, your window needs to be at least 23 inches wide. At 18 inches, you are essentially trying to fit a gallon of water into a pint glass.

The Ugly Truth About External Battery Wands

When the internal motor won't fit, the sales rep will inevitably suggest a 'short' motor with an external battery wand. This motor is shorter because it doesn't have the battery cells inside. Instead, you get a plastic tube filled with eight AA batteries that you have to mount somewhere. In a bathroom with a narrow window, there is no place to hide that wand. It sits there like a piece of abandoned plumbing, ruining the clean lines of your 18 inch wide roman shades.

I tried tucking the wand behind the fabric fold, but because the shade is so narrow, the wand was visible from the side the moment the shade started to move. It’s a clunky solution for motorizing narrow windows that most people regret the second they see it installed. If you want a clean look, you have to stop looking at AA battery packs and start looking at low-voltage wiring.

Fabric Stacking and the 'Crooked Lift' Problem

Even if you find a motor that fits, narrow shades have a physical disadvantage: weight distribution. On standard roman shades, the width of the fabric provides enough downward tension to keep the lift cords taut. On an 18-inch shade, the fabric is light—sometimes too light. If the motor pulls even a fraction of a millimeter more on the left than the right, the shade will begin to travel crookedly.

I spent two hours with a level and a pair of tweezers adjusting the cord take-up on my narrow shade. Because the width is so small, any deviation is magnified. If the fabric isn't perfectly centered on the tube, it will 'telescope' toward one side, eventually jamming the motor or fraying the edges of your expensive fabric against the brackets. Precision isn't optional here; it's the only way to avoid a service call in six months.

Hardwiring vs. Micro-Motors: Pick Your Poison

So, how do you actually do it? You have two real choices. The first is a 12V or 24V DC micro-motor. These are tiny—some are only 10 inches long—because they don't have batteries or bulky power converters inside. The catch? You have to run a wire through your wall to a power supply. It’s a pain during a renovation, but it’s the only way to get a silent, powerful motor into a tiny headrail without the 'battery wand' eyesore.

The second option is sourcing a specialty Zigbee micro-motor. These are rare and usually have a much lower torque rating (around 0.5Nm to 1.1Nm). They are designed specifically for these narrow applications. They still require a remote battery, but some newer versions allow you to use a slim lithium strip that can be adhesive-mounted to the top of the headrail, keeping it out of sight. Just be prepared for shorter battery life; these smaller cells usually need a charge every 3 to 4 months instead of once a year.

My Final Skinny Window Setup

In the end, I went with a hardwired 24V DC motor. I had the electrician pull a low-voltage wire during the 'walls open' phase of the bathroom remodel. It was an extra $150, but it solved every problem. The motor is a whisper-quiet 35dB—barely audible over the sound of the sink—and it fits perfectly inside the small headrail. No batteries to charge, no wands to hide.

I paired this with motorized blackout roman shades to ensure total privacy in the bathroom. The final result is a window that looks like a standard manual shade but behaves like a high-end automation project. It opens to 40% when I walk in the room during the day (thanks to a motion sensor) and closes automatically when the smart lights over the vanity turn on. It took a lot of cursing at a tape measure to get here, but the 'impossible' 18-inch smart shade is now the best part of the room.

How wide does a window need to be for a standard smart motor?

Usually, you need a minimum of 22 to 24 inches for a standard lithium-rechargeable motor. Anything under 20 inches almost always requires a micro-motor or an external power source.

Can I use a battery motor if my shade is only 18 inches?

Yes, but you will likely need an external battery wand. These motors are shorter because they don't house the batteries internally. You'll need to find a creative way to hide the battery pack behind the valance or headrail.

Why does my narrow roman shade always lift crookedly?

Narrow shades lack the weight to keep the lift cords perfectly tensioned. Small errors in cord length or motor alignment are magnified on an 18-inch width. Ensure your lift spools are perfectly level and the fabric is centered to the millimeter.
