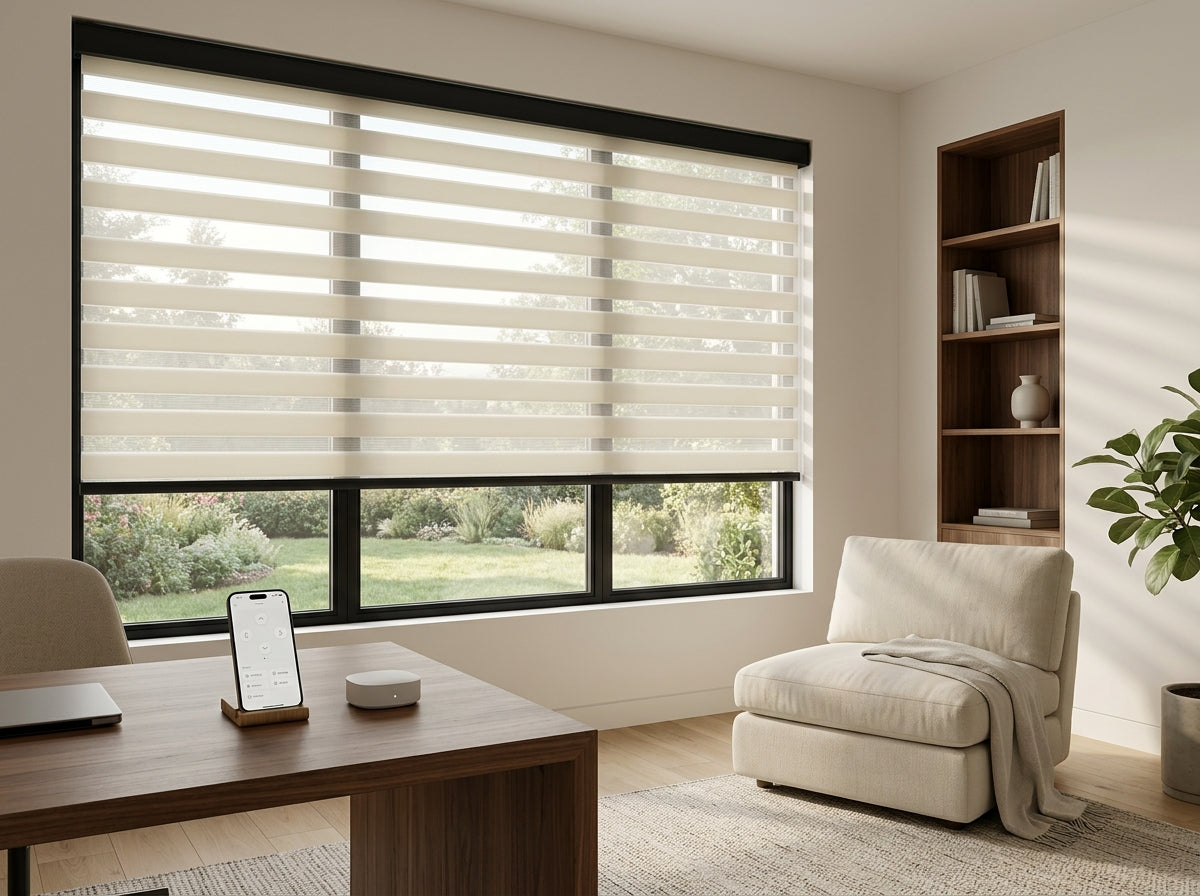

Cozy home office with white zebra shade

Automated Shades and Energy Efficiency: Timing, Orientation, and Fabric

by Jocylen Lin on Sep 03 2026
Table of Contents

    Quick Answer: Automated shades save energy by closing the right fabric before the sun loads the room with heat, and by doing it on the same schedule every day without anyone having to remember. Work in this order: identify the window’s orientation, pick a fabric by its published light-blocking figure, then set the schedule to run ahead of peak sun. Weffort publishes that figure for each roller series, from roughly 50% on the PVC-free sunscreen fabric to up to 70% on light filtering and 100% on blackout, so the choice can be made on a number rather than a product name.

    One-line rule: Match the fabric to the orientation, then let the schedule beat the sun to the window.

    By mid-afternoon a west-facing room stops being comfortable. What decides that is whether the shade was already down when the sun reached the glass.

    How Do Automated Shades Actually Save Energy?

    By intercepting solar heat gain before it turns into room heat, and by doing it on time. Those are two separate requirements, and the second is the one a manual shade routinely fails.

    The US Department of Energy frames window coverings as an operable control rather than a fixed insulator. Being able to open or close them is what lets you take advantage of the sun’s heat in winter and reduce heat gain in summer[6]. The consequence is direct: an operable covering only delivers when it is actually operated, and a covering that depends on somebody remembering at 2 p.m. on a workday will not be. A schedule removes that dependency, which is the whole energy argument for automating a shade.

    This is not a marginal category either. DOE treats window attachments as an efficiency measure worth studying in their own right, with dedicated research into the savings they produce[8].

    The quantity you are managing is solar heat gain. DOE guidance for buying windows and skylights points to the solar heat gain coefficient, SHGC, alongside U-factor, and notes that the right target depends on your climate zone[7]. That is worth borrowing even though a shade is not a window: what a shade does is intercept solar gain before it becomes room heat, and how much it intercepts depends on the fabric.

    So the pieces divide cleanly. The fabric sets how much solar gain the shade can block. The orientation sets when that blocking needs to happen. The schedule decides whether it happens on the days nobody is thinking about it.

    South-facing living room with Weffort roller shades

    Which Direction Does Your Window Face?

    Orientation determines the timing, so start here rather than with the product page.

    Orientation When the load arrives What the room usually needs
    East Morning, often sharp and early Close overnight or early, then open once the sun moves off the glass
    South Broad midday exposure, strongest seasonal swing Partial blocking that keeps daylight; the winter case for opening it deliberately is real[6]
    West Late afternoon, the harshest glare and heat of the day The strongest blocking you are willing to accept, closed before the sun arrives
    North Least direct gain Fabric can be chosen for glare, privacy, and appearance rather than heat

    South-facing glass is the one worth pausing on, because it is the only orientation where the correct answer changes with the season. DOE’s point about taking advantage of winter sun applies here more than anywhere: a shade that is closed all winter on a south window is throwing away free heat[6]. This is exactly the case automation handles well, since a seasonal schedule change is a one-time setting rather than a daily decision.

    West is the opposite situation. There is no season where late-afternoon west sun is helping, which is why it is usually the window that justifies the most aggressive fabric in the house.

    How Much Light Should the Fabric Block?

    This is the decision that actually moves the needle, and it is easier than it looks because the figure is published. Weffort lists a light-blocking level for each roller series, which turns fabric selection into a comparison of numbers instead of collection names.

    Published light blocking Series Price What it is for
    About 50%, semi-transparent PVC-Free Sunscreen $119.99 Filters UV and cuts glare while keeping the view out; daytime privacy without shutting the room down[3]
    Up to 70% Light Filtering, Dark Series $139.99 Softens strong sun and adds privacy while keeping a warm, natural light level[4]
    100% Blackout, Dark Series $119.99 A white backing layer blocks all incoming light, for bedrooms, nurseries, and media rooms[5]

    Two things follow from reading it as a gradient.

    Higher blocking is not automatically the better buy. A 100% blackout fabric on a south-facing living room will control heat, and it will also remove the daylight you were hoping to keep and the winter gain you could have used. On that window a roughly 50% sunscreen fabric often produces a more comfortable room, because it cuts the glare and UV load while leaving the view intact.

    The 70% tier is the one buyers skip, and it is often the right answer. It sits precisely where most living spaces actually land: too much direct sun to leave bare, but not a room anyone wants dark.

    Fabric behaves differently in your own light than on a screen, which is why sampling first is worth the small cost. Samples are 5 x 8 inches at $6.99, or $11.98 for a combined light-filtering and blackout set, with 35 blackout colors and 38 light-filtering colors available[2].

    Which Shade Fits Each Room and Orientation?

    Combining the two tables gives a straightforward plan. Every series below is custom-sized and cordless, and each is offered in Zigbee, Z-Wave, Thread, and Matter motor versions, so the protocol is chosen separately from the fabric[1].

    West-facing living room, glare and heat every afternoon. PVC-free sunscreen at $119.99 if you want to keep the view and the daylight, blackout at $119.99 if the room runs hot enough that comfort wins over openness. Schedule it to close before the sun reaches the glass, not after the room has already warmed.

    South-facing main room, strong midday sun. Light filtering at $139.99 is the natural fit, blocking up to 70% while keeping the room bright. Set a seasonal difference: close through summer afternoons, and leave it open on cold clear days to collect the winter gain DOE describes[6].

    Bedroom or nursery, any orientation. Blackout at $119.99, chosen for darkness rather than for heat. Automation adds the part manual shades cannot do: the shade stays down through the hottest part of the day and still opens on schedule in the morning.

    Home office with screen glare. Sunscreen or light filtering, decided by how much direct sun hits the desk. Glare control is the goal here, and pushing to full blackout usually just means turning on more lights.

    North-facing rooms. Choose on appearance, privacy, and glare. Heat is not the constraint, so paying for maximum blocking rarely pays back.

    Renting, or cannot drill. The no-drill tension-mount shade is the $99.99 entry point in the line and takes nearly all of the same blackout and light-filtering fabrics, so the fabric logic above still applies[2].

    Bedroom with blackout cellular shades

    What Makes an Automated Schedule Actually Stick?

    An energy-saving routine only counts if it survives contact with daily life. Two things decide that, and both are about how the shade is controlled rather than how it is built.

    A schedule set to the window, not to the clock. The common mistake is picking one time for the whole house. Timing should follow each window’s exposure: an east shade closes overnight and opens once the sun has moved off the glass, a west shade closes ahead of the late-afternoon load rather than in response to it, and a south shade needs a seasonal difference so you are not blocking the winter gain DOE describes[6]. Sunrise and sunset triggers handle most of this without a fixed clock time, which matters because the hour that peak sun arrives moves through the year.

    Control that does not depend on one device. Every series lists remote, wall switch, wand, app, and voice control[3]. That matters more than it sounds. A schedule people can override from a wall switch is a schedule they leave running; one that requires finding a phone every time somebody wants the room brighter gets switched off within a week. Being able to adjust a shade remotely also keeps the routine intact when nobody is home, which is exactly when solar gain goes unmanaged.

    One more thing worth planning: if a window is awkward to reach, the schedule is doing all the work, since nobody is adjusting that shade by hand. On those windows the power option matters as much as the fabric, and our guide to solar-powered roller shades covers how the optional $35.99 panel changes the maintenance picture.

    FAQ

    Do automated shades actually lower cooling bills?
    They reduce solar heat gain when they close ahead of peak sun, and automation is what makes that happen consistently. DOE describes operable window coverings as a way to reduce heat gain in summer and use solar heat in winter[6], and the size of the effect depends on your climate zone, orientation, and how much the fabric blocks[7]. Weffort does not publish a guaranteed savings percentage, and any single figure would be misleading across different climates and windows.

    Which blocks more heat: blackout or sunscreen?
    Blackout blocks more light, at 100% versus roughly 50% for the PVC-free sunscreen fabric. Whether it is the better choice depends on the room. On a west-facing bedroom, yes. On a south-facing living room where you want daylight and winter gain, the sunscreen fabric usually produces a more comfortable result for less compromise.

    Does the automation itself save energy, or is it the fabric?
    Both, in different roles. The fabric sets how much solar gain can be blocked. The schedule sets how often that blocking actually happens at the right moment, which is where the difference accumulates over a season[6]. A well-chosen fabric on a shade nobody lowers in time saves very little.

    What should I do differently on a south-facing window in winter?
    Open it on clear cold days. South glass is the one orientation where sun is an asset for part of the year, and DOE specifically notes using window coverings to take advantage of winter solar heat[6]. A seasonal schedule handles this without daily thought.

    Do I have to choose the fabric and the smart platform together?
    No. The motor protocol is selected separately from the fabric, with Zigbee, Z-Wave, Thread, and Matter versions offered across the roller range. Choose the fabric for the room’s sun exposure first, then match the motor version to the platform you already run.

    Where to Start

    Work orientation first, fabric second, schedule third. Identify which windows take morning, midday, or late-afternoon sun, then choose the fabric by its published blocking figure rather than by collection name: roughly 50% sunscreen where the view and daylight matter, up to 70% light filtering for main rooms that get strong sun, 100% blackout where darkness is the point.

    Then set the schedule to close ahead of the load instead of reacting to it, and treat south-facing windows as seasonal rather than fixed[6]. Order samples before committing across several rooms, since the fabric decision is the one that determines how much solar gain you can actually intercept. The schedule is what keeps that decision working on the afternoons nobody is home to think about it.
