Top 5 Blackout Shade Mistakes That Ruin a Dark Room—and How to Avoid Them

Quick Answer: Blackout fabric controls one of five light paths. The other four are the left edge, the right edge, the top, and the bottom, and they are decided by clearance, mount, and final limits rather than by opacity. The single most useful number to know before ordering: Weffort’s measuring guide states that roller-shade fabric is normally about 1 3/16 inches (3 cm) narrower than the ordered valance width, because the moving panel needs operating clearance inside the assembly^[1]. That clearance is normal factory geometry, and the way to address it is Side Rail Tracks for Blackout Shades or Light Blockers chosen at order time^[3][4].

One-line rule: Decide the perimeter plan when you place the order, not after the room still glows at sunrise.

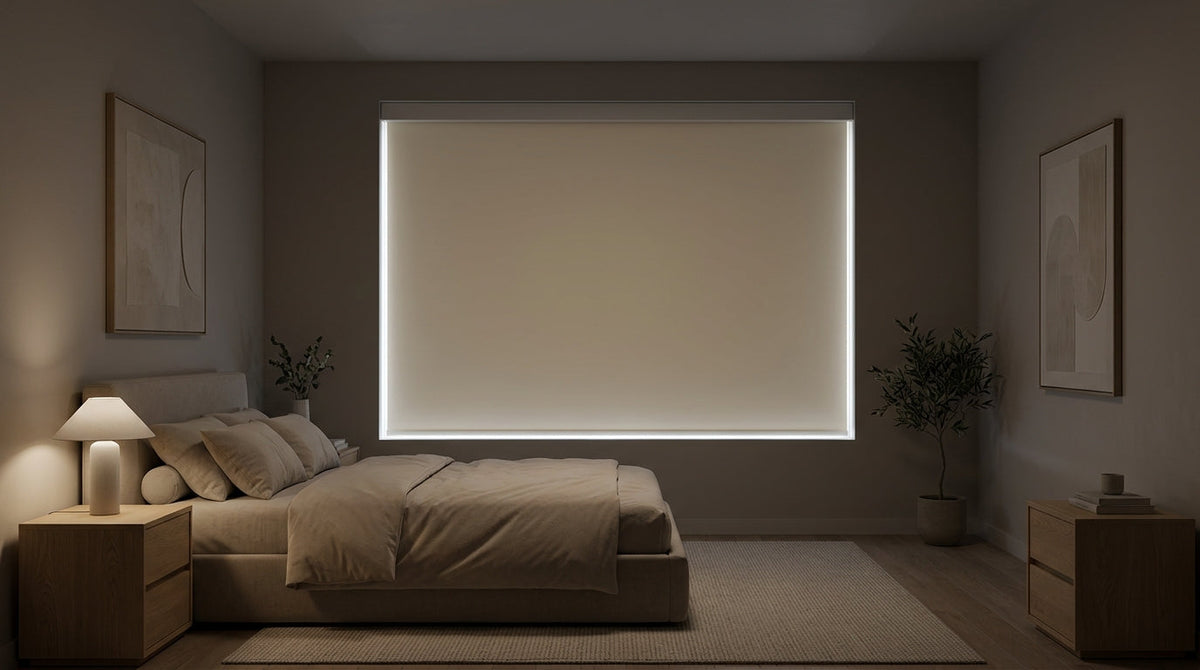

A blackout shade can be correctly sized, correctly installed, and still leave a bright outline. That is not a defect. It is the difference between fabric opacity and a dark room.

Mistake 1: Treating the Blackout Label as a Room Result

A 100% blackout statement describes visible-light opacity through the cited material. It says nothing about the four perimeter paths.

Zone	What controls it	What the fabric label covers
Center panel	Fabric opacity and backing	Yes
Left edge	Operating clearance, frame geometry, source angle	No
Right edge	Operating clearance, frame geometry, source angle	No
Top	Headrail or cassette position and mount	No
Bottom	Final lower limit, sill, and bottom rail	No

The Signature Dark Series, listed from $119.99, states white-backed fabric as 100% blackout, which is the center-panel answer^[2]. Treat it as one of five decisions rather than the whole specification.

How to avoid it: write down which of the five zones is actually bothering you before shopping. In most bedrooms it is the vertical edges at sunrise, not the fabric.

Mistake 2: Ignoring the Fabric Clearance Built Into the Assembly

The ordered width describes the complete assembly or valance. The panel has to be narrower than that so it can travel without rubbing.

Weffort’s measuring guide states the fabric is normally about 1 3/16 inches (3 cm) narrower than the ordered valance width, and that difference is distributed across both sides^[1]. Two consequences follow:

• a correctly custom-sized shade still has a path beside the fabric on each side;
• ordering “exactly to the frame” does not close that path, because the clearance lives inside the assembly rather than between the assembly and the frame.

That is why custom sizing and perimeter light are two separate jobs. Custom dimensions remove stock-size mismatch. Edge hardware addresses the clearance^[3][4].

How to avoid it: expect the side path, and budget for edge control in darkness-led rooms instead of being surprised by it.

Mistake 3: Leaving the Perimeter Plan Until After Installation

Adding edge control later means a second installation, and on a high or awkward window it means a second access visit.

Weffort publishes two accessory paths plus an official guide on combining blackout fabric with side channels^[3][4][5]:

Accessory	What it addresses	When to choose it
Side Rail Tracks for Blackout Shades	The documented vertical path beside the fabric on a compatible blackout configuration	Darkness-led bedrooms, nurseries, and media rooms[3]
Light Blockers	Edge control on a compatible shade and mount combination	Rooms where the center panel passes and vertical glow is the remaining issue[4]

Confirm compatibility with the exact series, mount, roll direction, recess, and finish before ordering, since both are matched to a shade and mount combination rather than universal.

How to avoid it: decide the perimeter plan in the same order as the shade, and record it with the window configuration.

Mistake 4: Fixing the Sides and Forgetting the Top and Bottom

Side glow is the most noticeable at dawn, so it gets the attention. The top and bottom paths quietly ruin media rooms and daytime-sleep bedrooms.

Path	What usually causes it	What to check
Top strip	Headrail or cassette position and insufficient top coverage	Mount geometry and, on an outside mount, coverage above the opening[1]
Bottom strip	A final lower limit set short, or a sill that interrupts the rail	Verify and adjust final limits after the shade is in its real position[9]
Outside-mount perimeter	Overlap, distance from the wall, trim, and source angle	The guide recommends adding 3 to 6 inches (7.6 to 15.2 cm) to width and height, with 2 to 3 inches (5.1 to 7.6 cm) of flat bracket space above[1]

One independent review observed visible perimeter light on an outside-mounted configuration, which is a useful reality check for blackout expectations on any roller shade^[8]. Another documented factory-set limits that were adjusted after final placement, which is exactly the step that fixes a bottom strip^[9].

How to avoid it: verify final upper and lower limits at the installed window, and plan outside-mount overlap deliberately rather than matching the opening.

Mistake 5: Judging Darkness From the Wrong Position and Hour

A shade inspected at noon from the doorway will pass. The same shade can fail at 5:45 a.m. from the pillow.

Room	Test hour	Test position
Early-sunrise bedroom	First direct morning exposure	Pillow, after eyes adjust
Shift-worker bedroom	Brightest part of the sleep period	Pillow with the door in its usual position
Nursery	The actual nap window	Caregiver position and the sleep-space side
Street-facing bedroom	Streetlight and passing headlights	Bed position after dark
Media room	Brightest daytime viewing period	Main seating, facing the screen

Score the five zones separately rather than giving the room one verdict, because each zone has a different fix. Also keep the room state consistent: interior lights off, doors in their normal position, shade at its documented final position.

How to avoid it: test at the problem hour from the position where someone actually sleeps or watches, and photograph every visible path from that spot.

Which Weffort Parts Address Which Light Path?

Light path	Weffort option	Note
Center panel	Signature Dark Series, listed from $119.99	White-backed fabric listed as 100% blackout[2]
Center panel in a rental recess	No-Drill Dark Series, listed from $99.99	Inside tension mount needing at least 1.49 inches (3.8 cm) of usable depth and flat, stable contacts[2]
Vertical side paths	Side Rail Tracks for Blackout Shades	Side-channel accessory for compatible blackout configurations[3]
Residual edge glow	Light Blockers	Edge-control accessory for compatible shade and mount combinations[4]
Top coverage	Mount choice and outside-mount overlap	Guide figures for overlap and bracket space[1]
Bottom position	Final lower limit	Verify after final placement[9]

Blackout fabric samples are listed at $6.99 for a 5 x 8-inch swatch with 35 color options and delivery listed at 2 to 5 business days, which settles opacity and color but not edge sealing^[6].

For nurseries and children’s rooms, confirm cordless construction and keep controls and charging leads in an adult-managed position, since CPSC recommends cordless window coverings wherever young children may be present^[10].

What Should Be Confirmed Before Ordering a Blackout Shade?

1. Which of the five zones is the actual complaint.
2. Mount type, decided from usable depth measured at the contact area^[1].
3. Width at three points using the smallest reading, and height at three points using the largest^[1].
4. The normal fabric clearance of about 1 3/16 inches (3 cm) and whether the room can live with it^[1].
5. Whether side rail tracks or light blockers are compatible with the exact series, mount, and roll direction^[3][4].
6. Outside-mount overlap and bracket space if the recess is shallow or uneven^[1].
7. Roll direction, so the fabric clears trim, handles, and the sill.
8. Return terms, since made-to-order products commonly limit returns to defects^[6].

Getting these answers before paying is cheaper than a second order, and far cheaper than a second installation on a high window.

How Should the Finished Room Be Verified?

1. Run several full cycles so travel settles.
2. Verify and adjust final upper and lower limits^[9].
3. Turn interior lights off and place doors in their normal position.
4. Wait for your eyes to adjust at the real problem hour.
5. Score the center panel from the normal room position.
6. Score the left and right edges separately.
7. Score the headrail or cassette line.
8. Score the sill and bottom-rail line.
9. Photograph each visible path from the same position.
10. Match each failing zone to its fix rather than replacing the shade.

The official installation center publishes shade-type installation guidance, and the quick set-up and remote programming guides cover the control side of the same visit^[7].

FAQ

Can a blackout roller shade make a room completely dark?
Not on fabric alone. A 100% blackout statement describes opacity through the panel, while the room also depends on the normal fabric clearance of about 1 3/16 inches (3 cm), the mount, top coverage, and the final lower limit^[1]. Pairing blackout fabric with side rail tracks or light blockers is what addresses the perimeter^[3][4][5].

Why does a correctly sized custom shade still leak light at the sides?
Because the moving panel needs operating clearance inside the assembly. The measuring guide states the fabric is normally about 1 3/16 inches (3 cm) narrower than the ordered valance width, distributed across both sides^[1]. That is factory geometry for smooth travel, not a sizing error.

Are side rail tracks better than light blockers?
They do different jobs. Side rail tracks address the documented vertical path beside the fabric on a compatible blackout configuration, while light blockers provide edge control on a compatible shade and mount combination^[3][4]. For a darkness-led bedroom or nursery, decide which one fits the exact series and mount before ordering.

Does a fabric sample prove blackout performance?
It proves the center-panel part. Samples are listed at $6.99 for a 5 x 8-inch swatch with 35 color options and 2 to 5 business day delivery, which settles opacity, color, and backing^[6]. They cannot predict side, top, or bottom paths, because those depend on mount, clearance, and limits.

What fixes a strip of light under the bottom rail?
Usually the final lower limit rather than the fabric. Verify and adjust limits after the shade is in its real position; one reviewed configuration arrived pre-calibrated and still needed a limit adjustment after final placement^[9]. Check the sill and bottom-rail path at the same time.

Is an outside mount darker than an inside mount?
It depends on the geometry. An outside mount can add coverage over a shallow or uneven opening, with the guide recommending 3 to 6 inches (7.6 to 15.2 cm) of added coverage and 2 to 3 inches (5.1 to 7.6 cm) of bracket space above^[1]. One independent review still observed visible perimeter light on an outside-mounted configuration, so test the installed result^[8].

Bottom Line

Every disappointing blackout room traces back to the same error: treating a fabric label as a room specification. Opacity answers the center panel. Clearance, mount, overlap, and limits answer the other four paths.

The number worth remembering is the normal fabric clearance of about 1 3/16 inches (3 cm) inside the assembly, because it explains the side glow that custom sizing alone will never remove^[1]. Weffort’s answer to that path is Side Rail Tracks for Blackout Shades or Light Blockers, chosen at order time rather than retrofitted later^[3][4][5].

Decide which zone is the complaint, measure by the official method, pick the perimeter plan with the shade, verify limits at the installed window, and judge the result at the real problem hour from the pillow or the seat. That turns a blackout purchase into a dark room.

Pricing reflects listed starting prices at the time of writing; confirm current prices and policies before buying.

---

References

• [1] Weffort — How to Measure Roller Shades: standard roller-shade measurement method, three-point width and height readings, valance depth minimums, outside-mount overlap and bracket space, and the normal approximately 1 3/16-inch difference between ordered valance width and moving fabric width. ↩
• [2] Weffort — product pages: Signature Dark Series and Signature Dark Series No-Drill — cited starting prices, blackout fabric positioning, and the inside tension-mount depth and contact conditions. ↩
• [3] Weffort — Side Rail Tracks for Blackout Shades: side-channel accessory for reducing the documented side light path on compatible blackout configurations. ↩
• [4] Weffort — Light Blockers: edge-control accessory for compatible shade and mount combinations. ↩
• [5] Weffort — The Complete Guide to Blackout Roller Shades with Side Channels: official guidance on combining blackout fabric with side channels for stronger perimeter control. ↩
• [6] Weffort — official site: current ordering context, including the listed blackout fabric-sample price, swatch size, color-option count, stated delivery window, and current return policy pages for made-to-order products. ↩
• [7] Weffort — How to Install Your Blinds & Shades: official shade-type installation center and positioning guidance. ↩
• [8] Mighty Gadget — Weffort Smart Motorised Shades review: independent observation of visible perimeter light on the reviewed outside-mounted configuration. ↩
• [9] SmartHomeScene — Weffort Smart Shades with Thread review: independent observations of pre-calibrated delivery, factory-set limits, and subsequent limit adjustment after final placement for the reviewed configuration. ↩
• [10] US Consumer Product Safety Commission — Go Cordless: guidance recommending cordless window coverings wherever young children may be present. ↩
