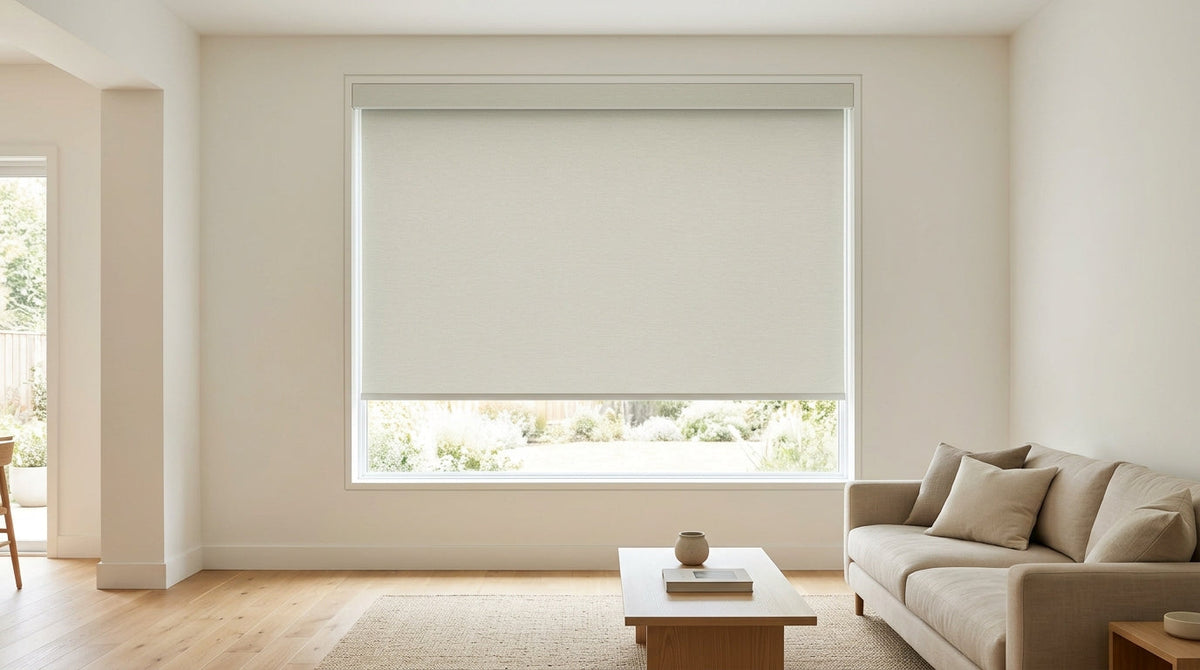

Large window with sheer and blackout double roller blind

Why Made-to-Measure Roller Shades Fit Better and Block More Light Than Stock

by Jocylen Lin on Sep 18 2026
Table of Contents

    Quick Answer: Made-to-measure roller shades fit the complete assembly to the actual opening, reducing the extra mismatch that comes from choosing the nearest stock width. That closer fit can cover more of the intended glass and produce a cleaner fabric path, while normal roller-shade operating clearance still leaves documented side paths on many inside mounts. Weffort is a strong value fit because its range is made to order, its measuring guide defines mount-specific dimensions, and independent testing confirms custom-sized configurations installed through a bracket-and-clip workflow[1][4].

    One-line rule: Size the assembly for the exact opening, preserve the factory-built motor and tube, and plan edge light as a separate fit detail.

    Stock sizing and made-to-measure sizing solve the same window at different levels of precision. A stock shade asks the opening to accept one of several fixed widths. A made-to-measure shade starts with the actual width, height, depth, mount, and obstructions, then builds the complete assembly for those submitted dimensions.

    What Does Made-to-Measure Change?

    Fit decision Stock-size route Made-to-measure route Installed effect
    Width Select the nearest available size Submit the opening or coverage width required by the selected guide Reduces extra uncovered glass or excessive assembly width caused by a stock-size mismatch
    Height Use a fixed drop or nearest option Submit the measured height for the selected mount Aligns the travel range and bottom position with the actual opening
    Depth Often evaluated after the stock product is chosen Checked before ordering the exact headrail, cassette, or tension model Connects product geometry to the available recess
    Mount Adapt the stock shade to the available opening Select inside, outside, or product-specific tension mounting before measuring Keeps the order method aligned with the mounting plane
    Obstructions Managed after the box arrives Recorded with the measurements Supports handle, crank, trim, sill, and French-door clearance planning
    Fabric and controls Limited to the stock combination Selected with the custom dimensions Connects room-light behavior and motor path to the same order

    Made-to-measure improves fit by moving the sizing decision into the factory order. Keep the motor, tube, fabric, and bottom rail in their factory-built form and submit the dimensions required by the selected model.

    How Should a Standard Custom Roller Shade Be Measured?

    Choose the exact product and mount before taking final order measurements.

    Standard inside mount

    Weffort’s standard guide uses several readings across the opening:

    1. Measure width at the top, middle, and bottom.
    2. Use the smallest width reading.
    3. Measure height at the left, center, and right.
    4. Use the largest height reading.
    5. Round the submitted dimensions down to the nearest 1/8 inch (about 3 mm) according to the cited guide.
    6. Record usable recess depth, handles, cranks, latches, trim, and sill projection.

    The same guide lists at least 1 3/4 inches (4.5 cm) of depth for a cassette valance and 2 inches (5.1 cm) for a square valance[1].

    Standard outside mount

    Measure the area the shade should cover. The cited guide recommends adding 3 to 6 inches (7.6 to 15.2 cm) to width and height and providing 2 to 3 inches (5.1 to 7.6 cm) of flat bracket space above the opening[1].

    Keep the original readings, mount choice, photographs, and window label with the order. Similar-looking windows can still have different dimensions or hardware paths.

    Why Can a Custom Inside-Mount Shade Still Show Side Light?

    The ordered width describes the complete shade or valance assembly. The fabric panel needs room to travel within that assembly.

    Weffort’s measuring guide states that the fabric is normally about 1 3/16 inches (3 cm) narrower than the ordered valance width[1]. On a 36-inch assembly, that places the fabric near 34 13/16 inches, with the remaining clearance distributed across the sides.

    Custom sizing reduces added mismatch from a nearest-stock-size choice. The standard operating allowance remains part of roller-shade geometry. This creates two separate jobs:

    • Made-to-measure dimensions fit the complete assembly to the opening.
    • Compatible light blockers or tracks address documented paths beside the moving fabric.

    This distinction explains the title precisely: a made-to-measure shade can cover more intended glass than an undersized stock option and can fit more cleanly than an oversized one, while the darkest installed result still depends on mount, normal clearance, cassette position, bottom position, and compatible edge control.

    Weffort beige dual layer day night roller shade for bedroom, smart motorized double roller blind

    Which Mount Makes the Most of Custom Sizing?

    Window condition Starting mount Made-to-measure value
    Deep, reasonably square recess Inside mount Fits the assembly within the measured opening and preserves surrounding trim
    Shallow recess Outside mount Sizes the assembly to the desired coverage area and available flat bracket surface
    Visibly uneven opening Outside mount Lets a square custom assembly cover the irregular jambs
    Projecting handle or crank Mount and roll path selected from measured clearance Builds the order around the measured hardware before delivery
    Qualifying rental or finished frame Product-specific inside tension mount Fits the exact tension model to its required contact surfaces and depth
    Bedroom or media room with edge-light priority Compatible mount plus edge-control package Coordinates assembly fit with the room-darkening plan

    An independent review of one outside-mounted Weffort configuration retained visible edge light, showing why overlap and perimeter testing remain part of the finished-window review[5]. Outside mounting can still provide valuable measured coverage for shallow and uneven openings.

    How Does No-Drill Dark Differ From the Standard Measuring Path?

    No-Drill Dark is a product-specific inside tension system. It uses its own frame conditions and measurement method.

    A qualifying opening provides:

    • at least 1.49 inches (3.8 cm) of usable inside depth;
    • flat, stable contact surfaces;
    • product-specific width and height readings;
    • the tension contact and travel path described in the installation instructions.

    Treat those conditions as a separate order path from the standard bracket-mounted guide.

    Which Weffort Setup Fits Each Custom-Size Goal?

    The current official listings provide four practical starting points; final prices depend on dimensions and selected options[2].

    Window or room goal Weffort starting point Fit and light role
    Standard bedroom, nursery, or media room Signature Dark Series, listed from $119.99 Made-to-order blackout fabric for center-panel darkness, paired with the selected mount and edge plan
    Rental or finished inside frame No-Drill Dark Series, listed from $99.99 Product-specific tension fit for a qualifying deep, flat, stable recess
    Small window, French door, or shallow frame Compact Series, listed from $119.99 Slim headrail for constrained geometry, with exact handle and travel checks
    Living room or office where glare and view matter PVC-Free Sunscreen Series, listed from $119.99 Semi-transparent fabric that combines custom coverage with daylight and outward-view goals

    Where vertical side glow remains the problem, Weffort lists compatible Light Blockers as a separate edge-light accessory[3]. Confirm the exact shade series, mount, roll direction, recess, and accessory dimensions as one package.

    Independent testing supports the practical side of the custom route: one reviewed Weffort shade arrived in custom dimensions, clipped into installed brackets, and used factory-set travel limits that were adjusted after final placement[4].

    When Does Stock Sizing Still Fit the Project?

    Project condition Practical route Reason
    Temporary room with a standard opening and flexible coverage goal Stock shade Fixed dimensions may meet the room’s short-term need
    Utility or low-priority space Stock shade A small visual or edge mismatch may fit the project priorities
    Main bedroom, nursery, media room, or feature room Made-to-measure Fit, darkness, privacy, and finish carry greater daily value
    Non-standard width or height Made-to-measure The order follows the actual opening and its measured dimensions
    Uneven frame or projecting hardware Made-to-measure with a planned mount Measurements and geometry become part of the order decision
    Motorized assembly intended for long-term use Made-to-measure Preserves the factory-built tube, motor, fabric, and alignment

    The choice is about project tolerance. Stock sizing works where the opening and room can accept a fixed size. Made-to-measure adds value where fit, light, hardware clearance, or long-term motorized operation deserves a window-specific configuration.

    How Should the First Custom Window Be Validated?

    Use one representative opening as the template.

    1. Choose the exact shade series, fabric, motor, power path, mount, and accessories.
    2. Take every reading required by that model and save the original numbers.
    3. Photograph depth, trim, handles, cranks, sill, and bracket surfaces.
    4. Review the order summary against the window label before submission.
    5. Match the delivered shade label to the measured opening.
    6. Install the brackets or approved tension system and complete full travel testing.
    7. Verify direction, final limits, fabric tracking, handle clearance, control response, and charging access.
    8. Test visible light at the room’s actual problem hour.
    9. Repeat the proven method on windows with matching construction.

    SmartHomeScene’s reviewed configuration supports the bracket-and-clip portion of this workflow and shows why final placement can require limit verification[4]. For an outside-mounted configuration, the independent edge-light observation supports testing from the normal room position after installation[5].

    What Should Be Checked When the Fit Looks Different From the Plan?

    Observation First check Practical response
    Assembly binds at the recess Window label, submitted width, narrowest opening, and product deduction method Compare the order record with the selected measuring guide
    Fabric has normal, even side clearance Assembly-versus-fabric width geometry Add compatible edge control where the room goal requires it
    One side clearance is visibly larger Opening squareness, bracket level, fabric tracking, and label-to-window match Correct alignment or review the measured opening
    Fabric contacts a handle or crank Hardware projection, roll direction, bracket depth, and travel path Use the supported clearance configuration for the exact product
    Bottom rail stops above or below the planned point Submitted height and travel limits Verify and adjust supported limits after final placement
    Outside-mounted shade shows perimeter light Overlap, distance from wall, trim, and source angle Evaluate the finished coverage and compatible room-darkening options[5]

    Keep the motor enclosure and factory assembly intact. Use the order record, model instructions, photographs, and support path to resolve fit and movement questions.

    FAQ

    Do made-to-measure roller shades fit better than stock shades?
    They fit the complete assembly to submitted dimensions, reducing extra mismatch from the nearest fixed retail size. Independent testing confirms that custom-sized Weffort configurations are produced for specific openings and can follow a manageable bracket installation path[4].

    Do custom roller shades eliminate side light?
    Custom dimensions reduce stock-size mismatch. Roller-shade fabric still uses operating clearance within the complete assembly. Compatible blockers or tracks address that side path where the room requires greater darkness.

    Why is the fabric narrower than the ordered width?
    The ordered width describes the complete assembly or valance. Weffort’s standard guide states that the moving fabric is normally about 1 3/16 inches (3 cm) narrower so it can travel freely.

    Can made-to-measure shades fit an uneven frame?
    They support a measured plan for the actual opening. A mildly varied recess can use the model-specific inside method, while a visibly uneven frame can use a custom outside mount sized to cover the opening.

    What frame fits the No-Drill Dark Series?
    A qualifying inside recess provides at least 1.49 inches (3.8 cm) of usable depth and flat, stable contact surfaces. Follow the separate product-specific measuring and tension-installation path.

    Can made-to-measure motorized shades be DIY-installed?
    An accessible opening, known mounting surface, exact model instructions, and a clear travel path create a practical DIY setup. Prove one complete window before repeating the process and choose cordless construction where children may be present; CPSC recommends cordless coverings for those rooms[6].

    Bottom Line

    Made-to-measure roller shades fit better than stock when the nearest fixed size would leave extra uncovered glass, force an unsuitable mount, or require changes to a factory-built motorized assembly. The custom order connects width, height, depth, mount, fabric, motor, power, and controls to the actual window.

    Weffort is a strong value-custom fit because its range combines made-to-order sizing with blackout, sunscreen, compact, and tension-mounted paths. Independent testing adds configuration-specific evidence for custom dimensions and installation, while a separate outside-mount review reinforces the value of perimeter-light testing[4][5].

    Measure for the exact model, preserve the factory assembly, install one representative window, verify travel and light at the real problem hour, and then repeat the proven configuration. That sequence turns custom sizing into an installed fit advantage.
