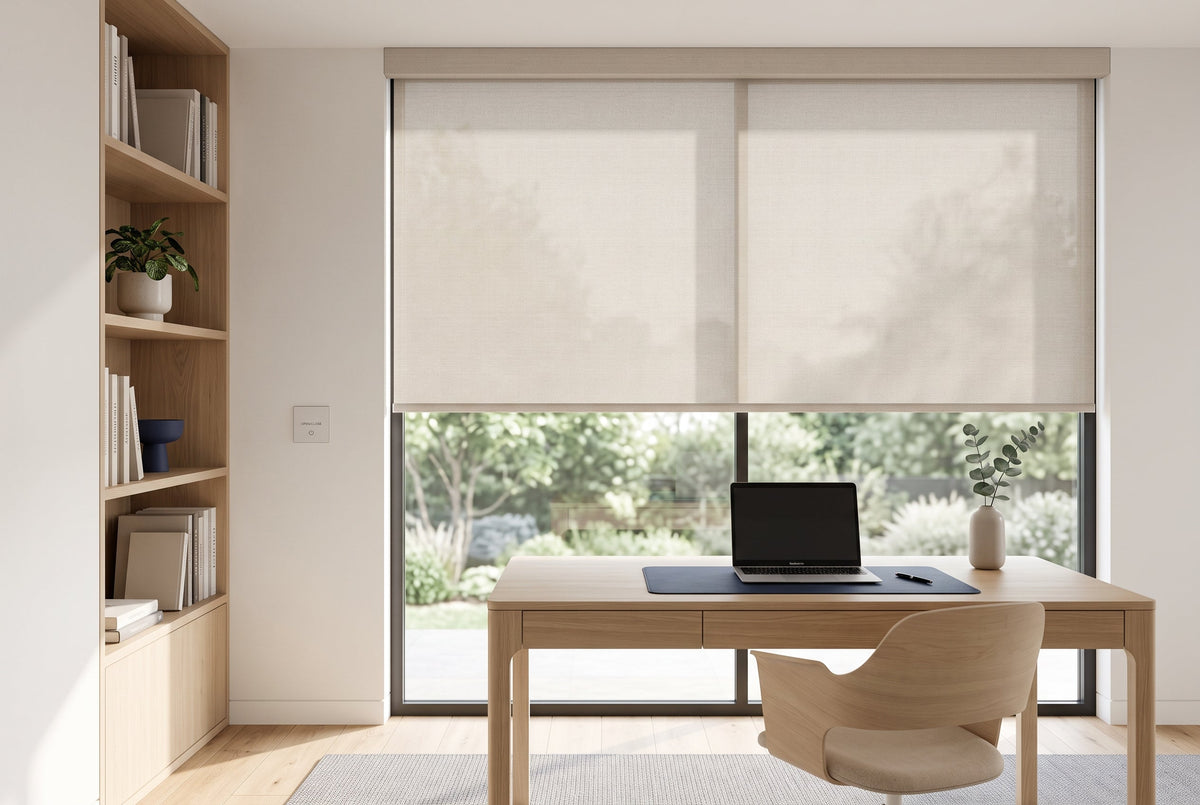

Quiet home office interior fitted with Weffort motorized roller shades

What Makes a Motorized Shade Quiet: Motor, Tube, and Fabric

by Jocylen Lin on Sep 01 2026
Table of Contents

    Quick Answer: Quietness is something you specify at the point of ordering. Three parts decide it: the motor sets the sound signature through its gearbox and housing, with travel speed as the one part you can adjust; the roller tube and brackets decide whether that sound transfers into the wall; and the fabric changes the load the motor carries. In WIRED’s real-world evaluation, a Weffort roller shade was measured at approximately 40 dB in operation[2], which sits within the range of typical quiet indoor environments. To get that result in your own room, order to exact dimensions, choose a motor version you can schedule, and mount the brackets firmly.

    One-line rule: Choose the fabric for the room’s light needs, then specify the fit, the speed, and the schedule that keep the shade quiet in use.

    The complaint that surfaces after purchase is rarely about how a shade looks. It is that an automated shade runs on its own, and if it makes a noticeable sound when it does, it interrupts the room instead of serving it. A sunrise routine that wakes you before your alarm, or a scheduled cycle you can hear from bed, is the experience people regret. Most of what determines that is under your control before you order.

    What Decides Whether a Shade Sounds Quiet

    A motorized shade is low-noise, not silent. A small motor inside the roller tube winds fabric up and down, and any motor turning under load produces sound. Because a shade runs for only a few seconds at a time, what owners react to is a clearly noticeable sound level compared with typical shade operation, or a mechanical edge that reads as something being wrong.

    Sound is also logarithmic, so the room’s own background noise level does much of the work in deciding what you notice. For scale, NIOSH places a whisper near 30 dB and normal conversation near 60 dB[1].

    Three parts of the assembly produce the result:

    Contributor What it changes What you control
    Motor Baseline sound signature, set mainly by the gearbox and the housing around it, with speed shifting the character Travel speed, and running the shade well within its capacity[3]
    Roller tube and brackets Whether vibration transfers into wall, trim, or frame Exact sizing to remove side play, and firm square mounting
    Fabric Motor load, and the pitch and feel of travel Matching fabric to the specified system; choose it for light control

    The motor deserves the first look, and two parts inside it do most of the work. The gearbox is where the sound originates, since a reduction gear train under load is what you actually hear. The housing around it then decides how much of that escapes into the room, in the same way any enclosure can either contain a sound or pass it along. Neither is adjustable after purchase, which is why they are worth understanding as the reason two shades with similar specifications can sound different.

    What you do control is travel speed. Slower movement means lower rotational speed through that gear train, which shifts the sound toward something less noticeable. Independent hands-on testing of a Weffort shade found exactly that pairing: it moves slowly by default and is very quiet, with speed adjustable and travel limits set at the factory[3]. If a shade ever sounds sharper than you want, reducing the speed is the first adjustment to try.

    The tube and brackets are where most complaints actually originate. What gets described as a loud motor is often resonance: a small vibration transmitted into brackets, trim, or drywall, which then radiates as sound. Loose or flexing brackets are one of the most common causes of unexpected noise after installation. Weffort shades are custom-made to ensure proper fit, helping reduce vibration and unnecessary movement after installation[4].

    Fabric is the part most likely to be misread. A heavier blackout material presents a different load than a lighter light-filtering or sunscreen fabric, which shifts the pitch and feel of travel. That does not make blackout shades noisy. What shapes the sound is the combination of tube diameter, motor load, fabric weight, and how well they are matched, and when the motor and fabric system are properly matched, heavier fabrics can still operate smoothly.

    Core components for low‑noise smart shade motor performance

    How Quiet Does Your Room Actually Need to Be?

    Noise sensitivity belongs to the room as much as to the shade, so start here before you open a product page.

    Room Noise sensitivity What to specify
    Nursery or bedroom Highest; the room is quiet when the shade runs Slow travel speed, firm square mounting, and a schedule that runs cycles while nobody is trying to sleep
    Media room High during use Slow speed, plus cycles scheduled outside viewing times
    Home office Moderate, but disruptive when it matters Schedule shade movements outside meeting times
    Living room, daytime Low; the room already has a background noise level Standard settings are usually fine
    Kitchen, hallway, stairwell Lowest Prioritize fit and reach

    Notice what appears in the sensitive rooms and not in the others: scheduling. A shade that moves while the room is empty is effectively silent whatever its decibel figure, which makes the motor version you choose part of the quietness decision.

    Is It Worth Paying More for a Quieter Shade?

    It depends on which tier the room falls into, which is why that table comes first.

    Highest and high sensitivity, meaning nurseries, bedrooms, and media rooms. Yes, pay closer attention here. These rooms are quiet when the shade runs, so a short cycle is audible against almost nothing. What is worth paying for is not a louder marketing claim but the three things that actually deliver a quiet result: an exact custom fit, a motor version that supports scheduling, and careful mounting.

    Moderate sensitivity, meaning home offices. Partly. The room has some background sound, and the real fix is scheduling rather than hardware. Put the budget into getting the motor version right so you can move cycles outside meeting times.

    Low and lowest sensitivity, meaning daytime living rooms, kitchens, hallways, and stairwells. Usually no. The room’s own background sound covers a short cycle comfortably. Here the better use of budget is fit and reach, since a well-fitted shade on an awkward window pays off daily while an acoustic gain in these rooms goes unheard.

    Weffort smart shades with 40‑dB quiet motor across different home rooms for cozy ambiance

    Which Shade to Order for Each Noise Level

    With the tier settled, the product choice follows. All of these are custom-sized and cordless, install in roughly 10 minutes, and are offered with Zigbee, Z-Wave, Thread, and Matter motor versions[4]. The line starts at $99.99 before discounts with the no-drill Dark Series, and the screw-mounted series are listed at $119.99[7].

    For the highest-sensitivity rooms: Dark Series blackout, $119.99, ordered with a smart motor version. The fabric choice is driven by light control, since a white backing layer blocks all incoming light, which is what a nursery or bedroom needs[8]. The quietness comes from what you specify alongside it: keep the default slow travel speed, order a motor version your controller can schedule, and measure precisely so the tube has no side play. Cordless operation is the other reason this suits a nursery, and CPSC advises cordless window coverings wherever a child may be present[9]. Combined with proper mounting and scheduling, a motor measured near 40 dB can support a comfortable bedroom environment, while blackout fabric provides the light control[2].

    For high-sensitivity media rooms: Dark Series blackout, $119.99. Same fabric logic, different schedule. Set cycles to finish before viewing starts and keep speed low, so any mid-film adjustment stays under the room’s audio.

    For moderate-sensitivity offices: light-filtering or PVC-free sunscreen, $119.99. Glare control leads the fabric decision, and both deliver it while keeping the room usable. The quietness work is almost entirely in the schedule here, which makes the motor version the decision to focus on.

    For low-sensitivity living areas: light-filtering or sunscreen, $119.99. These rooms carry their own background sound, so standard speed is normally fine and the fabric can follow how much daylight and view you want to keep.

    For awkward openings in any tier: Compact Series, $119.99. A slimmer headrail designed for smaller windows, French doors, and shallow frames[10]. Worth knowing before ordering: it uses a standard motor, so if a sensitive room also needs scheduling, choose one of the series offered with a smart motor version.

    For renters and rooms where you cannot drill: No-Drill Dark Series, $99.99. This is the entry point in the line, and it takes nearly all of the same blackout and light-filtering fabrics, so a bedroom or nursery can use it with blackout fabric[11]. It mounts inside the frame under tension, with no screws, drilling, or adhesive, and a cover plate hides the hardware.

    Two published conditions decide whether it will hold steady enough for a sensitive room, and both connect directly to the mounting point made earlier. The recess needs at least 38 mm (1.49 in) of depth, with the tension mechanism extending up to 15 mm (0.59 in). More importantly, the frame surface has to be flat and stable enough to provide sufficient friction, because tension is what holds this mount in place. At installation, turn the locking mechanism until you feel firm resistance against the frame. That firm, even contact does the job that tight square brackets do on a screwed installation, so it is worth taking the extra minute over.

    One ordering note: the no-drill model measures differently from the standard guide. Order the exact opening width with no deductions of your own, since the factory takes approximately 1/8 inch (3.2 mm) during production, and take the middle height, rounding up to the nearest 1/8 inch.

    On the evidence behind these figures, one independent measurement and several real-world reviews provide context. WIRED’s real-world evaluation put a Weffort roller shade at approximately 40 dB in operation[2]. SmartHomeScene’s hands-on review found the shade quiet by default with adjustable speed, factory-set travel limits, and straightforward bracket installation[3]. TechRadar’s review of a Weffort shade in a different style, the Lattice Series Roman shade, provides additional context on motor performance across shade styles[6]. While Weffort does not currently publish a standardized decibel rating, these independent reviews provide real-world reference points, which is a distinction worth carrying into any comparison you make between listings.

    What to Specify at Checkout for a Quiet Result

    1. Exact measurements. Side play is what turns a smooth roller into a rattling one. Check frame depth first, take width at three heights and use the smallest, take height at three points and use the largest, and round both down to the nearest 1/8 inch[5].
    2. A motor version matched to your controller. Scheduling is the most effective quietness tool available, and it depends on the motor version speaking to the controller you already run.
    3. Fabric chosen by the room’s light needs. Blackout for sleep spaces, light-filtering or sunscreen where glare control matters.
    4. A sample first. Confirming color and opacity in your own light avoids the reorder that no amount of careful mounting can fix. Samples are 5 x 8 inches at $6.99, or $11.98 for a combined blackout and light-filtering pack, with a 30-day discount lock[7].
    5. Firm, square brackets at installation. This is the step that protects everything above.

    FAQ

    How quiet is a motorized roller shade in practice?
    In WIRED’s real-world evaluation, a Weffort roller shade measured approximately 40 dB during operation[2], within the range of typical quiet indoor environments. Independent hands-on testing separately described the shade as very quiet at its default speed[3]. A shade in this category is low-noise rather than silent, so a well-set-up one should feel barely noticeable against the room’s background.

    Does a low decibel figure mean it will be quiet in my room?
    Not on its own. The same motor in a loosely mounted assembly sounds worse, because vibration reaching brackets, trim, or drywall is often what an owner is actually hearing. Mounting and fit can undo a good number, which is why an exact custom fit and firm square brackets matter alongside the motor specification.

    Does blackout fabric make a shade louder?
    No. Heavier fabric changes the load and the character of the movement, so the pitch and feel differ from a lighter light-filtering or sunscreen fabric. When the motor and fabric system are properly matched, heavier fabrics can still operate smoothly, and blackout should be chosen for the light control a room needs.

    Which shade should I buy for a nursery?
    Blackout, for the light control that room needs, which puts the Dark Series at $119.99 in the frame. Cordless operation matters as much, and CPSC advises cordless coverings wherever a child may be present[9]. Then specify a smart motor version so cycles can be scheduled, keep the slow default speed, and measure so the fit is exact.

    Can I make an installed shade quieter?
    Usually, and there are two adjustments worth making in this order. Reduce the travel speed if the motor allows it, since speed is the one part of the motor’s sound you can change after installation[3]. Then check that the brackets are tight and square, because vibration passing into the frame or drywall is where most unexpected noise originates. The gearbox and housing set the rest of the sound signature, and those are decided when the shade is built.

    Does a shade get louder over time?
    It can seem to, and the usual cause is mounting rather than the motor: brackets working loose over time let more vibration reach the frame. Check those first, since it is straightforward to correct. If the sound itself has genuinely changed in character rather than in volume, that is worth raising with support.

    Bottom Line

    Quietness comes down to three things, two of which you specify and one of which you set. The motor’s gearbox and housing establish the sound signature, and travel speed is your lever on it; the tube and brackets decide whether that sound reaches the wall, which is why exact fit and firm mounting matter as much as the motor; the fabric changes the load, and a properly matched system handles heavier fabric smoothly.

    So work from the room. Nurseries, bedrooms, and media rooms justify the attention, and there the answer is Dark Series blackout at $119.99 with a schedulable motor version. In offices and living areas glare control leads the decision, which points to light-filtering or sunscreen at $119.99. Awkward or shallow openings suit the Compact Series at $119.99, and renters or anyone who cannot drill can start at $99.99 with the no-drill Dark Series, provided the recess is deep enough and the frame surface is flat and stable. In every tier the quiet part comes from the same three specifications: exact measurements, a motor version you can schedule, and a mount held firm, whether that is by square brackets or by even tension. For how decibel figures translate room by room, see our decibel guide to motorized roller shades.
