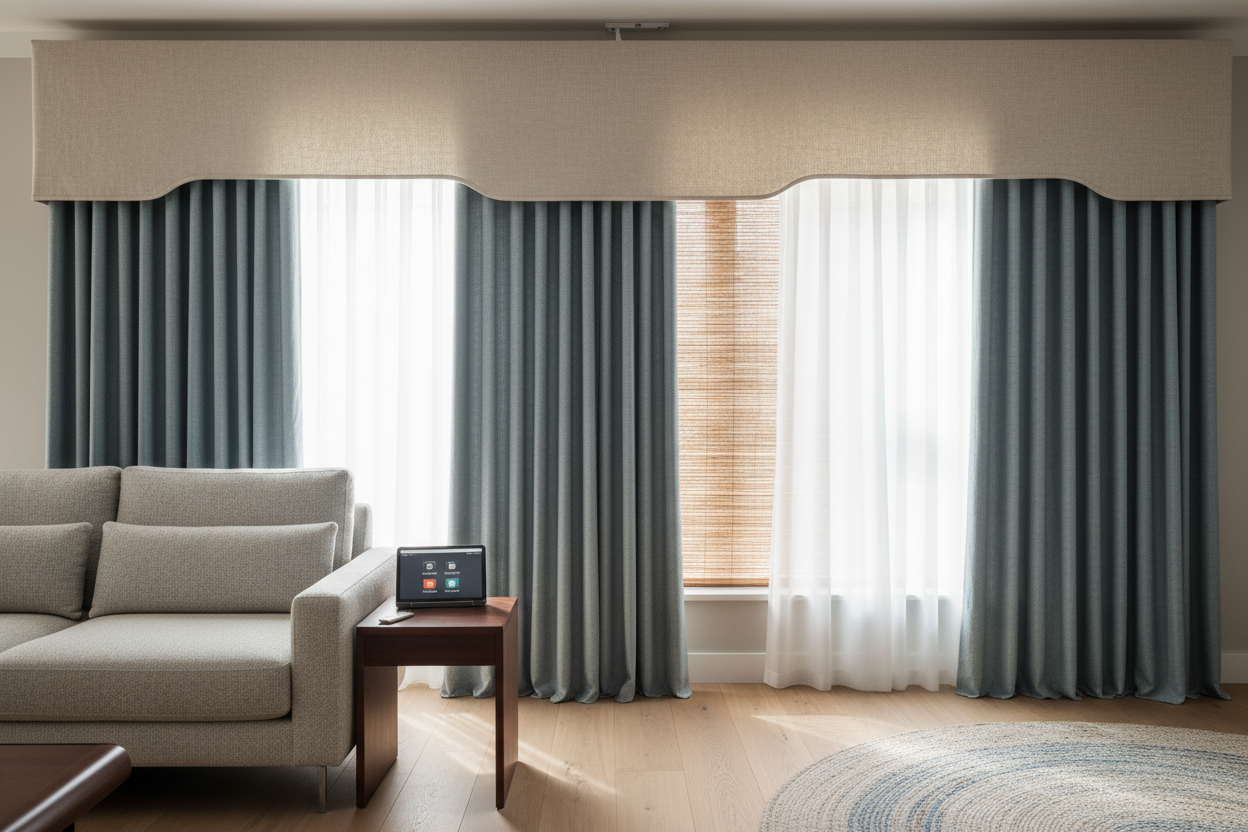

12 inch valance: The Secret to Hiding Smart Curtain Hardware

When I first installed motorized tracks in my living room, the sunrise routine was incredible. My heavy drapes glided open in sync with my morning alarm, letting the light in gradually. But staring up at the exposed white plastic motor housing, dangling wires, and bulky battery wand completely ruined the aesthetic of the room. That is when I discovered that a 12 inch valance is the exact architectural sweet spot needed to conceal modern smart window tech without making your ceilings feel lower.

In this guide, I will break down how to properly size, mount, and integrate a top treatment over your connected shades. By the end, you will know exactly how to hide your smart hardware without blocking wireless signals, muffling voice commands, or obstructing solar chargers.

Hardware Clearance: What Fits Underneath?

• Motor Concealment: A standard 12 inch drop valance provides enough vertical coverage to completely hide retrofit track motors (like Aqara or SwitchBot) and most external battery packs.
• Signal Integrity: Fabric treatments will not interfere with Zigbee, Thread, Z-Wave, or Wi-Fi signals communicating with your smart home hub.
• Acoustic Dampening: Heavy fabric valances can actually reduce the high-pitched mechanical whine of budget blind motors by 2 to 3 decibels.
• Light Bleed Prevention: Acting as a top shield, it blocks the annoying halo of sunlight that often escapes over the top of motorized roller shades.

Retrofitting Over Motorized Tracks

Clearance and Depth Requirements

Adding a 12 inch window valance over an existing smart track requires careful depth planning. Most motorized tracks sit about three inches off the wall to allow the fabric to fold properly. If you are mounting a valance box (cornice) over this, you need a return depth of at least six inches. If the valance sits too flush against the motor housing, the moving curtain carriers will scrape against the inside of the fabric, eventually causing the motor to detect resistance and trigger its auto-stop safety feature.

Managing Power Sources

If you use hardwired motors, the valance easily hides the junction box and wiring channel. However, if you rely on battery wands, you need to leave top-access. Most off-the-shelf 12 inch valances for windows are closed at the top. I highly recommend modifying the dust board (the top piece of wood) with a cutout, or using a rod-pocket valance, so you can easily reach in to swap or charge batteries without tearing down the entire window treatment.

Fabric Choices and Smart Integrations

Enhancing Blackout Routines

You might think a 12 inch curtain at the top of a window is purely decorative, but it plays a massive role in light control. If you have a smart home routine designed to plunge your media room into total darkness when you turn on the TV, light leaking over the top of the roller tube ruins the effect. A dark, densely woven valance traps that light. Just be careful with metallic-backed blackout fabrics; while rare, dense metallic weaves can occasionally reduce the range of low-power Bluetooth retrofit bots.

Solar Panel Considerations

Many modern smart blinds use small solar panels pressed against the glass to trickle-charge the battery. The beauty of a 12 inch drop valance is that it drops just low enough to hide the motor, but usually leaves the top few inches of the actual glass exposed behind the shade. You must measure exactly where your solar panel sits; if the valance casts a permanent shadow over the panel, your battery will die within months.

Living with a 12 inch valance: My Installation Notes

I installed a custom 12 window valance setup across a massive three-pane bay window in my bedroom to hide a set of Somfy motorized shades. Day-to-day, the visual difference is night and day. The room looks finished, and the subtle hum of the motors is noticeably muffled by the velvet fabric I chose. It feels like a high-end luxury hotel rather than a DIY tech project.

However, there is a very real downside I did not anticipate: the dreaded battery recharge. My motors require plugging in a USB-C cable every six months. Because my valance is rigidly mounted to the wall with a solid top board, I have to stand on a ladder, reach blindly up behind the fabric, feel for the tiny USB port on the motor head, and try to seat the cable without being able to see it. Next time, I will definitely use a hinged top board or a hook-and-loop fabric attachment so I can peel it back during charging days.

Frequently Asked Questions

Will a 12 inch valance block the light sensor on my smart blinds?

It depends on sensor placement. If your smart blinds use a built-in light sensor on the motor head to trigger sunrise/sunset routines, a heavy valance will block it, causing the blinds to think it is always dark. You will need to switch to time-based routines or use an external smart home light sensor placed on the windowsill.

How much clearance do I need behind the valance for a motorized rod?

For smart curtain robots that travel along a rod (like SwitchBot), you need at least 2 inches of clearance between the back of the valance fabric and the front of the robot. If the valance rubs against the robot, it drains the battery faster and causes the motor to struggle.

Can I use voice commands if the motor is completely covered?

Yes. Voice commands are processed by your smart speaker (Echo, Nest, HomePod) and sent to the motor via wireless protocols (Wi-Fi, Zigbee, or Matter). The fabric of the valance has zero impact on voice control reliability.
