3 Blinds on 1 Headrail Guide: Spanning Wide Windows, Light Gap Dynamics, and Smart Motorization

Understanding Multiple Blinds on One Headrail: The Engineering Advantage

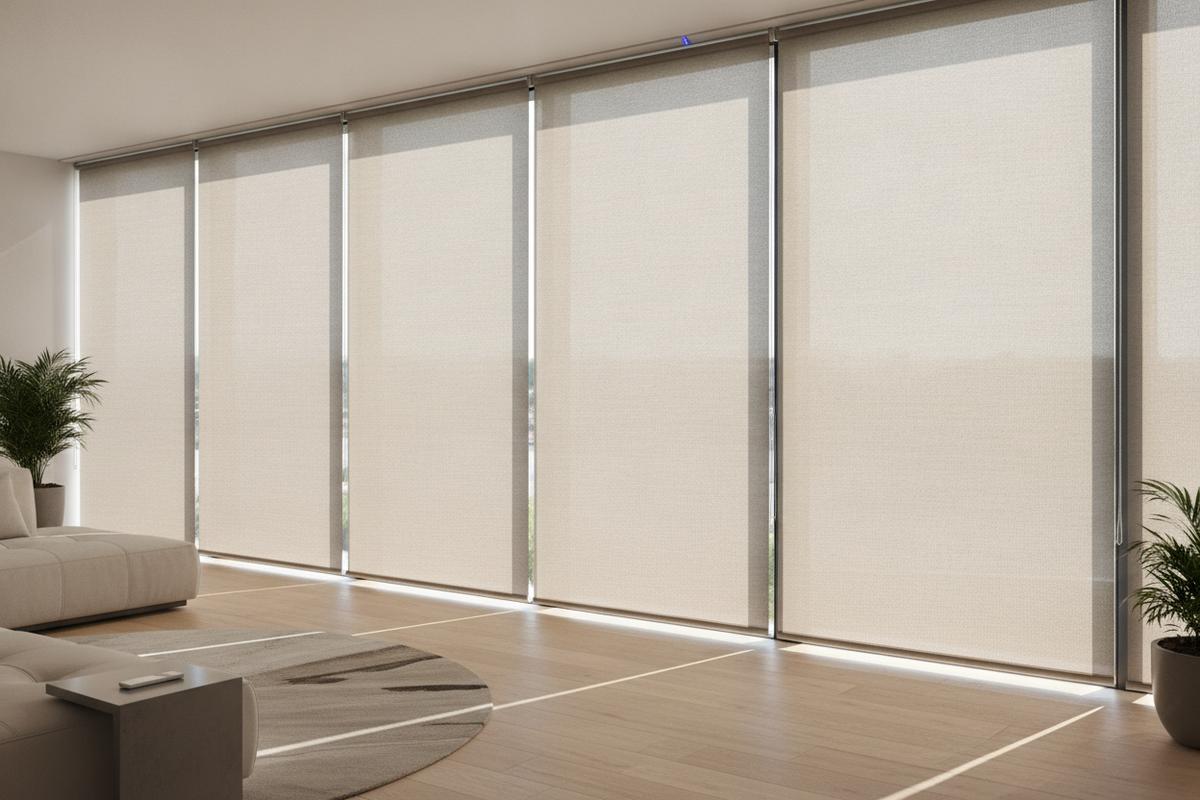

Spanning an expansive architectural opening with a single window treatment often creates structural and operational challenges. When covering wide triple-pane windows or multi-panel glass expanses, selecting 3 blinds on 1 headrail provides a unified visual line while breaking the operational span into manageable sections. Using multiple blinds on one headrail allows each panel to operate independently, preventing excess strain on internal components while keeping the header profile sleek and continuous across the entire window frame.

Why Single Extra-Wide Blinds Fail: Weight and Sag Dynamics

Fabricating a single continuous blind across a very wide opening often results in severe mechanical disadvantages. Massive single-span horizontal blinds or fabric shades accumulate significant physical weight. This concentrated load places heavy stress on lift cords, gear assemblies, and internal barrel springs, making manual lifting difficult and shortening the lifespan of internal lift systems. Over extended spans, standard top rails can also bow downward in the center without intermediate structural reinforcements, causing the bottom rail to drag unevenly or slats to skew out of horizontal alignment.

Shared Headrail vs. Individual Side-by-Side Mounting

When outfitting wide openings, homeowners frequently debate between mounting multiple blinds side by side using separate cassettes versus commissioning a factory-built single-headrail system. Installing individual separate units side by side inside a single window casing often creates bulky visual clutter where the separate end brackets meet. In contrast, an integrated multi-blind headrail system encloses several independently controlled blind mechanisms inside one unified aluminum or steel profile. This eliminates double-bracket interference at internal split points, maintains a clean continuous fascia, and simplifies the primary mounting process across the top casing.

Design Configurations: When to Choose 2 Blinds vs. 3 Blinds on 1 Headrail

Choosing between 2 blinds 1 headrail and a three-panel configuration depends primarily on the underlying window architecture, door access needs, and day-to-day light management habits.

Aligning Blind Splits with Architectural Window Mullions

The most aesthetically pleasing installations align the seams between blind panels directly over the structural mullions—the vertical dividers separating individual panes of glass. When you install two blinds on one window that features a center mullion, placing the split over the vertical divider ensures that the natural gap between fabrics or slats does not expose clear glass. For three-lite window banks (such as a large center picture window flanked by two operable double-hung windows), configuring 3 blinds one headrail creates tailored coverage for each individual pane while maintaining a coordinated, uniform appearance.

Double Windows and Patio Door Split Configurations

Multi-blind headrails are also well-suited for sliding patio doors and multi-pane casement banks. In patio door setups, a two-on-one configuration allows you to raise the panel covering the active traffic door while leaving the stationary panel lowered for solar control and privacy. In triple sliding systems, three independently moving shades provide granular control over daylighting without requiring every occupant to adjust an entire room-spanning treatment at once.

Light Gaps and Privacy Realities in Multi-Blind Headrail Systems

While multi-panel headrails deliver distinct operational advantages, understanding how panels meet in the middle is crucial for meeting room darkening and privacy expectations.

Managing the Center Seam Gap Between Adjacent Blinds

Because each blind section must raise and lower freely without snagging on adjacent materials, manufacturers engineer a narrow tolerance gap between neighboring panels. This vertical seam allows daylight to filter into the room unless it is backed by an architectural mullion. When designing treatments for bedrooms or media spaces where light control is paramount, pairing tailored fabrics from a roman shades collection with deliberate outside-mount overlaps or positioning the seam over solid trim helps minimize ambient light bleed.

Comparing Slat Blinds, Cellular Shades, and Roman Shade Profiles

The visual impact of center gaps varies significantly across different window treatment styles:

• Horizontal Wood and Faux Wood Blinds: Slat ends create clean vertical lines at the split point, but slight natural variances in slat tilt can become visible if adjacent panels are adjusted to slightly different angles.
• Cellular Shades: Exploring options in a double shades collection reveals that honeycomb fabrics present narrow edge gaps, making them an excellent choice when continuous thermal insulation and clean vertical seams are needed.
• Folded Fabric Shades: For an in-depth breakdown of soft versus hard treatments, consult our blinds roman shades guide to understand how tailored fabric folds manage depth and clearance on shared headrails.

Motorization and Smart Control Architectures for Multiple Panels

Motorizing multiple blinds on a shared headrail creates a seamless blend of convenience and modern design. Instead of managing a forest of manual cords or multiple tilt wands, automated systems streamline the entire window interface.

Independent Motors vs. Linked Slat Tilting Mechanisms

When specifying motorized multi-blind setups, each fabric panel or slat section is typically equipped with its own dedicated tubular motor housed within the shared headrail channel. Premium motorized designs, such as the roman shades product line, incorporate low-profile drive units that maintain quiet operation without adding bulk to the headrail. In some specialized slat configurations, tilt mechanisms may be mechanically synchronized across all panels while lift actions remain fully independent, giving users tailored shade heights with uniform slat angles.

Multi-Channel Remotes, Group Scheduling, and Smart Ecosystems

Multi-channel radio-frequency remotes and smart bridge controllers allow you to control individual panels separately or move all sections in unison. In a three-blind configuration, channel one can control the left blind, channel two the center, channel three the right, and a dedicated group channel can raise or lower all three simultaneously. Smart hub integration allows homeowners to build automated scenes that lower eastern panels during morning sun exposure while keeping adjacent panels open for daylight.

How to Measure and Install 3 Blinds on One Headrail

Proper sizing and solid anchor support are critical when learning how to install 3 blinds in one window. Because a single headrail carries the combined weight of multiple panels, planning your measurements and bracket positions prevents sagging and operational drag.

Measuring Inside vs. Outside Mounts for Multi-Panel Openings

For inside mounts, measure the overall top opening width where the headrail will sit, along with the precise center-to-center distances of each window mullion. Window manufacturers require the total headrail width and the individual panel widths (left, center, right) to ensure the factory splits align with your frame mullions. For outside mounts, measure the full span you wish to cover including desired trim overlap, then calculate panel splits based on your casing geometry.

Crucial Bracket Placement: Supporting Center Seams and Lift Loads

A multi-blind headrail cannot rely solely on two standard end brackets. To secure substantial lift loads across wide openings, intermediate support brackets must be positioned directly adjacent to each internal split point. For comprehensive guidance on fastening hardware into various wall and framing substrates, review our mounting roman blinds guide. Placing heavy-duty brackets near the split points distributes mechanical lift forces evenly and keeps the shared headrail rigid and level.

Selecting the Right Multi-Blind Solution for Your Home

A shared multi-blind headrail balances structural practicality with high-end interior styling across expansive window openings. By distributing heavy shade material across independent lift mechanisms, aligning vertical seams with existing window framing, and integrating multi-channel motorization, you achieve smooth everyday operation without compromising your home's architectural lines.
