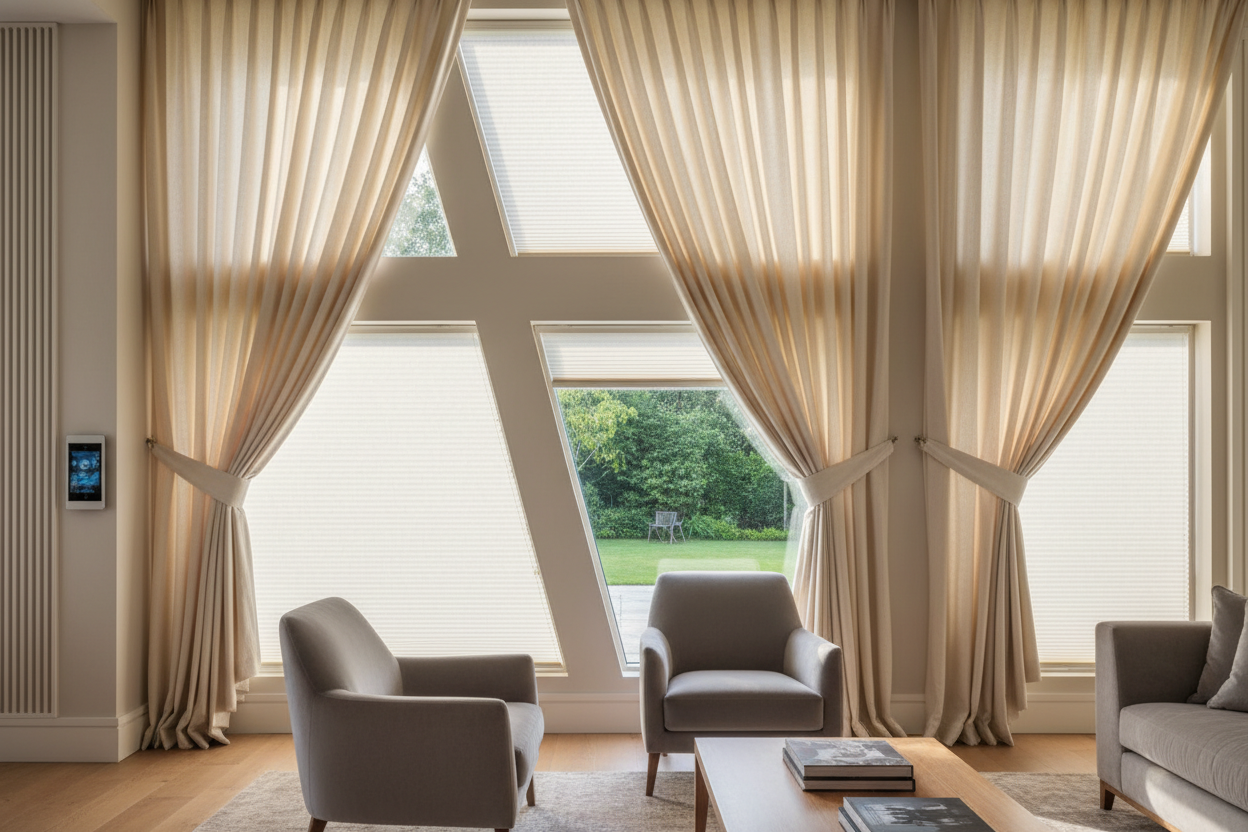

Angle window curtains: Motorizing Your Toughest Windows

If you live in a home with vaulted ceilings or an A-frame roof, you already know the struggle. The afternoon sun turns your living room into a greenhouse, but the architectural glass is way too high to reach. I spent two years dealing with a glaring trapezoid window before finally investing in smart angle window curtains. Having your shading adjust itself based on the temperature or the time of day is incredibly practical, especially for windows you can't physically reach.

In this guide, I will break down exactly what it takes to motorize these tricky architectural features. You will learn which track systems actually hold up against gravity, how to choose the right motor, and what to expect when tying them into your existing smart home network.

Quick Compatibility Check: Sloped Window Specs

• Gravity Locks: Standard tracks will not work. You need a specialized angled window curtain track with locking end-gliders to prevent the fabric from pooling at the bottom of the slope.
• Motor Torque: Pulling fabric uphill requires a heavy-duty motor (at least 1.2 Nm to 2.0 Nm torque) compared to standard horizontal tracks.
• Power Source: Because curtains on angled windows are usually high up, hardwiring or using a solar-panel trickle charger is highly recommended to avoid ladder-climbing for battery swaps.
• Protocol: Zigbee and Thread/Matter motors offer the fastest response times for multi-window sync compared to standard Wi-Fi motors.

Beating Gravity: Track and Install Options

Why Standard Tracks Fail on Slants

The biggest mistake people make when shopping for curtains for slanted windows is buying a standard motorized track and mounting it on an incline. Without a braking mechanism, the motor has to constantly fight gravity to keep the curtains closed. Once the motor powers down, the fabric simply slides back down the slope. Purpose-built curtains for sloping windows use tensioned cords or mechanical brakes inside the track to hold the fabric securely in place at any position.

Retrofit vs. Custom Builds

If you already have angled drapes, you can sometimes retrofit them using a universal smart track. However, because the track needs to be custom-cut to match the exact pitch of your ceiling, I highly recommend ordering a made-to-measure system. Renters might struggle here, as installing a heavy-duty track for an angled curtain requires drilling securely into structural studs—drywall anchors will pull out under the uphill tension.

Smart Ecosystem Integration

Voice Control and Automations

The real magic of motorizing your sloping window curtains happens when you stop using the remote and start using routines. By connecting a Zigbee curtain motor to a hub like SmartThings or an Echo Plus, you can trigger the shades based on environmental factors. For example, my slanted window curtains are programmed to close automatically when my ecobee thermostat detects the living room temperature hitting 75 degrees, blocking out the harsh afternoon sun.

The Matter Protocol Factor

If you are buying a system today, look for Matter-over-Thread compatibility. This ensures your curtains for angled windows will work locally with HomeKit, Google Home, and Alexa without relying on a manufacturer's proprietary cloud server. Local control means your routines execute instantly and still work if your internet goes down.

Fabric Weight and Motor Strain

Sheer vs. Blackout Materials

The steeper your window's pitch, the harder your motor has to work. When selecting fabric for slanted curtains for angled windows, weight is your biggest enemy. Heavy velvet or double-lined blackout fabrics look great, but they put immense strain on the track belt and motor when being pulled uphill. If you need blackout capabilities, look for lightweight synthetic blackout materials. Otherwise, sheer fabrics are the most reliable choice for curtains for sloped windows, offering UV protection and glare reduction without overworking the hardware.

Living with Motorized Slanted Curtains: Day-to-Day Reality

I installed a custom motorized track on my 14-foot vaulted living room window about eight months ago. The convenience is undeniable—asking a voice assistant to 'close the upper shades' while watching a movie never gets old. However, there are a few quirks nobody mentions in the marketing materials.

First, the noise. Pulling fabric uphill requires the motor to work harder, and it emits a noticeable, strained hum that is significantly louder than my horizontal smart blinds. It is not a dealbreaker during the day, but it is loud enough to wake a light sleeper if triggered early in the morning. Second, I completely underestimated the battery situation. I initially bought a rechargeable battery motor, thinking I would just charge it twice a year. Hauling a 16-foot ladder into the living room every five months was a nightmare. I recently added a small solar panel to the corner of the window glass, plugged it into the motor, and haven't had to charge it since. Finally, when the curtains are fully open, the fabric bunches unevenly at the lower end of the track because of the slope. It requires an occasional manual fluffing to look perfectly neat.

Frequently Asked Questions

Can I still open angle window curtains manually during a power outage?

Most premium smart tracks feature a 'tug-to-start' function that disengages the clutch, allowing manual operation. However, on a steep slant, manually opening them might cause the gravity brakes to disengage, meaning you may have to tie them back to keep them open until power is restored.

Do I need a hub for my angled window setup?

It depends on the motor. Wi-Fi motors connect directly to your router but drain batteries faster. Zigbee, Z-Wave, or Thread motors require a compatible smart hub but offer vastly superior battery life, which is crucial for hard-to-reach angled windows.

How do I measure curtains for sloped windows?

You need three measurements: the horizontal width at the bottom, the vertical height at the tallest point, and the exact length of the sloped angle (the hypotenuse). Always consult the track manufacturer's specific measurement guide, as the track needs to be slightly longer than the glass to accommodate the motor housing.
