Automate 3 Inch Blinds: Smart Tilt in 10 Minutes

Imagine settling in for a movie on a Sunday afternoon, only to have a single beam of sunlight hit the television screen. Instead of getting up to manually twist a wand, you simply say, "Cinema Mode," and your wide-slat window treatments adjust instantly to block the glare. This is the practical reality of automating 3 inch blinds. While traditionally heavy and cumbersome to operate manually, these substantial window coverings are actually the perfect candidates for smart home retrofitting, offering a shutter-like aesthetic with the convenience of modern voice control.

Quick Tech Specs & Compatibility

Before ripping out your existing hardware, it is crucial to understand the technical requirements for automating 3 inch slat blinds. Due to the weight of the slats, motor torque is the deciding factor.

Feature	Specification
Motor Type	High-Torque Tilt Motor (2.0Nm+ recommended for wood)
Connectivity	Zigbee 3.0, Bluetooth (local), or Thread (Matter)
Power Source	Rechargeable Li-ion (USB-C) or Solar Panel
Platform Support	Alexa, Google Home, Apple HomeKit, SmartThings

Installation Types: Retrofit vs. Replacement

When dealing with 3 inch blinds for windows, you generally have two paths: retrofitting the headrail or a full replacement.

Retrofitting Existing Blinds

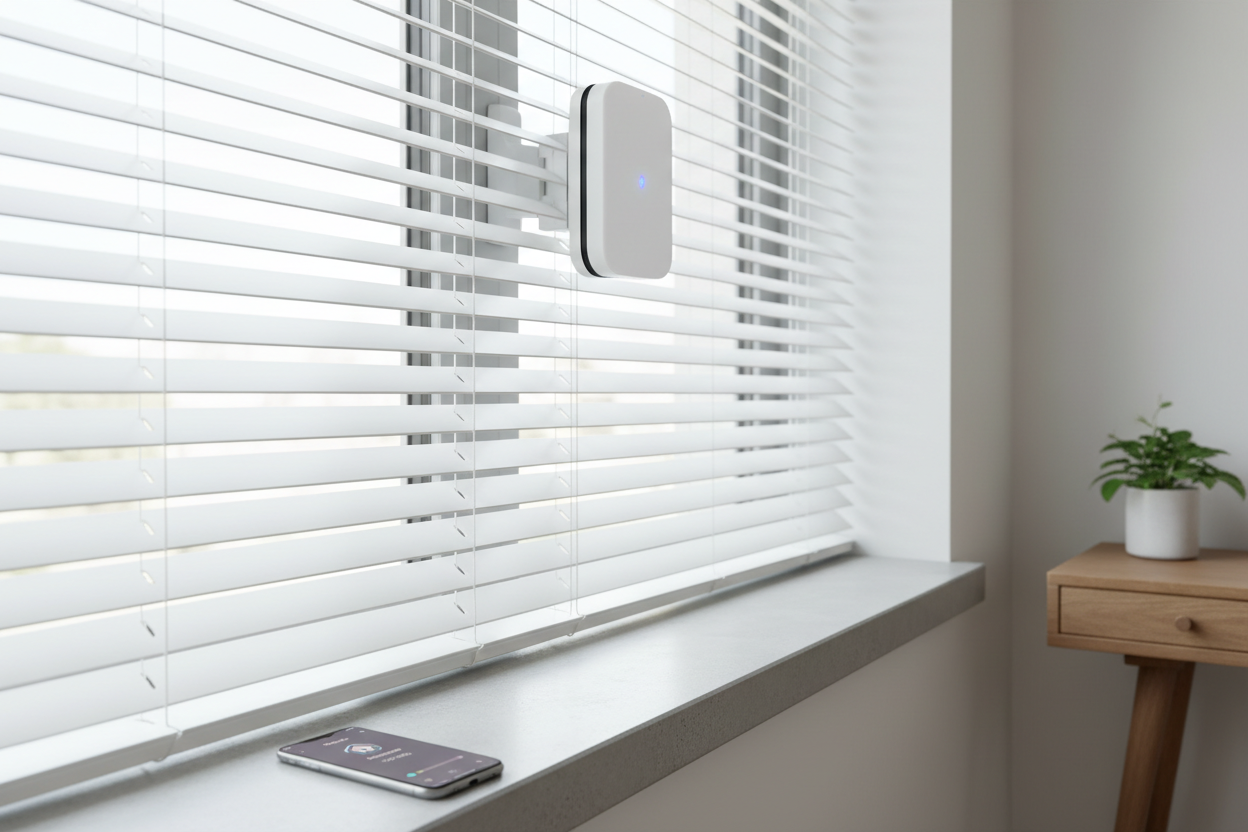

This is the most cost-effective route. Devices like the SwitchBot Blind Tilt or Soma Tilt attach directly to the wand or sit inside the headrail. However, 3 inch wood blinds present a specific challenge: the headrail is wider (high profile). You need to ensure your retrofit motor comes with adapters for the internal tilt rod, which is usually a hexagon or square shape, rather than the D-shape found in smaller blinds.

Full Motorized Replacement

If you are buying new, pre-motorized 3 wood blinds (standard configurations) offer a cleaner look. The motor is concealed entirely within the headrail, and the noise levels are generally lower (often under 40dB) because the acoustic engineering is integrated into the casing.

Power Options and Torque

The physics of 3 inch slat blinds differs from standard mini-blinds. The slats are heavier, creating more friction on the ladder strings.

• Battery/Solar: Ideally, look for motors with at least 6 months of battery life on a single charge. For south-facing windows, a small solar panel taped behind the headrail is a set-and-forget solution.
• Torque Requirements: Ensure the motor is rated for the weight. A weak motor on heavy faux-wood slats will burn out or fail to close the slats tightly, leaving light gaps.

Smart Integrations and App Features

The real power of automation lies in the software. Most companion apps allow for "sun-tracking" modes.

• Light Sensing: Using a light sensor, the blinds can tilt gradually throughout the day to maximize natural light while preventing UV damage to furniture.
• Grouping: If you have three windows in a bay configuration, grouping them ensures they tilt in unison. This is vital for 3 inch blinds, as misaligned wide slats are visually obvious and distracting.

Living with 3 inch blinds: Day-to-Day Reality

I have been running a retrofit setup on the 3 inch wood blinds in my home office for about six months now, and there are a few nuances that spec sheets don't tell you. The first thing I noticed was the sound. Because 3-inch slats are heavy, when the motor engages, there is a distinct "clack" as the slats shift weight before the motor hum begins. It’s not loud, but in a dead-silent room at 6:00 AM, it is audible.

Another specific quirk involves the "dead zone." With smaller blinds, a 50% open command usually means the slats are perfectly horizontal. With my 3 inch setup, due to the weight distribution of the wood, I had to calibrate "Open" to actually be 45% in the app to get them perfectly flat. If I set it to 50%, they tilt slightly downward. It took about 20 minutes of tweaking the calibration settings in the app to get the slats to line up perfectly with the horizon, but once set, the aesthetic of those wide slats floating automatically is unbeatable.

Conclusion

Automating 3 inch blinds transforms them from static window dressings into active light management tools. Whether you choose a retrofit kit to upgrade your current setup or invest in new motorized units, the convenience of voice-controlled privacy is a significant upgrade. Just ensure you check the torque specs to handle the extra weight of wide slats.

Frequently Asked Questions

How long do batteries last in motorized 3 inch blinds?

On average, rechargeable motors last between 6 to 12 months depending on usage (typically 2 cycles per day). Adding a solar panel can extend this indefinitely.

Can I still operate the blinds manually during a power outage?

Retrofit wand-turning motors usually allow for manual twisting. However, internal tubular motors often lock the mechanism, meaning you cannot adjust them manually without power.

Do I need a hub for smart blinds?

It depends on the connectivity. Bluetooth motors work directly with your phone but have limited range. Zigbee or Z-Wave motors require a compatible hub (like an Echo Show or SmartThings) for remote control and cloud integrations.
