Automate Affordable Shade Patio Covers: The Smart Outdoor Setup

You are settling into your patio chair with a laptop, ready to work from home in the fresh air. Suddenly, the afternoon sun dips low, creating an impossible glare on your screen. In a standard setup, you’d have to get up and manually crank an awning or pull down a shade. But in a smart outdoor ecosystem, you simply say, “Alexa, lower the patio shade.” That is the convenience we are aiming for. While many think outdoor automation requires a luxury budget, affordable shade patio covers can be retrofitted with smart technology to rival high-end systems.

Key Specs at a Glance

Before drilling into your exterior walls, it is crucial to understand the technical requirements for automating outdoor shade. Here is the quick breakdown of what you need for a reliable setup:

Component	Tech Spec	Best Application
Motor Type	Tubular (RF 433MHz)	Retrofitting roller shades or retractable awnings.
Power Source	Rechargeable Li-ion or Solar	Rentals or locations without exterior outlets.
Connectivity	Requires Bridge (Bond/Broadlink)	Integrating RF motors into WiFi ecosystems (Alexa/Google).
IP Rating	IP44 to IP65	Essential for moisture and dust resistance outdoors.

Installation Types: Rod vs. Retractable

When looking for affordable shade, you generally encounter two form factors that work well with smart tech: vertical roller shades and retractable lateral arm awnings.

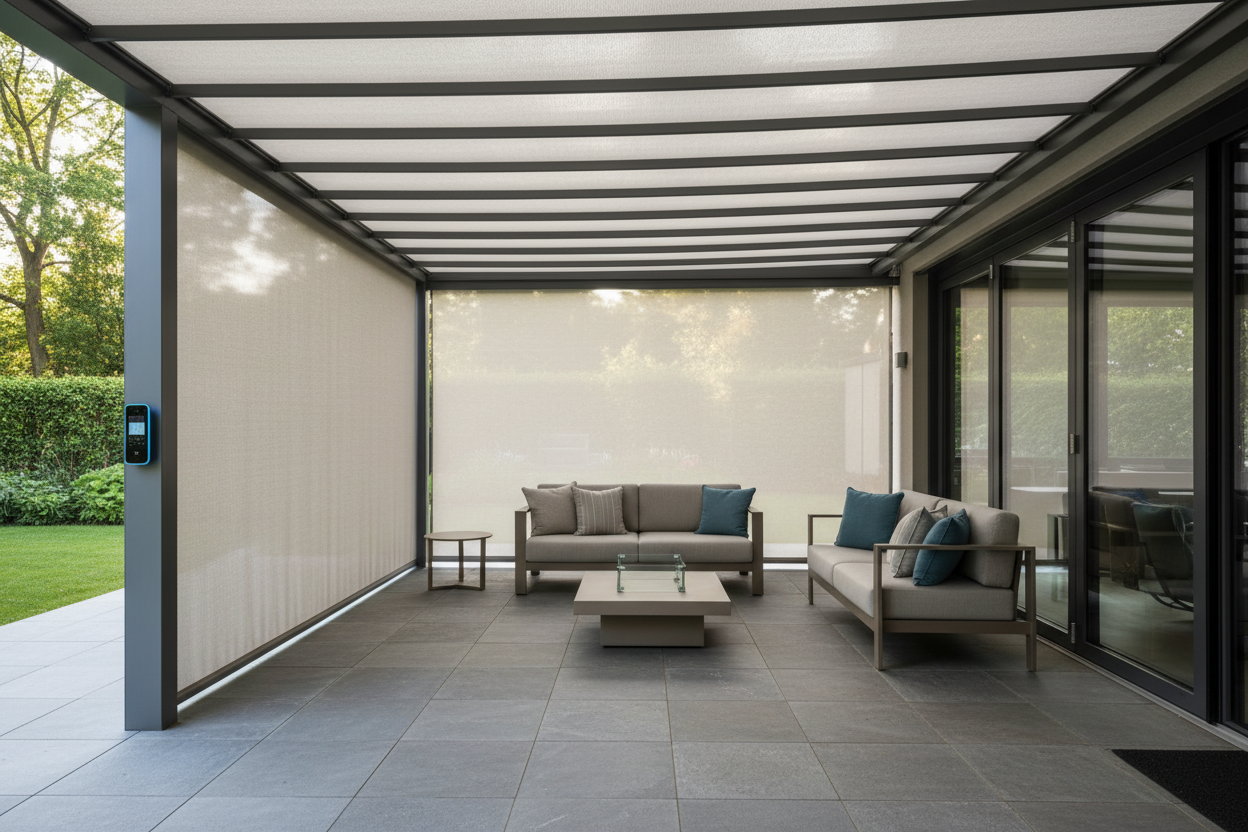

Vertical Roller Shades

These are often installed on pergolas or covered patios. To automate these, you typically swap the manual chain mechanism for a tubular motor. Unlike indoor curtains, weight is a significant factor here. Outdoor fabrics (often HDPE or PVC) are heavy. You need a motor capable of at least 6Nm to 10Nm of torque depending on the width. If you choose a motor with insufficient torque, the lift will be sluggish and drain the battery rapidly.

Retractable Awnings

For standard retractable awnings, the smart upgrade usually involves an exterior plug-in switch if the motor is standard AC, or a vibration sensor if you want wind protection. If you are buying a manual awning to retrofit, look for a "crank loop." You can purchase a hook-style motor that attaches to the loop, turning a manual crank system into a motorized one without disassembling the roller tube.

Power Options and Connectivity

Hardwiring is always the gold standard for latency and reliability, but it’s rarely the most affordable or tenant-friendly option outdoors.

Battery & Solar: Most DIY smart outdoor shades utilize rechargeable lithium-ion batteries. Since these are outdoors, pairing them with a small solar panel trickler is highly recommended. It prevents the need to drag a ladder out every six months to recharge the motor.

The RF Bridge Necessity: Most outdoor motors communicate via Radio Frequency (433MHz) rather than direct WiFi or Zigbee due to range issues through exterior walls. To get these into your smart home ecosystem, you will likely need a bridge device like the Bond Bridge. This acts as a translator, taking your WiFi command ("Hey Google, open the shade") and blasting an RF signal to the motor.

Living with affordable shade patio covers: Day-to-Day Reality

I have spent the last six months living with a retrofitted Coolaroo exterior shade powered by a generic tubular motor linked to a Bond Bridge. Here is the unpolished truth about the experience.

The first thing you notice is the sound. Indoor smart curtains are engineered to be "whisper quiet" (around 30-40dB). My outdoor setup? It sounds like a cordless drill. It’s closer to 55dB. Outside, amidst wind and traffic noise, it doesn't matter, but if you trigger it at 6 AM while the neighborhood is dead silent, it feels surprisingly loud.

There is also a distinct "RF delay." When I tap the button on my phone, there is a solid 1.5-second pause before the motor engages. It’s not instant like a hardwired light switch. Also, wind management is tricky. I set up an automation to retract the shade if local weather data reports high wind gusts, but local data isn't hyper-local. I once watched the shade billowing dangerously in a sudden gust because the weather API hadn't updated yet. If you live in a windy area, a physical vibration sensor on the hem bar isn't a luxury; it's a requirement to protect your investment.

Conclusion

Upgrading affordable shade patio covers with smart motors is one of the highest ROI projects for outdoor living. It transforms a static backyard into a responsive environment. While it requires a bit of setup regarding RF bridges and power management, the ability to control your sun exposure with a voice command makes the patio usable for more hours of the day.

Frequently Asked Questions

How long do the batteries last on outdoor smart shades?

Without a solar panel, a standard battery motor used twice daily will last between 4 to 6 months. With a connected solar panel, you may rarely need to manually charge it, provided the panel receives direct sunlight.

Can I operate the shade manually during a power outage?

This depends on the motor type. Most tubular motors disconnect the manual chain drive, meaning you cannot move them without power. However, some "hybrid" motors allow for a manual crank override. Always check for "manual override" in the specs if this is a concern.

Do I need a specific hub for outdoor shades?

If the motor uses RF (Radio Frequency), which most affordable options do, you cannot connect directly to Alexa or HomeKit. You will need an RF-to-WiFi bridge (like Bond or Broadlink RM4 Pro) to act as the gateway.
