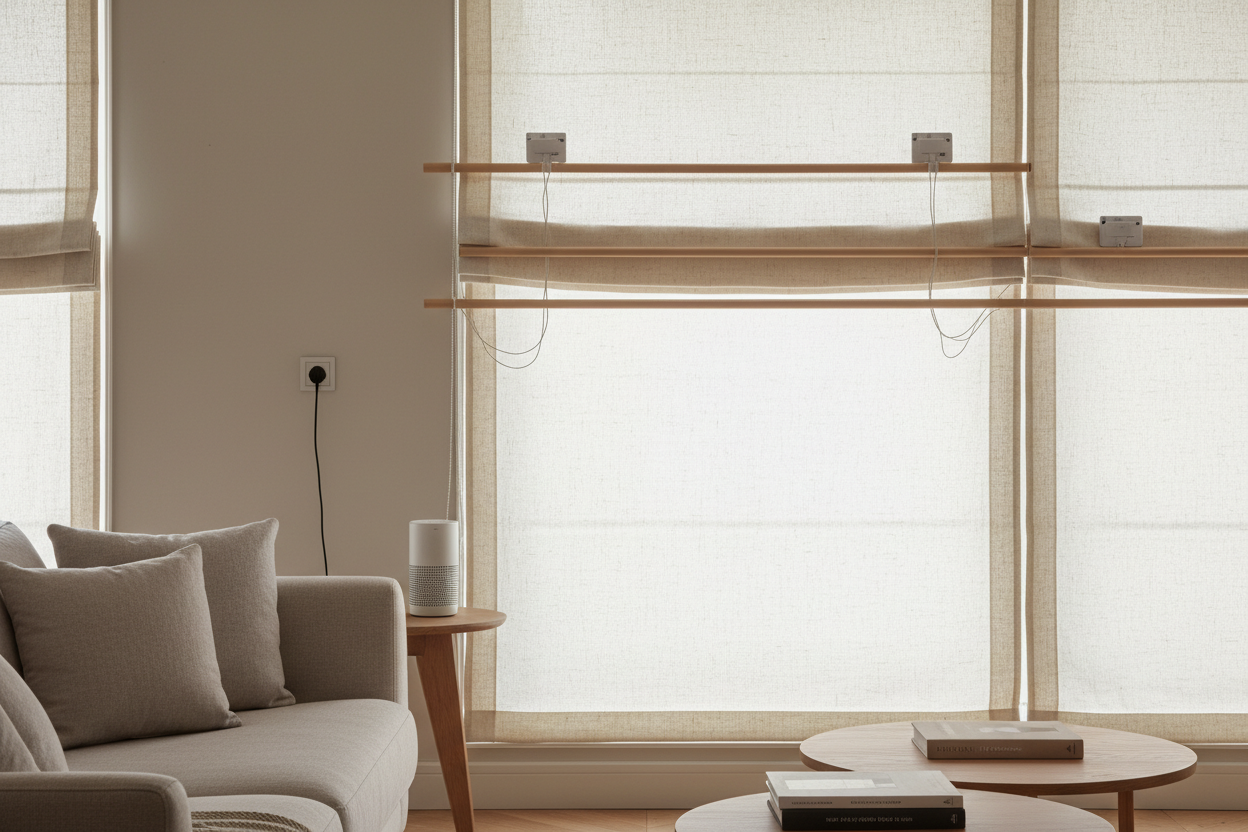

Automate Your DIY Roman Shades With Dowels for Voice Control

Imagine lying in bed on a Saturday morning. The sun is creeping across the floor, threatening to hit your eyes. Instead of jumping out of warm sheets to fiddle with cords, you simply mutter, "Alexa, morning mode." Your custom fabric shades rise smoothly, stacking perfectly thanks to the internal structure. This isn't a $2,000 Lutron setup; it's a weekend project using diy roman shades with dowels paired with a retrofit tubular motor.

Combining the aesthetic control of custom sewing with the convenience of smart home protocols creates a high-end finish without the proprietary markup. Here is how to engineer your window treatments for automation.

Smart Motor Specs for DIY Shades

Before sourcing fabric, you need to select the right drive mechanism. Not all motors can handle the friction and weight of a Roman shade stack.

Feature	Retrofit Tubular Motor	External Chain Driver
Power Source	Rechargeable Li-ion (USB-C)	Solar / Plug-in
Connectivity	Zigbee 3.0 / Matter / RF	Bluetooth / WiFi
Lift Capacity	High (1.1Nm - 6kg)	Low (Max 3-4kg)
Best For	Clean look (Motor inside tube)	Retrofitting existing cords

Engineering the Build: Rods and Motors

The Chassis: Why Dowels Matter for Automation

When learning how to make roman shades with dowels specifically for automation, precision is more critical than with manual shades. Manual operation forgives a little unevenness; a motor does not.

The dowels serve as the skeleton. They ensure the fabric folds at the exact same height every time. If your dowels are too light (plastic) or flexible, the motor's torque can cause the shade to bow in the center rather than lift evenly. For smart setups, always use rigid wooden or aluminum dowels. This rigidity prevents the "telescoping" effect that confuses the motor's limit settings.

Motor Installation Types

You have two main paths for electrifying this DIY project:

• Tubular Motor (Recommended): You replace the wooden headrail with a specialized aluminum tube (usually 38mm or 1.5 inch). The motor slides inside this tube. The lift cords wrap around spools attached to the tube. This is the quietest and most professional method.
• Cord Drive Retrofit: You build a traditional wooden headrail with a cord lock. You then mount a device (like the Soma Smart Shades or Aqara driver) to the wall that physically pulls the beaded chain. This is easier to install but noisier and less aesthetically pleasing.

Smart Integrations & Connectivity

To get these shades talking to your ecosystem, protocol matters. If you are using a Home Assistant Green or a Hubitat, look for Zigbee motors (like Zemismart or Rollerhouse). They create a mesh network, ensuring that shades at the far end of the house still respond instantly.

For users relying on simple Alexa or Google Home setups without a dedicated hub, WiFi motors are the standard. However, be aware that WiFi motors consume more battery power in standby mode than their Zigbee counterparts.

Weight Capacity & Noise Levels

Fabric choice dictates your motor torque. A blackout-lined velvet Roman shade is heavy. A standard 0.8Nm motor might struggle, leading to a high-pitched whine or stalled movement. For diy roman shades with dowels using heavy upholstery fabric, aim for a 1.1Nm or 2.0Nm motor. Look for specs rating the noise level below 35dB. Anything above 45dB will be audible over a TV and annoying in a bedroom.

Living with diy roman shades with dowels: Day-to-Day Reality

I have lived with this exact setup in my home office for six months, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound—not the motor, but the dowels.

When a manual shade goes up, you pull it at variable speeds. With a smart motor, the speed is constant. This creates a rhythmic clack... clack... clack as each dowel hits the stack. It’s oddly satisfying, like a ticking clock, confirming the automation is working. However, I did notice that after about three weeks, the "soft stop" limit drifted slightly. The shade was stopping about half an inch lower than installed. I realized the lift cord had stretched slightly (common with new nylon). I had to go into the app and reset the bottom limit, a 30-second fix, but a reminder that analog materials (fabric/string) still impact digital precision.

Also, the charging reality: tucking the USB-C charging cable up behind the valance so it's invisible is tricky. I ended up using magnetic 90-degree adapters so I can snap the charger on without climbing a ladder or digging behind the fabric.

Conclusion

Building diy roman shades with dowels is a fantastic way to get custom window treatments, but adding a smart motor turns them into a functional asset for home energy efficiency and security. By ensuring your dowel structure is rigid and selecting a high-torque motor, you bridge the gap between craft and tech.

Frequently Asked Questions

How long does the battery last on a retrofit motor?

On a standard window (approx. 36x60 inches) with one up/down cycle per day, a Li-ion tubular motor typically lasts 4 to 6 months. Heavy fabrics will drain the battery faster.

Can I operate the shades manually if the power goes out?

Generally, no. Most tubular motors lock the gear mechanism when not powered to hold the shade's weight. If you live in an area with frequent outages, consider a motor model that supports an external battery pack or solar trickle charging.

Do I need a hub for these DIY smart shades?

It depends on the motor. WiFi motors connect directly to your router. Zigbee and Z-Wave motors require a compatible gateway (like a SmartThings hub, Echo Show with Zigbee, or a dedicated dongle) to bridge the connection to your phone or voice assistant.
