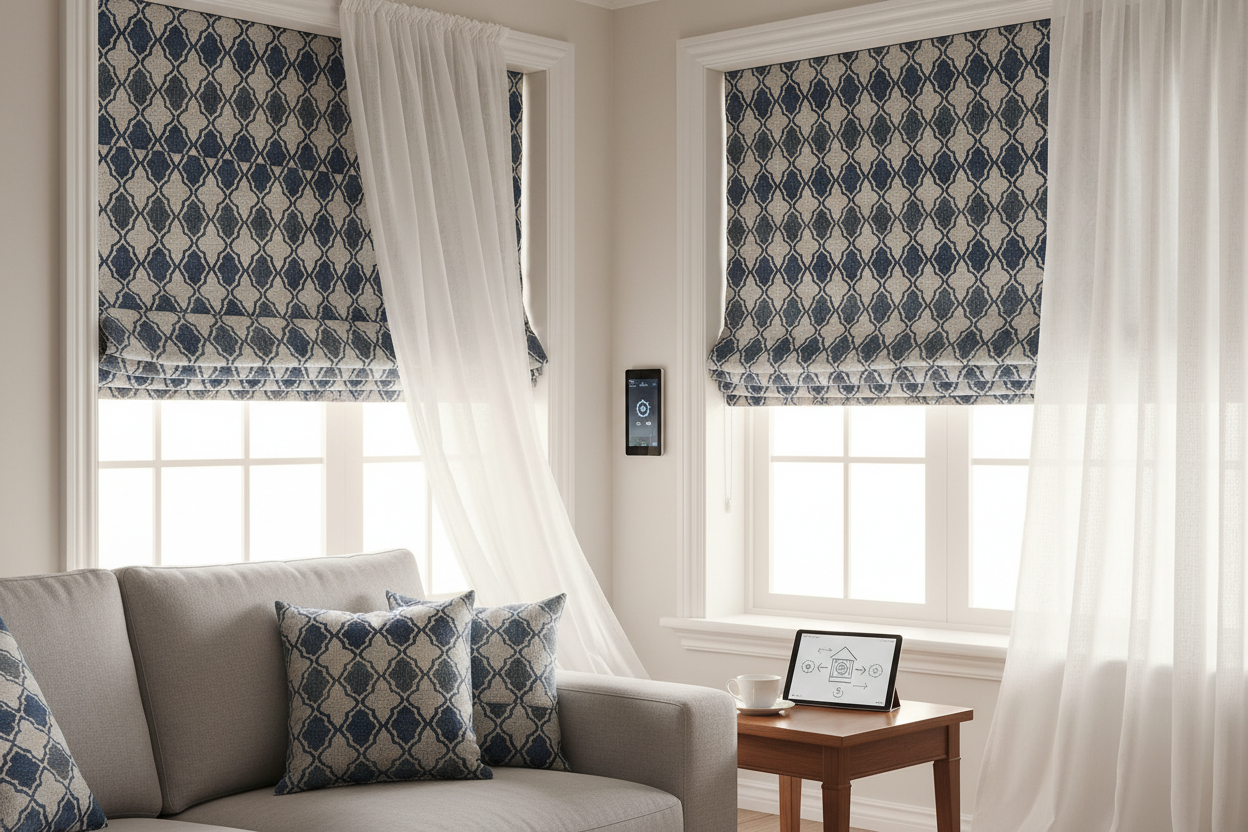

Automate Your Patterned Roller Shade: A Retrofit Guide

Imagine this: It’s Saturday morning. You’re still in bed, and the sun is just starting to hit your face. Instead of getting up to wrestle with a cord, you mutter, “Hey Google, open bedroom shades to 50%.” The motor whirs to life, and your patterned roller shade rises, revealing the view while keeping the glare off your TV. This isn't sci-fi; it's accessible smart home tech that adds functionality to your specific design choices.

Many homeowners hesitate to automate because they don't want to swap their custom aesthetic fabrics for generic white tech-shades. The good news is, you don't have to compromise style for intelligence. Whether you are using heavy blackout patterned window shades or light-filtering sheer fabrics, the tech has caught up.

Key Specs at a Glance

Before buying a motor for your patterned blinds, check these specifications to ensure your fabric weight and connectivity needs are met.

Feature	Retrofit Motor (DIY)	Custom Smart Shade
Power Source	Rechargeable Li-ion Battery / Solar Panel	Hardwired (120V/24V) or Battery Wand
Connectivity	Bluetooth, Zigbee, Thread (Matter)	Proprietary RF (requires Hub), WiFi
Torque/Lift	0.5Nm - 1.1Nm (Check fabric weight)	1.5Nm+ (Better for heavy fabrics)
Platform	HomeKit, Alexa, Google Home	Control4, Savant, Lutron, Alexa

Retrofitting Patterned Blinds for Windows

If you already love your current patterned window blinds, the most cost-effective route is a retrofit motor. These are tubular motors that slide into the existing metal tube of your roller shade.

Checking the Tube Profile

Not all pattern blinds use the same hardware. Most residential roller shades use a generic 38mm (1.5-inch) tube, but you must pop the end cap off and measure the diameter. If your patterned fabric is heavy (like a textured blackout weave), ensure the motor you select has at least 1.1Nm of torque. A weak motor will stall halfway up.

Power Options: Battery vs. Hardwired

When dealing with patterned window shades, aesthetics are priority number one. You likely chose that fabric to make a statement, so you don't want a power cord dangling down the wall.

• Rechargeable Battery Motors: The standard for retrofits. You’ll need to charge them every 6–12 months via USB-C. It’s clean and wire-free.
• Solar Add-ons: While practical, a solar panel taped to the window glass can ruin the look of high-end patterned blinds for windows. Use these only if the panel can be hidden behind a valance.

Smart Integrations and Sensors

Once installed, the real magic happens in the ecosystem setup.

Voice & App Control

Most modern motors use Zigbee or Thread. This allows for local control without cloud latency. When you ask Alexa to lower the shades, the response should be nearly instant. Look for apps that allow "scene setting." For example, a "Movie Mode" that lowers your patterned blinds to block glare instantly.

Light Sensing Automation

You can pair your shades with a lux sensor. However, be aware that dark or busy patterned fabrics can absorb heat differently than white shades. If you are using temperature-based automation to save energy, place your temperature sensor behind the shade (between the glass and fabric) for accurate readings.

Living with Patterned Roller Shades: Day-to-Day Reality

I’ve had a motorized patterned roller shade in my home office for about eight months now—a retrofit setup using a Thread-enabled motor. Here is the unpolished truth about living with it.

First, the noise. It’s not silent. It emits a low-frequency hum, roughly 45dB, which sounds like an electric toothbrush running inside a pillow. In a dead-silent room at 6:00 AM, it’s audible enough to wake a light sleeper, even if the manufacturer claims "whisper quiet."

Secondly, the visual alignment. This is something nobody talks about. I have two windows side-by-side with a geometric trellis pattern. Because the motors aren't hardwired, they move at slightly different speeds depending on battery voltage. Occasionally, one shade stops a half-inch lower than the other, and suddenly the geometric pattern across the two windows doesn't align perfectly. I have to manually nudge one up in the app to satisfy my OCD. It’s a minor quirk, but when you are dealing with patterns rather than solid colors, alignment matters significantly more.

Conclusion

Automating a patterned roller shade is a fantastic upgrade that merges specific interior design tastes with modern convenience. Whether you retrofit your existing shades or order custom smart blinds, the ability to control natural light with a voice command changes how you interact with your home.

Frequently Asked Questions

How long do the batteries last in smart patterned blinds?

On average, with one up/down cycle per day, a lithium-ion battery motor will last between 6 to 12 months. Heavier patterned fabrics will drain the battery faster due to the increased torque required.

Can I manually pull the shade down if the power goes out?

Generally, no. Most motorized shades lock the gear mechanism to hold the position. Pulling them manually can strip the internal gears. However, some specific "dual-operation" models exist, though they are rare in the retrofit market.

Do I need a hub for my patterned window shades?

It depends on the protocol. Bluetooth motors work directly with your phone but have limited range. Zigbee and Z-Wave motors require a compatible hub (like a SmartThings hub or Echo Show). WiFi motors connect directly to your router but consume more battery power.
