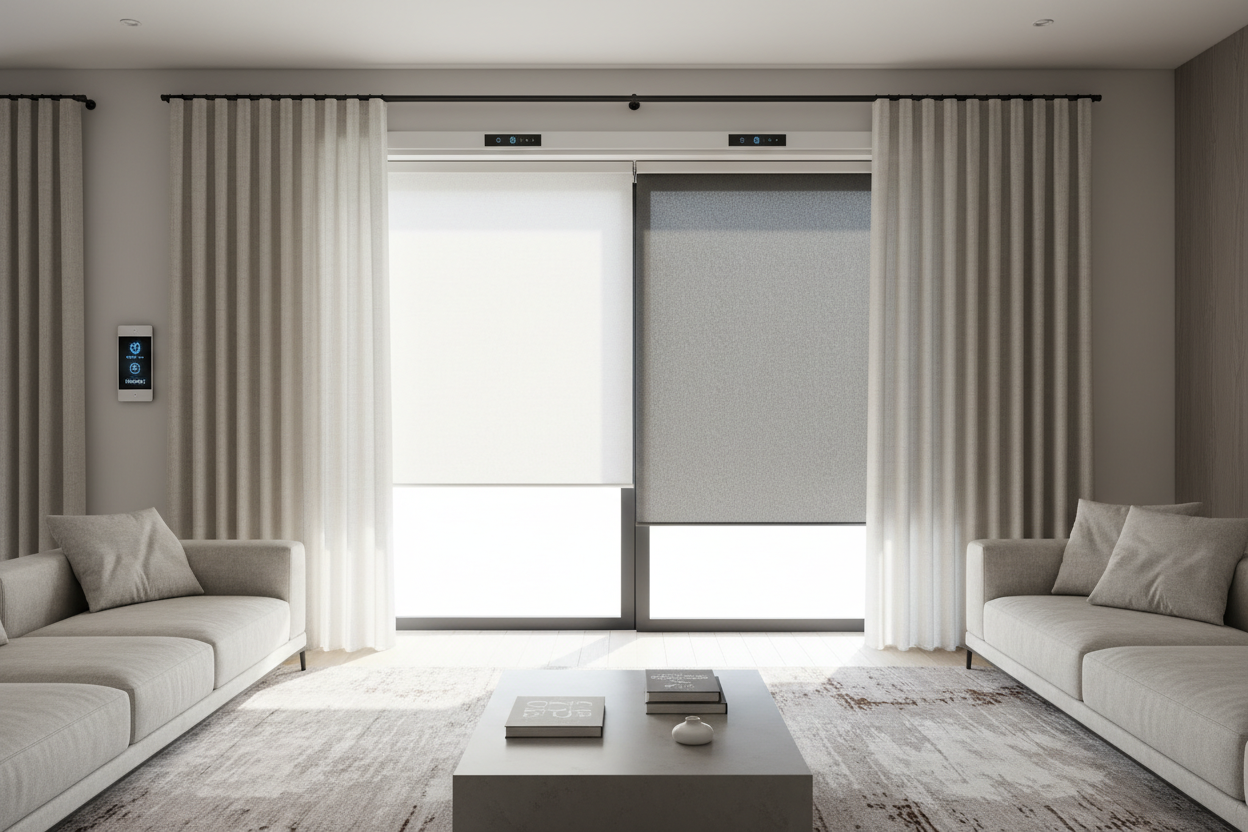

Automate Your Privacy: The Smart Dual Blind Setup

Imagine hitting a button on your phone or muttering a quick voice command, and watching your room transform from a sun-drenched workspace to a pitch-black home theater. This isn't just about luxury; it is about versatile light management. A smart dual blind setup combines two distinct layers—usually a sheer solar shade for daytime privacy and a blackout fabric for total darkness—onto a single motorized system.

For smart home enthusiasts, the dual roller concept solves the age-old dilemma: how do you get natural light without sacrificing privacy or dealing with glare? By automating these 2 layer blinds, you gain granular control over your environment, optimizing for HVAC efficiency and security while you are away.

Quick Tech Specs: Smart Dual Systems

Before drilling holes, verify your ecosystem requirements. Here is a snapshot of what to look for when shopping for motorized double roller shades.

Understanding the Hardware: Dual Roller Blinds

Unlike standard window treatments, a dual roller blind system requires specialized brackets. These brackets hold two separate tubes vertically or horizontally aligned. This allows the dual solar shade (the rear layer) to operate independently of the front blackout layer.

Mounting Depth and Cassettes

Because you are essentially installing double roller blinds, the footprint is larger. A standard single roller might need 3 inches of depth; a dual system often requires 5 to 6 inches. If you are mounting inside the window frame, measure your depth carefully. If the mechanism protrudes, you will need a fascia or cassette to hide the dual rolls for a clean aesthetic.

Powering Your Double Roller Shades

When selecting a dual roller system, power delivery is the first bottleneck you will encounter.

Battery (Retrofit Friendly)

Rechargeable motors are the go-to for existing homes. Modern Li-ion motors for two layer blinds can last 6 to 12 months on a single charge. However, remember that you have two motors per window. That means double the charging cables when the battery creates a low-voltage alert. Look for magnetic charging ports to make this less tedious.

Hardwired (New Construction)

If you are renovating, run low-voltage wire (usually CAT5 or 18/2) to the window headers. Hardwired motors respond faster, never need charging, and act as a Zigbee/Z-Wave repeater for your mesh network. This is the gold standard for reliability.

Smart Integrations and App Features

The real magic happens in the software. Most double roller shades connect via a proprietary bridge (like Bond Bridge or Somfy TaHoma) or directly to a hub (like Hubitat or SmartThings).

Synchronization and Noise

Cheaper motors often drift out of sync. High-end motors allow for precise RPM adjustments so both the sheer and blackout layers move at identical speeds. Pay attention to the decibel rating. A heavy blackout fabric on a wide window requires a high-torque motor, which can generate more noise. Aim for motors rated below 40dB to ensure your morning routine doesn't sound like a power drill.

Sun Tracking Automation

Advanced implementations utilize light sensors. You can program the sheer layer to lower automatically when the UV index hits a certain threshold, protecting your furniture, while keeping the blackout layer up until sunset.

Living with Dual Blind: Day-to-Day Reality

I have lived with a motorized dual roller shades setup in my master bedroom for two years now, and there are nuances specs won't tell you. The most jarring thing initially was the "robot hum" in a dead-silent room.

When I trigger my "Good Morning" scene, there is a distinct, mechanical whir. It’s not loud, but in the silence of 6:00 AM, it is noticeable. I actually had to stagger the automation: the blackout blind rises first, and then 10 seconds later, the solar shade adjusts. If they both run simultaneously, the harmonic resonance of two motors running next to each other inside the cassette creates a vibrating noise that is significantly louder than just one running alone.

Another detail is the "light gap." Because the two rollers have to sit slightly apart to avoid the fabrics rubbing together, there is a small gap where light can bleed through at the top if you don't have a top treatment. It’s a minor trade-off for the convenience of voice-controlled privacy, but it's something to be aware of if you demand 100% darkness.

Conclusion

Upgrading to smart dual roller blinds is a significant investment in hardware and setup time, but it fundamentally changes how you interact with your home. The ability to toggle between a view, filtered light, and total privacy via voice command or automation makes this one of the most functional smart home upgrades available.

Frequently Asked Questions

How long do batteries last in dual roller shades?

Depending on usage (typically one up/down cycle per day) and the weight of the fabric, modern Li-ion batteries last between 6 to 12 months. Since you have two motors per window, expect to charge them at different intervals.

Can I operate them manually during a power outage?

Generally, no. Most tubular motors disengage the manual chain mechanism. However, some hybrid models offer a "manual override" feature, though these are rare and expensive. Battery-powered units will continue to work during an outage, provided the battery is charged.

Do I need a hub for smart double roller blinds?

It depends on the connectivity. WiFi motors connect directly to your router but drain batteries faster. Zigbee and Z-Wave motors require a compatible hub (like SmartThings, Hubitat, or Amazon Echo 4th Gen). Thread-enabled motors require a Border Router (like a HomePod Mini or Nest Hub).
