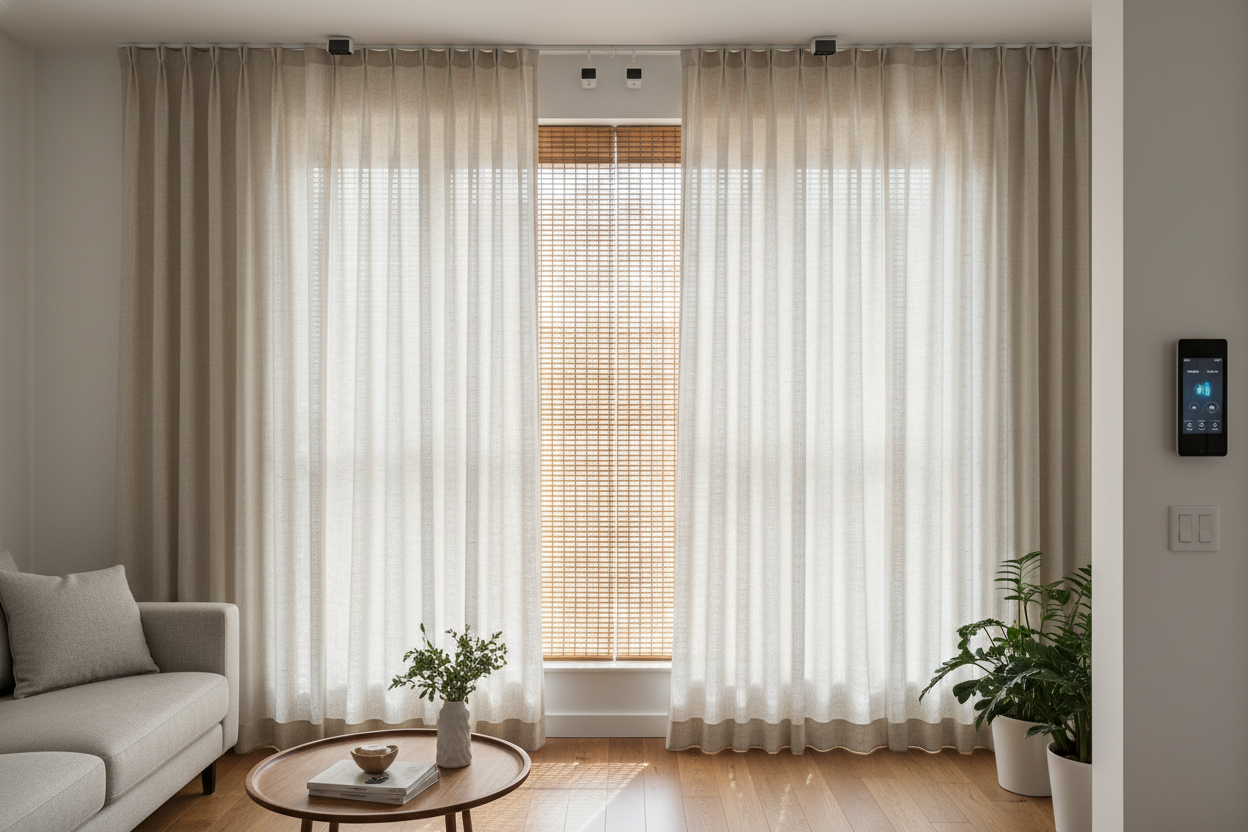

Automating Bamboo Shades with Drapes: A Dual-Motor Setup Guide

Imagine this: It’s movie night. You don't want to manually lower three separate blinds and tug heavy curtains shut. Instead, you say, "Alexa, Cinema Mode." Instantly, the woven wood texture of your bamboo shades with drapes lowers to filter the harsh streetlights, followed seconds later by the heavy velvet curtains gliding shut to provide total blackout and sound dampening. This isn't just about aesthetics; it’s about layering smart home technology for thermal efficiency and privacy.

Combining the natural, textured look of a bamboo shade curtain with the insulating properties of smart drapery offers the best of both worlds. However, automating two different window treatments on a single window requires careful planning regarding motor types, clearance depths, and hub compatibility.

Key Specs for Dual Automation

Before drilling holes, you need to understand the hardware requirements for driving both a roller mechanism (bamboo) and a traversing mechanism (drapes). Here is the breakdown for a typical dual-setup.

Feature	Smart Bamboo Motor (Tubular)	Smart Curtain Track (Linear)
Motor Type	Tubular motor inside the headrail	Belt-drive motor attached to track end
Power Source	Rechargeable Li-ion (USB-C) or 12V Hardwire	AC Plug-in (preferred) or Battery Pack
Connectivity	Zigbee 3.0, Thread, or RF (requires bond bridge)	WiFi (Tuya), Zigbee, or Matter
Weight Capacity	High torque needed (Bamboo is heavy)	Up to 110lbs (for heavy blackout drapes)

Installation Logistics: Rod vs. Track Depth

The biggest failure point when installing bamboo shades and curtains together is insufficient depth. Bamboo shades, unlike standard vinyl rollers, have a significant "stack" or roll diameter. As the shade rolls up, the diameter increases.

If you are mounting the bamboo shade inside the window frame (inside mount), ensure you have at least 3 inches of depth so the motor head doesn't protrude. If you are outside mounting both, you must use curtain rod brackets with a projection of at least 5-6 inches. This prevents the bamboo shade with curtains from rubbing against the fabric during operation, which can burn out the motor or fray the material.

Power Options for Dual Layers

Running power to a window is tricky enough; running it for two devices is harder. For the bamboo element, I almost always recommend a battery-powered tubular motor. Since bamboo shades are often left in a semi-fixed position (halfway down for privacy), the battery drain is minimal. You will likely only need to charge it twice a year.

For the drapes, however, try to use a hardwired (plug-in) motor if an outlet is nearby. Smart drapes tend to be heavier and are opened/closed more frequently. Mixing a battery shade with a hardwired curtain track ensures you aren't taking down the entire setup constantly for charging.

Smart Integrations and Noise Levels

Managing Noise (dB)

Not all motors sound the same. A cheap tubular motor in a bamboo shade can act like a resonator box due to the hollow headrail, producing a whine around 50dB. Look for motors labeled "soft start/stop" or "ultra-quiet" (sub-40dB). Curtain tracks are generally quieter, producing a low-frequency hum as the belt glides.

App Features and Grouping

To make this setup useful, you need to group the devices in your ecosystem (HomeKit, Google Home, Alexa). You don't want to issue two commands. Create a "Window" group. Advanced users should utilize light-sensing automations. For example, when the lux sensor hits a certain threshold, the bamboo shade lowers to protect furniture from UV rays, but the drapes remain open to keep the room bright.

Living with bamboo shades with drapes: Day-to-Day Reality

I’ve lived with this specific dual-motor setup in my living room for about eight months now, and there are sensory details the spec sheets don't tell you. The first thing I noticed was the "sync drift." Even though I grouped the bamboo shade and the drapes in the Alexa app to close at sunset, they rarely start at the exact same millisecond. The cloud processing usually triggers the WiFi curtain track first, followed by the Zigbee shade motor about 1.5 seconds later.

Another nuance is the visual texture at night. When the bamboo shade is down and the drapes are closed over it, the motor LED on the curtain track (if you don't tape over it) can cast a weird glow against the side of the bamboo slats. I had to use black electrical tape to cover the status light on the curtain motor.

Also, sound dampening is legitimate. The bamboo physically rattles slightly when the HVAC kicks on if it's alone. Once I added the heavy motorized drapes over them, that rattle disappeared completely. It creates a dead-silent acoustic environment that sheer curtains just can't replicate.

Conclusion

Automating a layered look requires a bit more hardware planning than a standard blind, but the payoff in thermal control and convenience is massive. By ensuring you have the correct bracket projection and mixing your power sources intelligently, you can modernize the classic look of bamboo and drapery.

Frequently Asked Questions

Can I manually pull the curtains if the power goes out?

Most high-quality smart curtain tracks (like SwitchBot or Aqara) have a "Touch & Go" feature where a manual tug activates the motor, but they also allow manual dragging when unpowered. Tubular motors for bamboo shades usually lock in place and cannot be moved manually without power.

Do I need a hub for this setup?

It depends on the motor protocol. If you choose WiFi motors, no hub is needed, but they consume more battery. For Zigbee or Thread motors (recommended for better response time), you will need a compatible gateway like an Echo Show, HomePod, or dedicated hub.

How long do the batteries last in bamboo shade motors?

For a standard window size (approx. 36x60 inches) operated twice daily, a Lithium-ion battery tube typically lasts 4 to 6 months before needing a recharge.
